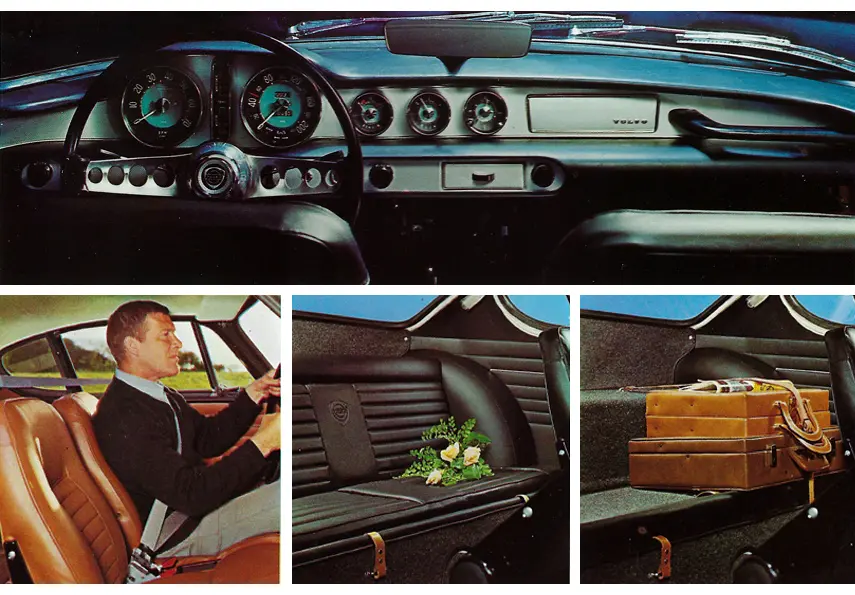

The Volvo 1800 S features an elegant interior with tasteful and well-thought-out appointments.

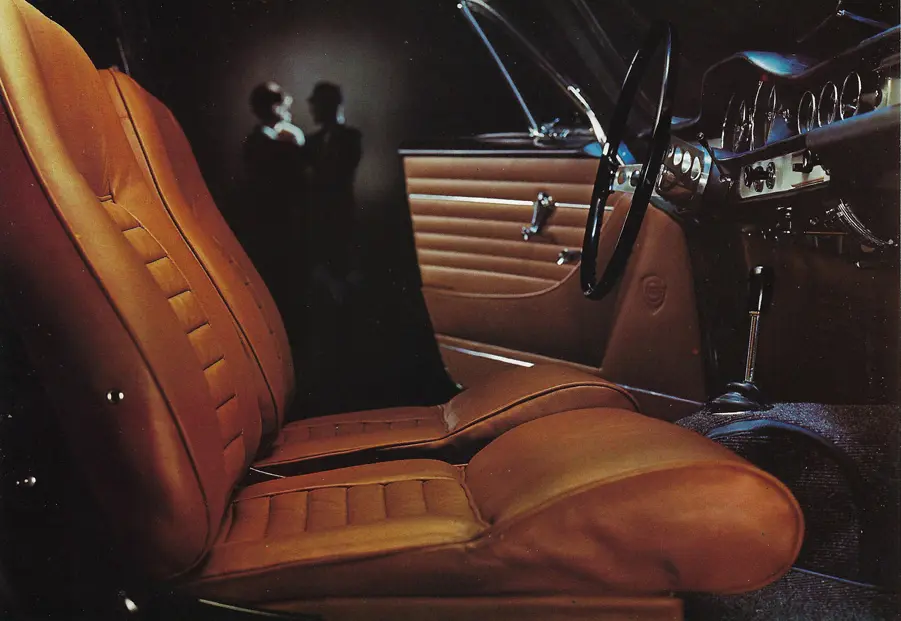

Comfortable seats—upholstered in first-class leather—offer many adjustment options for achieving the ideal driving position. The rear trim is made of textured vinyl. Elegant textile mats cover the floor and the transmission tunnel.
All levers and switches are functionally designed and positioned within easy reach. The instrumentation is comprehensive and clearly laid out. A footrest for the left foot is another practical advantage.
Engine 4-cylinder
Horsepower 6,000
Transmission (man)

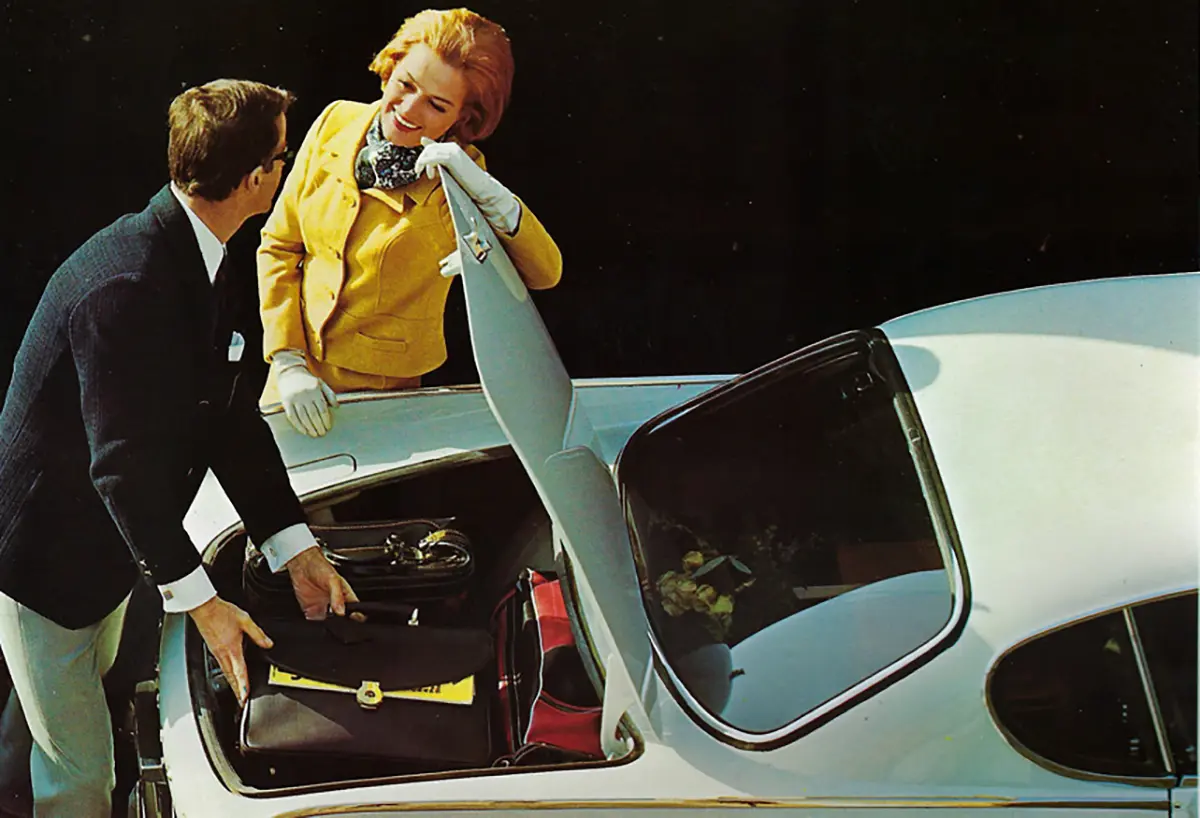

The Volvo 1800 S is very spacious. In addition to the two comfortable front seats, there is an occasional rear seat suitable for children or, for short trips, even an adult. The luggage compartment is generous. Furthermore, the backrest of the occasional seat can be folded down to create a large, flat loading area.
The thermostatically controlled fresh-air heating and defroster system is particularly powerful. The strong blower can be set to two speeds.
The safety of the occupants has also been carefully considered. The sun visors and dashboard are softly padded, and the windshield is made of laminated safety glass. Factory-installed three-point seat belts complete the safety equipment.

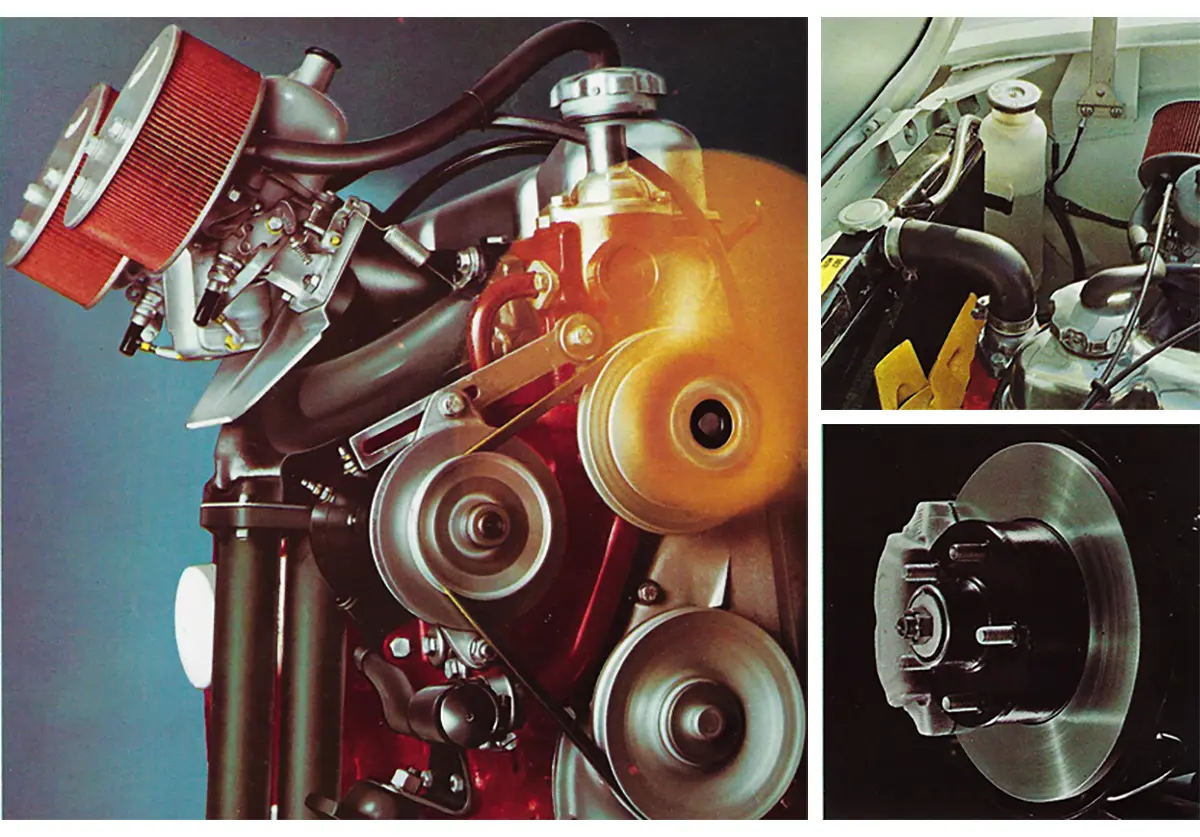

The B18 engine with 115 SAE hp (103 DIN hp) is eager to rev, lively, and robust. It delivers high torque across a broad rev range. You drive smoothly and effortlessly in city traffic, overtake quickly and safely thanks to the ample power reserve, and maintain high average speeds on the motorway.
The gearbox—four speeds plus overdrive—is fully synchronized. The short, sturdy gear lever offers precise shift action. The overdrive lowers engine speed at constant road speed, resulting in reduced engine noise and lower fuel consumption.
Servo-assisted front disc brakes and rear drum brakes ensure reliable stopping performance, even during spirited driving and repeated braking.
A brake force regulator in the rear brake line prevents the rear wheels from locking during sudden braking.
The Volvo 1800 S does not require periodic chassis lubrication.
It features a sealed cooling system, frost-protected down to –40°C.
The torsion-resistant, solidly built body receives a first-class anti-corrosion treatment with long-lasting protection.
The paint finish—three coats over primer and undercoat—has a hard, smooth surface that retains its protective qualities for a long time in any climate.
Its road holding is exceptional, providing safe and comfortable driving on all types of roads. The belted tires contribute to excellent grip and are well suited to sustained high speeds.
Engine – Type B18B 4-cylinder engine with overhead valves and five main bearings. Displacement: 1.78 litres. Maximum output: 115 SAE hp (103 DIN hp) at 6,000 (5,600) rpm. Maximum torque: 15.2 mkg at 4,000 rpm.
Cooling System Sealed system with antifreeze protection down to –40°C.
Battery Voltage: 12 volts.
Transmission Fully synchronized. Floor-mounted gear lever.
Overdrive Electrically operated via a lever under the steering wheel. Engages in 4th gear.
Steering Steering wheel turns from lock to lock: 3¾ turns. Turning circle: Between curbs: 9.1 m. Outside edge of body: 10.0 m.
Foot Brake Hydraulic brakes with servo assistance. Front: Disc brakes. Rear: V-type drum brakes.
Handbrake Mechanical, acting on the rear wheels. Handbrake lever located between the driver’s seat and the door.
Fuel Tank Mounted at the rear. Capacity: 45 litres.
Lighting Headlight flasher operated via the turn signal lever. Front and rear indicator lights. Foot-operated dimmer switch. Automatic reversing lights. Interior lighting switches on automatically when a door is opened. Dashboard lighting continuously adjustable. Map reading lamp.
Instruments Speedometer with total and trip odometer. Tachometer. Water and oil temperature gauges. Oil pressure gauge. Fuel gauge. Warning lights for battery charging, high beam, turn signals, and overdrive. Clock.
Other Equipment Fresh-air heating and defroster system with thermostatic temperature control. Fan with two speeds. Separate air inlets for direct fresh air. Electric windshield wipers with two speeds. Electric windshield washer. Padded sun visors. Anti-glare rearview mirror. Provision for radio installation. Map and glove pockets under the dashboard. Grab handle. Cigar lighter. Ashtray. Tool kit and jack. Spare wheel. Mud flaps.
Seat Belts Three-point seat belts for both front seats.
Key Dimensions and Weights Wheelbase 2,450 mm. Track width 1,315 mm. Overall length 4,400 mm. Overall width 1,700 mm. Height (unladen) 1,285 mm. Ground clearance 155 mm. Curb weight (with full tank) 1,120 kg.
