Buckle up and turn it up – Mitsubishi have amped things up to eleven in the new Outlander. With front row massage seats, stadium-quality Dynamic Yamaha Sound throughout, a panoramic sunroof, bold lines and a show-stopping leather interior, new Outlander is ready to roll on your next adventure.
Capacity
Max Power (kW)
Max Torque (Nm)

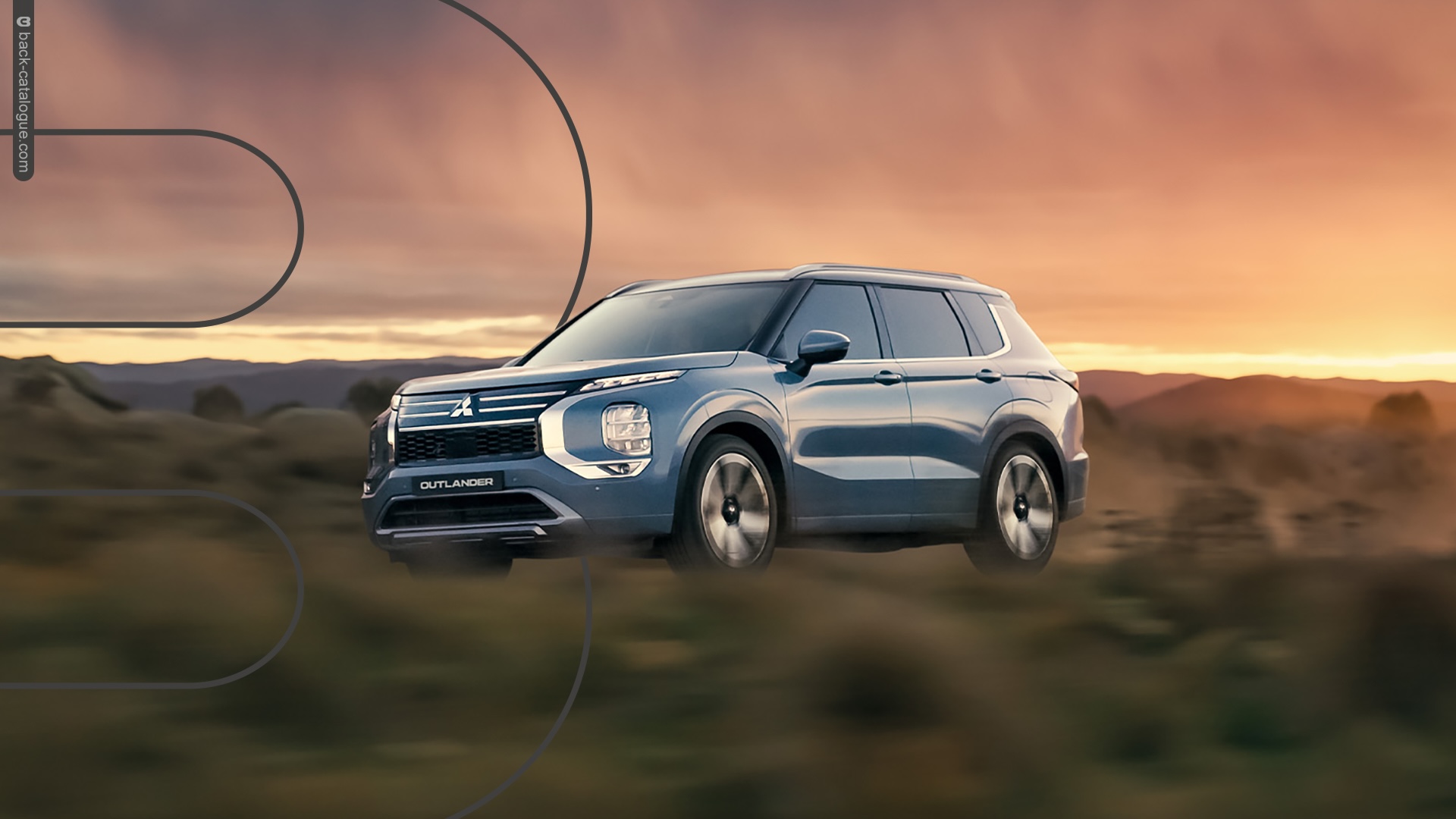

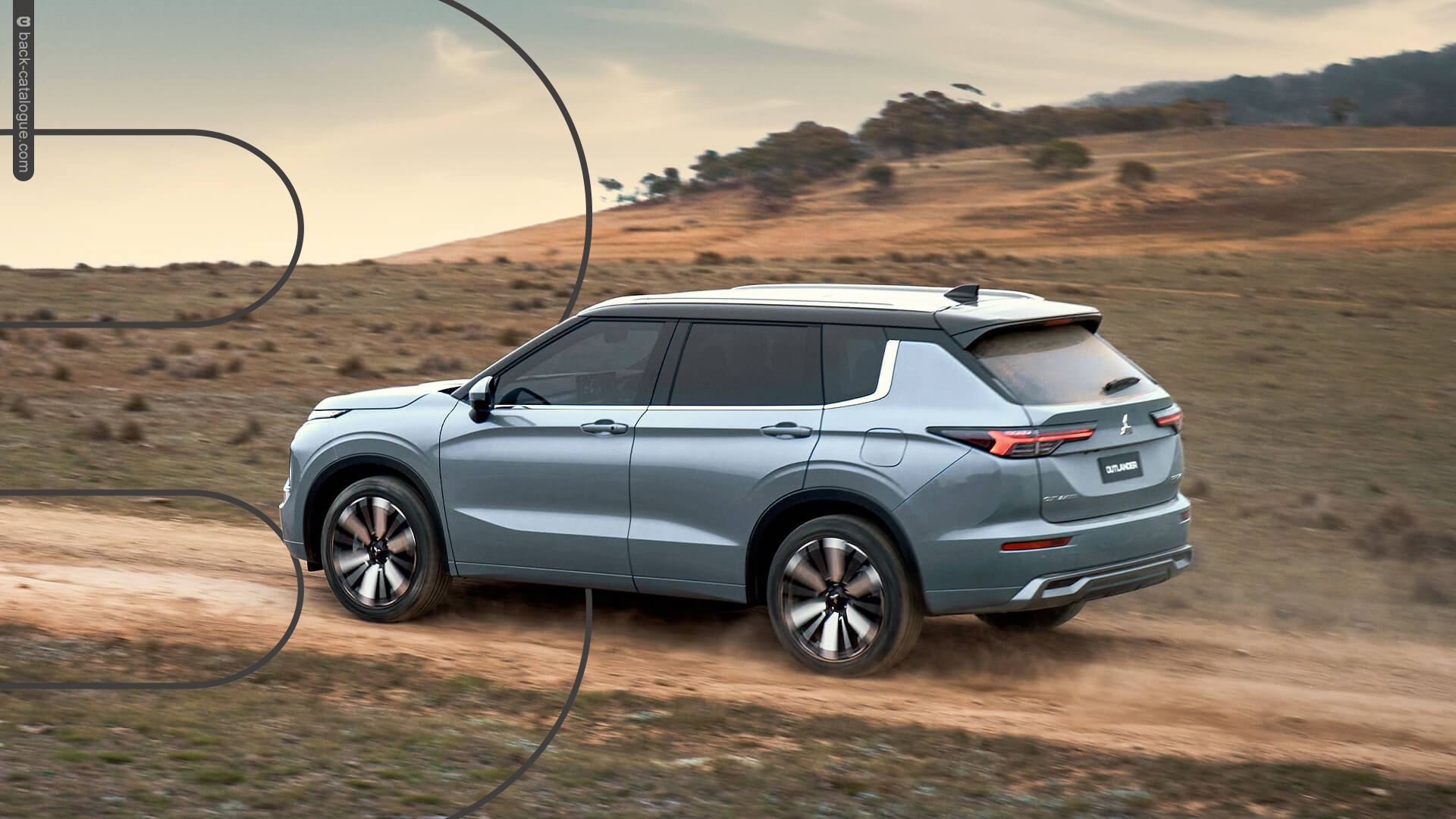

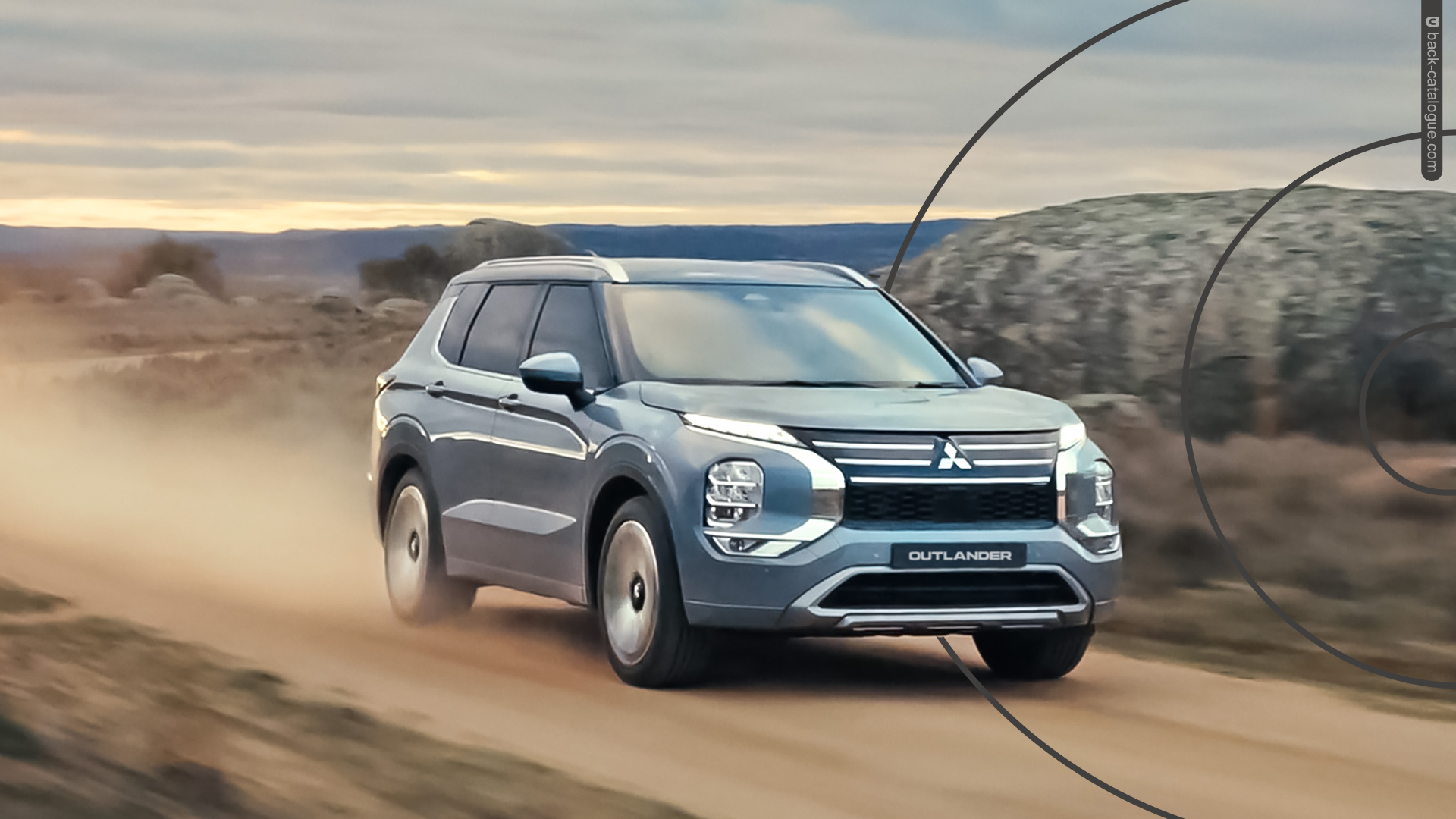

Agile and adventurous, the new Outlander stands proud with distinctive LED headlights, sculpted sides, horizontal rear profile, and head-turning 20 inch alloys*. Plus, you’re always ready to rock with Mitsubishi’s legendary Super-All Wheel Control technology – giving you the green light to tackle any terrain and never miss a beat.

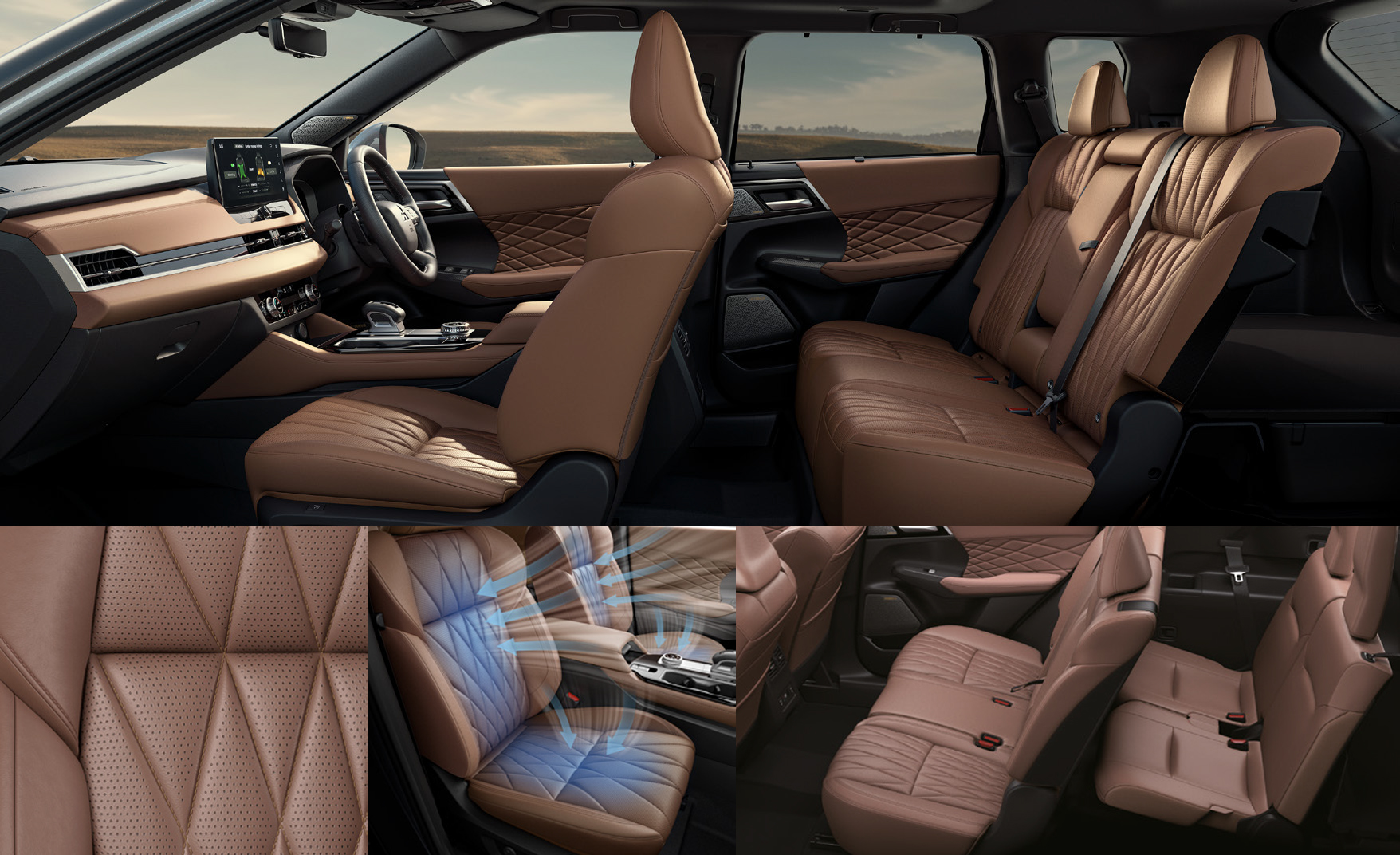

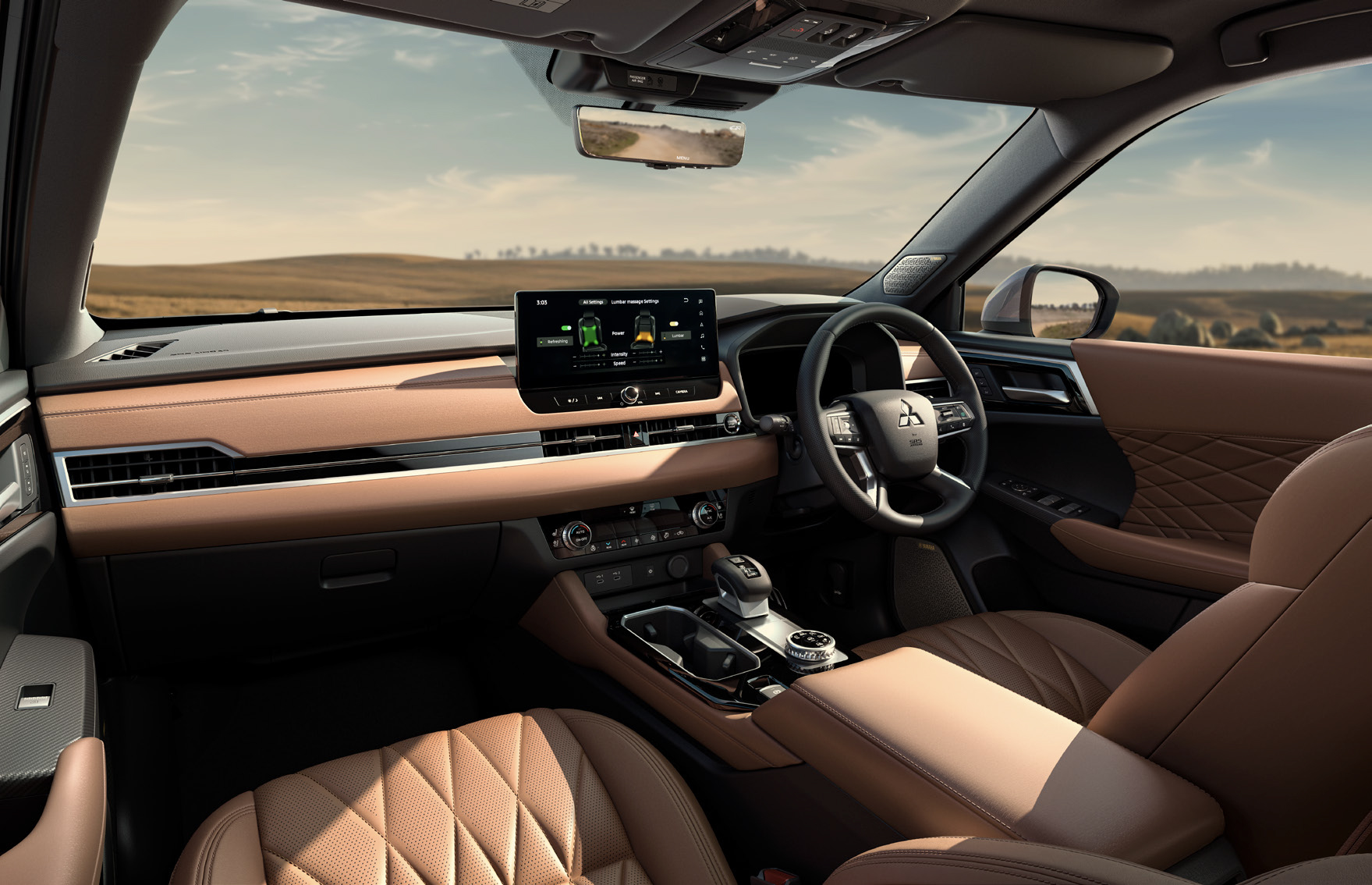

The new Outlander’s interior space is expertly crafted down to the finest detail. From the exacting finish of the trim materials to the cosy support of the climate-responsive seating, you’ll always adventure in luxury and comfort.
Ventilated Front Seats. For greater driving comfort, especially in warm weather, ventilation from the back rest and seat base draw out and disperse unwanted hot air.
Heated front and second row seats. Heated seat cushions and seat backs swiftly warm up to provide you welcome comfort on chilly travel days.
As well as the enhanced acceleration, cornering, and braking provided by the new Outlander’s Super All-Wheel Control (S-AWC)*, there are also six^ specialised drive modes to handle any terrain you take on. Whether you’re navigating busy city streets, conquering slippery off-road trails, or tackling everything in-between, these performance enhancers adapt to the task, delivering the control, confidence and experience you want.
Drive modes can be selected based on the road surface and the driver’s preference.
Super All-Wheel Control (S-AWC). S-AWC – new Outlander’s full-time integrated 4WD control system – optimises driving and braking force for each wheel, enhances acceleration, improves cornering, and increases stability in all driving conditions.
4WD. For excellent traction performance, the electronically-controlled 4WD precisely distributes driving force between the front and rear tyres instantly.
AYC. Provides optimal control of drive/braking force between right and left wheels to achieve high turning performance and driving stability.
ASC. Controls braking force and motor output to prevent skidding whilst driving and tyre spinning when starting.
ABS. Prevents tyres from locking during emergency braking and steering wheel operation.

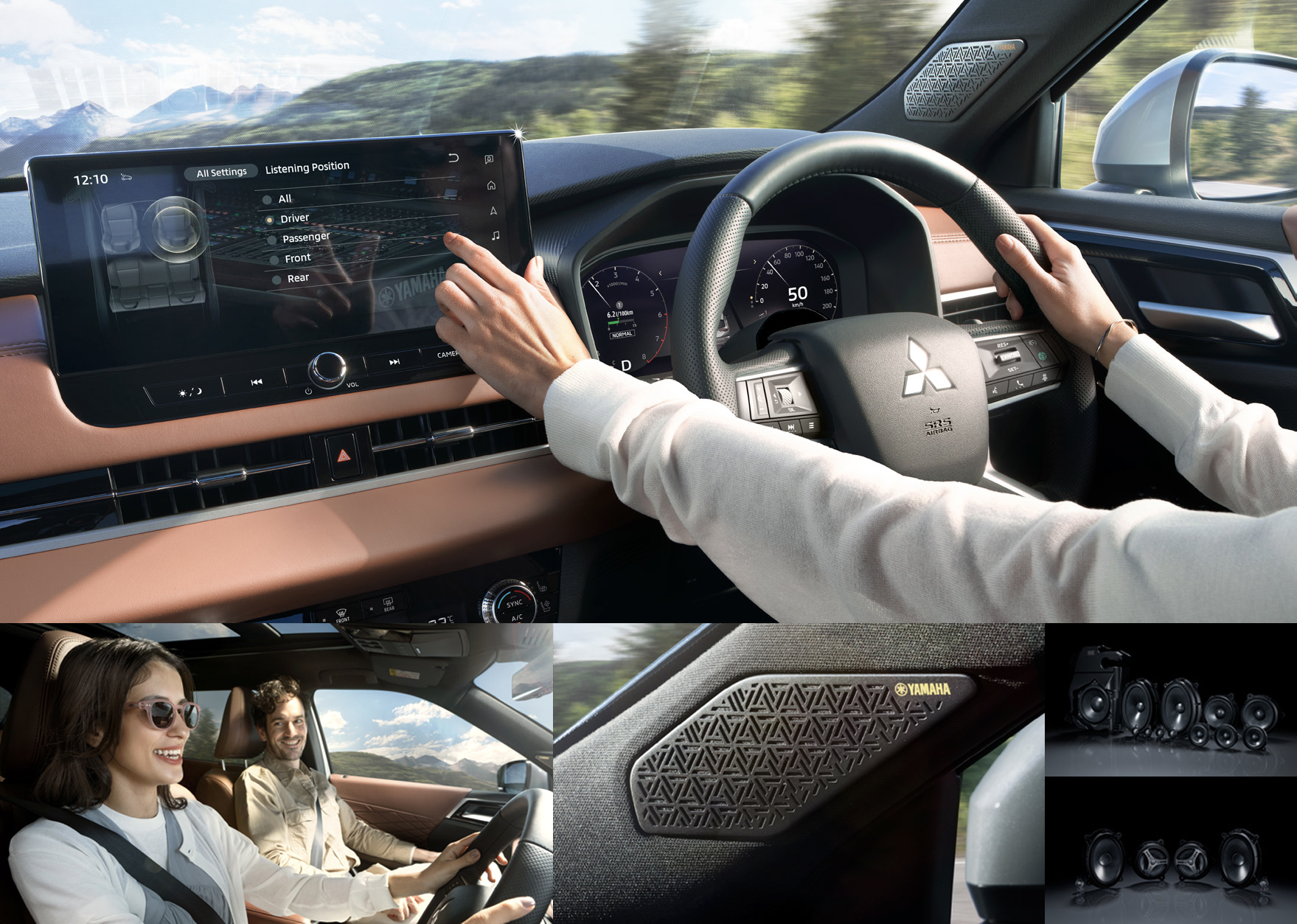

Mitsubishi’s exceptional engineering works in concert with Yamaha’s legendary craftsmanship to deliver the ultimate soundtrack to your adventures. Outlandishly immersive sound quality and a range of listening modes lets you optimise every drive with the push of a button.
Dynamic Sound Yamaha Ultimate. Inspired by Yamaha’s flagship NS-5000 speaker, 12 dedicated speakers are employed, with the front 3-way configuration delivering localised instruments and vocals high up for enhanced sound presence.
Dynamic Sound Yamaha Premium. Powerful bass and clear highs are achieved in a compact 2-way system comprising 8 speakers. The rear speakers feature woofers and tweeters integrated into a single unit to enable a wide range of sound expression.
Choose your own sound. You have the choice of four sound modes* and a range of listening positions to perfectly suit your mood. In addition, Speed Compensated Volume (SCV) provides consistent audio quality across all driving situations.
High quality audio with Speed Compensated Volume (SCV). You can enjoy high quality audio even on rough roads or at high speeds. To maintain clear bass sounds, both volume and equalisers are adjusted based on vehicle speed through the SCV function. In addition, five listening position settings allow you to enjoy ideal sound even more.
Four sound modes* in tune with listeners’ emotion. LIVELY - Ideal for energetic beats and crisp vocals – you’ll feel like dancing while you’re driving (but we don’t recommend it). SIGNATURE - Brings out the emotive tones and textures of vocals and instrumentation for an immersive journey. POWERFUL - Feel the power coursing through you as it elevates your mood and makes the drive even more fun. RELAXING - Enjoy the passing scenery and the conversation while soothing background music enhances the ride.
Designed with a luggage compartment spacious enough for any adventure, the new Outlander also offers flexible seat configurations to accommodate items both long and large. Just a tip: alongside your gear, you’ll be bringing home some awesome memories too.

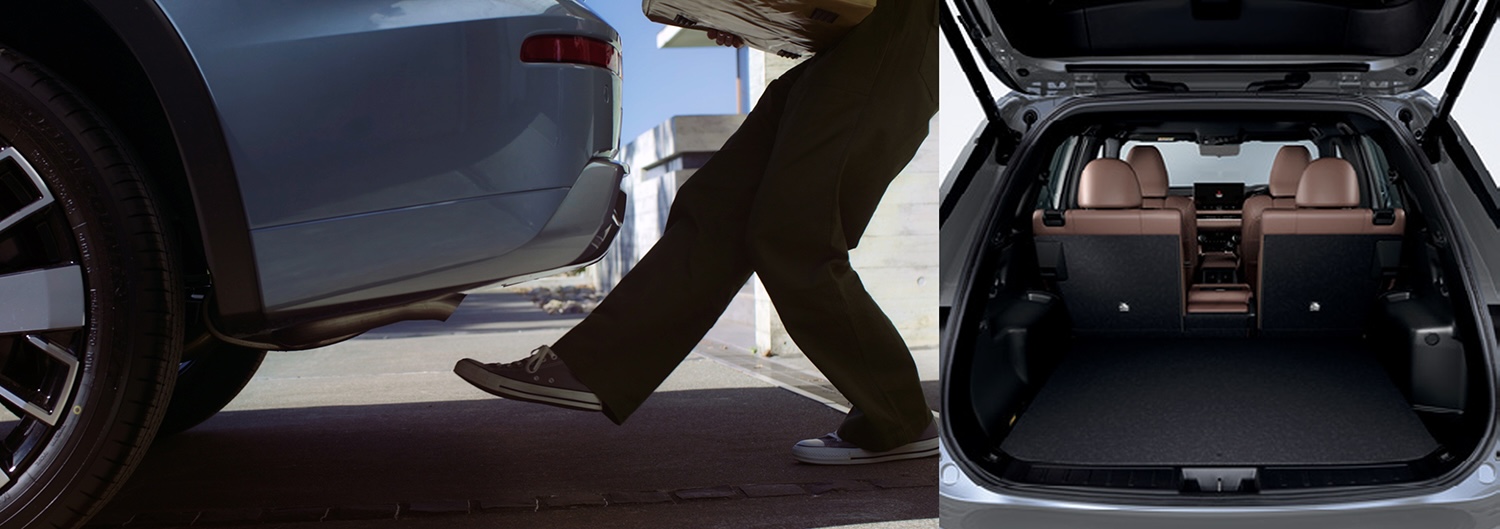

Power remote tailgate with hands-free access. Open the rear tailgate hands-free by placing your foot under the rear bumper. The tailgate’s opening height is adjustable to fit under varied garage ceiling heights.
Cargo room. The enhanced cargo room and wider gate opening make loading and unloading luggage a more convenient and hassle‑free experience. 1. Height: 51.8cm. 2. Width: 107cm. 3. Depth: 97.4cm.
The new Outlander comes equipped with a wide range of helpful innovations. From advanced driving technologies to enhanced comfort and convenience features, they’re all designed to make you a happier, more confident driver.

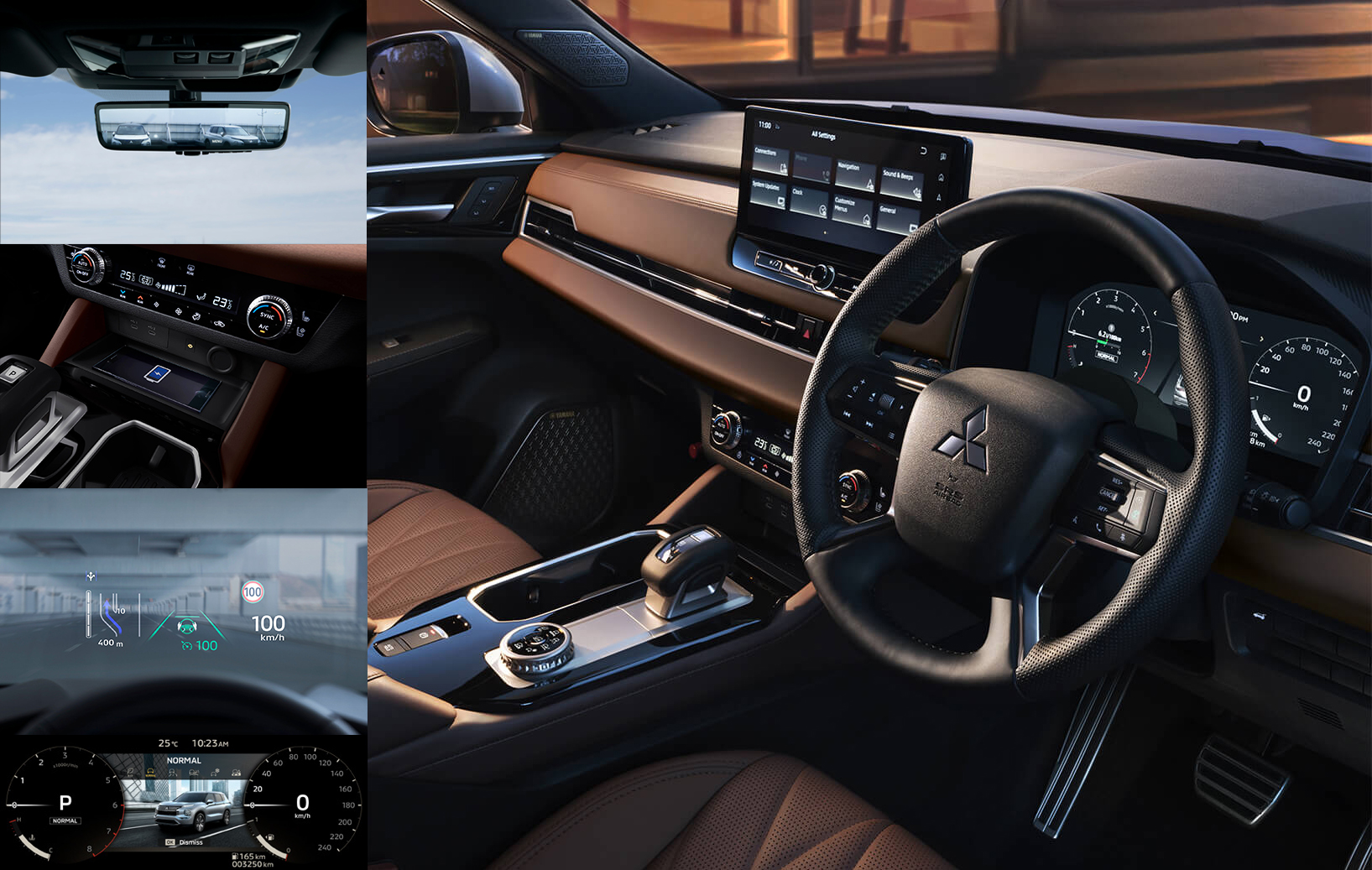

Advanced equipment. The new Outlander is equipped with advanced features that enhance rearward visibility and reduce driving fatigue. Additionally, a wireless charger lets you simply place your device on the charging pad.
Windscreen Head‑Up Display (HUD). The large 10.8", full-colour windscreen Head-Up Display allows essential driver assistance and navigation information to be shown within the drivers forward field of view for improved driver awareness and reduced eye movement from the road ahead.
Frameless Rearview Mirror with Digital Monitor. A frameless, auto-dimming rearview mirror with digital monitor displays reward image using a camera mounted in the rear windscreen providing clear, unobstructed rearward view even if cargo or passengers completely block the driver direct rearward visibility.
Smartphone wireless charger. The front console tray features a wireless charger that allows Qi-enabled smartphones to charge simply by placing them on it, eliminating the need for a charge cable.
Full Digital Driver Display. A wide 12.3" full digital driver display offers crisp and clear view for fast comprehension of important driver information,as well as customisable views and access to vehicle and driver assist menu options.

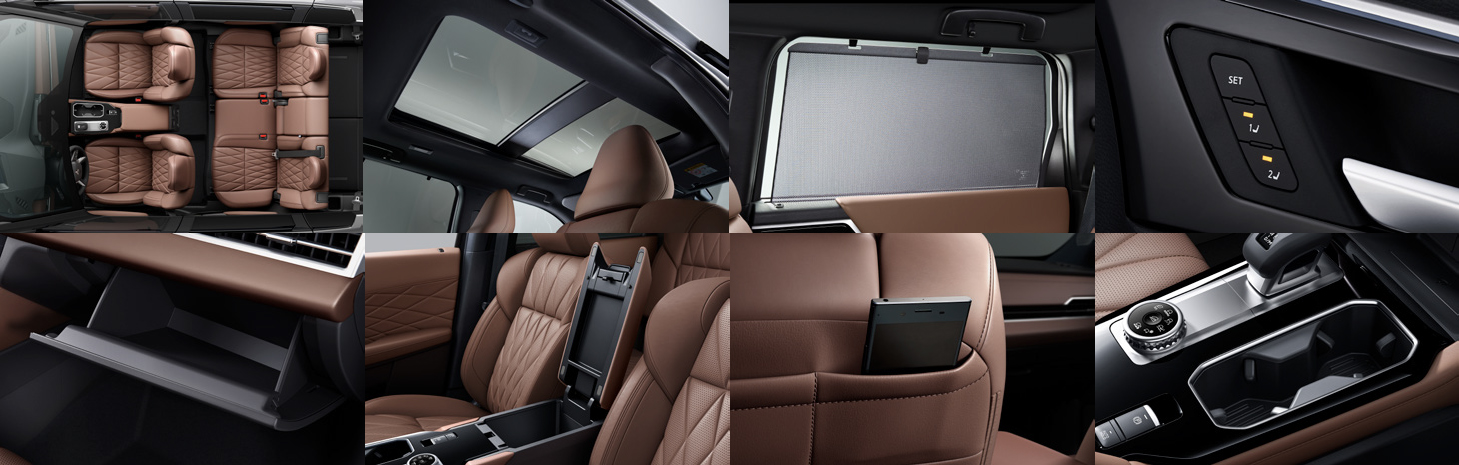

The new Outlander’s interior is designed to provide a more comfortable cabin space. No matter which seat you choose, every passenger can enjoy a relaxing travel experience.
3-zone automatic air conditioning. Temperature settings can be adjusted independently for the driver, front passenger and rear seats. Rear-seat air outlets and control switches are conveniently located on the back of the floor console.
Power panoramic sunroof. The panoramic power sunroof features a wider opening to add a more spacious feel to the interior
Pull-up type sunshade. A sunshade extends from the rear door trim to effectively reduce glare from direct sunlight, further enhancing rear seat comfort.
Powered seating memory. Along with the memory switch, the registered driver/front passenger seat and side mirror positions can be recalled. Also linked to the key is the driver memory settings, including air-conditioning and navigation preferences.
Glove box. A glove box on the instrument panel opens to provide ample storage space for small travel items.
Floor console box with armrest. An easy-to-reach floor console box situated between the front seats offers another versatile storage option.
Front seatback pockets. Convenient seatback pockets provide storage for smartphones, keys and other small essentials.
Bottle holders. The bottle/cup holders are carefully positioned to be in easy and safe reach for the driver.
| ES 5 SEAT | LS 5+2 SEAT | ASPIRE 5+2 SEAT | ||
| Engine | ||||
| Type | 2.5L DOHC 4-cylinder Direct-injection | |||
| Size (L) | 2.5 | |||
| Compression ratio | 12.0:1 | |||
| Displacement (cc) | 2488 | |||
| Bore x Stroke (mm) | 89.0 x 100.0 | |||
| Maximum Power (kW@rpm) | 135 @ 6000 | |||
| Maximum Torque (NM@rpm) | 244 @ 3600 | |||
| Fuel Type | Unleaded (minimum 91 RON recommended) | |||
| Fuel consumption (ADR 81/02 per 100km)* | 7.5 | 7.7 | 7.7 | |
| CO2 - g/Km | 170 | 174 | 174 | |
| Fuel tank capacity (L) | 55 | |||
| Transmission | ||||
| Type | CVT Automatic | |||
| Number of speeds | 8 | |||
| Paddle shift | ■ | |||
| Preset ratios | 2.631 - 0.390 | |||
| Gear ratio 1st | 2.631 | |||
| 2nd | 1.756 | |||
| 3rd | 1.293 | |||
| 4th | 1.009 | |||
| 5th | 0.799 | |||
| 6th | 0.635 | |||
| 7th | 0.504 | |||
| 8th | 0.390 | |||
| Reverse | 1.960 | |||
| Final drive ratio | 5.694 | |||
| Super All Wheel Control (S-AWC) | – | – | – | |
| Active Yaw Control (AYC) | ■ | |||
| Chassis | ||||
| Front brakes | Ventilated disc (320 mm) | Ventilated disc (350 mm) | ||
| Rear brakes | Disc (292 mm) | Disc (330 mm) | ||
| Front suspension | Macpherson strut with stabiliser bar | |||
| Rear suspension | Multi-link with stabiliser bar | |||
| Wheels and Tyres | ||||
| Wheel type | Alloy (silver finish) | Alloy (two tone) | Alloy (two tone) | |
| Wheel size (inches) | 18 x 7.5J | 20 x 8J | ||
| Tyre size | 235/60R18 103H | 255/45R20 101W | ||
| Spare wheel type | Full size - alloy | Space saver | ||

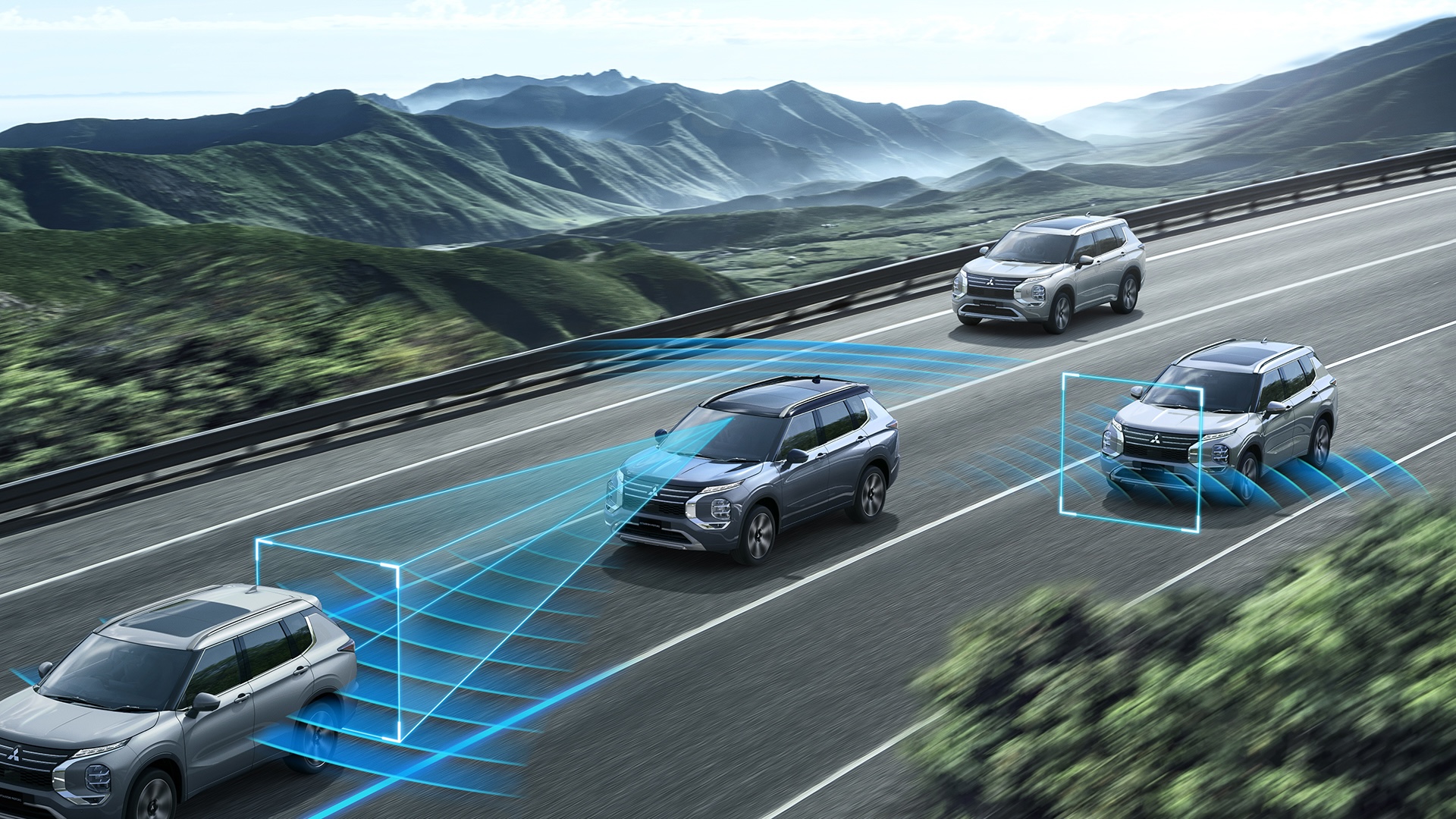

| Advanced Driver Assist Systems | ||||
| Lane Keep Assist (LKA) | – | – | ■ | |
| Lane Departure Warning (LDW) | ■ | ■ | ■ | |
| Lane Departure Prevention (LDP) | ■ | ■ | ■ | |
| Emergency Lane Assist (ELA) | ■ | ■ | ■ | |
| Blind Spot Warning (BSW) | ■ | ■ | ■ | |
| Driver Monitoring System (DMS) | ■ | ■ | ■ | |
| Rear Cross Traffic Alert (RCTA) | ■ | ■ | ■ | |
| Forward Collision Mitigation system (FCM) with Pedestrian detection | ■ | ■ | ■ | |
| Predictive Forward Collision Warning (PFCW) | ■ | ■ | ■ | |
| Driver Attention Alert | ■ | ■ | ■ | |
| Rear Automatic Emergency Braking | ■ | ■ | ■ | |
| Emergency Brake Assist system (EBA) | ■ | ■ | ■ | |
| Active Stability Control (ASC) | ■ | ■ | ■ | |
| Trailer Stability Assist (TSA) | ■ | ■ | ■ | |
| Active Traction Control (ATC) | ■ | ■ | ■ | |
| Anti-lock Braking System (ABS) | ■ | ■ | ■ | |
| Electronic Brakeforce Distribution (EBD) | ■ | ■ | ■ | |
| Airbags | ||||
| Driver & front passenger SRS airbags | ■ | ■ | ■ | |
| Driver & front passenger side SRS airbags | ■ | ■ | ■ | |
| Curtain SRS airbags | ■ | ■ | ■ | |
| Driver knee airbag | ■ | ■ | ■ | |
| Center airbag | ■ | ■ | ■ | |
| Seat Belts | ||||
| Front seat belt pretensioners | ■ | ■ | ■ | |
| 2nd Row seats w/ seatbelt reminder sensor | ■ | ■ | ■ | |
| 3rd Row seats w/ seatbelt reminder sensor | – | ■ | ■ | |
| Child Safety | ||||
| ISO-Fix child seat anchorage | 2 | 2 | 2 | |
| Child restraint top tether | 3 | 3 | 3 | |
| Child proof rear door locks | ■ | ■ | ■ | |
| Power window lock driver control - passenger windows | ■ | ■ | ■ | |
| Rear seat alert | ■ | ■ | ■ | |
| Driver Assistance | ||||
| Full Colour Digital Driver Display | 12.3" | 12.3" | 12.3" | |
| Head Up Display (HUD) | – | – | 10.8" | |
| Traffic Sign Recognition | ■ | ■ | ■ | |
| Intelligent Speed Assistance | ■ | ■ | ■ | |
| Digital Speedometer | ■ | ■ | ■ | |
| Adaptive Cruise Control (ACC) | ■ | ■ | ■ | |
| Cruise Control | ■ | ■ | ■ | |
| Traffic Jam Assist (TJA) | – | – | ■ | |
| Adjustable Speed limiter | ■ | ■ | ■ | |
| Electric Park Brake | ■ | ■ | ■ | |
| Brake Auto Hold | ■ | ■ | ■ | |
| Brake Override System (BOS) | ■ | ■ | ■ | |
| Emergency Stop Signal function (ESS) | ■ | ■ | ■ | |
| ECO Drive Mode | ■ | ■ | ■ | |
| Terrain Drive Modes | 5 | 5 | 5 | |
| Hill Start Assist (HSA) | ■ | ■ | ■ | |
| Hill Descent Control (HDC) | ■ | ■ | ■ | |
| Electrochromatic rear view mirror | ■ | ■ | ■ | |
| Digital Rear view mirror | – | – | – | |
| Automatic dusk sensing headlights | ■ | ■ | ■ | |
| Automatic High Beam (AHB) | ■ | ■ | ■ | |
| Adaptive Driving Beam | – | – | ■ | |
| Automatic rain sensing wipers | – | ■ | ■ | |
| Speed sensitive intermittent windscreen wipers | ■ | ■ | ■ | |
| Rear wiper and washer | ■ | ■ | ■ | |
| Intermittent rear wiper and washer | ■ | ■ | ■ | |
| Parking Assistance | ||||
| Multi Around Monitor (MAM) | ■ | ■ | ■ | |
| Rear view camera | ■ | ■ | ■ | |
| Front parking sensors | ■ | ■ | ■ | |
| Rear parking sensors | ■ | ■ | ■ | |
| Security | ||||
| Auto door lock | ■ | ■ | ■ | |
| Theft protection alarm | ■ | ■ | ■ | |
| Encrypted engine immobiliser | ■ | ■ | ■ | |
| Connected Services | ||||
| Mitsubishi Connect | – | ■ | ■ | |
| Emergency Call System (E-call) | – | ■ | ■ | |
| Audio & Multimedia | ||||
| Smartphone link Display Audio (SDA) with touch screen | ■ | ■ | ■ | |
| Screen size (inches) | 12.3 | 12.3 | 12.3 | |
| Wireless Apple CarPlay | ■ | ■ | ■ | |
| Wireless Android Auto | ■ | ■ | ■ | |
| Satellite navigation | – | ■ | ■ | |
| Premium audio | ||||
| Speakers | 8 | 8 | 8 | |
| Subwoofer | – | – | – | |
| Bluetooth connectivity with voice control & audio streaming | ■ | ■ | ■ | |
| Digital Audio Broadcast (DAB) radio | ■ | ■ | ■ | |
| AM/FM radio | ■ | ■ | ■ | |
| USB input | 2 | 2 | 2 | |
| Comfort & Convenience | ||||
| Smart key | - | ■ | ■ | |
| One touch start system | ■ | ■ | ■ | |
| Keyless entry with central door locking | ■ | ■ | ■ | |
| Multifunction steering wheel controls | ■ | ■ | ■ | |
| Tilt & telescopic steering column | ■ | ■ | ■ | |
| Auto up/down driver control - all windows | - | ■ | ■ | |
| Auto up/down driver control - driver side window | - | ■ | ■ | |
| Side and rear window demisters | ■ | ■ | ■ | |
| Panoramic roof | - | - | - | |
| Electric sunroof with slide and tilt | - | - | - | |
| Sunshade in rear door | - | - | - | |
| Power tailgate | - | - | ■ | |
| Hands-free power tailgate | - | - | - | |
| Cargo Cover | - | ■ | ■ | |
| Smartphone wireless charger | - | ■ | ■ | |
| Accessory socket (12V) | 2 | 2 | 2 | |
| Console box USB power supply | ■ | ■ | ■ | |
| Second row seat USB power supply | 2 | 2 | 2 | |
| Air Conditioning | ||||
| Climate control (No of zones) | 2 | 2 | 2 | |
| Rear zone air conditioning control | - | - | - | |
| Rear air conditioning vents | ■ | ■ | ■ | |
| Dust and pollen filter | ■ | ■ | ■ | |
| Exterior | ||||
| Door handles | Body colour | |||
| Two-tone body colour | - | |||
| Privacy glass | - | ■ | ■ | |
| Roof rails | - | ■ | ■ | |
| Rear spoiler | ■ | ■ | ■ | |
| Wheel arch moulding | Material black | |||
| Lights | ||||
| Headlights low beam | LED | |||
| Headlights high beam | LED | |||
| Headlight levelling function | Manual | Manual | Automatic | |
| Daytime Running Lights (DRL) | LED | |||
| Fog lights (front) | - | LED | LED | |
| Fog light (rear) | LED | |||
| Brake lights | LED | |||
| Door Mirrors | ||||
| Electric adjustment | ■ | ■ | ■ | |
| Electric fold control | - | ■ | ■ | |
| Heating function | - | ■ | ■ | |
| Integrated turn indicator | - | - | - | |
| Memory function | - | - | - | |
| Reverse auto tilt | - | - | - | |
| Finish | Body colour | |||
| Styling | ||||
| Leather bound steering wheel | - | ■ | ■ | |
| Heated steering wheel | - | - | ■ | |
| Leather bound gearshift | - | ■ | ■ | |
| Aluminium pedals | - | - | - | |
| Carpet floor covering | ■ | ■ | ■ | |
| Seating | ||||

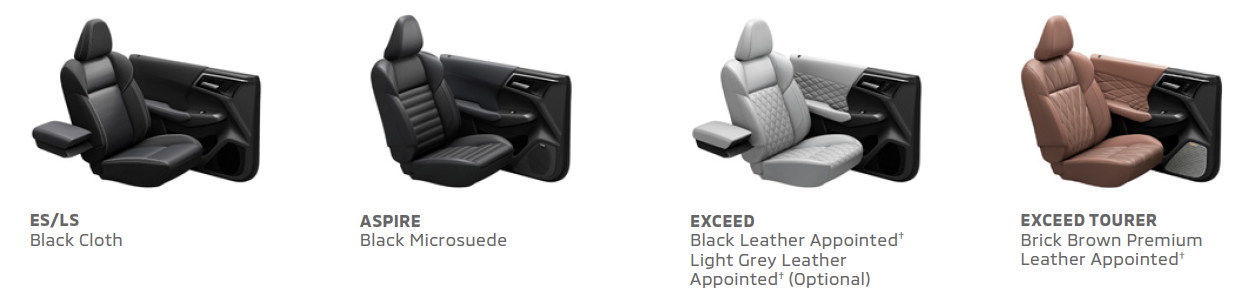

| Leather appointed seats | - | - | - | |
| Black Microsuede | - | - | ■ | |
| Fabric seat trim | ■ | ■ | ■ | |
| Heated front seats | - | - | ■ | |
| Ventilated front seats | - | - | - | |
| Driver’s seat power adjustment | - | - | ■ | |
| Driver’s seat manual adjustment | ■ | ■ | - | |
| Driver’s seat lumbar adjustment | ■ | ■ | ■ | |
| Driver’s seat memory function | - | - | - | |
| Driver’s seat massage function | - | - | - | |
| Front passenger’s seat power adjustment | - | - | - | |
| Front passenger’s seat manual adjustment | ■ | ■ | ■ | |
| Front passenger’s seat memory function | - | - | - | |
| Front passenger’s seat massage function | - | - | - | |
| 2nd row centre armrest with cupholders | ■ | ■ | ■ | |
| 2nd row split folding function | 40:20:40 | |||
| 2nd row slide and recline adjustment | - | ■ | ■ | |
| 2nd row recline adjustment | ■ | ■ | ■ | |
| 2nd row seat with heated cushion and back | - | - | - | |
| One touch fold seat storage | ■ | ■ | ■ | |
| 3rd row split folding function | - | ■ | ■ | |
| 3rd row recline adjustment | - | ■ | ■ | |
| Storage | ||||
| Centre console with storage box and lid | ■ | ■ | ■ | |
| Cup holders | 4 | 4 | 4 | |
| Bottle holders | 6 | 6 | 6 | |
| Sunglasses storage | ■ | ■ | ■ | |
| Door pockets - front and rear | ■ | ■ | ■ | |
| Seat back pocket - driver and passenger | ■ | ■ | ■ | |

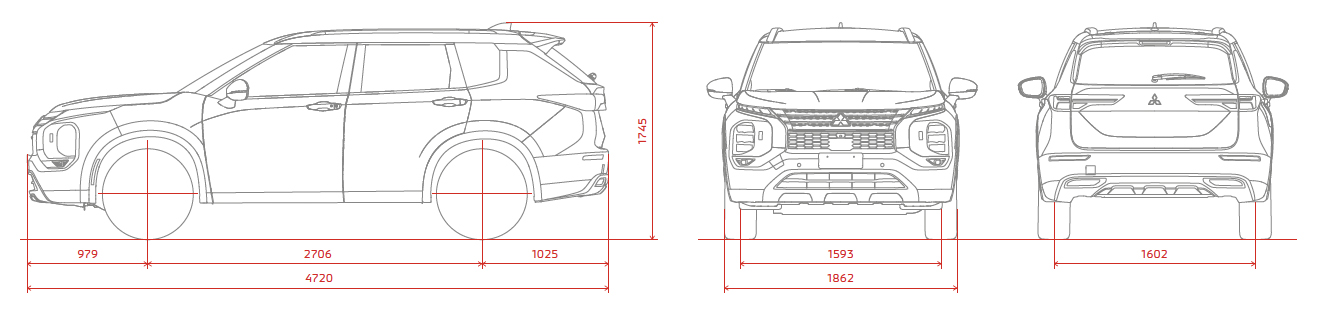

| Exterior Dimensions | ||||
| Overall length (mm) | 4720 | |||
| Overall width (mm) | 1862 | |||
| Overall height (mm) | 1742 | 1745 | ||
| Wheelbase (mm) | 2706 | |||
| Turning circle, kerb to kerb (m) | 11.2 | |||
| Approach angle (degrees) | 18 | 18.3 | ||
| Departure angle (degrees) | 22 | 22.2 | ||
| Ramp breakover angle (degrees) | 17.8 | 18.1 | ||
| Ground clearance (mm) - minimum, unladen | 205 | 210 | ||
| Interior Dimensions | ||||
| Front head room (mm) | 1031 | |||
| Front leg room (mm) | 1059 | |||
| Front shoulder room (mm) | 1470 | |||
| 2nd row head room (mm) | 993 | |||
| 2nd row leg room (mm) | 1014 | |||
| 2nd row shoulder room (mm) | 1420 | |||
| 3rd row head room (mm) | - | 875 | ||
| 3rd row leg room (mm) | - | 474 | ||
| 3rd row shoulder room (mm) | - | 1300 | ||
| Weights and Capacities | ||||
| Kerb mass (kg) | 1585 | 1640 | 1640 | |
| Gross vehicle mass (GVM) - [kg] | 2245 | 2350 | 2350 | |
| Gross combination mass (GCM) - [kg] | 3845 | 3950 | 3950 | |
| Maximum payload (kg) | 660 | 710 | 710 | |
| Maximum front axle load (kg) | 1210 | |||
| Maximum rear axle load (kg) | 1365 | |||
| Towing capacity - braked (kg) | 1600 | |||
| Towing capacity - unbraked (kg) | 750 | |||
| Towing capacity - maximum towball load (kg) | 160 | |||
| Maximum roof load (kg) | 80 | |||
| Cargo | ||||
| Capacity (L) - VDA (to top of 2nd row seat back) | 485 | 478 | ||
| Capacity (L) - VDA (to top of 3rd row seat back) | - | 163 | ||
| Capacity (L) - VDA (max. capacity to roof - all rear seats folded) | 1466 | 1461 | ||
| Cargo room length (mm) - all seats up | 941 | 974 | ||
| Cargo room length (mm) - with all rear seats folded | 1717 | |||
| Cargo room length (mm) - with 3rd row seats folded | - | 974 | ||
| Cargo room width (mm) | 1380 | |||
| Cargo room height (mm) | 870 | |||
| Width between wheel arches (mm) | 1070 | |||
| ES 5 SEAT | LS 5+2 SEAT | ASPIRE 5+2 SEAT | EXCEED 5 SEAT | EXCEED TOURER 5 SEAT | |
| Engine | |||||
| Type | 2.5L DOHC 4-cylinder Direct-injection | ||||
| Size (L) | 2.5 | ||||
| Compression ratio | 12.0:1 | ||||
| Displacement (cc) | 2488 | ||||
| Bore x Stroke (mm) | 89.0 x 100.0 | ||||
| Maximum Power (kW@rpm) | 135 @ 6000 | ||||
| Maximum Torque (NM@rpm) | 244 @ 3600 | ||||
| Fuel Type | Unleaded (minimum 91 RON recommended) | ||||
| Fuel consumption (ADR 81/02 per 100km)* | 7.8 | 8.1 | 8.1 | 8.1 | 8.1 |
| CO2 - g/Km | 177 | 185 | 185 | 185 | 185 |
| Fuel tank capacity (L) | 55 | ||||
| Transmission | |||||
| Type | CVT Automatic | ||||
| Number of speeds | 8 | ||||
| Paddle shift | ■ | ||||
| Preset ratios | 2.631 - 0.390 | ||||
| Gear ratio 1st | 2.631 | ||||
| 2nd | 1.756 | ||||
| 3rd | 1.293 | ||||
| 4th | 1.009 | ||||
| 5th | 0.799 | ||||
| 6th | 0.635 | ||||
| 7th | 0.504 | ||||
| 8th | 0.390 | ||||
| Reverse | 1.960 | ||||
| Final drive ratio | 5.694 | ||||
| Super All Wheel Control (S-AWC) | ■ | ||||
| Active Yaw Control (AYC) | ■ | ||||
| Chassis | |||||
| Front brakes | Ventilated disc (320 mm) | Ventilated disc (350 mm) | Ventilated disc (350 mm) | Ventilated disc (320 mm) | Ventilated disc (320 mm) |
| Rear brakes | Disc (292 mm) | Disc (330 mm) | Disc (330 mm) | Disc (292 mm) | Disc (292 mm) |
| Front suspension | Macpherson strut with stabiliser bar | ||||
| Rear suspension | Multi-link with stabiliser bar | ||||
| Wheels and Tyres | |||||
| Wheel type | Alloy (silver finish) | Alloy (two tone) | Alloy (two tone) | Alloy (two tone) | Alloy (two tone) |
| Wheel size (inches) | 18 x 7.5J | 18 x 7.5J | 20 x 8J | 20 x 8J | 20 x 8J |
| Tyre size | 235/60R18 103H | 235/60R18 103H | 255/45R20 101W | 255/45R20 101W | 255/45R20 101W |
| Spare wheel type | Full size - alloy | Space saver | Space saver | Full size - alloy | Full size - alloy |
| Advanced Driver Assist Systems | |||||
| Lane Keep Assist (LKA) | – | – | ■ | ■ | ■ |
| Lane Departure Warning (LDW) | ■ | ■ | ■ | ■ | ■ |
| Lane Departure Prevention (LDP) | ■ | ■ | ■ | ■ | ■ |
| Emergency Lane Assist (ELA) | ■ | ■ | ■ | ■ | ■ |
| Blind Spot Warning (BSW) | ■ | ■ | ■ | ■ | ■ |
| Driver Monitoring System (DMS) | ■ | ■ | ■ | ■ | ■ |
| Rear Cross Traffic Alert (RCTA) | ■ | ■ | ■ | ■ | ■ |
| Forward Collision Mitigation system (FCM) with Pedestrian detection | ■ | ■ | ■ | ■ | ■ |
| Predictive Forward Collision Warning (PFCW) | ■ | ■ | ■ | ■ | ■ |
| Driver Attention Alert | ■ | ■ | ■ | ■ | ■ |
| Rear Automatic Emergency Braking | ■ | ■ | ■ | ■ | ■ |
| Emergency Brake Assist system (EBA) | ■ | ■ | ■ | ■ | ■ |
| Active Stability Control (ASC) | ■ | ■ | ■ | ■ | ■ |
| Trailer Stability Assist (TSA) | ■ | ■ | ■ | ■ | ■ |
| Active Traction Control (ATC) | ■ | ■ | ■ | ■ | ■ |
| Anti-lock Braking System (ABS) | ■ | ■ | ■ | ■ | ■ |
| Electronic Brakeforce Distribution (EBD) | ■ | ■ | ■ | ■ | ■ |
| Airbags | |||||
| Driver & front passenger SRS airbags | ■ | ■ | ■ | ■ | ■ |
| Driver & front passenger side SRS airbags | ■ | ■ | ■ | ■ | ■ |
| Curtain SRS airbags | ■ | ■ | ■ | ■ | ■ |
| Driver knee airbag | ■ | ■ | ■ | ■ | ■ |
| Center airbag | ■ | ■ | ■ | ■ | ■ |
| Seat Belts | |||||
| Front seat belt pretensioners | ■ | ■ | ■ | ■ | ■ |
| 2nd Row seats w/ seatbelt reminder sensor | ■ | ■ | ■ | ■ | ■ |
| 3rd Row seats w/ seatbelt reminder sensor | – | ■ | ■ | – | – |
| Child Safety | |||||
| ISO-Fix child seat anchorage | 2 | 2 | 2 | 2 | 2 |
| Child restraint top tether | 3 | 3 | 3 | 3 | 3 |
| Child proof rear door locks | ■ | ■ | ■ | ■ | ■ |
| Power window lock driver control – passenger windows | ■ | ■ | ■ | ■ | ■ |
| Rear seat alert | ■ | ■ | ■ | ■ | ■ |
| Driver Assistance | |||||
| Full Colour Digital Driver Display | 12.3" | 12.3" | 12.3" | 12.3" | 12.3" |
| Head Up Display (HUD) | – | – | 10.8" | 10.8" | 10.8" |
| Traffic Sign Recognition | ■ | ■ | ■ | ■ | ■ |
| Intelligent Speed Assistance | ■ | ■ | ■ | ■ | ■ |
| Digital Speedometer | ■ | ■ | ■ | ■ | ■ |
| Adaptive Cruise Control (ACC) | ■ | ■ | ■ | ■ | ■ |
| Cruise Control | ■ | ■ | ■ | ■ | ■ |
| Traffic Jam Assist (TJA) | – | – | ■ | ■ | ■ |
| Adjustable Speed limiter | ■ | ■ | ■ | ■ | ■ |
| Electric Park Brake | ■ | ■ | ■ | ■ | ■ |
| Brake Auto Hold | ■ | ■ | ■ | ■ | ■ |
| Brake Override System (BOS) | ■ | ■ | ■ | ■ | ■ |
| Emergency Stop Signal function (ESS) | ■ | ■ | ■ | ■ | ■ |
| ECO Drive Mode | ■ | ■ | ■ | ■ | ■ |
| Terrain Drive Modes | 6 | 6 | 6 | 6 | 6 |
| Hill Start Assist (HSA) | ■ | ■ | ■ | ■ | ■ |
| Hill Descent Control (HDC) | ■ | ■ | ■ | ■ | ■ |
| Electrochromatic rear view mirror | ■ | ■ | ■ | ■ | ■ |
| Digital Rear view mirror | – | – | – | ■ | ■ |
| Automatic dusk sensing headlights | ■ | ■ | ■ | ■ | ■ |
| Automatic High Beam (AHB) | ■ | ■ | ■ | ■ | ■ |
| Adaptive Driving Beam | – | – | ■ | ■ | ■ |
| Automatic rain sensing wipers | – | ■ | ■ | ■ | ■ |
| Speed sensitive intermittent windscreen wipers | ■ | ■ | ■ | ■ | ■ |
| Rear wiper and washer | ■ | ■ | ■ | ■ | ■ |
| Intermittent rear wiper and washer | ■ | ■ | ■ | ■ | ■ |
| Parking Assistance | |||||
| Multi Around Monitor (MAM) | ■ | ■ | ■ | ■ | ■ |
| Rear view camera | ■ | ■ | ■ | ■ | ■ |
| Front parking sensors | ■ | ■ | ■ | ■ | ■ |
| Rear parking sensors | ■ | ■ | ■ | ■ | ■ |
| Security | |||||
| Auto door lock | ■ | ■ | ■ | ■ | ■ |
| Theft protection alarm | ■ | ■ | ■ | ■ | ■ |
| Encrypted engine immobiliser | ■ | ■ | ■ | ■ | ■ |
| Connected Services | |||||
| Mitsubishi Connect | – | ■ | ■ | ■ | ■ |
| Emergency Call System (E-call) | – | ■ | ■ | ■ | ■ |
| Audio & Multimedia | |||||
|---|---|---|---|---|---|
| Smartphone link Display Audio (SDA) with touch screen | ■ | ■ | ■ | ■ | ■ |
| Screen size (inches) | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 |
| Wireless Apple CarPlay | ■ | ■ | ■ | ■ | ■ |
| Wireless Android Auto | ■ | ■ | ■ | ■ | ■ |
| Satellite navigation | ■ | ■ | ■ | ■ | ■ |
| Premium audio | Yamaha Premium | Yamaha Ultimate | |||
| Speakers | 8 | 8 | 8 | 8 | 12 |
| Subwoofer | – | – | – | – | ■ |
| Bluetooth connectivity with voice control & audio streaming | ■ | ■ | ■ | ■ | ■ |
| Digital Audio Broadcast (DAB) radio | ■ | ■ | ■ | ■ | ■ |
| AM/FM radio | ■ | ■ | ■ | ■ | ■ |
| USB input | 2 | 2 | 2 | 2 | 2 |
| Comfort & Convenience | |||||
| Smart key | – | ■ | ■ | ■ | ■ |
| One touch start system | ■ | ■ | ■ | ■ | ■ |
| Keyless entry with central door locking | ■ | ■ | ■ | ■ | ■ |
| Multifunction steering wheel controls | ■ | ■ | ■ | ■ | ■ |
| Tilt & telescopic steering column | ■ | ■ | ■ | ■ | ■ |
| Auto up/down driver control - all windows | – | ■ | ■ | ■ | ■ |
| Auto up/down driver control - driver side window | ■ | – | – | – | – |
| Side and rear window demisters | ■ | ■ | ■ | ■ | ■ |
| Panoramic roof | – | – | – | ■ | ■ |
| Electric sunroof with slide and tilt | – | – | – | ■ | ■ |
| Sunshade in rear door | – | – | – | ■ | ■ |
| Power tailgate | – | – | ■ | – | – |
| Hands-free power tailgate | – | – | – | ■ | ■ |
| Cargo Cover | – | ■ | ■ | ■ | ■ |
| Smartphone wireless charger | – | ■ | ■ | ■ | ■ |
| Accessory socket (12V) | 2 | 2 | 2 | 2 | 2 |
| Console box USB power supply | ■ | ■ | ■ | ■ | ■ |
| Second row seat USB power supply | – | 2 | 2 | 2 | 2 |
| Air Conditioning | |||||
| Climate control (No of zones) | 2 | 2 | 2 | 3 | 3 |
| Rear zone air conditioning control | – | – | – | ■ | ■ |
| Rear air conditioning vents | ■ | ■ | ■ | ■ | ■ |
| Dust and pollen filter | ■ | ■ | ■ | ■ | ■ |
| Exterior | |||||
| Door handles | Body colour | ||||
| Two-tone body colour | – | – | – | – | ■ |
| Privacy glass | – | ■ | ■ | ■ | ■ |
| Roof rails | – | ■ | ■ | ■ | ■ |
| Rear spoiler | ■ | ■ | ■ | ■ | ■ |
| Wheel arch moulding | Material black | ||||
| Lights | |||||
| Headlights low beam | LED | ||||
| Headlights high beam | LED | ||||
| Headlight levelling function | Manual | Manual | Automatic | Automatic | Automatic |
| Daytime Running Lights (DRL) | LED | ||||
| Fog lights (front) | - | LED | LED | LED | LED |
| Fog light (rear) | LED | ||||
| Brake lights | LED | ||||
| Door Mirrors | |||||
| Electric adjustment | ■ | ■ | ■ | ■ | ■ |
| Electric fold control | – | ■ | ■ | ■ | ■ |
| Heating function | – | ■ | ■ | ■ | ■ |
| Integrated turn indicator | – | – | – | ■ | ■ |
| Memory function | – | – | – | ■ | ■ |
| Reverse auto tilt | – | – | – | ■ | ■ |
| Finish | Body colour | ||||
| Styling | |||||
| Leather bound steering wheel | – | ■ | ■ | ■ | ■ |
| Heated steering wheel | – | – | ■ | ■ | ■ |
| Leather bound gearshift | – | ■ | ■ | ■ | ■ |
| Aluminium pedals | – | – | – | ■ | ■ |
| Carpet floor covering | ■ | ■ | ■ | ■ | ■ |
| Seating | |||||
| Leather appointed seats | – | – | – | ■ | ■ |
| Black Microsuede | – | – | ■ | – | - |
| Fabric seat trim | ■ | ■ | – | – | – |
| Heated front seats | – | – | ■ | ■ | ■ |
| Ventilated front seats | – | – | – | ■ | ■ |
| Driver's seat power adjustment | – | – | ■ | ■ | ■ |
| Driver's seat manual adjustment | ■ | ■ | – | – | – |
| Driver's seat lumbar adjustment | ■ | ■ | ■ | ■ | ■ |
| Driver's seat memory function | – | – | – | ■ | ■ |
| Driver's seat massage function | – | – | – | – | ■ |
| Front passenger's seat power adjustment | – | – | – | ■ | ■ |
| Front passenger's seat manual adjustment | ■ | ■ | ■ | – | – |
| Front passenger's seat memory function | – | – | – | ■ | ■ |
| Front passenger's seat massage function | – | – | – | – | ■ |
| 2nd row centre armrest with cupholders | ■ | ■ | ■ | ■ | ■ |
| 2nd row split folding function | 40:20:40 | ||||
| 2nd row slide and recline adjustment | – | ■ | ■ | – | – |
| 2nd row recline adjustment | ■ | ■ | ■ | ■ | ■ |
| 2nd row seat with heated cushion and back | – | – | – | - | ■ |
| One touch fold seat storage | ■ | ■ | ■ | ■ | ■ |
| 3rd row split folding function | – | ■ | ■ | – | – |
| 3rd row recline adjustment | – | ■ | ■ | – | – |
| Storage | |||||
| Centre console with storage box and lid | ■ | ■ | ■ | ■ | ■ |
| Cup holders | 4 | 4 | 4 | 4 | 4 |
| Bottle holders | 6 | 6 | 6 | 6 | 6 |
| Sunglasses storage | ■ | ■ | ■ | ■ | ■ |
| Door pockets - front and rear | ■ | ■ | ■ | ■ | ■ |
| Seat back pocket - driver and passenger | ■ | ■ | ■ | ■ | ■ |
| Exterior Dimensions | |||||
| Overall length (mm) | 4720 | ||||
| Overall width (mm) | 1862 | ||||
| Overall height (mm) | 1742 | 1742 | 1742 | 1745 | 1745 |
| Wheelbase (mm) | 2706 | ||||
| Turning circle, kerb to kerb (m) | 11.2 | ||||
| Approach angle (degrees) | 18 | 18 | 18 | 18.3 | 18.3 |
| Departure angle (degrees) | 22 | 22 | 22 | 22.2 | 22.2 |
| Ramp breakover angle (degrees) | 17.8 | 17.8 | 17.8 | 18.1 | 18.1 |
| Ground clearance (mm) - minimum, unladen | 205 | 205 | 205 | 210 | 210 |
| Interior Dimensions | |||||
| Front head room (mm) | 1031 | 1031 | 1031 | 984 | 984 |
| Front leg room (mm) | 1059 | ||||
| Front shoulder room (mm) | 1470 | ||||
| 2nd row head room (mm) | 993 | 993 | 993 | 950 | 950 |
| 2nd row leg room (mm) | 1014 | ||||
| 2nd row shoulder room (mm) | 1420 | ||||
| 3rd row head room (mm) | – | 875 | 875 | – | – |
| 3rd row leg room (mm) | – | 474 | 474 | – | – |
| 3rd row shoulder room (mm) | – | 1300 | 1300 | – | – |
| Weights and Capacities | |||||
| Kerb mass (kg) | 1640 | 1695 | 1695 | 1695 | 1695 |
| Gross vehicle mass (GVM) - [kg] | 2245 | 2405 | 2405 | 2245 | 2245 |
| Gross combination mass (GCM) - [kg] | 3845 | 4005 | 4005 | 3845 | 3845 |
| Maximum payload (kg) | 605 | 710 | 710 | 550 | 550 |
| Maximum front axle load (kg) | 1210 | ||||
| Maximum rear axle load (kg) | 1365 | ||||
| Towing capacity - braked (kg) | 1600 | ||||
| Towing capacity - unbraked (kg) | 750 | ||||
| Towing capacity - maximum towball load (kg) | 160 | ||||
| Maximum roof load (kg) | 80 | ||||
| Cargo | |||||
| Capacity (L) - VDA (to top of 2nd row seat back) | 485 | 478 | |||
| Capacity (L) - VDA (to top of 3rd row seat back) | – | 163 | |||
| Capacity (L) - VDA (max. capacity to roof - all rear seats folded) | 1466 | 1461 | 1461 | 1473 | 1473 |
| Cargo room length (mm) - all seats up | 985 | 974 | |||
| Cargo room length (mm) - with all rear seats folded | 1717 | ||||
| Cargo room length (mm) - with 3rd row seats folded | – | – | – | – | – |
| Cargo room width (mm) | 1380 | ||||
| Cargo room height (mm) | 870 | ||||
| Width between wheel arches (mm) | 1070 | ||||
ES 2WD 5 SEAT. FEATURES: Lane Departure Warning (LDW). Lane Departure Prevention (LDP). Emergency Lane Assist (ELA). Blind Spot Warning (BSW). Driver Monitoring System (DMS). Rear Cross Traffic Alert (RCTA). Forward Collision Mitigation system (FCM) with Pedestrian detection. Predictive Forward Collision Warning (PFCW). Driver Attention Alert. Rear Automatic Emergency Braking. Emergency Brake Assist system (EBA). 12.3” Full Colour Digital Driver Display. Traffic Sign Recognition. Intelligent Speed Assistance. Adaptive Cruise Control (ACC). Emergency Stop Signal function (ESS). 5 Terrain Drive Modes. Hill Start Assist (HSA). Hill Descent Control (HDC). Automatic dusk sensing headlights. Automatic High Beam (AHB). Multi Around Monitor (MAM). Rear view camera. Front parking sensors. Rear parking sensors. Smartphone link Display Audio (SDA) with 12.3” touch screen. Wireless Apple CarPlay & Android Auto. Satellite navigation. Dynamic Sound Yamaha Premium audio. 8 Speakers. Bluetooth connectivity with voice control & audio streaming. Dual zone climate control. Fabric seat trim. Full size alloy spare wheel.
ES AWD 5 SEAT. INCLUDES ALL ES 2WD 5-SEAT PLUS: Super-All Wheel Control (S-AWC). 6 Drive Modes.
LS 2WD 5+2 S. INCLUDES ALL ES 2WD 5 SEAT FEATURES (EXCLUDING FULL SIZE SPARE WHEEL) PLUS: 5+2 seats. 18” two-tone alloy wheels. Space saver spare wheel. Automatic rain sensing wipers. Mitsubishi Connect. Emergency Call System (E-call). Smart key. Retractable cargo cover. Smartphone wireless charger. Second row seat USB power supply. Privacy glass. Roof rails. LED front fog lights. Leather bound steering wheel. Leather bound gear shift.
LS AWD 5+2 SEAT. INCLUDES ALL LS 2WD 5+2 SEAT FEATURES PLUS: Super-All Wheel Control (S-AWC). 6 Drive Modes.
ASPIRE 2WD 5+2 SEAT. INCLUDES ALL LS 2WD 5+2 SEAT FEATURES PLUS: Lane Keep Assist (LKA). Head Up Display (HUD). Traffic Jam Assist (TJA). Adaptive Driving Beam. Power tailgate. Heated steering wheel. Black Microsuede. Heated front seats. Driver's seat power adjustment.
ASPIRE AWD 5+2 SEAT. INCLUDES ALL ASPIRE 2WD 5+2 SEAT FEATURES PLUS: Super-All Wheel Control (S-AWC). 6 Drive Modes.
EXCEED AWD 5 SEAT. Includes all Aspire AWD features (excluding 5+2 seats), plus: Full size alloy spare wheel. 20” two-tone alloy wheels. Digital Rear view mirror. Hands-free power tailgate. Tri-zone climate control. Aluminium pedals. Leather appointed seats. Ventilated front seats. Driver's seat memory function. Front passenger's seat power adjustment. Driver and front passenger seat memory function.
EXCEED TOURER AWD 5 SEAT. INCLUDES ALL EXCEED AWD 5 SEAT FEATURES PLUS: Dynamic Sound Yamaha Ultimate. 12 speakers. Two-tone body colour. Front seat massage function. Rear heated seats.

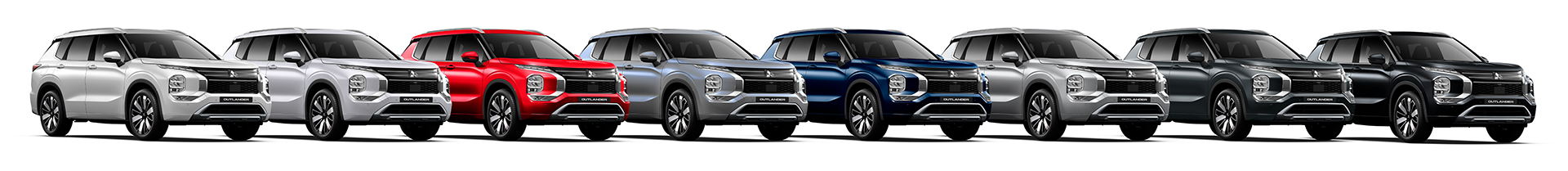

White (S), Cosmic Blue (P), Moonstone Grey (X), Black Diamond (X), Black Diamond/Sterling Silver (X), White Diamond/Black Mica (X), Graphite Grey/Black Mica (X), Moonstone Grey/Black Mica (X), White Diamond (X), Sterling Silver (M), Graphite Grey (M), Red Diamond (X).
