Mclaren DNA. McLaren has always challenged beliefs and done things differently. We started racing over 50 years ago and ever since we have been pushing the boundaries of possibility. Good is never good enough. We know the best can always be better. It’s a philosophy that’s not only driven us to success in racing, but also in our quest to build the world’s most advanced highperformance supercars.
Now the same inimitable way of thinking has created the 570GT, the most luxurious, refi ned and road-biased McLaren yet. Designed and built from supercar DNA, it challenges the convention of the ‘grand tourer’ with its breathtaking performance, mid-engine layout and incredible levels of space and comfort.
Supercharged Engine
Horsepower @ 6,100 rpm
0-60 mph (sec)
The mid-engine layout provides a supercar silhouette with lightly contoured aluminium body panels that cosset the chassis, with every surface carefully crafted to provide a seamless flow of air.

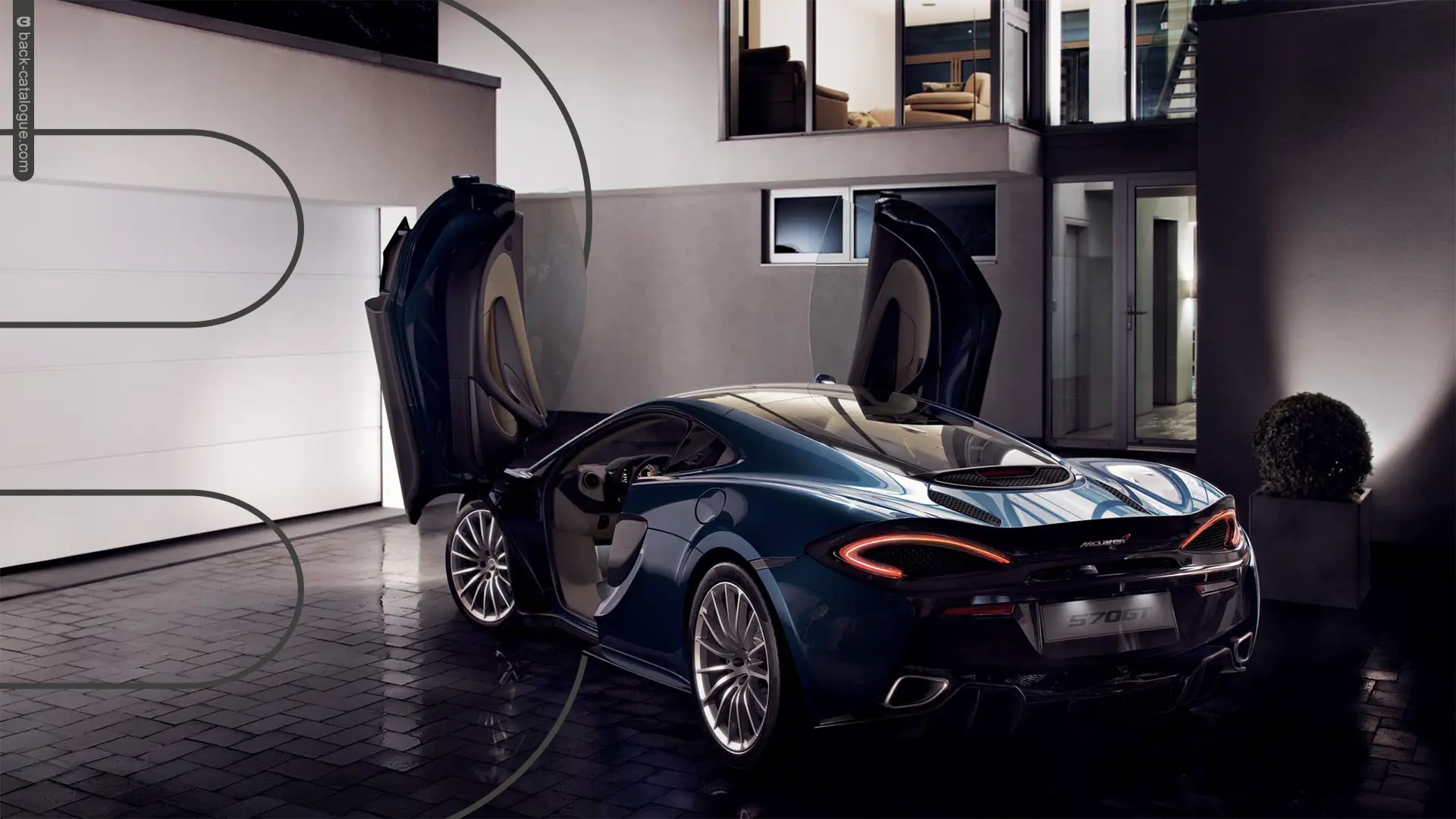

The dihedral doors feature tendons that channel air into the side intakes, and the extended rear spoiler helps increase downforce, whilst the rear diff user and fl at under-floor further optimise aerodynamic efficiency.

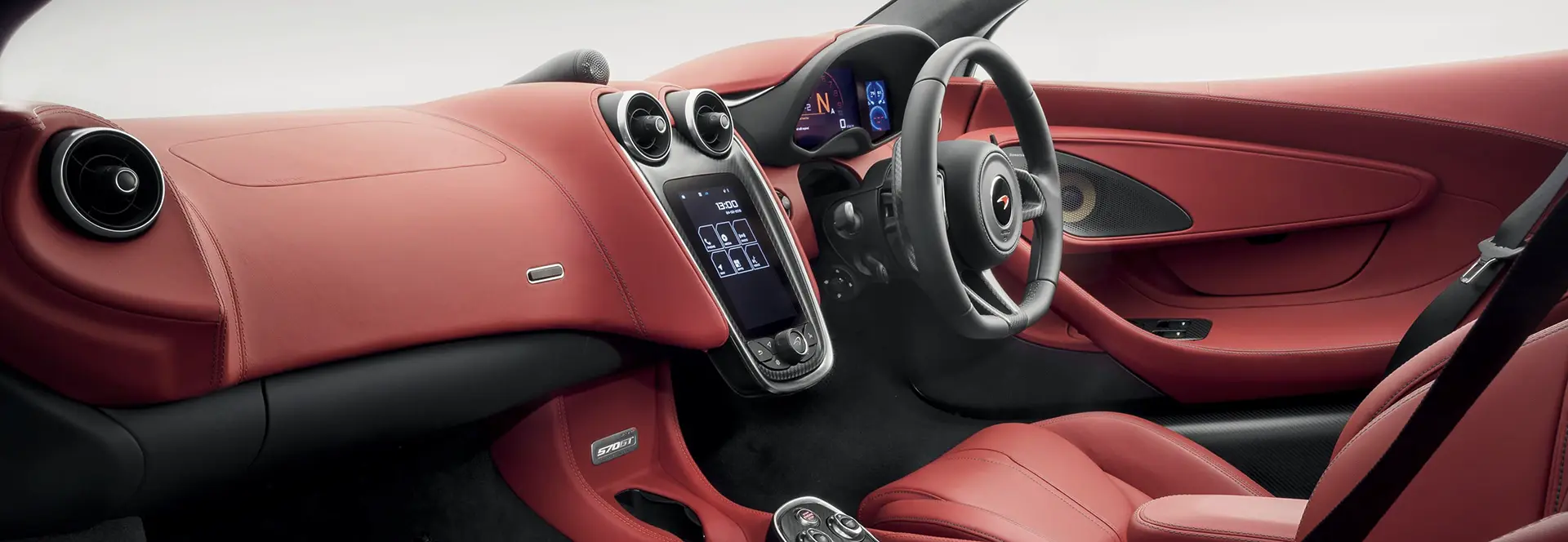

The sense of light and space is apparent the moment you enter the 570GT. The solar reflective panoramic glass roof allows light to flood in around you and the beautifully crafted interior.
Every detail has been designed around the driver.

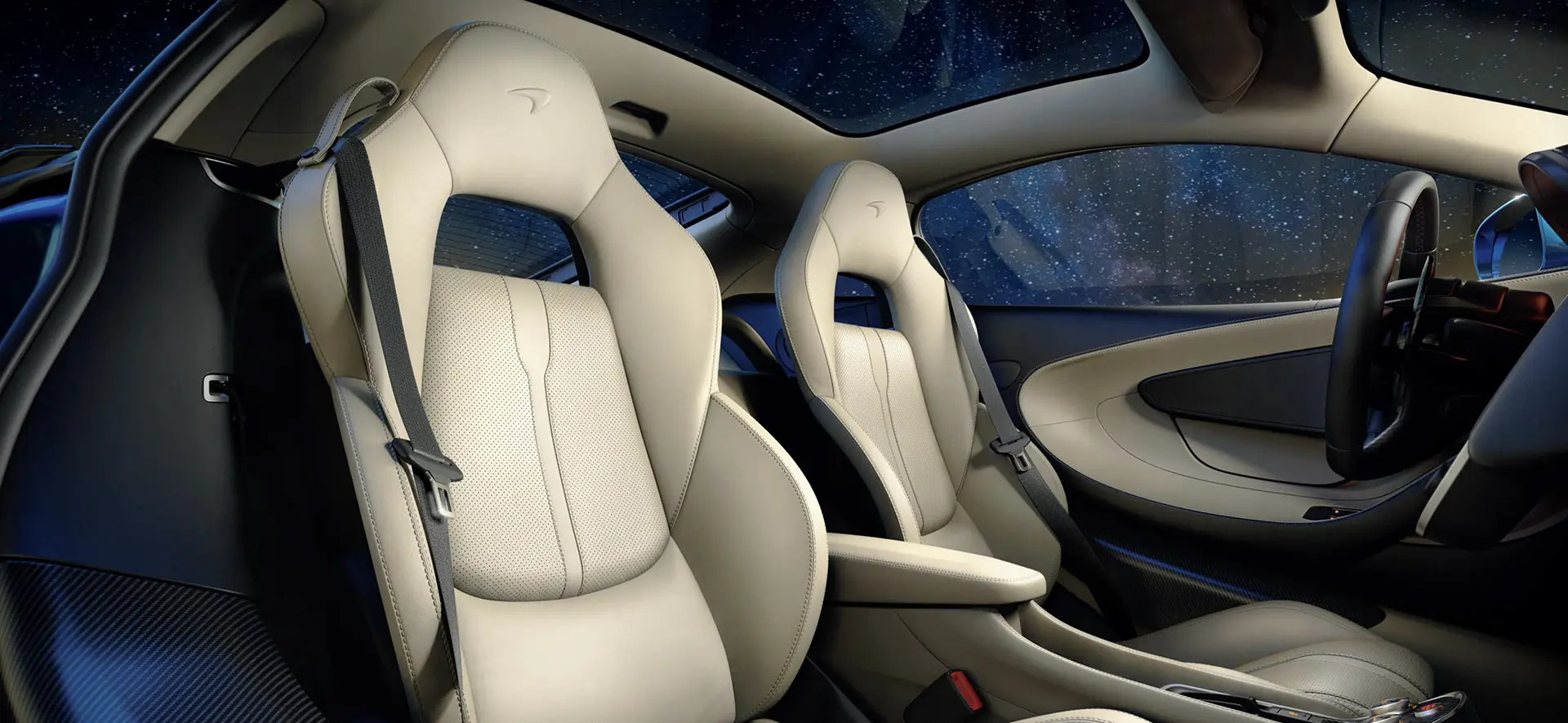

Body-hugging, full leather heated sports seats provide exceptional comfort and support, and feature a memory function with 8-way power adjustment. The power-adjust steering column and soft close doors provide a higher degree of quality and refinement, preparing you for the journey ahead.

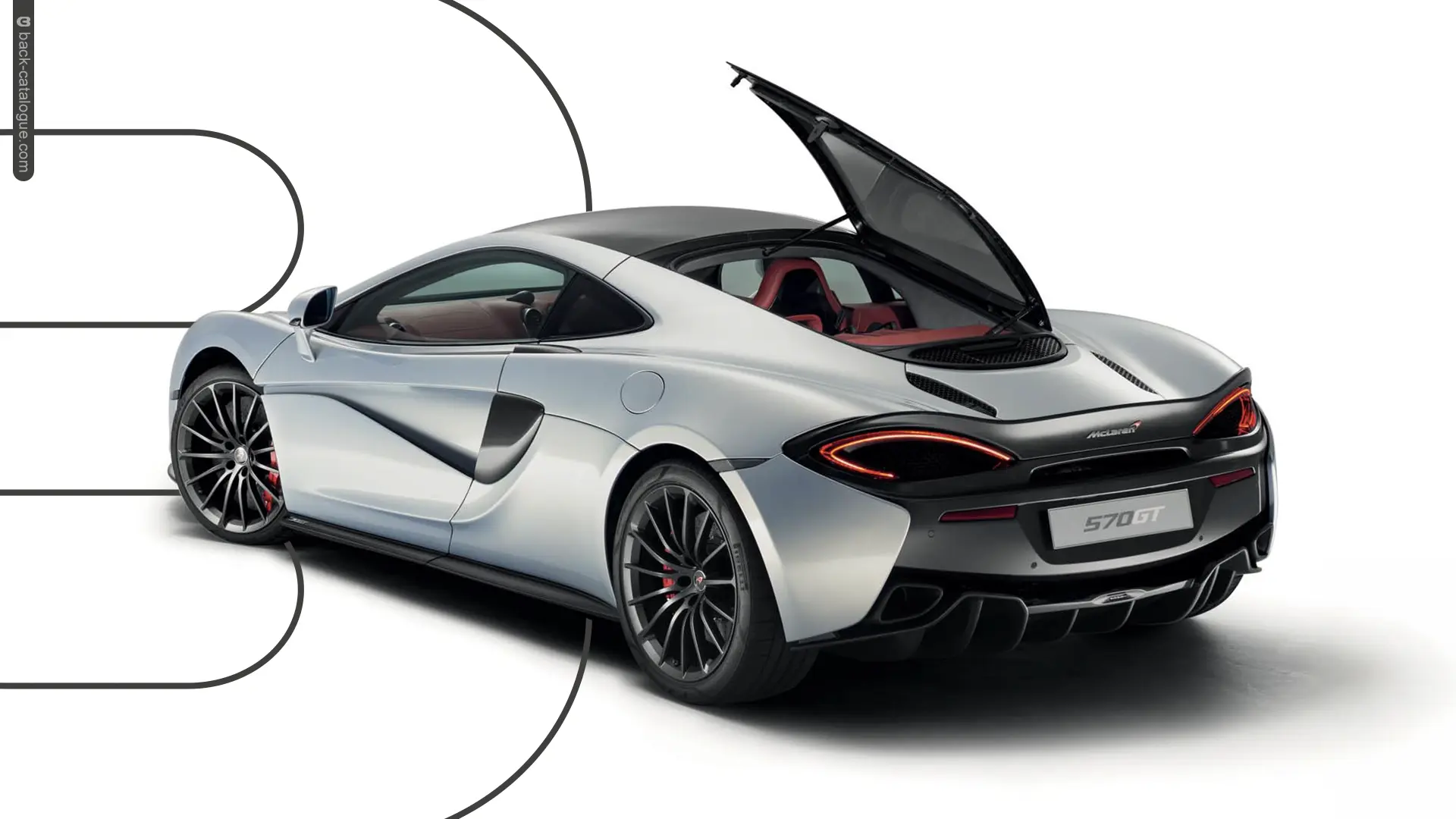

A defining feature of the 570GT is its side-opening rear hatch, designed especially for this Sports Series derivative. Opened from the passenger side to provide safe and secure access, the hatch reveals an extended storage area: the touring deck.
Framed in carbon fibre to ensure super rigidity, the glass hatch is heated for cooler climates and at the same time tinted, to reduce excess warmth entering the cabin.

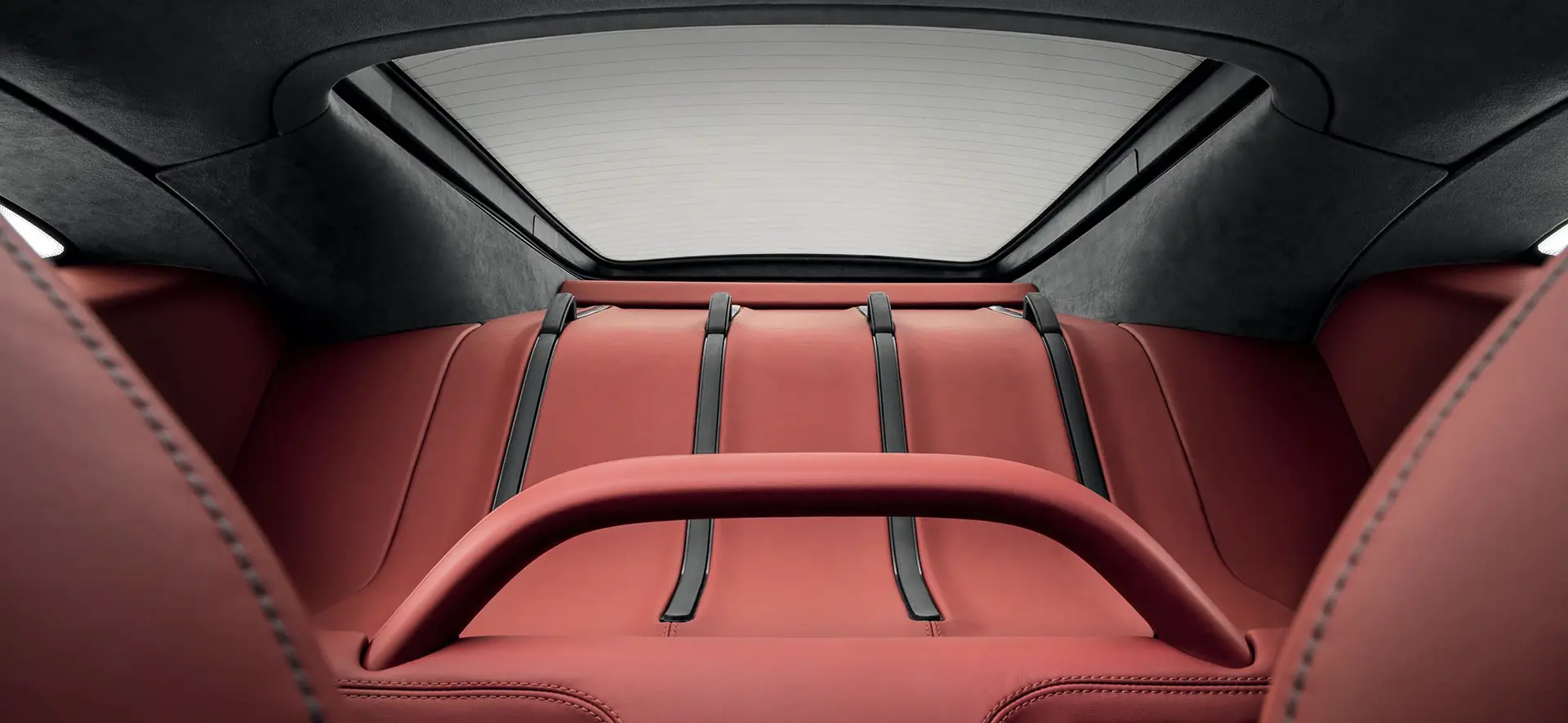

The touring deck can be accessed via the side-opening glass hatch or the folding front seats. Trimmed in Carbon Black leather as standard, with the option of a colour-coded Nappa leather or Alcantara® upgrade, it features runners and a retaining loop to safely secure and protect belongings.
Optional hand-made McLaren luggage in Natural Tan or Carbon Black premium leather can be ordered to complement the 220 litres (7.8 cu.ft) of storage space. In addition, the front boot offers a further 150 litres (5.3 cu.ft) of stowage capacity and comes complete with convenient retention nets.

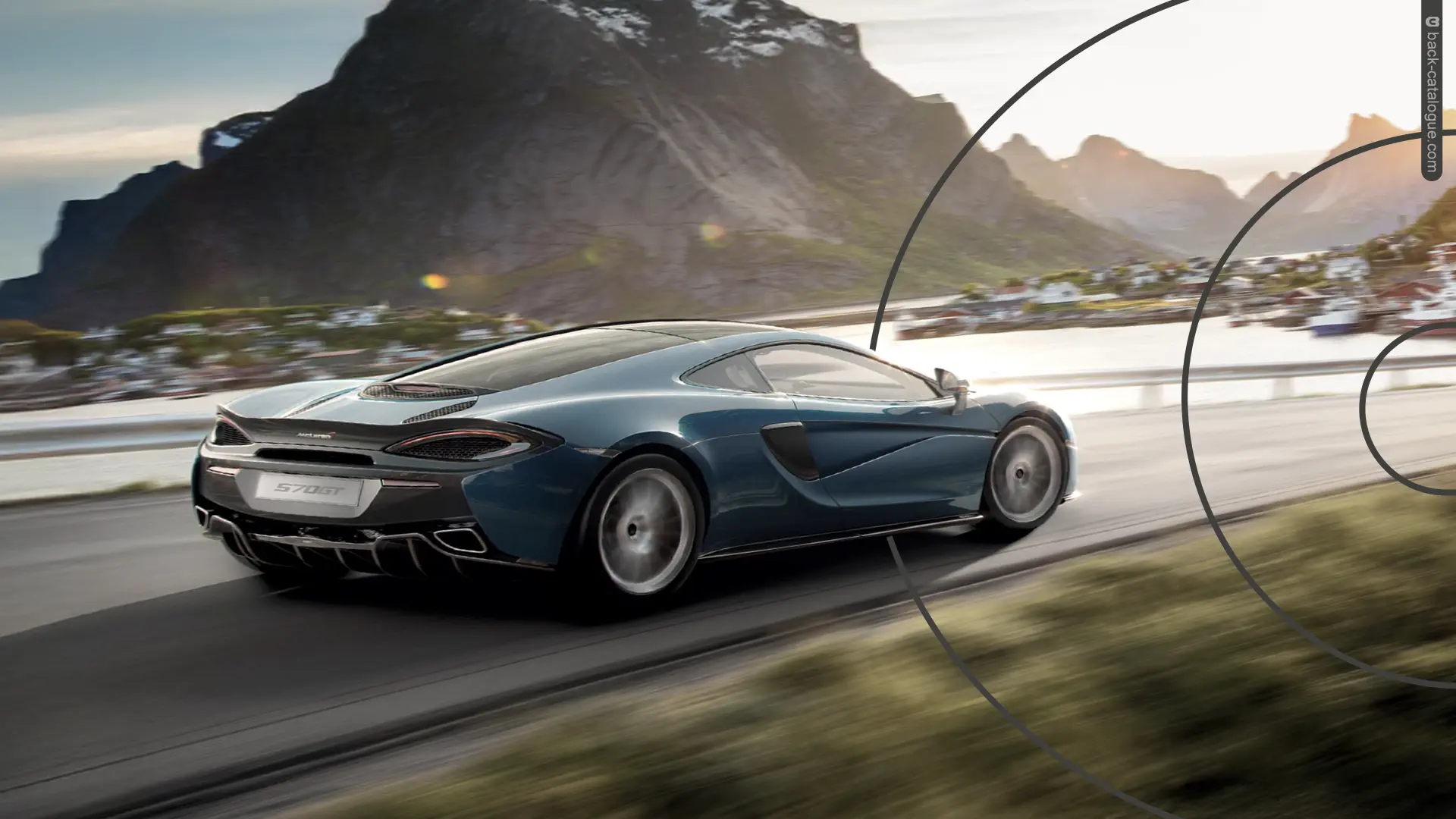

From an open road to a twisting mountain pass, the 570GT’s suspension, with its adaptive dampers, provides comfort when you need it and exceptional precision on demand.
Everything about the 570GT is optimised to create a refi ned grand tourer that also delivers the adrenalin rush of a sports car. From continental adventures to city drives, you are always in the perfect car for the road ahead.
McLaren pioneered the use of carbon fi bre in Formula 1™ racing in 1981 and introduced the first carbon fibre road car, the McLaren F1, in 1993. Every McLaren built since, for road or racetrack, has been created around a carbon fibre chassis, an advanced innovation that continues with the 570GT.

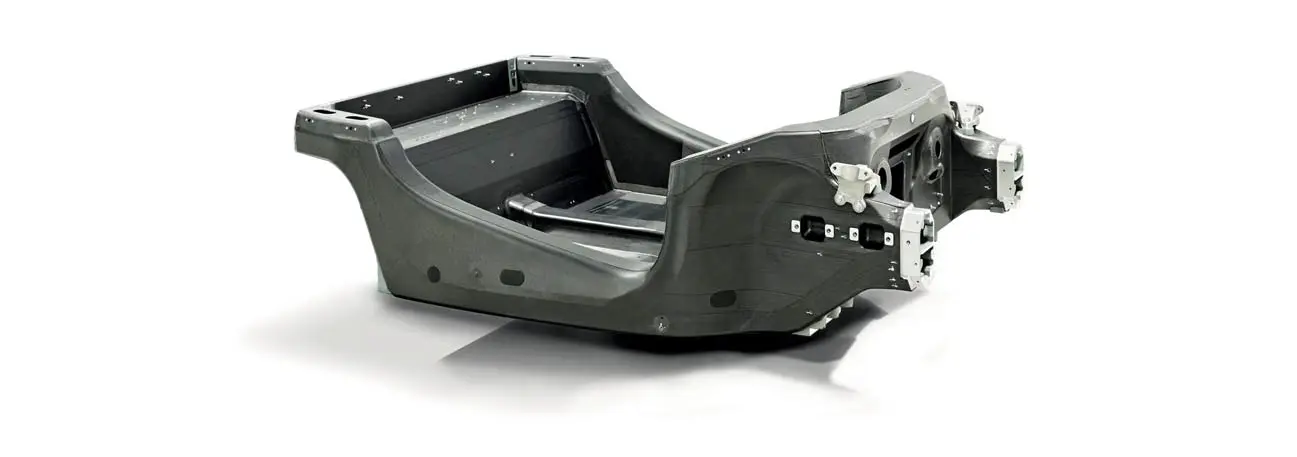

The carbon fibre MonoCell II chassis at the heart of the 570GT offers numerous advantages over conventional sports cars with steel or aluminium structures. Weighing just 75kg (165lb), it’s extremely stiff, strong and light, enhancing performance by improving the power-to-weight ratio and handling precision.

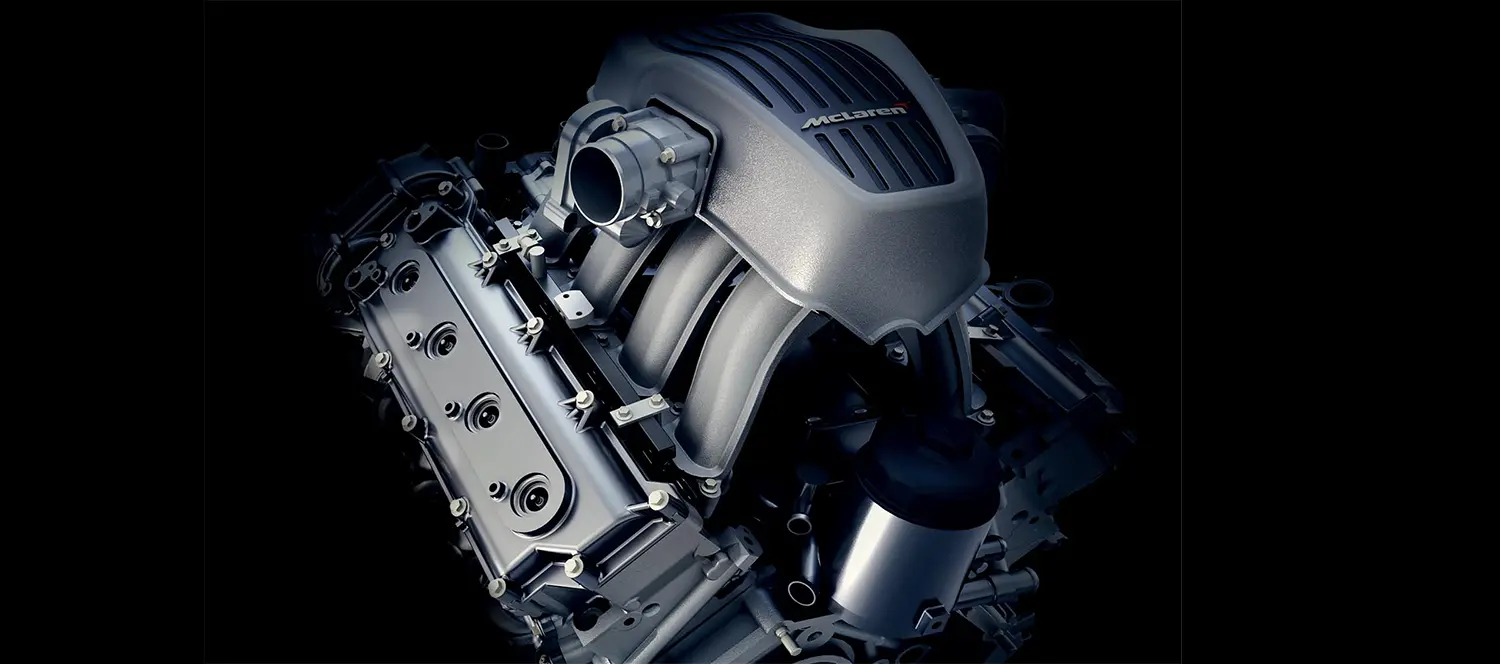

From the second it stirs into life, the 570GT’s twin turbo 3.8-litre V8 engine sends tingles down your spine. Incorporating the latest race-derived technologies the mid-mounted unit produces 570PS (562bhp) and 600Nm (443lb ft) of torque.
The combination of so much power and a class-leading low dry weight of just 1,350kg (2,976lb) delivers truly exhilarating performance. Capable of accelerating from 0-100km/h (0-62mph) in just 3.4 seconds, the 570GT can sprint to a top speed of 328km/h (204mph); a figure normally reserved for only the most exotic supercars.

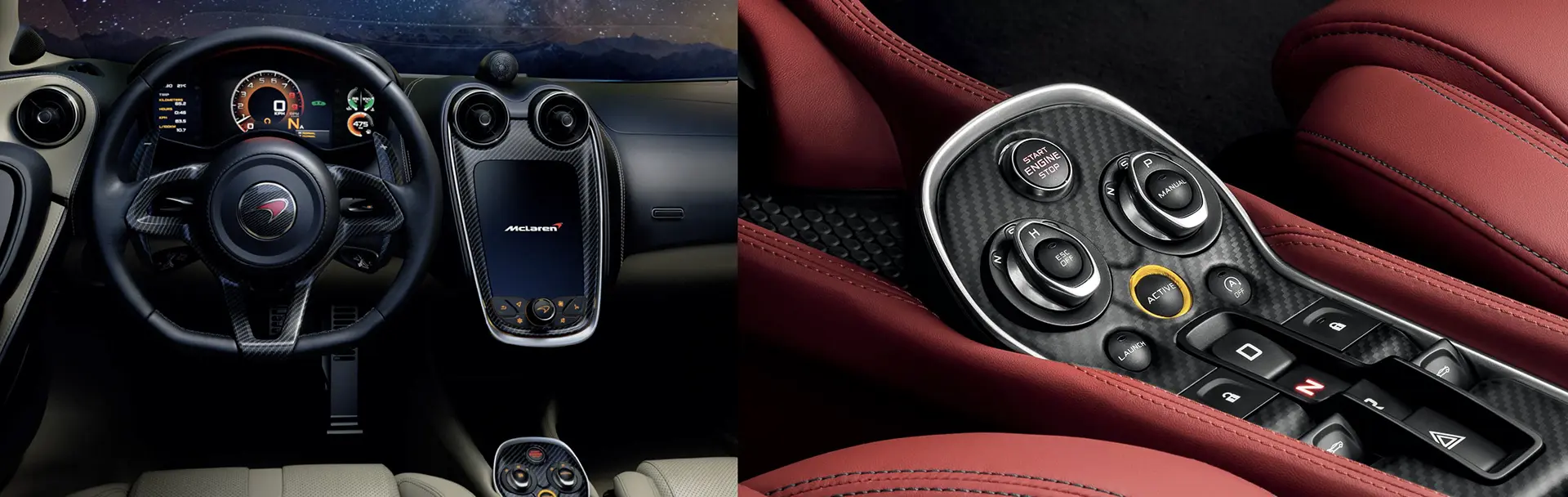

Settle behind the wheel of the 570GT and prepare for an experience that is simply unmatched. Created around the perfect driving position, the spacious, uncluttered interior is a perfect blend of ergonomics and aesthetics.
A state-of-the-art touchscreen infotainment system enables efficient and easy control of the cabin environment and the optional rear-view camera*, providing an enhanced view from the rear of the car to assist with low speed manoeuvring. For those who crave the ultimate audio experience, the 8-speaker McLaren Audio System can be upgraded to the Bowers & Wilkins system, which features the distinctive Nautilus tweeter, centrally mounted on the facia, offering class-leading sound precision.
The 570GT combines breathtaking performance with increased levels of luxury and refinement. With its newly developed suspension system, it is equally at home on a racetrack, a winding country road or dealing with city streets.
Independent adaptive dampers are fi tted as standard and can be dynamically adjusted via the Active Dynamics Panel for an enhanced driving experience. Two three-position dials allow the suspension and powertrain to be configured independently of each other in Normal, Sport or Track modes.
The 570GT also comes equipped with Electronic Stability Control (ESC) which ensures optimum vehicle handling and dynamics in all road conditions. To provide you with more control, an additional Dynamic ESC setting can be activated in both Sport and Track modes, enabling increased levels of dynamic flexibility, whilst still retaining a level of driver intervention.
Normal For everyday driving, maximising comfort but still off ering the strong responses expected of a McLaren sports car. The adaptive dampers are at their most pliant and the gearbox shifts as smoothly as possible.
Sport Enhanced handling is delivered through fi rmer damper settings, while increased performance is achieved through a more responsive throttle map and Cylinder Cut technology, enabling faster shifting through the gears.
Track Calibrated for maximum performance and handling on a race circuit, the dampers adapt to their stiff est setting with the throttle delivering the sharpest response. Inertia Push technology enables faster gear shifts.
Each McLaren is special, but we want to ensure your 570GT is one of a kind. That is why we off er a huge range of customisation options, from the comprehensive list of optional equipment, performance and aesthetic upgrades, all the way to bespoke modification from our McLaren Special Operations (MSO) division. We want to help you to build a car that refl ects your tastes, desires and personality; a McLaren that is perfect for you.
There’s something for every taste in our extensive palette of paint colours. Choose your favourite finish from our Standard, Special and Elite ranges. Or select one of the new colours introduced by the 570GT: Pacific and Cobalt Violet. Whether you prefer a timeless traditional shade or want to make a more striking exterior statement, you can be confident that each of our carefully selected paint colours will look sensational on the aerodynamic curves of your new 570GT.
Standard White, Silver, Blue.
Special Silica White, McLaren Orange, Mantis Green, Cobalt Violet, Pacific, Blade Silver, Storm Grey, Onyx Black.
Elite Pearl White, Volcano Yellow, Ventura Orange.
Elite Volcano Orange, Vermillion Red, Bourbon, Ice Silver, Fire Black.
As with each model in the Sports Series, the 570GT has been designed to deliver the best possible driving performance. Its exclusive 15-spoke GT Design cast alloy wheels – 19-inch at the front and 20-inch at the rear – are fi tted with specially developed Pirelli P Zero™ tyres, optimised for year-round usability and refinement. A more performance-focused P Zero™ Corsa is also available as an option.

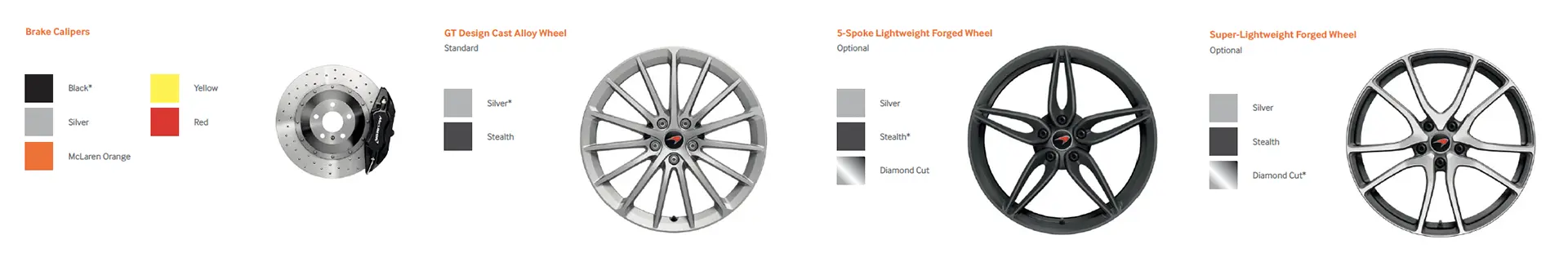

A specially developed lightweight composite braking system delivers a confi dent and progressive feel. Designed with a greater focus on road driving, the system includes large ventilated discs and powerful four-piston calipers front and rear, with carbon ceramic brakes available as an option. Five diff erent colours are available for the brake calipers, including the standard Black option and McLaren Orange.
Carbon fibre is the trademark McLaren material and underpins every road and race car we build. That’s why we off er you the chance to enhance various areas of the 570GT, to both personalise and improve performance, with carbon fibre components being up to 62 per cent lighter than standard parts.
A wide selection of carbon fi bre parts are available individually or as part of the two exterior carbon fibre packs. Carbon Fibre Exterior Pack 1 uses carbon fi bre for the side intakes and mirror casings. Carbon Fibre Exterior Pack 2 allows you to go even further with carbon fi bre aero blades, side skirts and rear diffuser.
More substantial carbon fibre upgrades are available through the MSO Defined range, giving you the opportunity to use carbon fibre for larger components, including the rear bumper, front splitter and rear spoiler.

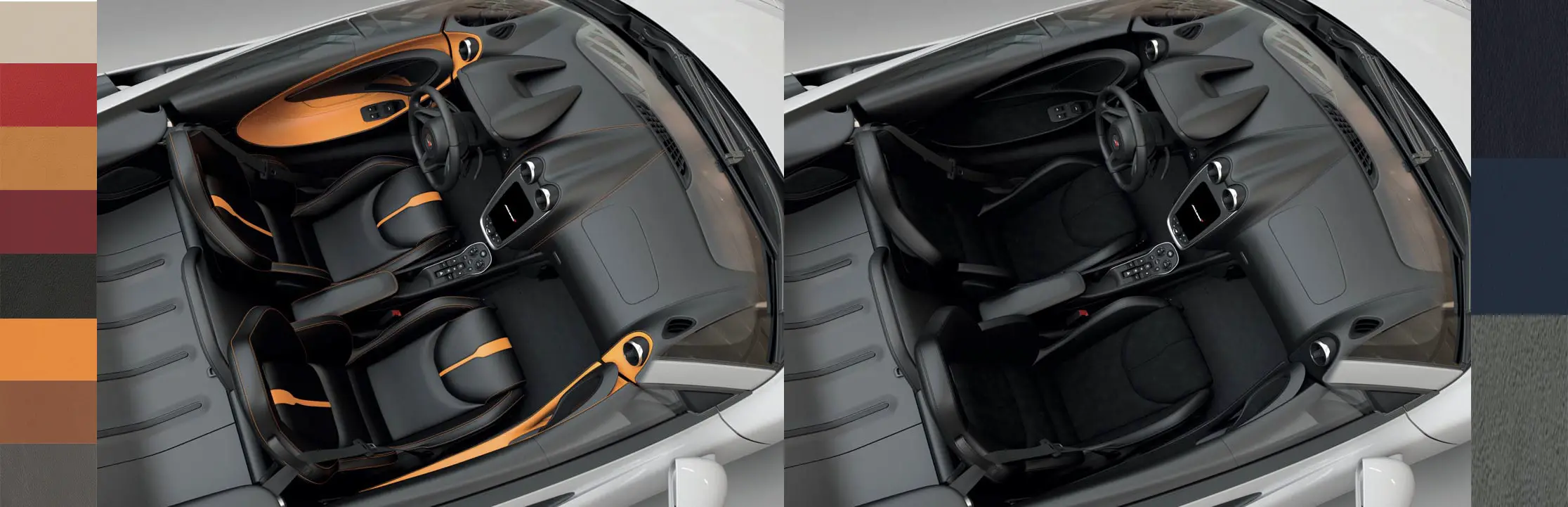

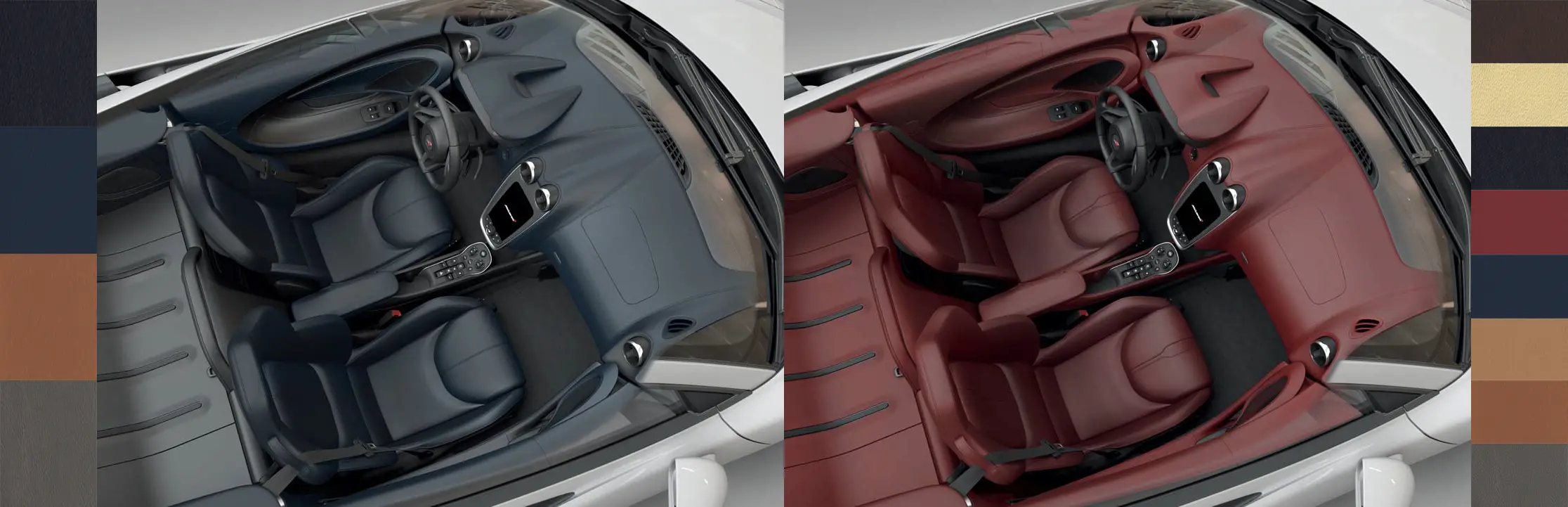

Extended Leather Interior.
The 570GT as standard has a complete leather-trimmed interior and a choice of four colours. An Alcantara® trimmed steering wheel is optional.
Nappa Leather Interior.
A sophisticated and classic colour palette is combined with Nappa leather, and off ers a softer and luxurious finish.
Nappa Sport Interior.
With supple Nappa leather finished in a range of confident colours, Nappa Sport reflects the dynamism of the 570GT.
Nappa Allacantra Interior.
Combining the indulgence of Nappa leather with extensive use of the lightweight performance-based material, Alcantara

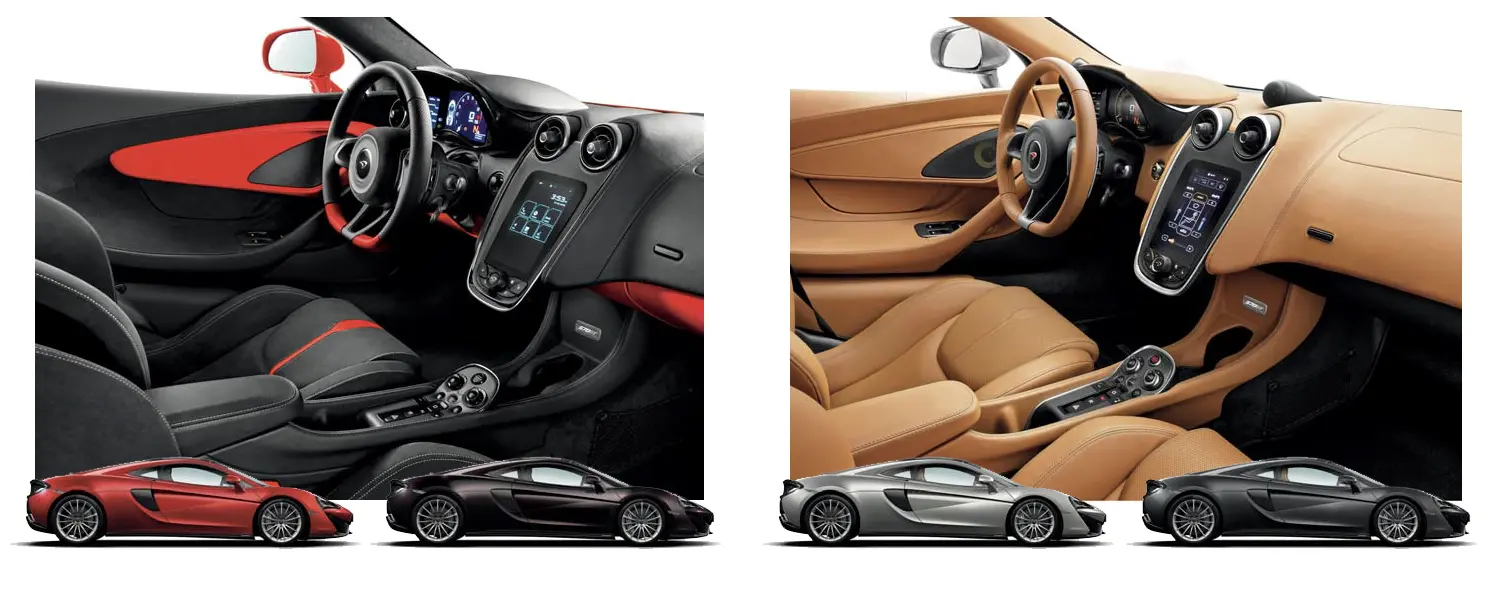

The 570GT is available with bespoke By McLaren interior options, each created to complement the extensive range of exterior paint colours, chosen specially by the McLaren design team. There are ten specially tailored By McLaren interiors to choose between, with five contemporary Sport Design selections favouring dynamic materials like Alcantara® to reflect the inherent athleticism of the 570GT, and fi ve Luxury Design collections that give you the possibility to enjoy sumptuous materials and confi dent, modern design.
Sport Design.
For a 570GT with a Vermillion Red or Fire Black exterior, the By McLaren recommendation is a Sport Design interior that fuses Carbon Black Alcantara® and Apex Red Nappa leather seats, together with Apex Red Nappa leather highlights. A colour-coordinated steering wheel, Alcantara® headlining and McLaren-branded leather sill finisher complete the vibrant driving environment.
Luxury Design.
For a 570GT with a Blade Silver or Storm Grey exterior, the By McLaren recommendation is a Luxury Design interior that combines Saddle Tan Nappa leather and Saddle Tan perforated leather seats, together with Slate Grey contrast stitching. The finishing touches are a colour-coordinated headlining, steering wheel and McLaren-branded leather sill finisher.
For those who wish to personalise their car to a greater extent, McLaren Special Operations (MSO), our bespoke division, can create just about anything you desire.
MSO off ers you an unprecedented level of personalisation and the opportunity to make your car truly unique. MSO Defined offers specially devised options across the series range, from aerodynamic enhancements to lightweight components and interior upgrades. Beyond that, MSO Bespoke allows almost limitless customisation: from exclusive paint and trim colours, to making signifi cant changes to materials or even bodywork, creating a genuinely one-off car.
At MSO we believe that the only limit is your imagination.

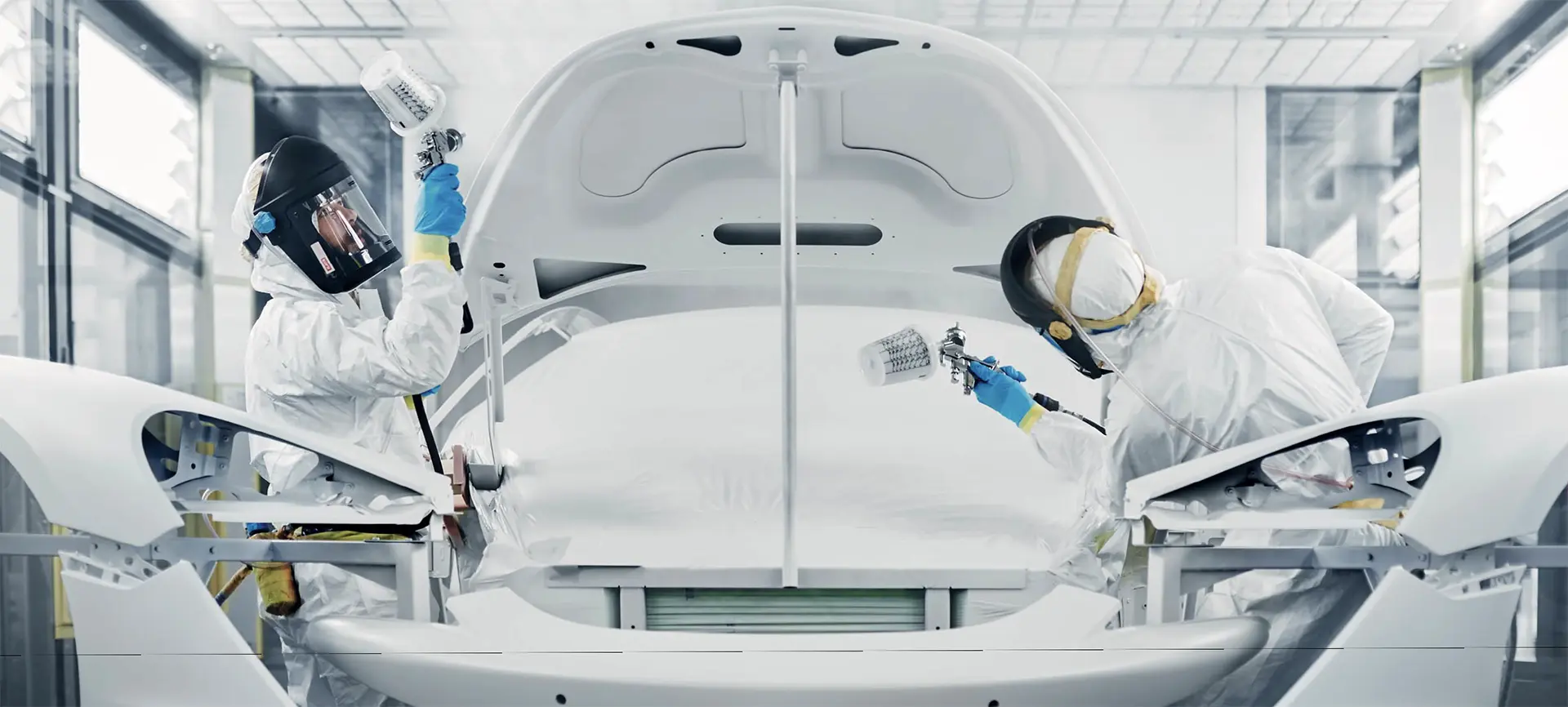

The 570GT is built in the state-of-the-art McLaren Production Centre (MPC) in Woking, England, just a few hundred metres from where our McLaren Formula 1™ racing cars are made.
Every 570GT is assembled by hand, with skilled technicians ensuring outstanding levels of quality.

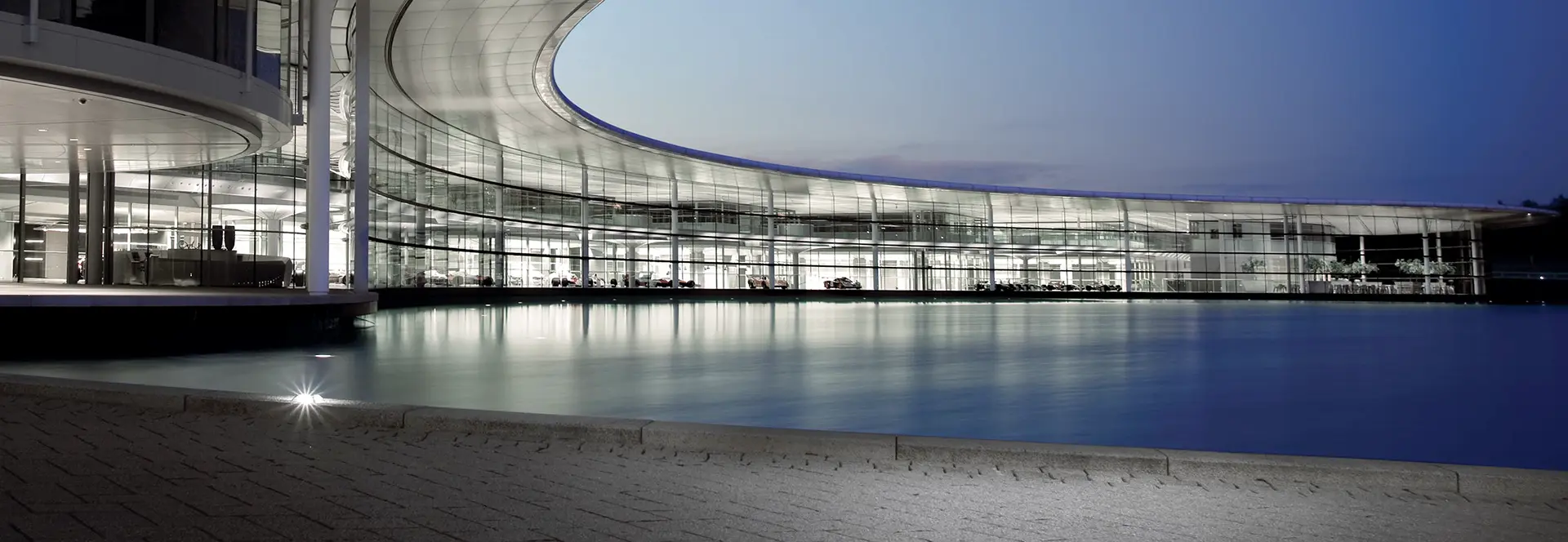

McLaren off ers customers the chance to tour the company’s unique headquarters in Woking, England – with the opportunity to see inside both the McLaren Technology Centre (MTC) and the McLaren Production Centre (MPC).
The MTC was opened in 2003 as a home for the entire McLaren Technology Group. It houses our engineering staff alongside the McLaren Formula 1™ racing team, and features an advanced wind tunnel. The MPC, where we hand-craft each roadgoing McLaren, is a car manufacturing facility unlike any other in the world. Come and see for yourself – contact your local McLaren Retailer.
All McLaren cars are born from uncompromised design and engineering innovation to be at the forefront of technology.
We strive to ensure that our vehicles continue to uphold this philosophy long after you take delivery. The 570GT benefits from a three-year ownership package, including manufacturer warranty and roadside assistance. For additional peace of mind, the vehicle warranty has the option to be extended up to 7 years, ensuring your car will continue to perform to its greatest potential.
Every McLaren is built to the same exacting standards, whichare reflected throughout our Authorised Retailer network. You can rest assured that our Approved Service Representatives will deliver an uncompromised experience throughout your ownership. When you visit one of the McLaren Approved Service Representatives, you can be confi dent that your car will be serviced using only McLaren Genuine Parts and that the work will be carried out by our factory trained technicians, to ensure that your 570GT is cared for in the best possible way.
McLaren ownership goes beyond the satisfaction of possessing one of the world’s best cars – we also off er unparalleled driving and lifestyle experiences across the globe. From the adrenalin rush of powering around iconic racing circuits to the luxury of VIP hospitality at world-class Motorsport events, you can meet fellow enthusiasts in exclusive environments and share in their passion for supercars. Or for something more leisurely and relaxed, try one of our scenic driving tours.
| ENGINE AND TRANSMISSION | Mclaren 570GT |
| M838TE 3.8L V8 Turbo Engine 570PS/600Nm | S |
| 7-Speed Seamless Shift Gearbox (SSG) | S |
| Start-Stop Functionality with Deactivation Switch | S |
| 3 x Powertrain Modes (Normal, Sport, Track) | S |
| Launch Control | S |
| Sports Exhaust | O |
| SUSPENSION | Mclaren 570GT |
| Adaptive Damping GT Tune | S |
| Anti-Roll Bars | S |
| 3 x Handling Modes (Normal, Sport, Track) | S |
| Nose Lift° | O |
| BRAKES | Mclaren 570GT |
| Cast Iron Brakes with 4-Piston Aluminium Calipers Front and Rear | S |
| Carbon Ceramic Brakes with 6-Piston Aluminium Calipers Front and 4-Piston Aluminium Calipers Rear | O |
| Calipers in Black Finish with Silver McLaren Logo | S |
| Special Colour Brake Calipers (McLaren Orange, Silver, Red and Yellow) | O |
| WHEELS AND TYRES | Mclaren 570GT |
| 19 x 8.0 J Front and 20 x 10.0 J Rear | S |
| GT Cast Wheels | S |
| 5-Spoke Lightweight Forged Wheels | O |
| Super-Lightweight Forged Wheels | O |
| Pirelli P-Zero™ Tyres | S |
| Pirelli P-Zero™ Corsa Tyres | O |
| Silver Wheel Finish | S |
| Stealth Wheel Finish | O |
| Diamond Cut Wheel Finish* | O |
| Tyre Pressure Monitoring System (TPMS) and Tyre Temperature Gauge | S |
| DRIVER ASSISTANCE TECHNOLOGIES | Mclaren 570GT |
| Anti-Lock Braking System (ABS) | S |
| Traction Control (TC) | S |
| Dynamic Electronic Stability Control (DESC) | S |
| Hill Hold Assist | S |
| Brake Pad Wear Sensors – Front and Rear | S |
| Brake Disc Wipe Technology | S |
| Brake Assist Technology | S |
| Brake Pre-Fill Technology | S |
| Cruise Control | S |
| Electronic Parking Brake | S |
| LIGHTING | Mclaren 570GT |
| Automatic Front LED Lights with Adjustable Follow-Me Home Function and Automatic Headlamp Levelling | S |
| Automatic LED Daytime Running Lights | S |
| Automatic LED Rear Lights | S |
| Dual Function LED Rear Fog/Reverse Light | S |
| Central High Mounted Stop Lamp | S |
| Interior Courtesy Light with Two Buttons | S |
| Interior Footwell Lighting and Door Lighting | S |
| Illuminated Luggage Areas (Front Boot, Rear Luggage Area and Glovebox) | S |
| EXTERIOR | Mclaren 570GT |
| Dihedral Doors | S |
| Soft Close Doors | S |
| Electrically Folding Heated Door Mirrors (with Dip in Reverse Functionality) | S |
| Standard Paint | S |
| Special Paint | O |
| Elite Paint | O |
| Silver Exhaust Finisher | S |
| Stealth Exhaust Finisher | O |
| Dark Palladium Front Splitter | S |
| Dark Palladium Aero Blades | S |
| Carbon Fibre Aero Blades | O |
| Dark Palladium Side Skirts | S |
| Carbon Fibre Side Skirts | O |
| Body Colour Exterior Door Inserts | S |
| Dark Palladium Exterior Door Inserts | NCO |
| Dark Palladium Side Intakes | S |
| Carbon Fibre Side Intakes | O |
| Dark Palladium Diffuser | S |
| Carbon Fibre Diffuser | O |
| Body Colour Cantrails | S |
| Panoramic Glass Roof (Fixed and Tinted) | S |
| Body Colour Door Mirror Casings | S |
| Carbon Fibre Door Mirror Casings | O |
| Natural Finish Wheel Arches | S |
| Carbon Fibre Wheel Arches | O |
| Rocket Red Badge Set | S |
| Stealth Badge Set | NCO |
| Model Designation Delete Option | NCO |
| MSO DEFINED EXTERIOR | Mclaren 570GT |
| MSO Defined Exterior Paint Colour | O |
| MSO Defined Carbon Fibre Front Splitter | O |
| MSO Defined Carbon Fibre Rear Bumper | O |
| MSO Defined Carbon Fibre Rear Spoiler | O |
| MSO Defined Carbon Fibre Exterior Pack (Front Splitter, Rear Bumper, Rear Spoiler) | O |
| MSO DEFINED INTERIOR | Mclaren 570GT |
| MSO Defined Carbon Fibre Face Vent Bezels | O |
| MSO Defined Coloured Seatbelts (McLaren Orange, Red and Yellow) | O |
| INTERIOR | Mclaren 570GT |
| Power Sports Seats (8-Way Power Adjust, Heated, Memory (Seat, Mirror and Steering Column) with Comfort Entry/Exit) | S |
| Carbon Fibre Racing Seats – Regular (Manual Fore-Aft for Driver and Passenger)*º | O |
| Carbon Fibre Racing Seats – Touring (Manual Fore-Aft for Driver and Passenger)*º | O |
| Power Adjust Steering Column (with Comfort Entry/Exit) | S |
| Electrochromatic Dipping Rear View Interior Mirror | S |
| Sun Visors with Driver and Passenger Vanity Mirror | S |
| Covered Door Storage Bins (Lined) | S |
| Lockable Centre Console Bin | S |
| Lockable Glovebox with Illumination | S |
| Stowage in Seat Front Pocket – Driver Side | S |
| Cup Holder x 1 | S |
| Face Vents x 4 | S |
| Model Specific Dedication Plaque | S |
| Extended Leather Interior | S |
| Nappa Sport Interiorº | O |
| Nappa Design Interiorº | O |
| Nappa Alcantara® Interior | O |
| By McLaren Designer Interiors – Sport Design | O |
| By McLaren Designer Interiors – Luxury Design | O |
| Satin Chrome Brightwork | S |
| Smoked Chrome Brightwork** | O |
| Black Sparkle Metallic Interior Components (Switch-Pack Surrounds, Steering Wheel Spokes and Gear Shift Paddles) | S |
| Carbon Fibre Interior Components (Switch-Pack Surrounds, Steering Wheel Spokes and Extended Gear Shift Paddles) | O |
| Leather Sill Finisher with McLaren Branding | O |
| Carbon Fibre Sill Finisher with McLaren Branding | O |
| Carbon Fibre Interior Door Inserts | O |
| Carbon Fibre Tunnel Sides | O |
| Carbon Fibre Seat Backs for Sports Seats | O |
| Carbon Black or Areia Carpet*** | S |
| Alcantara® Headlining*** | NCO |
| Leather Headlining*** | S |
| Nappa Leather Headlining*** | O |
| Carbon Black Leather Steering Wheel | S |
| Carbon Black Alcantara® Steering Wheel | O |
| Black Seatbelts | S |
| Leather-Trimmed Bulkhead | S |
| Rear Luggage Floor in Leather with Protection Strips and Tie-Down Loops for Luggage Retention | S |
| GT Rear Zone in Black Leather (Bulkhead and Rear Luggage Floor) | S |
| GT Rear Zone Colour-Coordinated (Bulkhead and Rear Luggage Floor) | O |
| Boot Lining — Front Luggage, Flock Lined | S |
| Front Luggage Retention Nets | S |
| INFOTAINMENT | Mclaren 570GT |
| IRIS 7" Portrait Touchscreen Infotainment System with Integrated Hard Drive | S |
| IRIS Navigation (inc. Cluster Turn-by-Turn Display) | S |
| McLaren 8-Speaker Audio System | S |
| Bowers & Wilkins Branded Audio System | O |
| Audio Media Player (with 3 USB Ports for External Devices) | S |
| AM/FM Radio | S |
| DAB Radio or SIRIUS | S |
| Bluetooth Telephony | S |
| AUX In | S |
| iPod/iPhone Integration | S |
| INTERIOR CONTROLS AND DISPLAYS | 570GT |
| Steering Wheel Mounted Paddle Shifters | S |
| One Touch Electric Windows | S |
| IRIS Touchscreen Dual Zone Climate Control System (Temp, Fan, Demist Front and Rear, Recirculation, Distribution, Auto, Mono, A/C) | S |
| Rain Sensor – Automatic Wipe | S |
| 4 Front and 4 Rear Parking Sensors | S |
| Rear View Camera with 4 Front and 4 Rear Parking Sensorsº | O |
| Performance Shift Cue | S |
| Battery Level Indicator | S |
| Oil Level Measurement System | S |
| Oil Temperature Gauge | S |
| External Temperature Indicator | S |
| Service Indicator | S |
| Driver and Passenger Electronic Door Release Button | S |
| Manual Door Lock/Unlock Button | S |
| Front Luggage Compartment Release Button | S |
| Glass Hatch Release Button | S |
| 12V Accessory Socket (1xCabin, 1xFront Luggage) | S |
| ACCESSORIES | Mclaren 570GT |
| Tyre Repair Kit (Tyre Weld) | S |
| Lithium Ion Battery Charger | O |
| McLaren Branded Floor Mat Set (Interior and Front Luggage) – Matched to Carpetº | O |
| Ashtray | O |
| Car Cover | O |
Engine M838TE engine. Engine capacity: 3,799cc. Type: 90° V8. Technology: Twin Turbo, Dry Sump. Bore x stroke: 93.0 x 69.9. Compression ratio: 8.7:1. Max rpm: 8,500. Power: 570PS (562bhp) (419kW) @ 7,500rpm. Torque: 600Nm (443lb ft) @ 5,000–6,500rpm.
Transmission 7-Speed Seamless Shift Gearbox (SSG). Gear ratio (1st): 4.0. Gear ratio (2nd): 2.6. Gear ratio (3rd): 1.9. Gear ratio (4th): 1.5. Gear ratio (5th): 1.2. Gear ratio (6th): 0.9. Gear ratio (7th): 0.7. Final-drive ratio: 3.3. 1st (mph/1,000rpm): 6.0. 2nd (mph/1,000rpm): 9.1. 3rd (mph/1,000rpm): 12.5. 4th (mph/1,000rpm): 16.2. 5th (mph/1,000rpm): 20.6. 6th (mph/1,000rpm): 26.4. 7th (mph/1,000rpm): 34.8.
Suspension Damping and roll modes – Normal, Sport, and Track.
Vehicle Dynamics Stability control modes – Normal, Sport, Sport Dynamic, Track, and Track Dynamic. Driver aids: ABS, Traction Control, ESC, Launch Control.
Steering Power steering – Variable-assistance, electro-hydraulic. Turns lock to lock: 2.5. Turning circle: 12.4m.
Wheels and Brakes Wheel size (F/R): 19” x 8” / 20” x 10”. Tyre type: Pirelli P-Zero™. Tyre size (F/R): 225/35R19 / 285/35R20. Brake disc size (Iron, F/R): 370 x 32 / 350 x 30 mm (14.6 x 1.3 / 13.8 x 1.2 in). Brake disc size (CCM Option, F/R): 394 x 36 / 380 x 34 mm (15.5 x 1.4 / 15.0 x 1.3 in).
Capacities Fuel tank: 72 litres / 19 gallons. Engine oil: 9 litres / 2.4 gallons. Coolant system: 26 litres / 6.9 gallons. Washer fluid: 4 litres / 1.1 gallons. Luggage: 150 litres (front), 220 litres (rear) / 5.3 cu.ft (front), 7.8 cu.ft (rear).
Weight DIN weight: 1,495kg / 3,296lb. Dry weight kg (lightest) / [lb (lightest)]: 1,400kg (1,350) / [3,086 (2,976)]. Weight distribution (F/R): 42 / 58.
Efficiency CO₂: 249g/km (EU)*. Fuel consumption (combined): 10.7 litres/100km (26.6mpg). Fuel consumption (urban): 16.5 litres/100km (17.2mpg). Fuel consumption (extra-urban): 7.4 litres/100km (38.4mpg). Power to weight (lightest): 422PS/tonne (416bhp/tonne). CO₂/power: 0.45g/km/PS. Fuel consumption (North America)**: Combined: 19mpg. City: 16mpg. Highway: 23mpg.
Performance Maximum speed: 328km/h (204mph). 0–100km/h: 3.4s. 0–200km/h: 9.8s. 0–60mph: 3.3s. 0–100mph: 6.6s.
Braking 100–0km/h (62–0mph): 33m (108ft). 200–0km/h (124–0mph): 133m (436ft).
