Aerodynamics with style — this, in short, is the theme that Maserati’s designers and engineers embraced in creating the 228 coupé. Its shape, defined by a distinctly wedge-like profile, highlights the fluidity of its curves and the dynamic flow of its volumes, suggesting exceptional performance even when the car is at rest.
But it is the details that confirm Maserati’s design philosophy — its craftsmanship, its attention to detail, and its advanced technology. The sloping hood merges harmoniously with the classic Maserati grille, whose rounded contours give it a fresh new look and rise toward the windshield, concealing the wipers from both sight and wind.

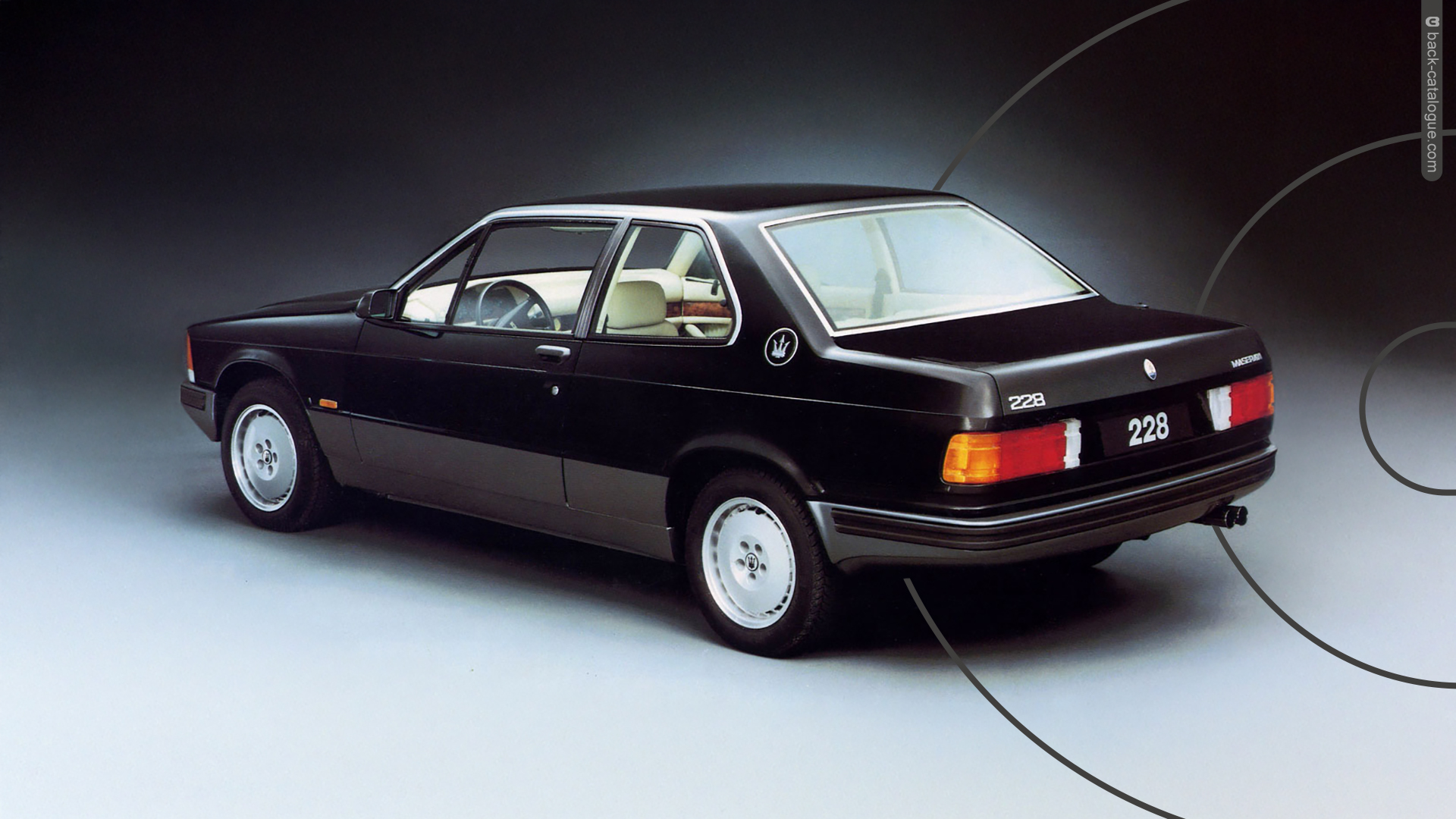

The exterior mirrors — electrically adjustable from inside — have a strongly aerodynamic form to prevent irritating wind noise at high speeds. The rear window, sharply raked and generously sized, connects smoothly to a trunk lid that offers an unexpectedly large luggage capacity.
Also noteworthy are the front and side turn indicators neatly recessed into the fenders and hood, the taillights perfectly flush with the bodywork, and many other subtle details to discover and admire — all part of the unmistakable Maserati style.
Twin Turbo Engine
Top Speed (km/h)
0–100 km/h (s)

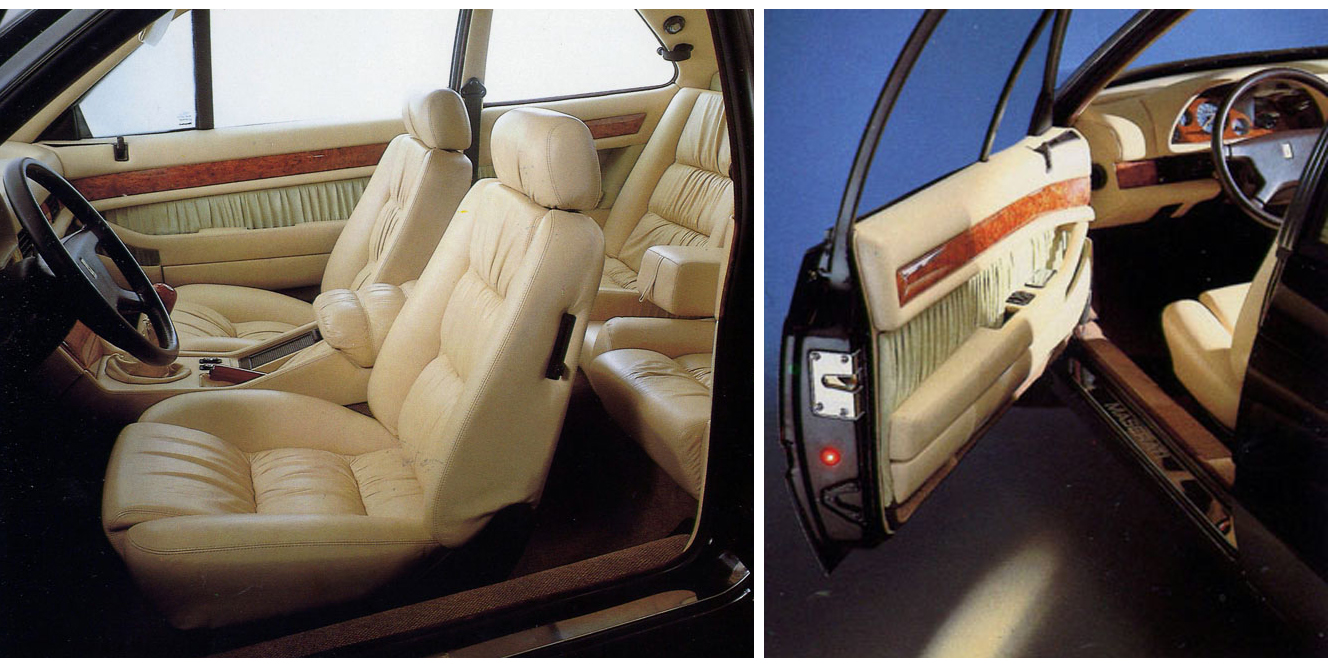

Elegant in the enveloping design of its seats and the refined choice of materials — soft Italian leather and fine walnut burl trim running around the cabin to emphasize its classic character — the Maserati 228 ranks among the world’s finest for its class and comfort.
Its four-spoke steering wheel, with a padded central hub, is leather-wrapped. The dashboard and door panels are also padded, ensuring complete safety and protection for the occupants.
Glove compartment. Armrest/storage pocket – cigarette box, lighter, and ashtray. Courtesy mirror with automatic lighting. Automatic air conditioner with multi-directional vents. Air outlets and ashtray for the rear seats. Rear seat armrest/storage pocket.
Engine Position: Front. Cylinders: 6 in a 90° V configuration. Bore x stroke: 94 x 67 mm. Total displacement: 2790 cm³. Compression ratio: 7.7 : 1. Maximum torque: 380 Nm (38 kgm) at 3500 rpm. Maximum power: 183 kW (250 hp) at 5600 rpm. Turbochargers: 2 IHI water-cooled units. Intercoolers: 2 front-mounted air-to-air units. Engine block and cylinder heads in light alloy with wet liners; water cooling with centrifugal pump; full-flow forced lubrication; electronic fuel injection and ignition; twin overhead camshafts; 18 valves (three per cylinder: two intake and one exhaust). Alternator: 65 Ah.
Transmission Manual 5-speed gearbox + reverse, ZF type S.5.18/3. Drive: Rear-wheel drive. Differential: Ranger® type. Final drive ratio: 3.31 : 1.
Chassis Construction: Self-supporting body.
Suspension Front: MacPherson type with anti-roll bar and double-acting telescopic shock absorbers. Rear: Independent suspension with arms mounted on a crossmember attached to the body via flexible mounts; coil springs, pressurized shock absorbers, and additional rubber bump stops.
Steering Rack-and-pinion with dual linkage, power-assisted.
Braking System A.T.E. type IH, with brake booster. Disc brakes on all four wheels, ventilated discs at the front, plus two rear drum brakes for parking and emergency use. Anti-skid system available on request.
Wheels Light-alloy, 7J x 15”.
Tires Front: 205/55 VR 15. Rear: 225/50 VR 15.
Body 3-box, 2-door, 5-seat coupé with Silent Travel® sound insulation system.
Performance Top speed: over 235 km/h. Acceleration: 0–1000 m: 26.3 seconds. 0–100 km/h: 5.6 seconds.

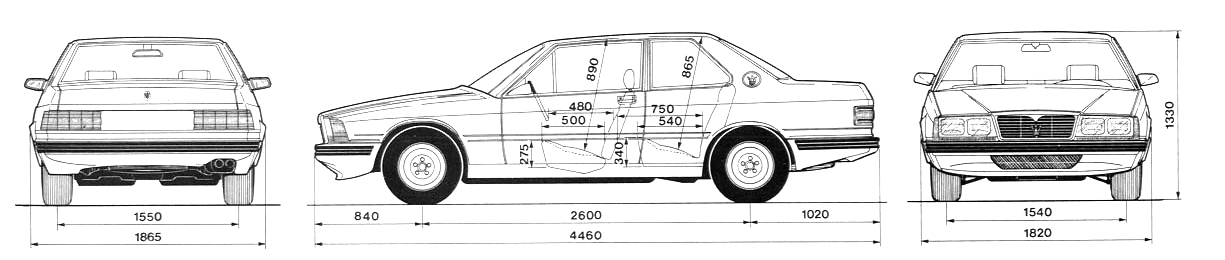

Dimensions Wheelbase: 2600 mm. Front track: 1540 mm. Rear track: 1550 mm. Overall length: 4460 mm. Width: 1865 mm. Height: 1330 mm. Minimum ground clearance: 133 mm. Curb weight: 1240 kg. Fuel tank capacity: 82 liters. Trunk capacity: approx. 530 dm³. Turning circle: approx. 11.70 m.
Anti-theft device. - 5-speed gearbox. - Electronic ignition and fuel injection. - Electrically adjustable exterior mirrors (controlled from inside). - Light-alloy wheels. - Fog lights. - Heat-insulated windows. - Spare-wheel compartment release system. - Power steering. - Height- and reach-adjustable steering wheel. - Central door locking. - Electromagnetic release for the fuel filler flap (from the dashboard). - Electromagnetic release for the luggage compartment (from the dashboard). - Burnt-out bulb warning indicator. - Door-open warning light. - Step illumination lights. - Automatic air conditioning with airflow also to the rear seats and door windows. - Interior control for headlight beam height adjustment. - Heated rear window. - Front seatbelts with automatic retractors; rear seatbelt pre-installation. - Electrically adjustable seatback recline for front seats. - Power-operated side windows. - Front seat headrests. - Fold-down center armrest on the rear seat. - Illuminated vanity mirror. - Analog clock. - Front and rear ashtrays with cigarette holder. - Rear-window sun curtain. - Pre-installation for radio and speakers. - Handcrafted full leather upholstery.
