Driving isn’t a right, it’s a privilege. Being passionate about it, now that’s your right. Like it or not, how you drive says just as much about you as what you drive. And that’s yet another reason to choose the Lexus IS and its 215-horsepower in-line 6 engine. If you’re really passionate about the time you spend behind the wheel, you’ll want the available five-speed manual transmission. This configuration includes a suspension tuned with stiffer coil springs to give it a tighter feel and helps with more responsive handling and tracking while executing linked turns. ombined with Variable Valve Timing with intelligence (VVT-i), the IS is able to continually adjust its intake valve openings to optimize performance in nearly any driving situation. Then consider the power-assisted brakes, the progressive power-assisted rack-and-pinion steering system and the 17-inch aluminum-alloy wheels1, and it’s easy to understand why IS drivers are known to have a perma-grin on their faces.
Engine 6 cylinder
Top Track Speed (mph)
0-60 mph (sec)

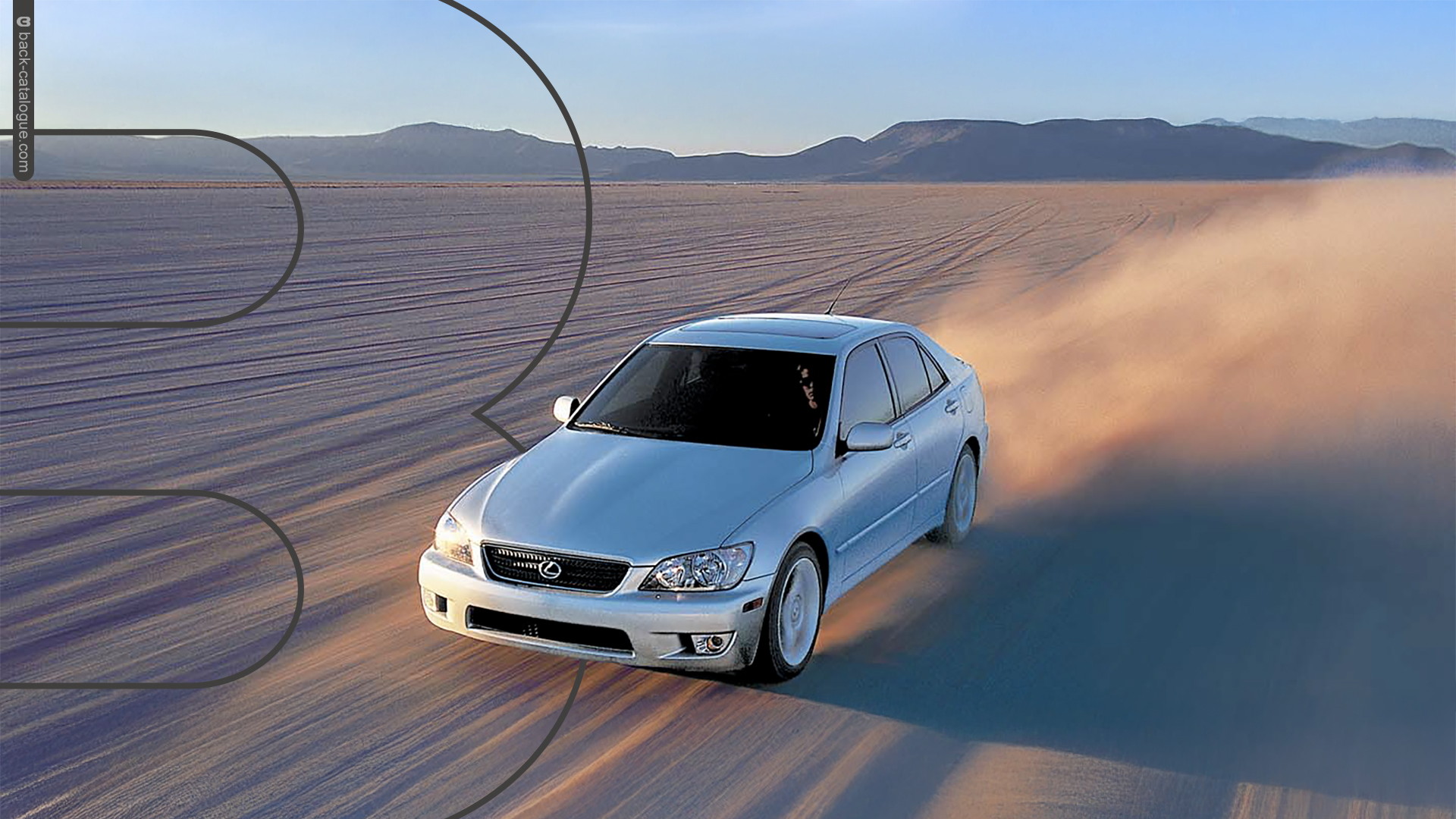

A steady diet of asphalt. That’s really all the IS desires. Fortunately, we’ve made it quite easy for you to heed that request, thanks to a number of highly addictive performance features. From the moment your foot hits the drilled-aluminum pedals you’ll find very few reasons to step back on to the pavement any time soon. Further contributing to the IS thrill factor is the Formula One-inspired E-shift — which allows you to manually control the five-speed automatic Electronically Controlled Transmission with intelligence (ECT-i). That means precision upshifts and downshifts right from your fingertips. True automotive enthusiasts will also demand the available TORSEN® Limited-Slip Differential (LSD)2, which distributes torque between the driving wheels to help improve traction on slippery roads, helping to keep the IS pointed in the direction you intended.

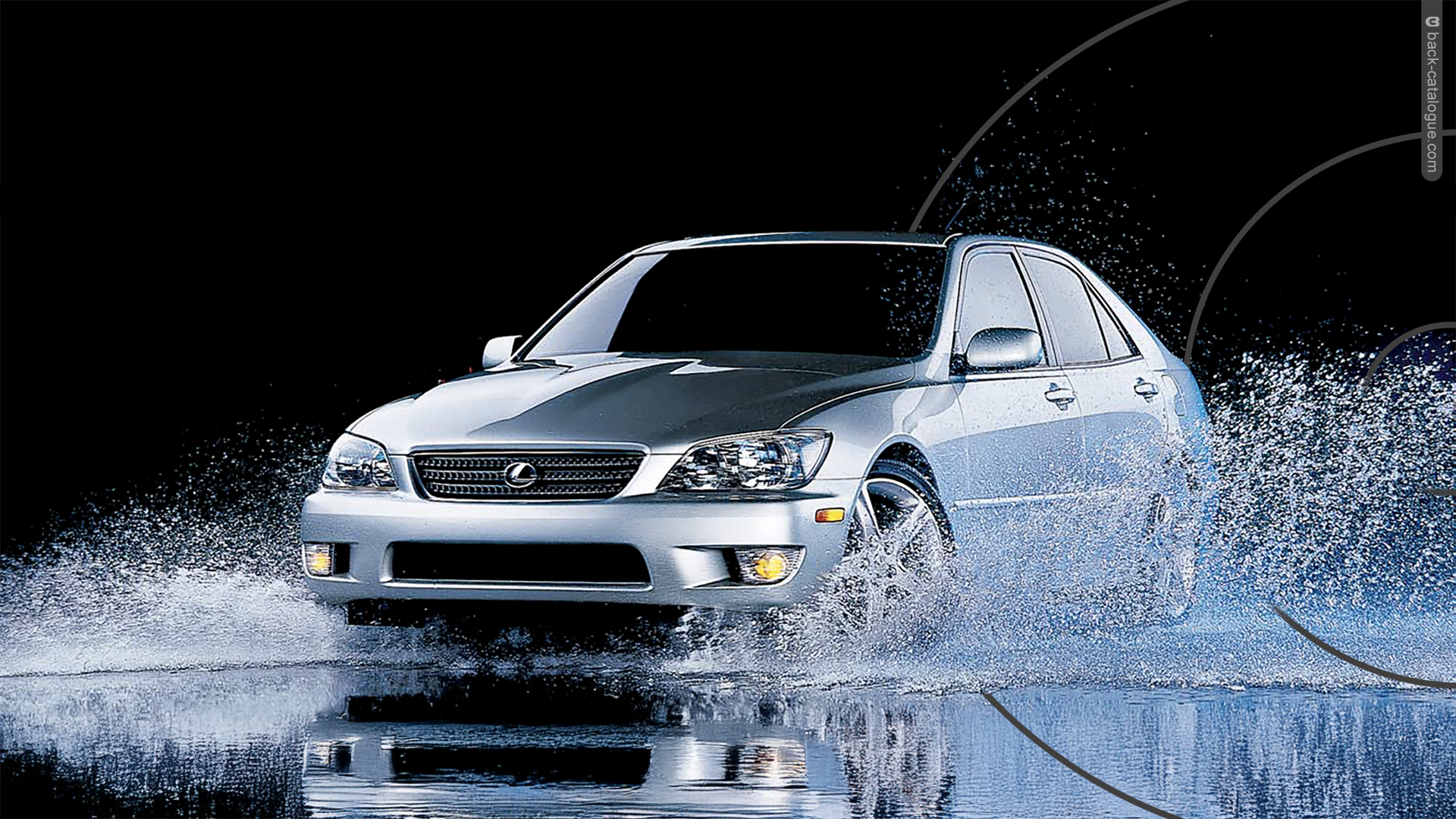

It handles curves. It handles straightaways. Heck, it’ll handle a midnight run for burgers if you want it to. Never underestimate the ambition of the four-wheel independent double-wishbone suspension of the 2004 Lexus IS.

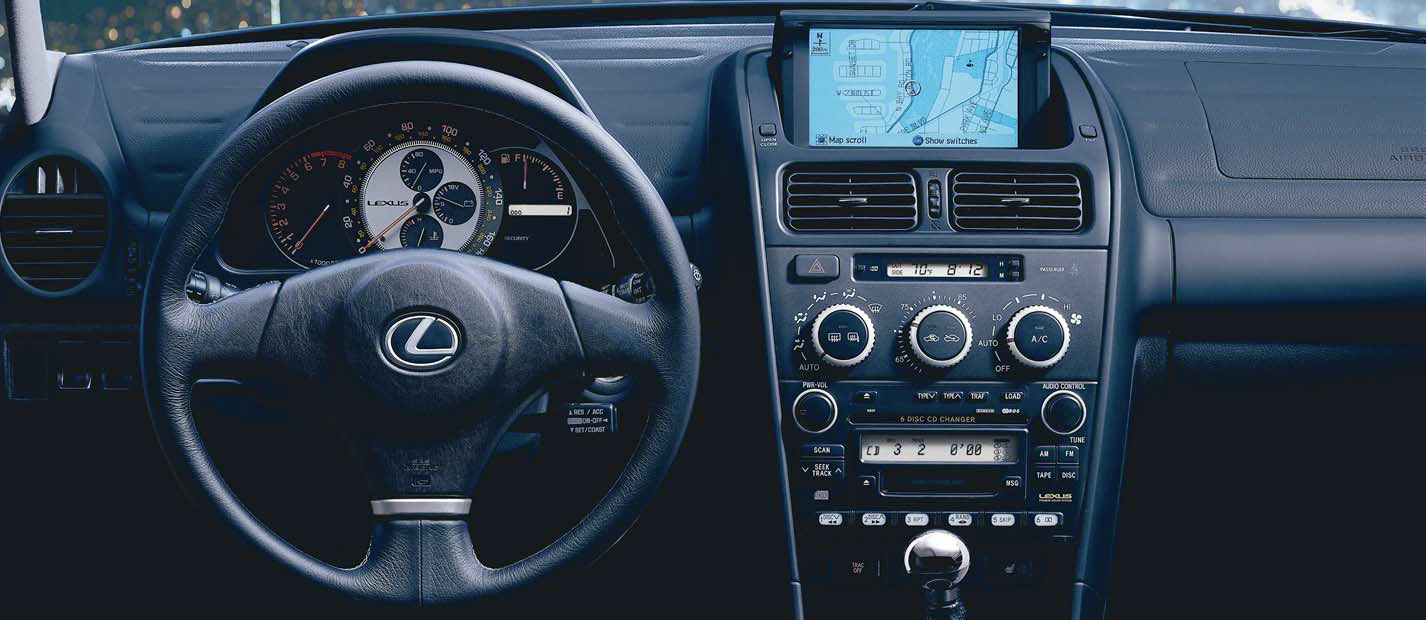

Although the IS was designed to hold up to five, there’s clearly one place everyone really wants to be sitting. That’s because, from every angle, its interior offers the driver an impressive array of technology. Perhaps the most noticeable is the chronographic-style instrumentation, which gives the speedometer, tachometer and odometer the distinctive look of a high-tech timepiece. Further contributing to the allure of the driver’s seat is the IS chrome ball shifter, which is styled to fit snugly within the palm of your hand, giving you a commanding feel over every shift. And speaking of your hands, both will be drawn to the grip of the handsome, leather-wrapped steering wheel, as well as the new finish of the center console knobs. Of course — seeing that no two IS drivers are identical — we also wanted to ensure that you could infuse your own brand of energy into the mix, so we included a six-disc, eight-speaker, 240-watt (max power) Lexus Premium Audio System.

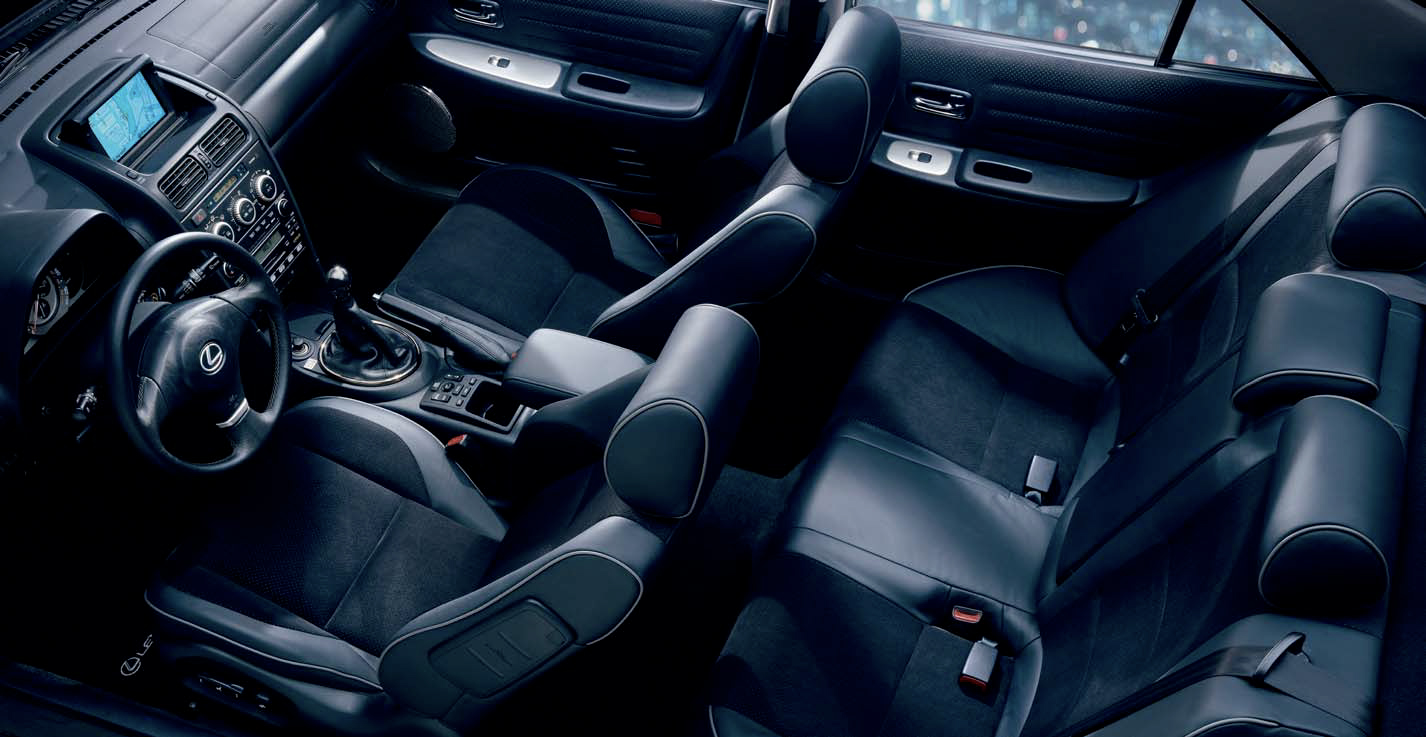

PRO: There’s room for passengers. CON: Eventually, they’ll ask to drive. In addition to the available perforated leather-trimmed seats, you can choose the available leather/Alcantara seating surface. This textured combination is designed to hold you tightly in the center of the seat as well as helping to secure you during aggressive cornering.

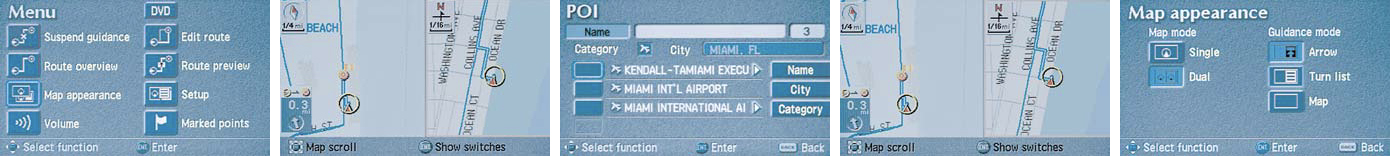

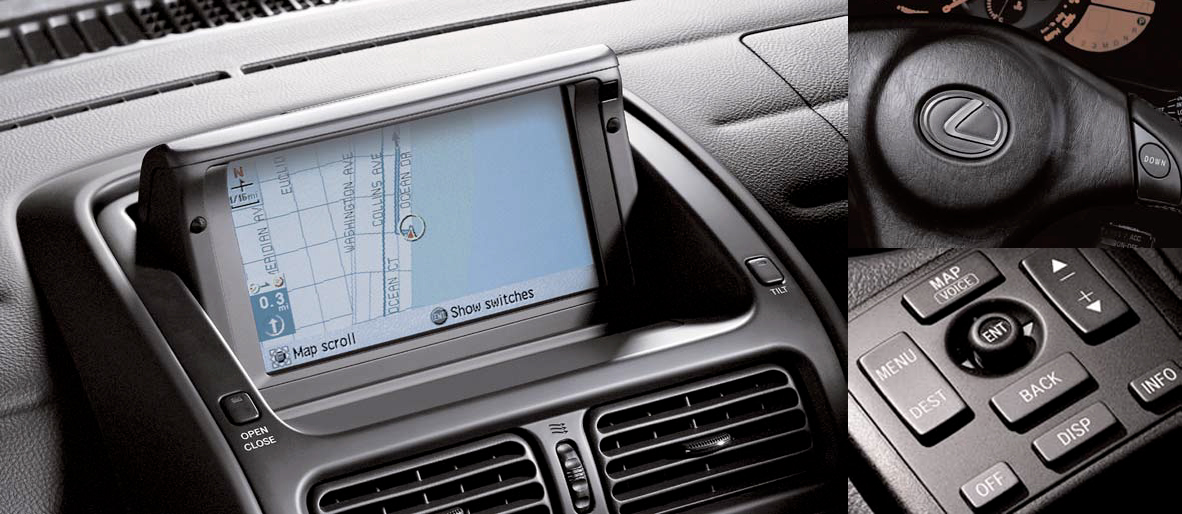

Considering that little voice inside your head isn’t likely to offer up any directions, you’ll want to have the expertise of the available DVD-based Lexus Navigation System3. And that’s a good driving companion to have because it means you’ll have the green light for many destinations in the contiguous U.S. and major cities in Canada — including street addresses, airports, hotels and ATM machines. With the touch of a button, the NAV screen pops up from the dash, and can be tilted to help minimize any glare, and help maximize screen clarity. Once you select your destination, the system not only gives you a choice of up to three different routes, but will also guide you with clear, easy-to-follow voice and visual directions. When the NAV screen is not in use, it folds back into the dash for an integrated look. And in true IS-techno form, the system’s controls are conveniently located in the center console for easy access.

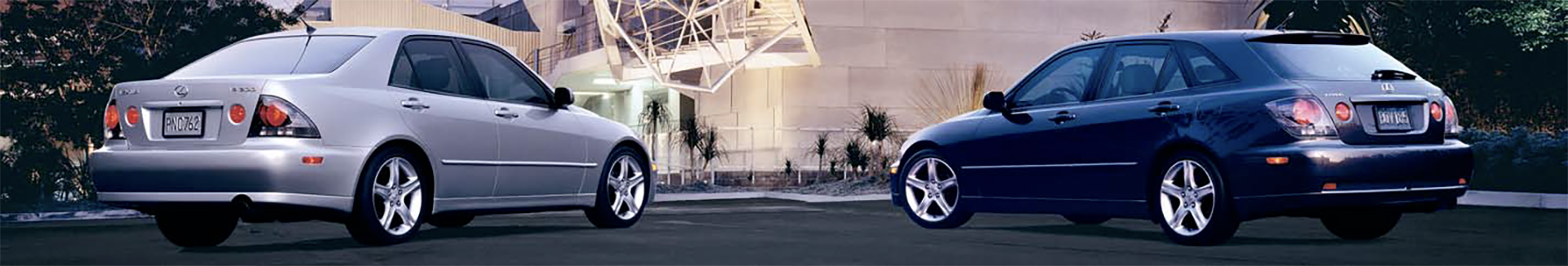

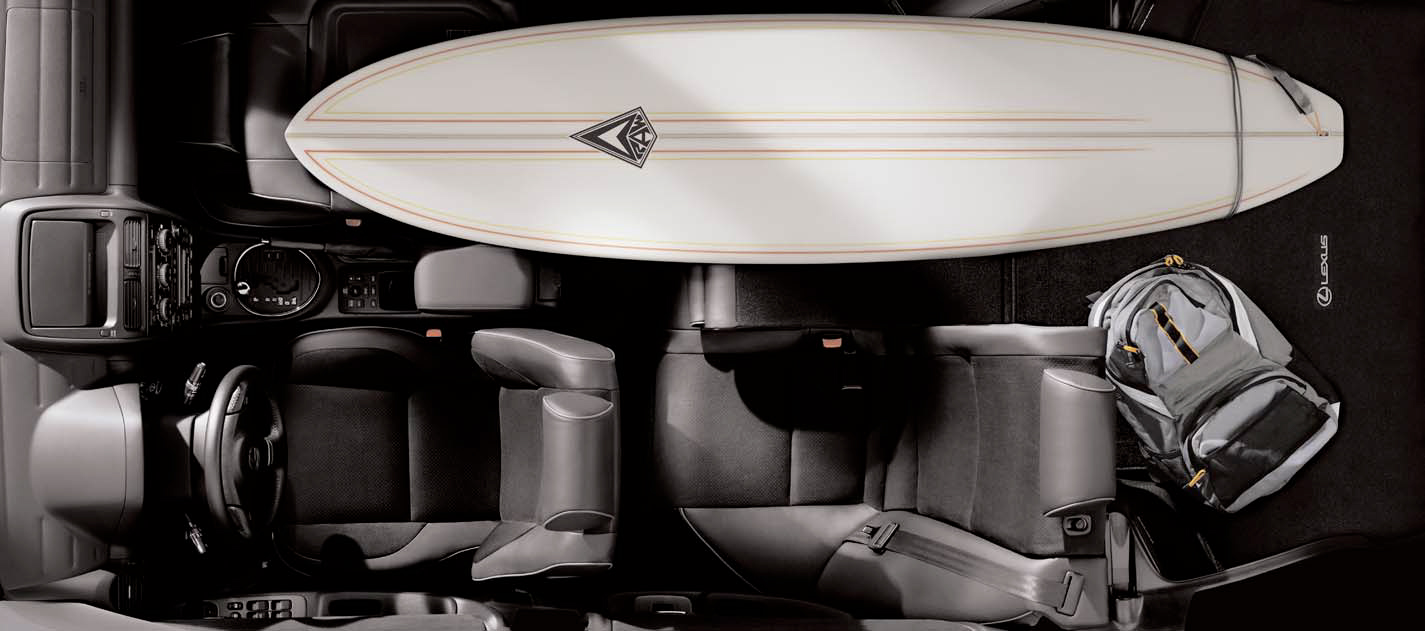

It’s not an SUV, but it will definitely awaken your adventurous side. Perhaps the most extreme version of the IS is what’s known as the SportCross. Call it an IS with a backpack, the SportCross has 60/40-split rear seats that make it quite easy for you to load just about whatever kind of gear your lifestyle, or just the day’s activities, demands. And like the IS sedan, the SportCross is available with both perforated leather-trimmed seats or the leather/Alcantara option. Additionally, the front passenger seat conveniently folds flat to create a seatback table, while a rear power outlet will prove ideal for most any electrical needs you might require. And exclusive to the IS SportCross is a Lexus nine-speaker 240-watt (max power) Premium Audio System with a woofer mounted in the rear cargo area.
At Lexus, we’ve spent hours creating and testing the sophisticated safety systems inside our vehicles. So while performance and luxury may be the most obvious personality traits of the IS, you can be sure safety is equally important ~ The steel-reinforced unibody structure is carefully designed to help retain the basic integrity of the passenger cabin in the event of an accident. Additionally, front and rear crumple zones are specifically designed to compress at a controlled rate, helping to dissipate the force of a possible collision. ~ In the event of a lateral collision, strong structural enhancements, such as front and rear side-door beams, help manage impact energy and resist intrusion into the passenger cabin. Finally, high tensile-strength steel is used in our body panels to strengthen the chassis, add stiffness to the body and help enhance handling.
• A driver’s and front passenger’s airbag Supplemental Restraint System (SRS)4 is designed to help protect the driver and front passenger in the event of a severe frontal collision.
• A front side curtain airbag Supplemental Restraint System (SRS)4 is designed to help protect the driver’s and front passenger’s heads in the event of a severe side impact.
• Front seat-mounted side airbags4 help reduce the effect of certain types of severe broadside collisions.
• Three-point seatbelts with front pre-tensioners and force limiters, crumple zones, a collapsible steering column and impact-dissipating upper interior trim are designed to help reduce the severity of certain types of injuries.
At Lexus, everything we create is designed to help you make the most of every moment. Our thoughtful amenities, numerous safety features and superior customer service provide a level of comfort and pleasure that will transcend into every aspect of your life. It is, in fact, our passionate pursuit of perfection that makes Lexus owners some of the most satisfied drivers on the road today. Not to mention a significant reason why so many of our existing customers keep coming back again and again. And we think you’ll come to find that it is this very philosophy that helps make owning a Lexus just as rewarding as driving one. If you don’t believe us, just ask anyone who’s been behind the wheel of one of our vehicles.
CUSTOMER SATISFACTION.
Given our years of award-winning customer satisfaction, your experience at a Lexus dealership will be unlike any other. You may find such amenities as customer lounges, offices you can use for business, free pickup and delivery, service loaner vehicles, complimentary car washes and even concierge services. And every Lexus owner has access to our 24-hour emergency Roadside Assistance program for their first four years of ownership. So if you ever need help, no matter what time of night or day, it’s just a phone call away.
VALUE/DEPENDABILITY/QUALITY.
The value of owning a Lexus involves much more than just its purchase price. It also includes our well-earned reputation for vehicle dependability, projected low repair costs and high retained value, in addition to such intangibles as outstanding customer satisfaction, unparalleled quality, peace of mind and loyalty. And while you may not be able to put a price tag on such intangibles, the feeling can sometimes be more reassuring than money in the bank.
RESPONSIBLE THINKING.
At Lexus, we encourage wise use of natural resources, promote driving responsibly when traveling on-road and off, and try to reduce emissions whenever possible. In fact, all 2004 Lexus vehicles will be certified as either Low- Emission Vehicles (LEV) or Ultra-Low Emission Vehicles (U-LEV) or (U-LEV II). In short, we try to make Lexus a company that everyone can feel good about, whether you happen to be driving one or not.
While there’s certainly not much you could ask for in terms of the power, handling or overall performance of the IS, you do have a choice of some rather impressive Lexus options and accessories.
OPTION PACKAGES.
Leather Trim Value Package. Perforated leather seating surfaces and interior trim • Eight-way power-adjustable front seats with driver’s memory • HomeLink® universal transceiver • Power tilt-and-slide moonroof with one-touch open/close and sliding sunshade.
Leather/Alcantara Trim Value Package. Leather/Alcantara seating surfaces and interior trim • Eight-way power-adjustable front seats with driver’s memory • HomeLink® universal transceiver • Power tilt-and-slide moonroof with one-touch open/close and sliding sunshade
OPTIONS AND ACCESSORIES.
Rear spoiler (standard on SportCross) • 17 x 7.0-in five-spoke graphite-finished alloy wheels with 215/45ZR17 summer tires1 • 17 x 7.0-in five-spoke alloy wheels with 215/45ZR17 all-season tires1 • 17 x 7.0-in five-spoke alloy wheels with 215/45ZR17 summer tires1 • 17 x 7.0-in 11-spoke alloy wheels with 215/45ZR17 summer and all-season tires1 (17 x 7.5-in alloy rear wheels with 225/45ZR17 rear tires on SportCross) • 16 x 6.5-in alloy wheels with 205/55VR16 all-season tires (no-cost option) (SportCross only) • Wheel locks • Removable roof rack (sedan only) • Bike Attachment • Ski Attachment • Black Pearl emblem kit • Gold trim emblem kit • Car cover • Cargo net • Cargo mat • All-weather floor mats • Trunk mat • Detachable ski bag for trunk pass-through (60/40-split rear seat on SportCross, sedan only) • Front-end mask • Leather care • Touch-up paint.
| Type | Five-passenger sport sedan/SportCross |
| Construction | Welded-steel unibody |
| Overall Length | 176.6 in, 177.0 in (SportCross) |
| Width | 67.9 in |
| Height | 55.5 in, 56.7 in (SportCross) |
| Wheelbase | 105.1 in |
| Ground Clearance | 5.3 in |
| Weight Distribution (front/rear) | 54%/46%, 53%/47% (SportCross) |
| Curb Weight | 3,255 lb (manual), 3,285 lb (automatic), 3,410 lb (SportCross) |
| Fuel-tank Capacity | 17.5 gallons |
| Trunk Capacity | 10.1 cubic feet, 21.8 cubic feet (SportCross) |
| Headroom (front/rear) | 39.1/37.7 in (37.8/37.3 in with available moonroof) |
| Legroom (front/rear) | 42.7/30.2 in |
| Shoulder Room (front/rear) | 52.6/53.5 in |
| Vehicle Stability Control (VSC) | Electronic system that monitors and helps control the loss of traction in a turn by using yaw-rate, deceleration, vehicle-speed and steering-wheel-angle sensors. Modulates engine power and applies individual brakes as necessary. Integrates Anti-lock Braking System (ABS), Brake Assist6 and Traction Control (TRAC). (Not available with manual transmission.) |
| Suspension | Front: Independent, double-wishbone with A-shaped upper arm, coil springs, gas-pressurized shock absorbers, stabilizer bar. Rear: Independent, double-wishbone with L-shaped aluminum upper arm and toe-control arm, |
| Steering | Engine-speed-sensing, progressive power-assisted rack-andpinion. 3.0 turns, lock to lock. |
| Brakes | Four-wheel power-assisted discs, with four-sensor, four-channel Anti-lock Braking System (ABS) with Electronic Brakeforce Distribution (EBD) and Brake Assist.6 11.65-in vented front discs, 12.09-in solid rear discs. |
| Wheels and Tires | 17 x 7.0-in alloy wheels with 215/45ZR17 summer tires1 (17 x 7.5-in alloy rear wheels with 225/45ZR17 rear tires on SportCross). Optional wheels and tires: 17 x7.0-in five-spoke graphite-finished alloy wheels with 215/45ZR17 summer tires1 (17 x 7.5-in alloy rear wheels with 225/45ZR17 rear tires on SportCross), 17x 7.0-in five-spoke alloy wheels with 215/45ZR17 all-season tires,1 17 x 7.0-in 11-spoke alloy wheels with 215/45ZR17 summer and all-season tires1 (17 x 7.5-in alloy rear wheels with 225/45ZR17 rear tires on SportCross), 16 x 6.5-in alloy wheels with 205/55VR16 all-season steel-belted radial tires (SportCross only). Full-size spare with alloy wheel. |
| Transmission | Five-speed automatic Electronically Controlled Transmission with intelligence (ECT-i). E-shift on sedan and SportCross with controls on steering wheel. Overdrive fifth gear, engine/transmission networking, flex-lockup torque converter. Five-speed manual (sedan only). |
| Drive Wheels | Rear, with standard Traction Control (TRAC). |
| Gear Ratios (manual) | First: 3.566, second: 2.056, third: 1 .384, fourth: 1.000, fifth: 0.850. |
| Gear Ratios (automatic) | First: 3.357, second: 2.180, third: 1 .424, fourth: 1 .000, fifth: 0.753. |
| Final Drive Ratio | 3.727:1 (manual)/3.909:1 (automatic) |
| Type | In-line 6, iron block, aluminum head, certified Low-Emission Vehicle (LEV) |
| Displacement | 3.0 liters (183 cubic inches) |
| Valvetrain | Twin cam, four valves per cylinder, with continuously Variable Valve Timing with intelligence (VVT-i) |
| Compression Ratio | 10.5:1 |
| Horsepower at RPM | 215 hp @ 5,800 |
| Torque at RPM | 218 lb-ft @ 3,800 |
Vehicle Stability Control (VSC) 5 • Ventilated front/solid rear disc brakes with four-channel Anti-lock Braking System (ABS) with Electronic Brakeforce Distribution (EBD) • Brake Assist6 • Traction Control (TRAC) • TORSEN® Limited-Slip Differential (LSD) 2 • Strong body structure with front and rear crumple zones • Side-impact door beams • Reinforcements in pillars and doorsills • Impact-dissipating upper interior trim • Collapsible steering column • Driver’s and front passenger’s airbags (SRS)4 • Front seat-mounted side airbags (SRS)4 • Front side curtain airbags (SRS)4 • Three-point seatbelts for all seating positions, pre-tensioners with force limiters for front seats • Height-adjustable front shoulder belt anchors • Child Restraint Seat (CRS) tether anchor brackets for all rear seating positions • Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR) seatbelts for all seating positions (driver’s — ELR only) • Automatic on/off High-Intensity Discharge (HID) headlamps with dynamic auto leveling • Daytime running lights • Integrated foglamps • Variable intermittent windshield wipers with mist cycle (additional rear wiper on SportCross) • Vehicle theft-deterrent and engine immobilizer system, with in-key transponder • Rear-window defogger with auto-off timer • First aid kit • Tool kit • Wallet lock-out key.
| 0-60 MPH Acceleration | 6.8 seconds (manual) / 7.3 seconds (automatic) / 7.4 seconds (SportCross) |
| 1/4-Mile Acceleration | 15.1 seconds (manual) / 15.5 seconds (automatic) / 15.6 seconds (SportCross) |
| Top Track Speed | 143.7 mph (electronically limited) |
| Estimated Fuel Consumption | 18/24 mpg (automatic/SportCross)/18/25 mpg (manual) city/highway |
| Aerodynamic Drag Coefficient | 0.29/0.31 (sedan/SportCross) |
| Turning Circle | 34.1 ft |
Perforated leather interior trim (includes eight-way power-adjustable front seats with driver’s memory and HomeLink® universal transceiver) • Leather/Alcantara interior trim (includes eight-way power-adjustable front seats with driver’s memory and HomeLink® universal transceiver) • Lexus DVD Navigation System 3 • Eight-way power-adjustable driver’s and front passenger’s seats with driver’s memory (included with perforated leather or leather/Alcantara interior trim) • Height-adjustable headrests for all seats • Lexus eight-speaker (nine on SportCross) 240-watt (max power) Premium Audio System with in-dash, single-feed, six-disc CD auto-changer • Automatic climate control with interior air filter • Power tilt-and-slide moonroof with one-touch open/close and sliding sunshade • Cruise control • Leather-trimmed shift knob • Front center armrest • Heated front seats • Walnut switch plates (available with leather only) • Center console with accessory power outlet • Outside temperature gauge • Tilt-adjustable steering column • Dual front and rear cupholders • HomeLink® universal transceiver to operate compatible garage, gate, home lighting and home security systems (included with perforated leather or leather/Alcantara interior trim) • Power windows with driver’s one-touch auto open/close feature • Power door locks with driver’s two-turn unlock feature • Multifunction, in-key remote entry system with rolling-code technology • Illuminated entry system • Remote trunk-lid (sedan only) and interior fuel-filler door releases • Retained accessory power for moonroof and windows • Carpeted floor mats • Electrochromic (auto-dimming) inside mirror with compass • Power-adjustable outside mirrors (electrochromic on driver’s) with defoggers • Rear power outlet (SportCross) • Rear cargo area with storage compartments, accessory power connector and tonneau cover (SportCross) • Customized Body Electronics System (C-BEST) to personalize electronic functions.
