Tubular frame of integral construction - Fiberglass floor panels - Light alloy body - 2 Seater Coupé. Track: front 1492 mm - rear 1606 mm. Wheelbase 2450 mm. Length 4140 mm. Width 2000 mm. Height 1070 mm. Weight 1480 kg. Mid-engine with longitudinal layout - independent front and rear suspession with transverse A arms, dampers and coaxial springs - Rear suspension with two damper units per wheel - Front and rear stabiliser bars. Constant-moving drive shafts. Rack and pinion steering. Dual circuit hydraulic brakes with servo units and alloy calipers - Brake regulator on rear axie - Ventilated brake discs. Wheels: Elektron rims front 8" 1/2x15 - rear 12"x15. Tyres: front 205/50 VR 15 Pirelli P. 7 - rear 345/35 VR 15 Pirelli P 7. Laminated glass windshield. Adjustable steering wheel. Parallelogramm windshield wipers. Luggage van capacity. 240L. 2 light alloy fuel tanks, total capacity 120L.
Engine
Maximum power Hp
Top Speed km/h

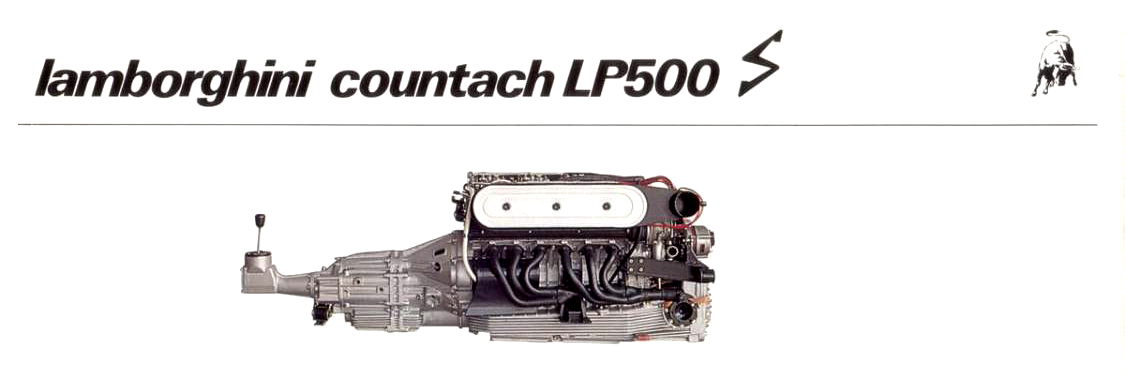

Original Lamborghini design with gearbox mounted ahead of engine. V 12 60' engine - Capacity: 4754 cc. Stroke 69 mm. Bore: 85.5 mm. Compression ratio: 9,2:1. Maximum power: 375 Hp DIN at 7000 rpm. Maximum torque 41.8 Kgm at 4500 rpm. Light alloy cylinder block and heads. 7 bearing crankcase. Timing system: 2 overhead camshafts (chain). Electronic ignition: single magnetic Marelli distributor. Carburation by six horizontal Weber twin choka 45DCOE carburottora. Cooling system by two side mounted horizontal flow water radiators and two electric fans. Electrical system: 12 V 72 Ah battery 70 A alternator. Separated oil radiator. Lamborghini all-synchro five speed + reverse gearbox. Ratios: 1st speed: 2,232:1 - 2nd speed: 1.825:1 - 3rd speed: 1,086:1 - 4th speed. 0,869:1 5th speed: 0,707:1 - reverse: 1.960:1 - Axle ratio: 11/45. Limited slip differential. Singie plate dry clutch hydraulically operated.
Speeds attainable at 7000 rpm: 1st speed: 88,2 km/h - 2nd speed: 121.1. km/h - 3rd speed: 181.3 km/h - 4th speed: 229,6 km/h - Sth speed: over 290 km/h
| Bore x stroke mm | 85.5 x 69 |
| Cylinder capacity cc | 4754 |
| Compression ratio | 9.2:1 |
| Max. power output DIN bhp @ rpm | 375 @ 7000 |
| Max. torque Kgm @ rpm | 41.8 @ 4500 |
| Timing | 2 overhead camshafts (chain) |
| Electronic Ignition | single magnetic Marelli distributor. Carburation by six horizontal Weber twin choka 45DCOE carburottora |
| Cooling system | two side mounted horizontal flow water radiators and two electric fans |
| Electrical system | 12 V 72 Ah battery 70 A alternator |
| Transmission | Lamborghini all-synchro five speed + reverse gearbox. Ratios: 1st speed: 2,232:1 - 2nd speed: 1.825:1 - 3rd speed: 1,086:1 - 4th speed. 0,869:1 5th speed: 0,707:1 - reverse: 1.960:1 - Axle ratio: 11/45. |
| Clutch | Singie plate dry clutch hydraulically operated. |
| Gearbox | 5-speed |
| Steering | Rack and pinion |
| Brakes | Dual circuit hydraulic brakes with servo units and alloy calipers - Brake regulator on rear axie - Ventilated brake discs. |
| Suspension | independent front and rear suspession with transverse A arms, dampers and coaxial springs - Rear suspension with two damper units per wheel - Front and rear stabiliser bars. |
| Wheels | Elektron rims front 8" 1/2x15 - rear 12"x15. |
| Tyres | front 205/50 VR 15 Pirelli P. 7 - rear 345/35 VR 15 Pirelli P 7 |
