Welcome to the next generation of tough. From cutting-edge technology to the power you need, the D-MAX is your capable companion. It’s as eye-catching off-road as it is in the city, offering the perfect combination of performance, comfort, safety and reliability that’s tailored to Australian conditions. With up to 3.5 tonne towing+ across the D-MAX range, and seamless connectivity, it’s both refined and robust. Whether on or off-road, at work or at play, the D-MAX defines durability – today, and every day after.
Everything Isuzu has learned over a century of specialist engineering has led to this. The rugged, reliable, and refined Isuzu D-MAX. GO YOUR OWN WAY.
Engine
Horsepower @ 4,600 rpm
Torque @ 2,600 rpm

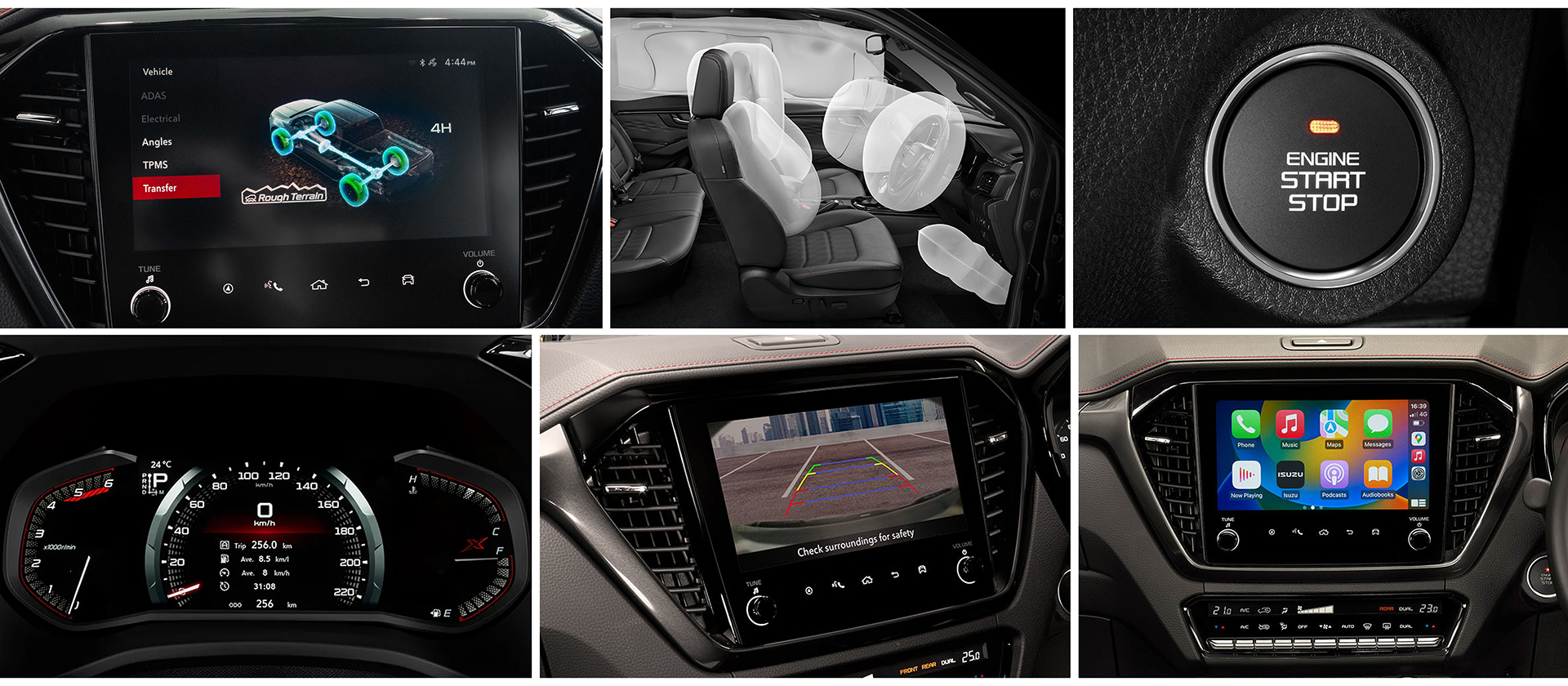

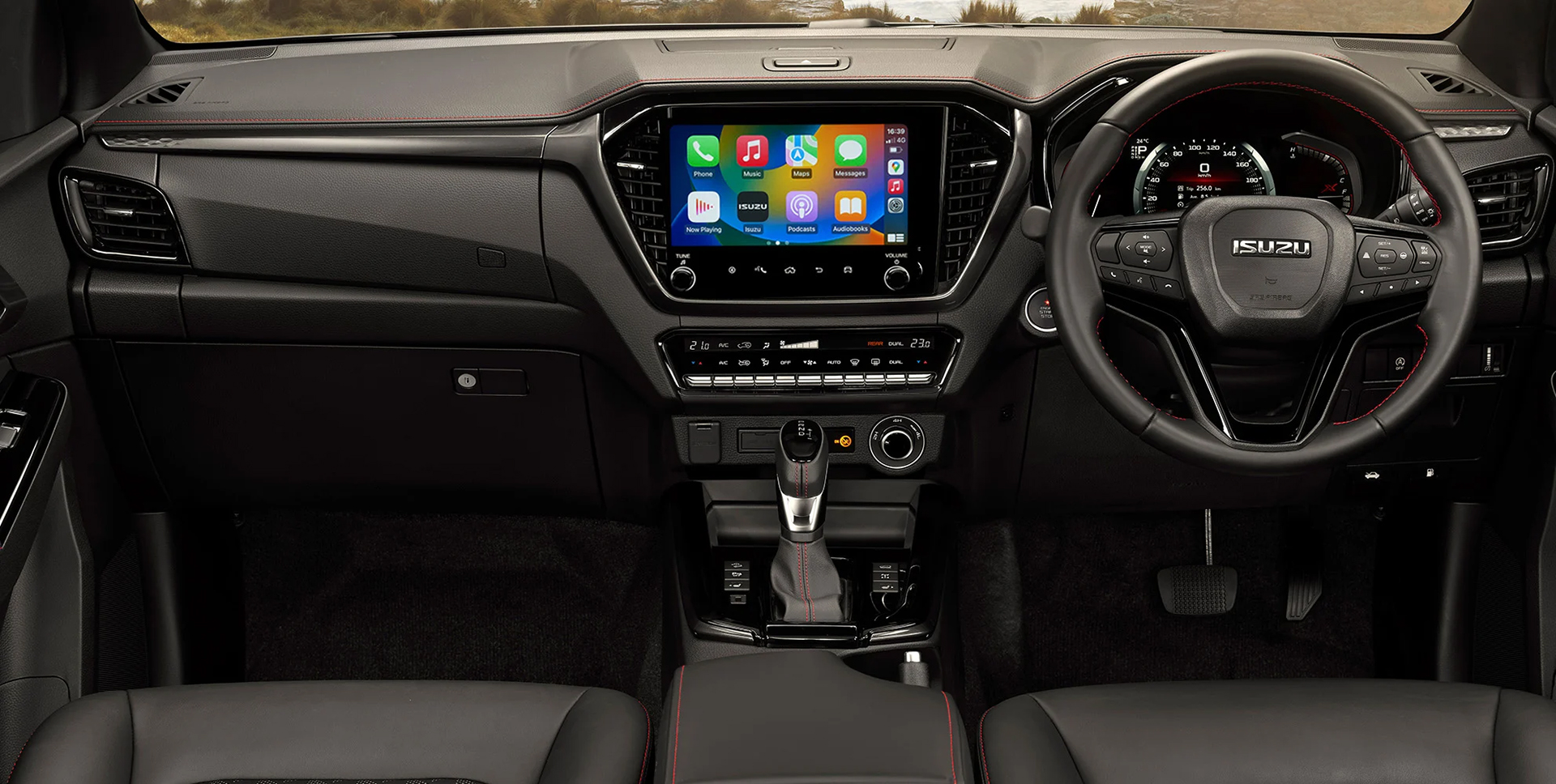

To keep you connected, every D-MAX features a large, high-definition, customisable central touchscreen, with wireless Android Auto™ and wireless Apple CarPlay®±, as well as voice recognition. A 4.2” smart digital display on SX, and X-RIDER and a large 7" smart digital display on LS-U, LS-U+ and X-TERRAIN lets the driver access a variety of information in the instrument cluster via the steering wheel, including a digital speed reading.
All D-MAXs offer automatic headlights and wipers as well as intelligent adaptive cruise control as standard. In addition, the LS-U range and X-TERRAIN include an auto-dimming rear view mirror, heated side mirrors and a Tyre Pressure Monitoring System (TPMS) for increased safety.
Your safety is paramount and therefore, Isuzu’s Intelligent Driver Assistance System (IDAS#) technology includes an extensive list of both active and passive safety features as standard across the range. Employing state-of-the-art sensors and a stereo camera, IDAS constantly monitors your surrounding environment for danger. Each D-MAX model includes eight airbags as standard and a strong robust chassis, as well as a reinforced cabin safety cell for ultimate protection. With its maximum 5-star ANCAP safety rating, the D-MAX puts your safety first – wherever adventure takes you. The D-MAX BLADE variant is unrated.

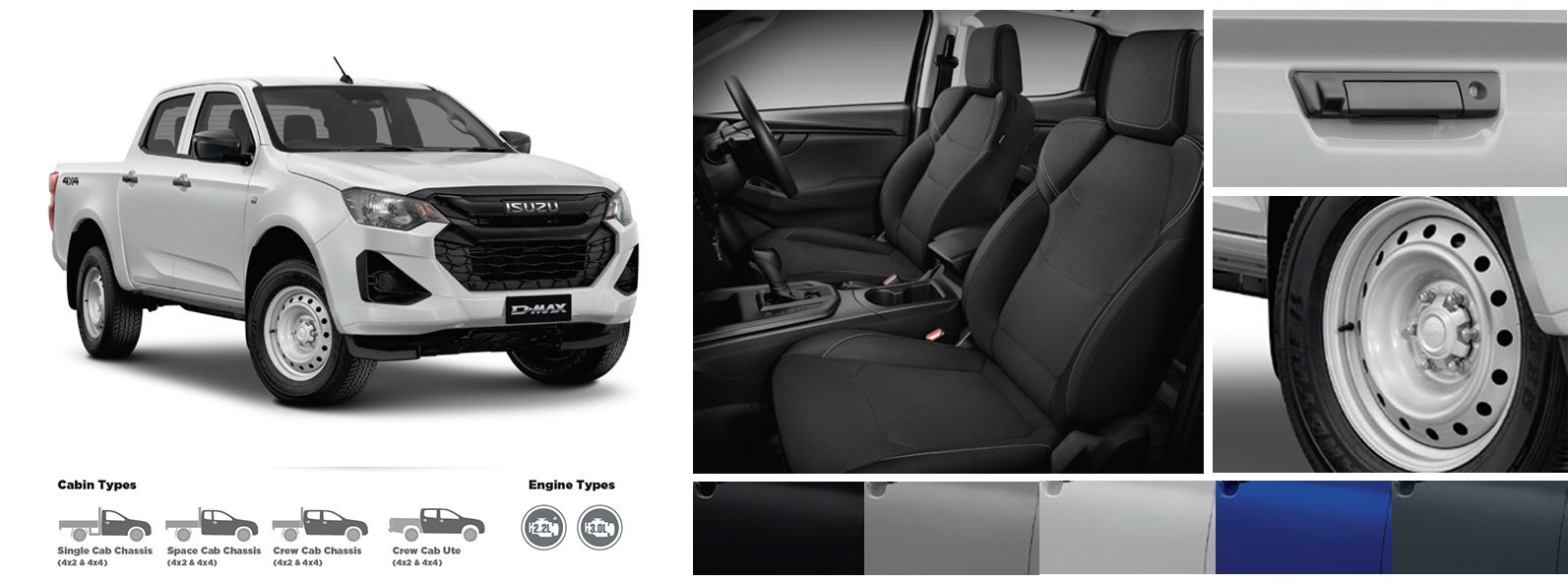

2.2L & 3.0L engine variants available. Tilt & Telescopic Adjustable Steering Wheel. Electric Power Steering. Easy-Clean Vinyl Flooring. 8” Touchscreen Audio with wireless Android Auto™ & wireless Apple CarPlay® Compatibility±. Reversing Camera. Black Handles & Mirrors. 17” Steel Wheels & 255 65 R17 All-Terrain Tyres. Black Radiator Grille. Halogen Headlights. Rear centre console USB type C port (Crew cab variants only). Tailgate Assist (Ute variants only). Rough Terrain Mode (4x4 models only). 8-Speed Automatic Transmission (2.2L model only).

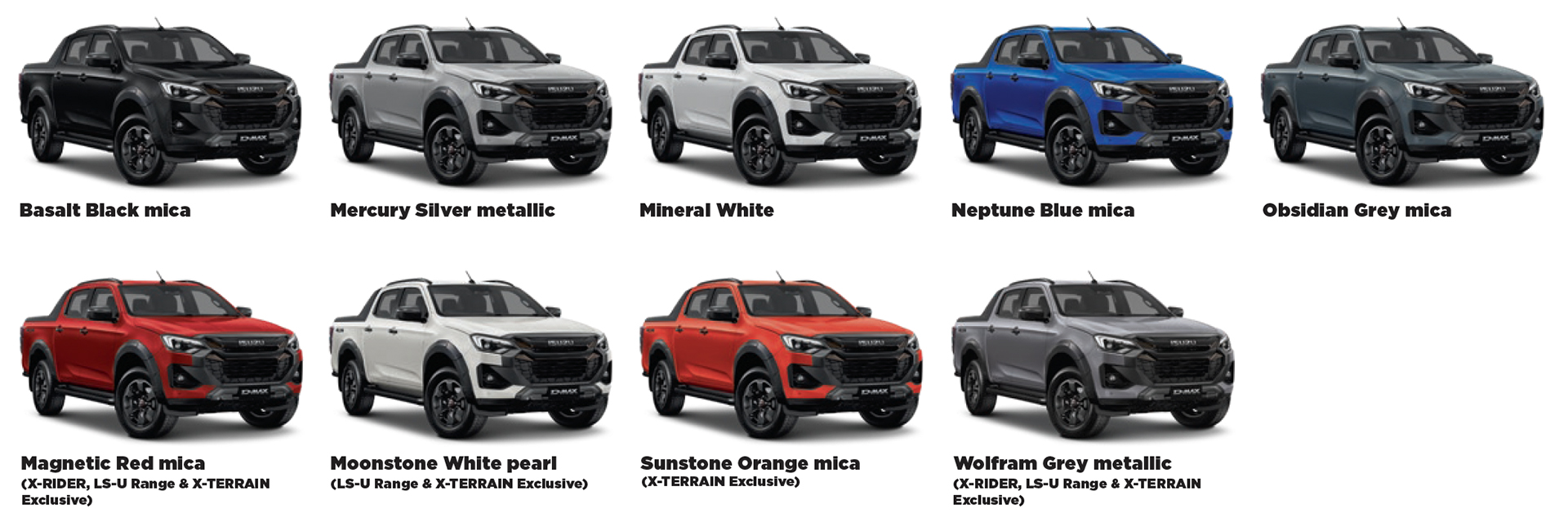

Available colours: Basalt Black mica, Mercury Silver metallic, Mineral White, Neptune Blue mica, Obsidian Grey mica.
Tilt & Telescopic Adjustable Steering Wheel. Electric Power Steering. Easy-Clean Vinyl Flooring. High Grade Cloth Seats. 8” Touchscreen Audio with wireless Android Auto™. & wireless Apple CarPlay® Compatibility±. Reversing Camera with Rear Park Assist Sensors. Basalt Black Door & Tailgate Handles. LED Fog Lights. 17” Gloss Black Alloy Wheels. Material Black Radiator Grille. Integrated Rear Step Bumper. Bi-LED Headlights with Auto Levelling. Dark Headline Trim. Basalt Black Power Door Mirrors with. integrated Turn Indicators. Dark Grey Side Steps. Black Sports Bar. Soft Tonneau Cover. Rough Terrain Mode. 8-Speed Automatic Transmission (2.2L model only).
Available colours: Basalt Black mica, Magnetic Red mica, Mercury Silver metallic, Mineral White, Neptune Blue mica, Obsidian Grey mica, Wolfram Grey metallic.

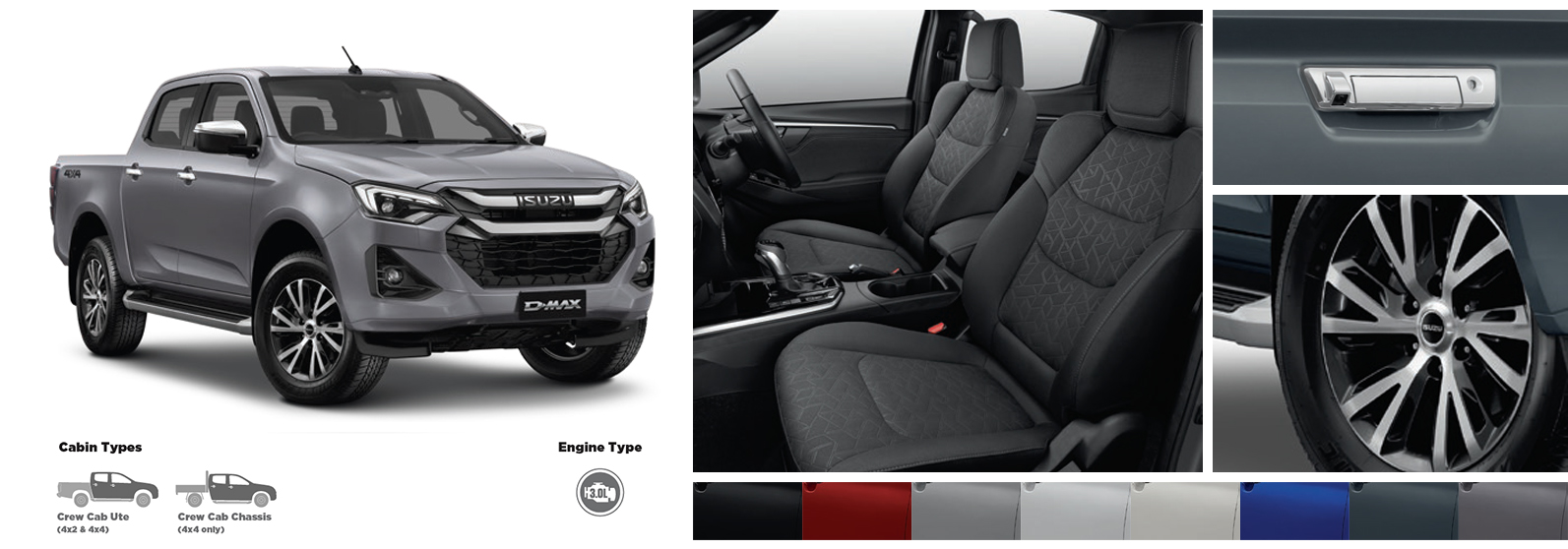

Tilt & Telescopic Adjustable Steering Wheel. Leather Steering Wheel. Smart Keyless Entry & Push Button Start. Auto-dimming Rear View Mirror &. Heated Door Mirrors. Electric Power Steering. Carpet Flooring with Darkened Interior Finish. High Grade Cloth Seats. 9” Touchscreen Audio with wireless Android Auto™ & wireless Apple CarPlay® Compatibility±. Reversing Camera with with Dynamic Guidelines and Rear Park Sensors (Cab Chassis model has Reversing Camera only). Chrome Radiator Grille, Chrome Handles & Mirrors. 18” Two-Tone Machined Alloy Wheels & 265 60 R18. Highway-Terrain Tyres. Bi-LED Headlights with Auto Levelling. Power Lumbar Support Driver’s Seat. Dual Zone Climate Control Air Conditioning (with rear seat vents in Crew Cab). Silver Aluminium Side Steps. Under Rail Tub Liner. Tow Bar Receiver. Tyre Pressure Monitoring System (TPMS). Tailgate Assist (Ute variants only). Rough Terrain Mode (4x4 models only).
Available colours: Basalt Black mica, Magnetic Red mica, Mercury Silver metallic, Mineral White, Moonstone White pearl, Neptune Blue mica, Obsidian Grey mica, Wolfram Grey metallic.

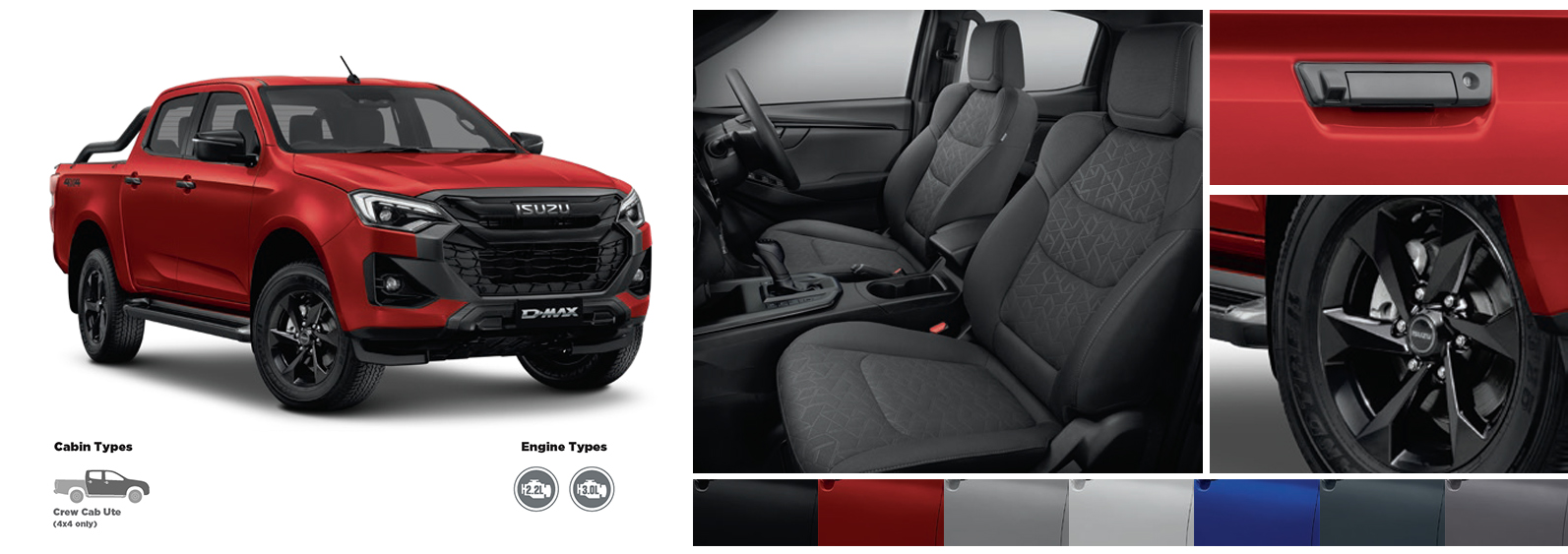

Tilt & Telescopic Adjustable Steering Wheel. Leather Steering Wheel. Smart Keyless Entry & Push Button Start. Auto-dimming Rear View Mirror &. Heated Door Mirrors. Electric Power Steering. Leather Accented Seats† with Heated Front Seats. 9” Touchscreen Audio with wireless Android Auto™ & wireless Apple CarPlay® Compatibility±. Reversing Camera with Dynamic Guidelines and Rear Park Sensors. 18” Two-Tone Machined Alloy Wheels & 265 60. R18 Highway-Terrain Tyres. Chrome Radiator Grille, Chrome Handles & Mirrors. Bi-LED Headlights with Auto Levelling. Electric Eight-Way Adjustable Driver’s Seat with Power Lumbar Support. Dual Zone Climate Control Air Conditioning (with rear seat vents). Silver Aluminium Side Steps. Under Rail Tub Liner. Tow Bar Receiver. Tyre Pressure Monitoring System (TPMS). Tailgate Assist. Rough Terrain Mode.
Available colours: Basalt Black mica, Magnetic Red mica, Mercury Silver metallic, Mineral White, Moonstone White pearl, Neptune Blue mica, Obsidian Grey mica, Wolfram Grey metallic.

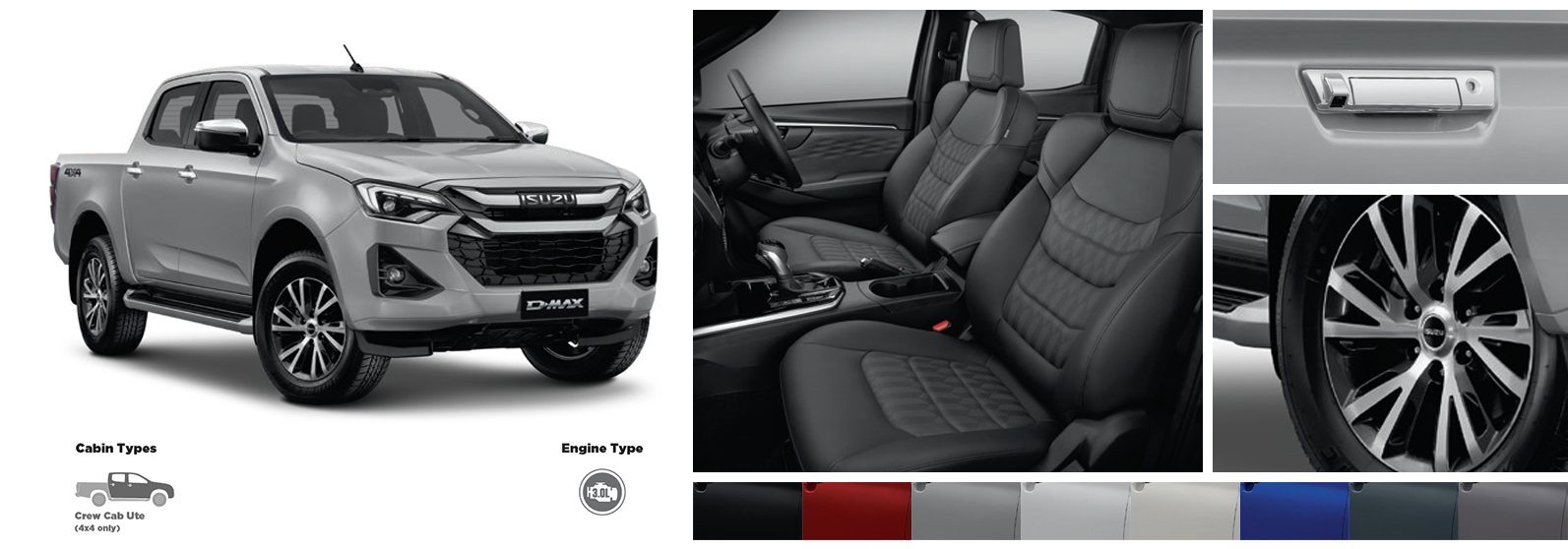

Smart Keyless Entry & Push Button Start. Remote Engine Start & Walk Away Door Lock. Tilt & Telescopic Adjustable Steering Wheel. Electric Power Steering. Carpet Flooring with Darkened Interior Finish. Auto-dimming Rear View Mirror &. Heated Door Mirrors. Leather Accented Seats† with Red Stitching and. Heated Front Seats. 9” Touchscreen Audio with wireless Android Auto™ & wireless Apple CarPlay® Compatibility±. Bi-LED Headlights with Auto Levelling. Tyre Pressure Monitoring System (TPMS). Front & Rear Park Assist Sensors with Reversing Camera. 18” Matte Dark Grey Alloy Wheels & 265 60 R18. Highway-Terrain Tyres. Electric Eight-Way Adjustable Driver’s Seat with. Power Lumbar Support. Dual Zone Climate Control Air Conditioning (with rear seat vents). Dark Grey Radiator Grille, Side Steps, Fender. Flares & Aero Sports Bar. Black Roller Tonneau Cover. Under Rail Tub Liner. Tow Bar Receiver. Tailgate Assist. Rough Terrain Mode.
Available colours: Basalt Black mica, Magnetic Red mica, Mercury Silver metallic, Mineral White, Moonstone White pearl, Neptune Blue mica, Obsidian Grey mica, Wolfram Grey metallic, Sunstone Orange mica.
| Engine | ||
| - | 3.0L | 2.2L |
| Series | ISUZU 4JJ3-TCX | R2Z4F-TC |
| Description | 3.0 litre turbo diesel, in-line 4-cylinder, DOHC, 16-valve with Diesel Particulate Diffuser (DPD) | 2.2 litre turbo diesel, in-line 4-cylinder, DOHC, 16-valve with Diesel Particulate Diffuser (DPD) |
| Maximum torque | 450Nm @ 1600→2600 rpm | 400Nm @ 1600→2400 rpm |
| Maximum power | 140kW @ 3600 rpm | 120kW @ 3600 rpm |
| Bore x stroke | 95.4mm x 104.9mm | 83mm x 100mm |
| Displacement | 2999cc | 2164cc |
| Compression ratio | 16.3:1 | 15.9:1 |
| Cylinder head | Isuzu-patent special aluminium alloy | Isuzu-patent special aluminium alloy |
| Valve gear | Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder | Chain-driven dual overhead camshafts, roller rockers, 4 valves/cylinder |
| Induction | Electronic high pressure common rail direct fuel injection with VSS (Variable Swirl System) and intercooled electric control VGS (Variable Geometry System) turbocharger | Electronic high pressure common rail direct fuel injection and intercooled electric control VGS (Variable Geometry System) turbocharger |
| Cylinder block | Cast iron upper with induction-hardened cylinder bores, cast alloy lower | Cast iron upper with induction-hardened cylinder bores, cast alloy lower |
| Emission level | Euro 5 | Euro 5 |
| Alternator | 120 amp with Intelligent Battery Sensor (IBS) | 120 amp with Intelligent Battery Sensor (IBS) |
| Transmissions | ||
| Automatic | Aisin AWR6B45 II 6-speed with sequential shift and fuel-saving lock-up torque converter Aisin L-B500 8-speed with sequential shift and fuel-saving lock-up torque converter ► Uphill/Downhill Transmission Control: holds gear in varied-gradient ascents, selects gear on steep descents to hold speed with engine braking | |
| Ratios: | 3.0L Engine 6-speed Automatic | 2.2L Engine 8-speed Automatic |
| 1st | 3.600 | 4.903 |
| 2nd | 2.090 | 3.120 |
| 3rd | 1.488 | 2.106 |
| 4th | 1.000 | 1.597 |
| 5th | 0.687 | 1.312 |
| 6th | 0.580 | 1.000 |
| 7th | — | 0.776 |
| 8th | — | 0.651 |
| Reverse | 3.732 | 4.050 |
| Final drive | - | - |
| 4x2 | 3.727 | 3.583 |
| 4x4 | 3.727 | 3.583 |
| - | Snorkelled diff breathers to increase fording depth and reduce mud blockage | |
| Transfer gearing 4x4 low-range | 2.482 | 2.482 |
| Transfer gearing 4x4 high-range | 1.000 | 1.000 |
| 4x4 system | "Terrain Command" control with 'shift on the fly' 2-high◄►4-high selection at up to 100km/h, 4-low with rear differential lock | |
| Drivetrain system | TCS (Traction Control System) on all model variants | |
Steering Electric power steering with speed-sensing steering feel (light at low speed, heavy at high speed); tilt and telescopic adjustable steering wheel Engine-speed-sensitive variable capacity Electric power system; 3.84 turns lock-to-lock via tilt-adjustable steering wheel.
Chassis Separate, full-length heavy-duty chassis with 8 cross members on all models. Front suspension. Independent, high-ride, coil springs, gas shock absorbers, upper and lower wishbones, stabiliser bar. Rear suspension. All Cab Chassis models: Heavy Duty alloy-steel overslung long-span semi-elliptic leaf springs; gas shock absorbers. 4x2 and 4x4 models: Alloy-steel overslung long-span semi-elliptic leaf springs; gas shock absorbers.
Axles Front. Independent 4x4: fully floating with outer CV, inner double offset joints and equal length driveshafts. Rating: 1450kg. Rear. Rigid semi-floating banjo with hypoid final drive and dual tapered needle roller bearings. Rating: 1910kg.
Brakes Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD), Electronic Stability Control (ESC), Emergency Brake Assist (EBA), Traction Control System (TCS), Rollover Mitigation, Hill Start Assist (HSA), Hill Descent Control (HDC) and Trailer Sway Control (TSC). 320mm dia. ventilated front discs with 2-piston calipers, 295mm rear drums. Power-assisted via 10” servo unit; central pull up park brake.
Wheels and Tyres SX. 17” x 7” drilled Silver-Finish Steel; 255 / 65 R17 All-Terrain. X-RIDER. 17” x 7” alloy; 255 / 65 R17 All-Terrain. LS-U and LS-U+. 18” x 7.5” alloy; 265 / 60 R18 Highway-Terrain. X-TERRAIN. 18” x 7.5” Dark Grey Alloy; 265 / 60 R18 Highway-Terrain. All Models. Full size steel spare wheel.
Service Plus Flat Price Servicing. As an owner you may be able to access our Flat Price Servicing Program. The FPS Program covers the first 5 Scheduled Services in line with the Scheduled Service Intervals. Warranty. For the ultimate peace of mind, the Isuzu D-MAX comes standard with a comprehensive, bumper-to-bumper. 6 years/150,000km warranty. Roadside Assistance. Enjoy up to 7 years Roadside Assistance when you complete your scheduled services at a Participating Isuzu UTE Dealer.
Safety IDAS. Every D-MAX comes with Isuzu’s Intelligent Driver Assistance System (IDAS) built-in to protect and enhance the driving experience. IDAS includes smart technologies as well as other passive and active safety features.
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute LS-U |
| Engine | |||||
| 2164cc DOHC 4cyl. with intercooled turbo charger (400Nm, 120kW) | ● | - | ● | ● | - |
| 2999cc DOHC 4cyl. with intercooled turbo charger (450Nm, 140kW) | ● | ● | ● | ● | ● |
| Idle Stop-Start System (ISS) | ● | ● | ● | ● | ● |
| Transmissions | |||||
| 6-speed automatic transmission with sequential sport mode | ● | ● | ● | ● | ● |
| 6-speed automatic transmission with sequential sport mode | ● | - | ● | ● | - |
| Safety and Security | |||||
| 4-Channel 4-Sensor Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD) | ● | ● | ● | ● | ● |
| Electronic Stability Control (ESC) | ● | ● | ● | ● | ● |
| Traction Control System (TCS) | ● | ● | ● | ● | ● |
| Emergency Brake Assist (EBA) | ● | ● | ● | ● | ● |
| Hill Start Assist (HSA) | ● | ● | ● | ● | ● |
| Hill Descent Control (HDC) | ● | ● | ● | ● | ● |
| Autonomous Emergency Braking (AEB) | ● | ● | ● | ● | ● |
| Turn Assist with AEB | ● | ● | ● | ● | ● |
| Post-Collision Braking | ● | ● | ● | ● | ● |
| Forward Collision Warning (FCW) | ● | ● | ● | ● | ● |
| Misacceleration Mitigation | ● | ● | ● | ● | ● |
| Intelligent Adaptive Cruise Control (IACC) with Stop and Go functionality | ● | ● | ● | ● | ● |
| Traffic Jam Drive Assist | ● | ● | ● | ● | ● |
| Traffic Sign Recognition (TSR) | ● | ● | ● | ● | ● |
| Intelligent Speed Limiter | ● | ● | ● | ● | ● |
| Manual Speed Limiter | ● | ● | ● | ● | ● |
| Lane Departure Warning (LDW) | ● | ● | ● | ● | ● |
| Lane Departure Prevention (LDP) | ● | ● | ● | ● | ● |
| Lane Keeping Assist (LKA) | ● | ● | ● | ● | ● |
| Emergency Lane Keeping (ELK) | ● | ● | ● | ● | ● |
| Lane Support System (LSS) Switch (disables LDW, LDP, LKA, ELK) | ● | ● | ● | ● | ● |
| Driver Attention Assist | ● | ● | ● | ● | ● |
| Blind Spot Monitoring (BSM) | ● | ● | ● | ● | ● |
| Rear Cross Traffic Alert (RCTA) | ● | ● | ● | ● | ● |
| Rear Cross Traffic Braking (RCTB) | ● | ● | ● | ● | ● |
| BSM/TSR/RCTB Auto Switch Off (disables BSM/TSR/RCTB when the genuine tow harness is connected) | ● | ● | ● | ● | ● |
| Digital Reversing Camera w/ Dynamic Guidelines | - | - | - | - | ● |
| Digital Reversing Camera | ● | ● | ● | ● | - |
| Rear Parking Assist Sensors | - | - | - | - | - |
| Front Parking Assist Sensors | - | - | - | - | - |
| 8 Airbags: dual front, side, curtain, side, driver's knee and far side airbags | ● | ● | ● | ● | ● |
| Driver and front passenger sun-visor switch | ● | ● | ● | ● | ● |
| Height adjustable upper mounts for front seat belts | ● | ● | ● | ● | ● |
| Pre-tensioners with load limiters for front seat belts | ● | ● | ● | ● | ● |
| Pre-tensioners with load limiters for outer rear seat belts | - | - | ● | ● | ● |
| 3-point retractable seat belts for all rear and centre seating positions | - | - | ● | ● | ● |
| Intelligent seatbelt reminders for all seats | ● | ● | ● | ● | ● |
| 2 Child seat tethers and ISOFIX compatible anchor points | - | - | ● | ● | ● |
| 2 Child seat tethers and 2 ISOFIX compatible anchor points for full-size seats | - | ● | ● | ● | ● |
| Integrated head restraint on front seats | ● | - | - | - | - |
| Child-proof rear door locks | - | - | ● | ● | ● |
| Single 10 inch servo brake master cylinder | ● | ● | ● | ● | ● |
| Side anti-intrusion bars inside all doors | ● | ● | ● | ● | ● |
| Engine immobilizer | ● | ● | ● | ● | ● |
| Rear window demister | - | ● | ● | ● | ● |
| High-density polyethylene (HDPE) fuel tank | ● | ● | ● | ● | ● |
| High mount brake light on cabin | ● | ● | ● | ● | ● |
| Dual horn | ● | ● | ● | ● | ● |
| Protection | |||||
| Under-front steel skid plate | ● | ● | ● | ● | ● |
| Steel plate guards: sump, transfer case, fuel tank leading edge; reinforced resin under fuel tank | - | - | - | - | - |
| Suspension and Brakes | |||||
| Standard rear leaf suspension | - | - | - | ● | ● |
| Heavy duty rear leaf suspension | ● | ● | ● | - | - |
| Front independent, coil spring suspension w/gas shock absorbers, upper and lower wishbones and stabiliser bar | ● | ● | ● | ● | ● |
| Heavy-duty brakes: 320mm ventilated front discs w/twin-pot calipers, 295mm rear drums | ● | ● | ● | ● | ● |
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute X-Rider |
| Engine | |||||
| 2164cc DOHC 4cyl. with intercooled turbo charger (400Nm, 120kW) | - | - | ● | ● | ● |
| 2999cc DOHC 4cyl. with intercooled turbo charger (450Nm, 140kW) | ● | ● | ● | ● | ● |
| Idle Stop-Start System (ISS) | ● | ● | ● | ● | ● |
| Transmissions | |||||
| 6-speed automatic transmission with sequential sport mode | ● | ● | ● | ● | ● |
| 6-speed automatic transmission with sequential sport mode | - | - | ● | ● | ● |
| Safety and Security | |||||
| 4-Channel 4-Sensor Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD) | ● | ● | ● | ● | ● |
| Electronic Stability Control (ESC) | ● | ● | ● | ● | ● |
| Traction Control System (TCS) | ● | ● | ● | ● | ● |
| Emergency Brake Assist (EBA) | ● | ● | ● | ● | ● |
| Hill Start Assist (HSA) | ● | ● | ● | ● | ● |
| Hill Descent Control (HDC) | ● | ● | ● | ● | ● |
| Autonomous Emergency Braking (AEB) | ● | ● | ● | ● | ● |
| Turn Assist with AEB | ● | ● | ● | ● | ● |
| Post-Collision Braking | ● | ● | ● | ● | ● |
| Forward Collision Warning (FCW) | ● | ● | ● | ● | ● |
| Misacceleration Mitigation | ● | ● | ● | ● | ● |
| Intelligent Adaptive Cruise Control (IACC) with Stop and Go functionality | ● | ● | ● | ● | ● |
| Traffic Jam Drive Assist | ● | ● | ● | ● | ● |
| Traffic Sign Recognition (TSR) | ● | ● | ● | ● | ● |
| Intelligent Speed Limiter | ● | ● | ● | ● | ● |
| Manual Speed Limiter | ● | ● | ● | ● | ● |
| Lane Departure Warning (LDW) | ● | ● | ● | ● | ● |
| Lane Departure Prevention (LDP) | ● | ● | ● | ● | ● |
| Lane Keeping Assist (LKA) | ● | ● | ● | ● | ● |
| Emergency Lane Keeping (ELK) | ● | ● | ● | ● | ● |
| Lane Support System (LSS) Switch (disables LDW, LDP, LKA, ELK) | ● | ● | ● | ● | ● |
| Driver Attention Assist | ● | ● | ● | ● | ● |
| Blind Spot Monitoring (BSM) | ● | ● | ● | ● | ● |
| Rear Cross Traffic Alert (RCTA) | ● | ● | ● | ● | ● |
| Rear Cross Traffic Braking (RCTB) | ● | ● | ● | ● | ● |
| BSM/TSR/RCTB Auto Switch Off (disables BSM/TSR/RCTB when the genuine tow harness is connected) | ● | ● | ● | ● | ● |
| Digital Reversing Camera w/ Dynamic Guidelines | - | - | - | - | ● |
| Digital Reversing Camera | ● | ● | ● | ● | - |
| Rear Parking Assist Sensors | - | - | - | - | ● |
| Front Parking Assist Sensors | - | - | - | - | - |
| 8 Airbags: dual front, side, curtain, side, driver's knee and far side airbags | ● | ● | ● | ● | ● |
| Driver and front passenger sun-visor switch | ● | ● | ● | ● | ● |
| Height adjustable upper mounts for front seat belts | ● | ● | ● | ● | ● |
| Pre-tensioners with load limiters for front seat belts | ● | ● | ● | ● | ● |
| Pre-tensioners with load limiters for outer rear seat belts | - | - | ● | ● | ● |
| 3-point retractable seat belts for all rear and centre seating positions | - | - | ● | ● | ● |
| Intelligent seatbelt reminders for all seats | ● | ● | ● | ● | ● |
| 2 Child seat tethers and ISOFIX compatible anchor points | - | - | ● | ● | ● |
| 2 Child seat tethers and 2 ISOFIX compatible anchor points for full-size seats | - | ● | ● | ● | ● |
| Integrated head restraint on front seats | ● | - | - | - | - |
| Child-proof rear door locks | - | - | ● | ● | ● |
| Single 10 inch servo brake master cylinder | ● | ● | ● | ● | ● |
| Side anti-intrusion bars inside all doors | ● | ● | ● | ● | ● |
| Engine immobilizer | ● | ● | ● | ● | ● |
| Rear window demister | - | ● | ● | ● | ● |
| High-density polyethylene (HDPE) fuel tank | ● | ● | ● | ● | ● |
| High mount brake light on cabin | ● | ● | ● | ● | ● |
| Dual horn | ● | ● | ● | ● | ● |
| Protection | |||||
| Under-front steel skid plate | ● | ● | ● | ● | ● |
| Steel plate guards: sump, transfer case, fuel tank leading edge; reinforced resin under fuel tank | ● | ● | ● | ● | ● |
| Suspension and Brakes | |||||
| Standard rear leaf suspension | — | — | — | ● | ● |
| Heavy duty rear leaf suspension | ● | ● | ● | — | — |
| Front independent, coil spring suspension w/gas shock absorbers, upper and lower wishbones and stabiliser bar | ● | ● | ● | ● | ● |
| Heavy-duty brakes: 320mm ventilated front discs w/twin-pot calipers, 295mm rear drums | ● | ● | ● | ● | ● |
| - | Crew Cab Chassis LS-U | Crew Cab Ute LS-U | Crew Cab Ute LS-U+ | Crew Cab Ute X-TERRAIN |
| Engine | ||||
| 2164cc DOHC 4cyl. with intercooled turbo charger (400Nm, 120kW) | - | - | - | - |
| 2999cc DOHC 4cyl. with intercooled turbo charger (450Nm, 140kW) | ● | ● | ● | ● |
| Idle Stop-Start System (ISS) | ● | ● | ● | ● |
| Transmissions | ||||
| 6-speed automatic transmission with sequential sport mode | ● | ● | ● | ● |
| 6-speed automatic transmission with sequential sport mode | - | - | - | - |
| Safety and Security | ||||
| 4-Channel 4-Sensor Anti-lock Brake System (ABS) with Electronic Brakeforce Distribution (EBD) | ● | ● | ● | ● |
| Electronic Stability Control (ESC) | ● | ● | ● | ● |
| Traction Control System (TCS) | ● | ● | ● | ● |
| Emergency Brake Assist (EBA) | ● | ● | ● | ● |
| Hill Start Assist (HSA) | ● | ● | ● | ● |
| Hill Descent Control (HDC) | ● | ● | ● | ● |
| Autonomous Emergency Braking (AEB) | ● | ● | ● | ● |
| Turn Assist with AEB | ● | ● | ● | ● |
| Post-Collision Braking | ● | ● | ● | ● |
| Forward Collision Warning (FCW) | ● | ● | ● | ● |
| Misacceleration Mitigation | ● | ● | ● | ● |
| Intelligent Adaptive Cruise Control (IACC) with Stop and Go functionality | ● | ● | ● | ● |
| Traffic Jam Drive Assist | ● | ● | ● | ● |
| Traffic Sign Recognition (TSR) | ● | ● | ● | ● |
| Intelligent Speed Limiter | ● | ● | ● | ● |
| Manual Speed Limiter | ● | ● | ● | ● |
| Lane Departure Warning (LDW) | ● | ● | ● | ● |
| Lane Departure Prevention (LDP) | ● | ● | ● | ● |
| Lane Keeping Assist (LKA) | ● | ● | ● | ● |
| Emergency Lane Keeping (ELK) | ● | ● | ● | ● |
| Lane Support System (LSS) Switch (disables LDW, LDP, LKA, ELK) | ● | ● | ● | ● |
| Driver Attention Assist | ● | ● | ● | ● |
| Blind Spot Monitoring (BSM) | ● | ● | ● | ● |
| Rear Cross Traffic Alert (RCTA) | ● | ● | ● | ● |
| Rear Cross Traffic Braking (RCTB) | ● | ● | ● | ● |
| BSM/TSR/RCTB Auto Switch Off (disables BSM/TSR/RCTB when the genuine tow harness is connected) | ● | ● | ● | ● |
| Digital Reversing Camera w/ Dynamic Guidelines | - | ● | ● | ● |
| Digital Reversing Camera | ● | - | - | - |
| Rear Parking Assist Sensors | - | ● | ● | ● |
| Front Parking Assist Sensors | - | - | - | ● |
| 8 Airbags: dual front, side, curtain, side, driver's knee and far side airbags | ● | ● | ● | ● |
| Driver and front passenger sun-visor switch | ● | ● | ● | ● |
| Height adjustable upper mounts for front seat belts | ● | ● | ● | ● |
| Pre-tensioners with load limiters for front seat belts | ● | ● | ● | ● |
| Pre-tensioners with load limiters for outer rear seat belts | ● | ● | ● | ● |
| 3-point retractable seat belts for all rear and centre seating positions | ● | ● | ● | ● |
| Intelligent seatbelt reminders for all seats | ● | ● | ● | ● |
| 2 Child seat tethers and ISOFIX compatible anchor points | ● | ● | ● | ● |
| 2 Child seat tethers and 2 ISOFIX compatible anchor points for full-size seats | ● | ● | ● | ● |
| Integrated head restraint on front seats | - | - | - | - |
| Child-proof rear door locks | ● | ● | ● | ● |
| Single 10 inch servo brake master cylinder | ● | ● | ● | ● |
| Side anti-intrusion bars inside all doors | ● | ● | ● | ● |
| Engine immobilizer | ● | ● | ● | ● |
| Rear window demister | ● | ● | ● | ● |
| High-density polyethylene (HDPE) fuel tank | ● | ● | ● | ● |
| High mount brake light on cabin | ● | ● | ● | ● |
| Dual horn | ● | ● | ● | ● |
| Protection | ||||
| Under-front steel skid plate | ● | ● | ● | ● |
| Steel plate guards: sump, transfer case, fuel tank leading edge; reinforced resin under fuel tank | ● | ● | ● | ● |
| Suspension and Brakes | ||||
| — | ● | ● | ● | |
| Heavy duty rear leaf suspension | ● | — | — | — |
| Front independent, coil spring suspension w/gas shock absorbers, upper and lower wishbones and stabiliser bar | — | ● | ● | ● |
| Heavy-duty brakes: 320mm ventilated front discs w/twin-pot calipers, 295mm rear drums | ● | ● | ● | ● |
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute LS-U |
| In-cabin Storage | |||||
| Lower glovebox compartment only | ● | ● | ● | ● | — |
| Upper and lower glovebox compartments | — | — | — | — | ● |
| Power outlet in lower instrument panel | ● | ● | ● | ● | ● |
| Centre floor console | ● | ● | ● | ● | ● |
| Dual-purpose driver and front passenger cup holder tray | ● | ● | — | — | ● |
| Rear passenger door cup holders | — | — | ● | ● | ● |
| Pockets on backs of front seats | — | — | — | — | ● |
| Overhead console with twin map lights and flip-down sunglasses case | — | — | — | — | ● |
| Front door storage compartment with bottle bulge | ● | ● | ● | ● | ● |
| 2 coat hooks | — | — | ● | ● | ● |
| Flip up convenience hook behind passenger front seat | — | — | — | — | ● |
| Tool storage behind rear seats | — | — | ● | ● | ● |
| Tool storage behind front seats | ● | ● | — | — | — |
| In-cabin Storage | |||||
| Double-walled ute tub | — | — | — | ● | ● |
| 4 cargo tie-down hooks inside ute tub | — | — | — | ● | ● |
| Under rail tub liner | — | — | — | ● | ● |
| 2 cargo tie-down hooks inside ute tub | — | — | — | — | — |
| Tailgate Assist | — | — | — | — | — |
| Exterior Style | |||||
| Short front overhang for optimal manoeuvrability and approach angle | ● | ● | ● | ● | ● |
| Halogen multi-reflector projector lens headlights for extra low beam depth & reduced flare & integrated turn indicators | ● | ● | ● | ● | — |
| Bi-LED headlights with auto-levelling function and integrated turn indicators | — | — | — | — | ● |
| Automatic headlights | ● | ● | ● | ● | ● |
| Automatic high beam | ● | ● | ● | ● | ● |
| Coming home light | ● | ● | ● | ● | ● |
| Headlight Welcome light | ● | ● | ● | ● | ● |
| LED Daytime Running Lights (DRLs) | — | — | — | — | ● |
| LED fog lights | — | — | — | — | ● |
| Material Black radiator grille | ● | ● | ● | ● | — |
| Chrome radiator grille | — | — | — | — | ● |
| Dark Grey radiator grille | — | — | — | — | — |
| Colour-coded front bumper | ● | ● | ● | ● | ● |
| Colour-coded integrated rear step bumper | — | — | — | ● | ● |
| Black integrated rear step bumper | — | — | — | — | — |
| Black rear bumper | ● | ● | ● | — | — |
| Factory fitted tow bar receiver | — | — | — | — | ● |
| Space cab rear 'wing' doors | — | ● | — | — | ● |
| Aluminium side steps | — | — | — | — | ● |
| Dark Grey side steps | — | — | — | — | — |
| Black door and tailgate handles | ● | ● | ● | ● | — |
| Chrome door and tailgate handles | - | - | - | - | ● |
| Dark Grey door and tailgate handles | - | - | - | - | - |
| Basalt Black door and tailgate handles | - | - | - | - | - |
| Lockable tailgate | - | - | - | ● | ● |
| Dark Grey Aero Sports Bar | - | - | - | - | - |
| Black Sports Bar | - | - | - | - | - |
| Matte Black roller tonneau | - | - | - | - | - |
| Soft tonneau cover | - | - | - | - | - |
| Dark Grey front and rear underbody spoilers | - | - | - | - | - |
| Black front underbody spoiler | - | - | - | - | - |
| Dark Grey fender flares | - | - | - | - | - |
| Dark Grey roof rails | - | - | - | - | - |
| Black power door mirrors | ● | ● | ● | ● | - |
| Basalt Black power door mirrors with integrated turn indicators | - | - | - | - | - |
| Chrome fold-in power door mirrors with integrated turn indicators | - | - | - | - | ● |
| Dark Grey fold-in power door mirrors with integrated turn indicators | - | - | - | - | - |
| Heated door mirrors | - | - | - | - | ● |
| Centre front roof-mounted bee-sting aerial | ● | ● | ● | ● | ● |
| LED rear combination lamps | - | - | - | - | ● |
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute X-Rider |
| In-cabin Storage | |||||
| Lower glovebox compartment only | ● | ● | ● | ● | — |
| Upper and lower glovebox compartments | — | — | — | — | ● |
| Power outlet in lower instrument panel | ● | ● | ● | ● | ● |
| Centre floor console | ● | ● | ● | ● | ● |
| Dual-purpose driver and front passenger cup holder tray | ● | ● | ● | ● | ● |
| Rear passenger door cup holders | — | — | ● | ● | ● |
| Pockets on backs of front seats | — | — | — | — | ● |
| Overhead console with twin map lights and flip-down sunglasses case | ● | ● | ● | ● | ● |
| Front door storage compartment with bottle bulge | ● | ● | ● | ● | ● |
| 2 coat hooks | — | — | ● | ● | ● |
| Flip up convenience hook behind passenger front seat | — | — | — | — | ● |
| Tool storage behind rear seats | — | — | ● | ● | ● |
| Tool storage behind front seats | ● | ● | — | — | — |
| Rear Tub | |||||
| Double-walled ute tub | — | — | — | ● | ● |
| 4 cargo tie-down hooks inside ute tub | — | — | — | ● | ● |
| Under rail tub liner | — | — | — | — | — |
| 2 cargo tie-down hooks inside ute tub | — | — | — | — | — |
| Tailgate Assist | — | — | — | ● | ● |
| Exterior Style | |||||
| Short front overhang for optimal manoeuvrability and approach angle | ● | ● | ● | ● | ● |
| Halogen multi-reflector projector lens headlights for extra low beam depth & reduced flare & integrated turn indicators | ● | ● | ● | ● | - |
| Bi-LED headlights with auto-levelling function and integrated turn indicators | - | - | - | - | ● |
| Automatic headlights | ● | ● | ● | ● | ● |
| Automatic high beam | ● | ● | ● | ● | ● |
| Coming home light | ● | ● | ● | ● | ● |
| Headlight Welcome light | ● | ● | ● | ● | ● |
| LED Daytime Running Lights (DRLs) | - | - | - | - | ● |
| LED fog lights | - | - | - | - | ● |
| Material Black radiator grille | ● | ● | ● | ● | ● |
| Chrome radiator grille | - | ● | ● | ● | ● |
| Dark Grey radiator grille | - | - | - | - | - |
| Colour-coded front bumper | ● | ● | ● | ● | ● |
| Colour-coded integrated rear step bumper | - | - | - | - | ● |
| Black integrated rear step bumper | - | - | - | ● | - |
| Black rear bumper | ● | ● | - | - | - |
| Factory fitted tow bar receiver | - | - | - | - | ● |
| Space cab rear "wing" doors | - | - | - | - | - |
| Aluminium side steps | - | - | - | ● | - |
| Dark Grey side steps | - | - | - | - | - |
| Black door and tailgate handles | ● | ● | ● | ● | ● |
| Chrome door and tailgate handles | - | - | - | - | - |
| Dark Grey door and tailgate handles | - | - | - | - | - |
| Basalt Black door and tailgate handles | - | - | - | - | ● |
| Lockable tailgate | - | - | - | ● | ● |
| Dark Grey Aero Sports Bar | - | - | - | - | - |
| Black Sports Bar | - | - | - | - | ● |
| Matte Black roller tonneau | - | - | - | - | - |
| Soft tonneau cover | - | - | - | - | ● |
| Dark Grey front and rear underbody spoilers | - | - | - | - | - |
| Black front underbody spoiler | - | - | - | - | ● |
| Dark Grey fender flares | - | - | - | - | - |
| Dark Grey roof rails | - | - | - | - | - |
| Black power door mirrors | ● | ● | ● | ● | - |
| Basalt Black power door mirrors with integrated turn indicators | - | - | - | - | ● |
| Chrome fold-in power door mirrors with integrated turn indicators | - | - | - | - | - |
| Dark Grey fold-in power door mirrors with integrated turn indicators | - | - | - | - | - |
| Heated door mirrors | - | - | - | - | - |
| Centre front roof-mounted bee-sting aerial | ● | ● | ● | ● | ● |
| LED rear combination lamps | - | - | - | - | - |
| - | Crew Cab Chassis LS-U | Crew Cab Ute LS-U | Crew Cab Ute LS-U+ | Crew Cab Ute X-TERRAIN |
| In-cabin Storage | ||||
| Lower glovebox compartment only | — | — | — | — |
| Upper and lower glovebox compartments | ● | ● | ● | ● |
| Power outlet in lower instrument panel | ● | ● | ● | ● |
| Centre floor console | ● | ● | ● | ● |
| Dual-purpose driver and front passenger cup holder tray | — | ● | ● | ● |
| Rear passenger door cup holders | ● | ● | ● | ● |
| Pockets on backs of front seats | ● | ● | ● | ● |
| Overhead console with twin map lights and flip-down sunglasses case | ● | ● | ● | ● |
| Front door storage compartment with bottle bulge | ● | ● | ● | ● |
| 2 coat hooks | ● | ● | ● | ● |
| Flip up convenience hook behind passenger front seat | ● | ● | ● | ● |
| Tool storage behind rear seats | ● | ● | ● | ● |
| Tool storage behind front seats | — | — | — | — |
| Rear Tub | ||||
| Double-walled ute tub | — | ● | ● | ● |
| 4 cargo tie-down hooks inside ute tub | — | ● | ● | - |
| Under rail tub liner | — | ● | ● | ● |
| 2 cargo tie-down hooks inside ute tub | — | — | — | ● |
| Tailgate Assist | — | ● | ● | ● |
| Exterior Style | ||||
| Short front overhang for optimal manoeuvrability and approach angle | ● | ● | ● | ● |
| Halogen multi-reflector projector lens headlights for extra low beam depth & reduced flare & integrated turn indicators | - | - | - | - |
| Bi-LED headlights with auto-levelling function and integrated turn indicators | ● | ● | ● | ● |
| Automatic headlights | ● | ● | ● | ● |
| Automatic high beam | ● | ● | ● | ● |
| Coming home light | ● | ● | ● | ● |
| Headlight Welcome light | ● | ● | ● | ● |
| LED Daytime Running Lights (DRLs) | ● | ● | ● | ● |
| LED fog lights | ● | ● | ● | ● |
| Material Black radiator grille | - | - | - | - |
| Chrome radiator grille | ● | ● | ● | - |
| Dark Grey radiator grille | - | - | - | ● |
| Colour-coded front bumper | ● | ● | ● | ● |
| Colour-coded integrated rear step bumper | ● | ● | ● | ● |
| Black integrated rear step bumper | - | - | - | - |
| Black rear bumper | - | - | - | - |
| Factory fitted tow bar receiver | ● | ● | ● | ● |
| Space cab rear "wing" doors | - | - | - | - |
| Aluminium side steps | ● | ● | ● | - |
| Dark Grey side steps | - | - | - | ● |
| Black door and tailgate handles | - | - | - | - |
| Chrome door and tailgate handles | ● | ● | ● | - |
| Dark Grey door and tailgate handles | - | - | - | ● |
| Basalt Black door and tailgate handles | - | - | - | - |
| Lockable tailgate | - | ● | ● | ● |
| Dark Grey Aero Sports Bar | - | - | - | ● |
| Black Sports Bar | - | - | - | - |
| Matte Black roller tonneau | - | - | - | ● |
| Soft tonneau cover | - | - | - | - |
| Dark Grey front and rear underbody spoilers | - | - | - | ● |
| Black front underbody spoiler | - | - | - | - |
| Dark Grey fender flares | - | - | - | ● |
| Dark Grey roof rails | - | - | - | ● |
| Black power door mirrors | - | - | - | - |
| Basalt Black power door mirrors with integrated turn indicators | - | - | - | - |
| Chrome fold-in power door mirrors with integrated turn indicators | ● | ● | ● | - |
| Dark Grey fold-in power door mirrors with integrated turn indicators | - | - | - | ● |
| Heated door mirrors | ● | ● | ● | ● |
| Centre front roof-mounted bee-sting aerial | ● | ● | ● | ● |
| LED rear combination lamps | - | ● | ● | ● |
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute LS-U |
| Seating | |||||
| Standard Black cloth seats | ● | ● | ● | ● | - |
| High Grade cloth seats | - | - | - | - | ● |
| Leather Accented seats | - | - | - | - | - |
| Leather Accented seats with Red Stitching | - | - | - | - | - |
| Front bucket whiplash protection seats | ● | ● | ● | ● | ● |
| 6-way adjustable driver seat | ● | ● | ● | ● | ● |
| 8-way electric adjustable driver seat | - | - | - | - | - |
| Electric adjustable lumbar support (driver seat only) | - | - | - | - | ● |
| Heated front seats | - | - | - | - | - |
| Split-fold rear seat | - | - | ● | ● | - |
| Split-fold rear seat with centre arm rest | - | - | - | - | ● |
| Rear centre seat headrest | - | - | ● | ● | ● |
| Cabin Amenities | |||||
| Dual zone climate control air-conditioning with integrated heater/demister | - | - | - | - | ● |
| Manual air-conditioning with integrated heater/demister | ● | ● | ● | ● | - |
| Rear seat air-conditioning vents | - | - | ● | ● | ● |
| Pollen and fine particle air filter | ● | ● | ● | ● | ● |
| Power windows with one-touch up/down driver’s window with safety stop and delay closing | ● | ● | ● | ● | ● |
| Comfort turn signal | ● | ● | ● | ● | ● |
| Central locking with keyless entry | ● | ● | ● | ● | ● |
| Smart keyless entry | - | - | - | - | ● |
| Walk away lock | - | - | - | - | ● |
| Remote key auto re-lock | ● | ● | ● | ● | ● |
| Push button start | - | - | - | - | ● |
| Remote engine start | - | - | - | - | - |
| 4 speaker sound system | - | ● | ● | ● | ● |
| 6 speaker sound system | - | - | - | - | - |
| "Sky Sound" roof-mounted sound system with 8 speakers (mounted in front dash, front doors, rear doors and roof) | - | - | - | - | ● |
| 9 inch touchscreen display with wireless Apple CarPlay® and wireless Android Auto™ * with MID Integration | - | - | - | - | ● |
| 8 inch touchscreen display with wireless Apple CarPlay and wireless Android Auto | ● | ● | ● | ● | - |
| Built-in satellite navigation with MID turn-by-turn directions | - | - | - | - | ● |
| Rear centre console USB charging port | - | - | ● | ● | ● |
| USB type C port in central instrument panel | - | - | - | - | ● |
| USB type C port in Touchscreen | ● | ● | ● | ● | ● |
| USB type C port in rear floor console | - | - | ● | ● | ● |
| USB type A port in Stereo Camera Housing | ● | ● | ● | ● | ● |
| Tilt and telescopic adjustable steering wheel with electric power steering | ● | ● | ● | ● | ● |
| Urethane steering wheel with cruise, audio and voice recognition controls | ● | ● | ● | ● | ● |
| Leather steering wheel with cruise, audio and voice recognition controls | - | - | - | - | ● |
| 4.2 inch Smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder | ● | ● | ● | ● | - |
| 7 inch Smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder | - | - | - | - | ● |
| Tyre Pressure Monitoring System (TPMS) | - | - | - | - | ● |
| Electro-luminescent gauges | ● | ● | ● | ● | ● |
| "Terrain Command" 4x4 select dial | - | - | - | - | - |
| Rear differential lock button | - | - | - | - | - |
| Rough Terrain Mode button | - | - | - | - | - |
| Automatic windshield wipers | ● | ● | ● | ● | ● |
| Intuitive flat wiper blade | - | - | - | - | ● |
| Day/night interior rear view mirror | ● | ● | ● | ● | ● |
| Auto-dimming rear view mirror | - | - | - | - | ● |
| Sun visors with vanity mirrors (driver and passenger) and ticket retaining strap (driver) | - | - | - | - | ● |
| Sun visors with illuminated vanity mirrors (driver and passenger) and ticket retaining strap (driver) | - | - | - | - | - |
| Fixed A-pillar assist-grips for driver and front passenger | ● | ● | ● | ● | ● |
| Fixed B-pillar assist-grips for rear passengers | - | - | ● | ● | ● |
| Folding assist-grips for driver and front passenger | - | - | ● | ● | ● |
| Folding assist-grips for rear passengers | - | - | ● | ● | ● |
| Carpet flooring | - | - | - | - | ● |
| Easy-clean vinyl flooring | ● | ● | ● | ● | - |
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute X-Rider |
| Seating | |||||
| Standard Black cloth seats | ● | ● | ● | ● | - |
| High Grade cloth seats | - | - | - | - | ● |
| Leather Accented seats | - | - | - | - | - |
| Leather Accented seats with Red Stitching | - | - | - | - | - |
| Front bucket whiplash protection seats | ● | ● | ● | ● | ● |
| 6-way adjustable driver seat | ● | ● | ● | ● | ● |
| 8-way electric adjustable driver seat | - | - | - | - | - |
| Electric adjustable lumbar support (driver seat only) | - | - | - | - | - |
| Heated front seats | - | - | - | - | - |
| Split-fold rear seat | - | - | ● | ● | - |
| Split-fold rear seat with centre arm rest | - | - | - | - | ● |
| Rear centre seat headrest | - | - | ● | ● | ● |
| Cabin Amenities | |||||
| Dual zone climate control air-conditioning with integrated heater/demister | - | - | - | - | - |
| Manual air-conditioning with integrated heater/demister | ● | ● | ● | ● | ● |
| Rear seat air-conditioning vents | - | - | ● | ● | ● |
| Pollen and fine particle air filter | ● | ● | ● | ● | ● |
| Power windows with one-touch up/down driver's window with safety stop and delay closing | ● | ● | ● | ● | ● |
| Comfort turn signal | ● | ● | ● | ● | ● |
| Central locking with keyless entry | ● | ● | ● | ● | ● |
| Smart keyless entry | - | - | - | - | - |
| Walk away lock | - | - | - | - | - |
| Remote key auto re-lock | ● | ● | ● | ● | ● |
| Push button start | - | - | - | - | - |
| Remote engine start | - | - | - | - | - |
| 4 speaker sound system | ● | ● | ● | ● | - |
| 6 speaker sound system | - | - | - | - | ● |
| "Sky Sound" roof-mounted sound system with 8 speakers (mounted in front dash, front doors, rear doors and roof) | - | - | - | - | - |
| 9 inch touchscreen display with wireless Apple CarPlay and wireless Android Auto with MID Integration | - | - | - | - | - |
| 8 inch touchscreen display with wireless Apple CarPlay® and wireless Android Auto™ | ● | ● | ● | ● | ● |
| Built-in satellite navigation with MID turn-by-turn directions | — | — | — | — | — |
| Rear centre console USB charging port | — | — | ● | ● | ● |
| USB type C port in central instrument panel | — | — | — | — | — |
| USB type C port in Touchscreen | ● | ● | ● | ● | ● |
| USB type C port in rear floor console | — | — | ● | ● | ● |
| USB type A port in Stereo Camera Housing | ● | ● | ● | ● | ● |
| Tilt and telescopic adjustable steering wheel with electric power steering | ● | ● | ● | ● | ● |
| Urethane steering wheel with cruise, audio and voice recognition controls | ● | ● | ● | ● | ● |
| Leather steering wheel with cruise, audio and voice recognition controls | — | — | — | — | — |
| 4.2 inch Smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder | ● | ● | ● | ● | ● |
| 7 inch Smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder | — | — | — | — | - |
| Tyre Pressure Monitoring System (TPMS) | — | — | — | — | — |
| Electro-luminescent gauges | ● | ● | ● | ● | ● |
| "Terrain Command" 4x4 select dial | ● | ● | ● | ● | ● |
| Rear differential lock button | ● | ● | ● | ● | ● |
| Rough Terrain Mode button | ● | ● | ● | ● | ● |
| Automatic windshield wipers | ● | ● | ● | ● | ● |
| Intuitive flat wiper blade | — | — | — | — | — |
| Day/Night interior rear view mirror | ● | ● | ● | ● | ● |
| Auto-dimming rear view mirror | — | — | — | — | — |
| Sun visors with vanity mirrors (driver and passenger) and ticket retaining strap (driver) | — | — | — | — | — |
| Sun visors with illuminated vanity mirrors (driver and passenger) and ticket retaining strap (driver) | — | — | — | — | — |
| Fixed A-pillar assist-grips for driver and front passenger | ● | ● | ● | ● | ● |
| Fixed B-pillar assist-grips for rear passengers | — | — | ● | ● | ● |
| Folding assist-grips for driver and front passenger | — | — | ● | ● | ● |
| Folding assist-grips for rear passengers | — | — | ● | ● | ● |
| Carpet flooring | — | — | — | — | — |
| Easy-clean vinyl flooring | ● | ● | ● | ● | ● |
| - | Crew Cab Chassis LS-U | Crew Cab Ute LS-U | Crew Cab Ute LS-U+ | Crew Cab Ute X-TERRAIN |
| Seating | ||||
| Standard Black cloth seats | - | - | - | - |
| High Grade cloth seats | ● | ● | - | - |
| Leather Accented seats | - | - | ● | - |
| Leather Accented seats with Red Stitching | - | - | - | ● |
| Front bucket whiplash protection seats | ● | ● | ● | ● |
| 6-way adjustable driver seat | ● | ● | - | - |
| 8-way electric adjustable driver seat | - | - | ● | ● |
| Electric adjustable lumbar support (driver seat only) | ● | ● | ● | ● |
| Heated front seats | - | - | ● | ● |
| Split-fold rear seat | - | - | - | - |
| Split-fold rear seat with centre arm rest | ● | ● | ● | ● |
| Rear centre seat headrest | ● | ● | ● | ● |
| Cabin Amenities | ||||
|---|---|---|---|---|
| Dual zone climate control air-conditioning with integrated heater/demister | ● | ● | ● | ● |
| Manual air-conditioning with integrated heater/demister | - | - | - | - |
| Rear seat air-conditioning vents | ● | ● | ● | ● |
| Pollen and fine particle air filter | ● | ● | ● | ● |
| Power windows with one-touch up/down driver's window with safety stop and delay closing | ● | ● | ● | ● |
| Comfort turn signal | ● | ● | ● | ● |
| Central locking with keyless entry | ● | ● | ● | ● |
| Smart keyless entry | ● | ● | ● | ● |
| Walk away lock | ● | ● | ● | ● |
| Remote key auto re-lock | ● | ● | ● | ● |
| Push button start | ● | ● | ● | ● |
| Remote engine start | - | - | - | ● |
| 4 speaker sound system | - | - | - | - |
| 6 speaker sound system | - | - | - | - |
| "Sky Sound" roof-mounted sound system with 8 speakers (mounted in front dash, front doors, rear doors and roof) | ● | ● | ● | ● |
| 9 inch touchscreen display with wireless Apple CarPlay and wireless Android Auto with MID Integration | ● | ● | ● | ● |
| 8 inch touchscreen display with wireless Apple CarPlay and wireless Android Auto * | - | - | - | - |
| Built-in satellite navigation with MID turn-by-turn directions | ● | ● | ● | ● |
| Rear centre console USB charging port | ● | ● | ● | ● |
| USB type C port in central instrument panel | ● | ● | ● | ● |
| USB type C port in Touchscreen | - | - | - | - |
| USB type C port in rear floor console | ● | ● | ● | ● |
| USB type A port in Stereo Camera Housing | ● | ● | ● | ● |
| Tilt and telescopic adjustable steering wheel with electric power steering | ● | ● | ● | ● |
| Urethane steering wheel with cruise, audio and voice recognition controls | - | - | - | - |
| Leather steering wheel with cruise, audio and voice recognition controls | ● | ● | ● | ● |
| 4.2 inch Smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder | - | - | - | - |
| 7 inch Smart MID with digital speedometer, safety information, fuel economy and range, odometer, trip information and service reminder | ● | ● | ● | ● |
| Tyre Pressure Monitoring System (TPMS) | ● | ● | ● | ● |
| Electro-luminescent gauges | ● | ● | ● | ● |
| "Terrain Command" 4x4 select dial | ● | ● | ● | ● |
| Rear differential lock button | ● | ● | ● | ● |
| Rough Terrain Mode button | ● | ● | ● | ● |
| Automatic windshield wipers | ● | ● | ● | ● |
| Intuitive flat wiper blade | ● | ● | ● | ● |
| Day/night interior rear view mirror | ● | ● | ● | ● |
| Auto-dimming rear view mirror | ● | ● | ● | ● |
| Sun visors with vanity mirrors (driver and passenger) and ticket retaining strap (driver) | ● | ● | - | - |
| Sun visors with illuminated vanity mirrors (driver and passenger) and ticket retaining strap (driver) | - | - | ● | ● |
| Fixed A-pillar assist-grips for driver and front passenger | ● | ● | ● | ● |
| Fixed B-pillar assist-grips for rear passengers | ● | ● | ● | ● |
| Folding assist-grips for driver and front passenger | ● | ● | ● | ● |
| Folding assist-grips for rear passengers | ● | ● | ● | ● |
| Carpet flooring | ● | ● | ● | ● |
| Easy-clean vinyl flooring | - | - | - | - |
| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute LS-U | |||
| - | 2.2L | 3.0L | - | 2.2L | 3.0L | 2.2L | 3.0L | - |
| D-MAX ADR 81/02 Fuel Consumption Values | ||||||||
| Transmission (AT = Automatic) | AT | AT | AT | AT | AT | AT | AT | AT |
| FUEL CONSUMPTION (litres/100km) Combined | 6.9 | 7.8 | 7.8 | 6.9 | 7.8 | 6.3 | 7.1 | 7.1 |
| Dimensions (mm unless stated otherwise) | ||||||||
| Wheelbase | 3125 | |||||||
| Overall length | 5340 | 5300 | 5300 | 5340 | 5300 | 5280 | 5280 | 5285 |
| Overall width (excluding door mirrors) | 1870 | |||||||
| Overall height (*depends on body fitted) | 1800* | 1785 | 1790* | 1800* | 1785 | 1790* | 1790* | 1795 |
| Front overhang | 905 | |||||||
| Rear overhang (*depends on body fitted) | 1310* | 1270* | 1270* | 1310* | 1270* | 1275 | 1275 | 1275 |
| Wheel track width | 1570 | |||||||
| Ground clearance | 235 | 235 | 235 | 235 | 235 | 235 | 235 | 240 |
| Turning circle diameter between kerbs (metres) | 12.5 | |||||||
| Approach angle | 29.6˚ | 29.6˚ | 29.6˚ | 29.6˚ | 29.6˚ | 30.9˚ | 30.5˚ | 30.5˚ |
| Departure angle | 24.6˚ | 25.3˚ | 25.3˚ | 24.6˚ | 25.3˚ | 23.9˚ | 23.9˚ | 19.0˚ |
| Ramp-over angle | 23.9˚ | 23.9˚ | 23.9˚ | 23.9˚ | 23.9˚ | 23.9˚ | 23.9˚ | 23.8˚ |
| Load area (mm) | ||||||||
| Cab to rear axle | 1240 | 765 | 450 | 450 | 450 | 450 | 450 | 450 |
| Length (top) | - | - | - | - | - | 1495 | 1495 | 1495 |
| Length (floor) (*inside genuine accessory tray body) | 2550* | 2100* | 1800* | 1570 | 1570 | 1570 | 1570 | 1570 |
| Maximum width (*inside genuine accessory alloy tray body) | 1777* | 1777* | 1777* | 1530 | 1530 | 1530 | 1530 | 1530 |
| Width between wheel houses | - | - | - | - | - | 1122 | 1122 | 1122 |
| Depth | - | - | - | - | - | 490 | 490 | 490 |
| Interior (mm) | ||||||||
| Leg room - front | 1075 | |||||||
| Leg room - rear | - | - | - | 905 | 905 | 905 | 905 | 905 |
| Shoulder room - front | 1460 | |||||||
| Head room - front | 1020 | |||||||
| Rear cargo space | - | - | - | - | - | - | 730 | - |
| Mass (kg) | ||||||||
| Gross Vehicle Mass (GVM) | 3000 | |||||||
| Kerb weight* | 1650 | 1700 | 1775 | 1775 | 1825 | 1895 | 1950 | 2015 |
| Payload* (cab chassis models: final mass depends on body fitted) | 1350 | 1300 | 1225 | 1225 | 1175 | 1105 | 1050 | 985 |
| Gross Combination Mass (GCM) | 5850 | |||||||
| Maximum towing mass (braked trailer) | 3500 | |||||||
| Maximum towing mass (non-braked trailer) | 750 | |||||||
| Maximum tow ball download (when fitted with genuine Isuzu UTE tow kit) | 350 | |||||||
| Fuel tank capacity (litres) | 76 | |||||||

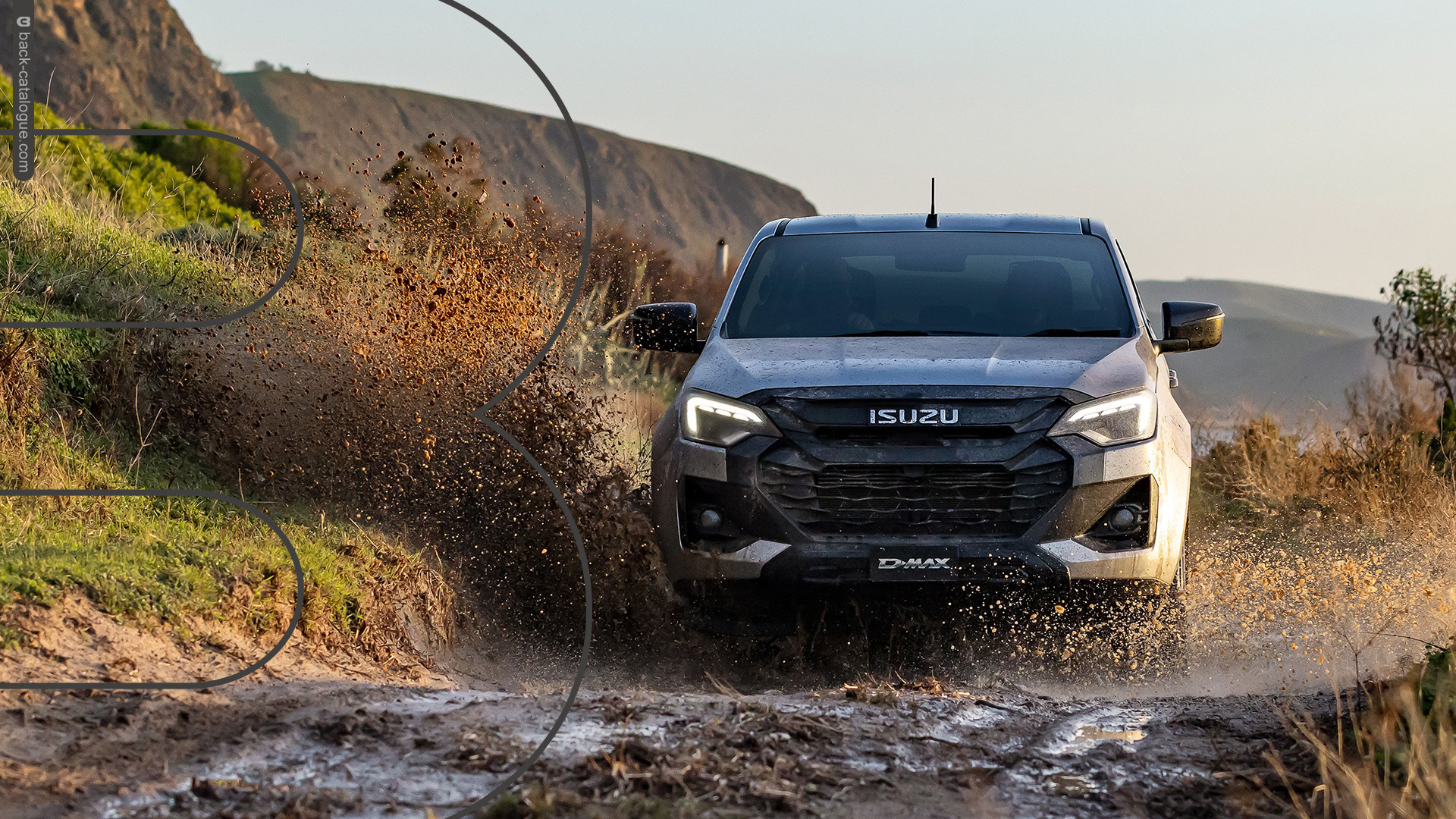

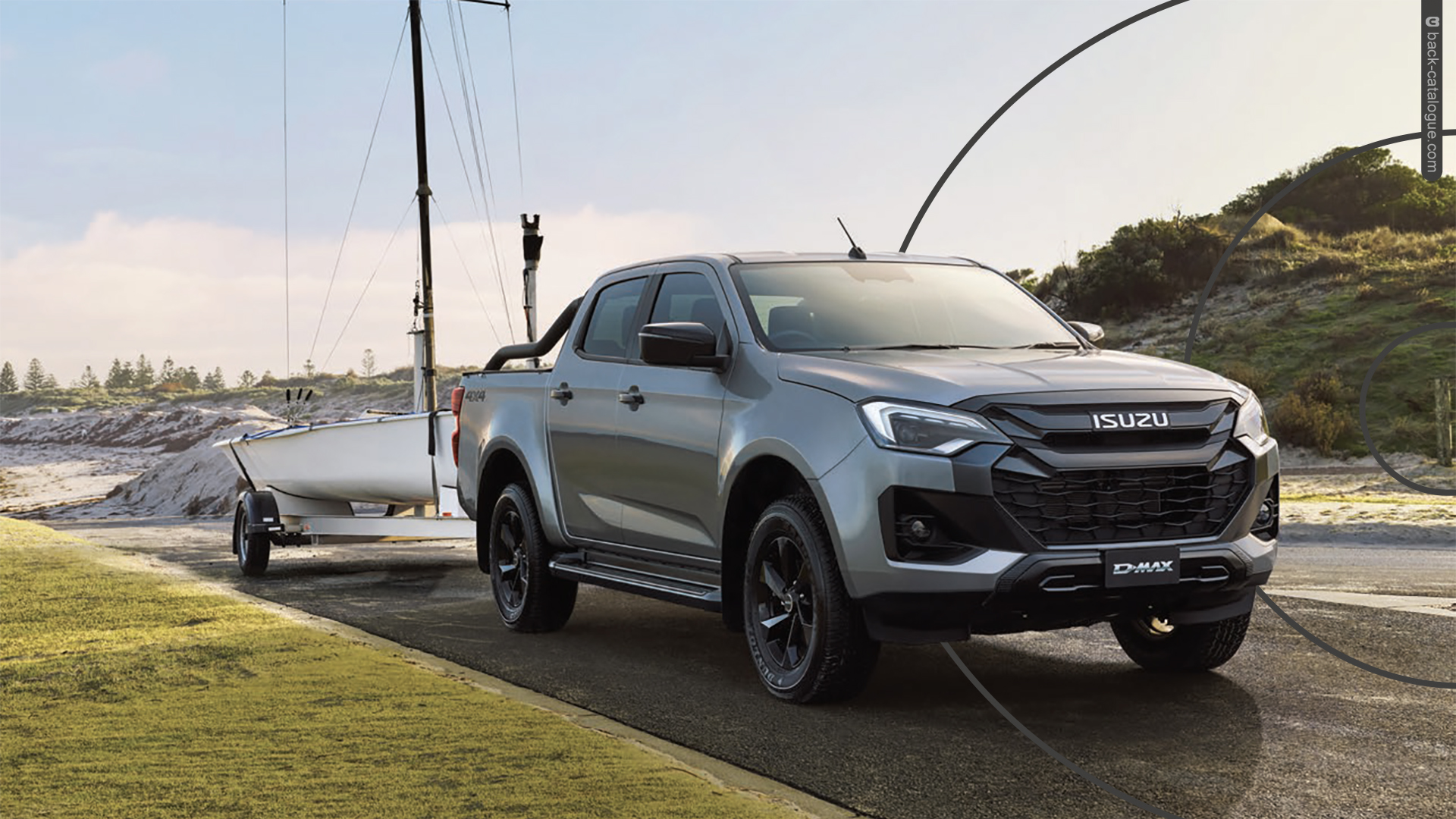

| - | Single Cab Chassis SX | Space Cab Chassis SX | Crew Cab Chassis SX | Crew Cab Ute SX | Crew Cab Ute X-Rider | |||
| - | - | - | 2.2L | 3.0L | 2.2L | 3.0L | 2.2L | 3.0L |
| D-MAX ADR 81/02 Fuel Consumption Values | ||||||||
| Transmission (AT = Automatic) | AT | AT | AT | AT | AT | AT | AT | AT |
| FUEL CONSUMPTION (litres/100km) Combined | 7.8 | 7.8 | 7.1 | 7.8 | 6.6 | 7.1 | 7.1 | 7.8 |
| Dimensions (mm unless stated otherwise) | ||||||||
| Wheelbase | 3125 | |||||||
| Overall length | 5340 | 5300 | 5300 | 5280 | 5305 | 5305 | 5305 | 5305 |
| Overall width (excluding door mirrors) | 1870 | |||||||
| Overall height (*depends on body fitted) | 1790* | 1800* | 1800* | 1785 | 1785 | 1785 | 1785 | 1785 |
| Front overhang | 905 | 905 | 905 | 905 | 905 | 905 | 930 | 930 |
| Rear overhang (*depends on body fitted) | 1310* | 1270* | 1270* | 1250 | 1250 | 1250 | 1250 | 1250 |
| Wheel track width | 1570 | |||||||
| Ground clearance | 235 | |||||||
| Turning circle diameter between kerbs (metres) | 12.5 | |||||||
| Approach angle | 29.6° | 29.6° | 29.6° | 30° | 26.9° | 26.9° | 26.9° | 26.9° |
| Departure angle | 24.6° | 25.3° | 25.3° | 23.9° | 23.9° | 23.9° | 23.9° | 23.9° |
| Ramp-over angle | 23.9° | 23.9° | 23.9° | 23.3° | 23.3° | 23.3° | 23.3° | 23.3° |
| Load area (mm) | ||||||||
| Cab to rear axle | 1240 | 765 | 450 | 450 | 450 | 450 | 450 | 450 |
| Length (top) | - | - | - | - | 1495 | 1495 | 1495 | 1495 |
| Length (floor) (*inside genuine accessory tray body) | 2550* | 2100* | 1800* | 1800* | 1570 | 1570 | 1570 | 1570 |
| Maximum width (*inside genuine accessory alloy tray body) | 1777* | 1777* | 1777* | 1777* | 1530 | 1530 | 1530 | 1530 |
| Width between wheel houses | - | - | - | - | 1122 | 1122 | 1122 | 1122 |
| Depth | - | - | - | - | 490 | 490 | 490 | 490 |
| Interior (mm) | ||||||||
| Leg room - front | 1075 | |||||||
| Leg room - rear | - | - | 905 | 905 | 905 | 905 | 905 | 905 |
| Shoulder room - front | 1460 | |||||||
| Head room - front | 1020 | |||||||
| Rear cargo space | - | 730 | - | - | - | - | - | - |
| Mass (kg) | ||||||||
| Gross Vehicle Mass (GVM) | 3100 | |||||||
| Kerb weight^ | 1790 | 1860 | 1860 | 1915 | 1980 | 2035 | 2010 | 2060 |
| Payload^ (cab chassis models: final mass depends on body fitted) | 1310 | 1240 | 1240 | 1185 | 1120 | 1065 | 1090 | 1040 |
| Gross Combination Mass (GCM) | 6000 | |||||||
| Maximum towing mass (braked trailer) | 3500 | |||||||
| Maximum towing mass (non-braked trailer) | 750 | |||||||
| Maximum tow ball download (when fitted with genuine Isuzu UTE tow kit) | 350 | |||||||
| Fuel tank capacity (litres) | 76 | |||||||

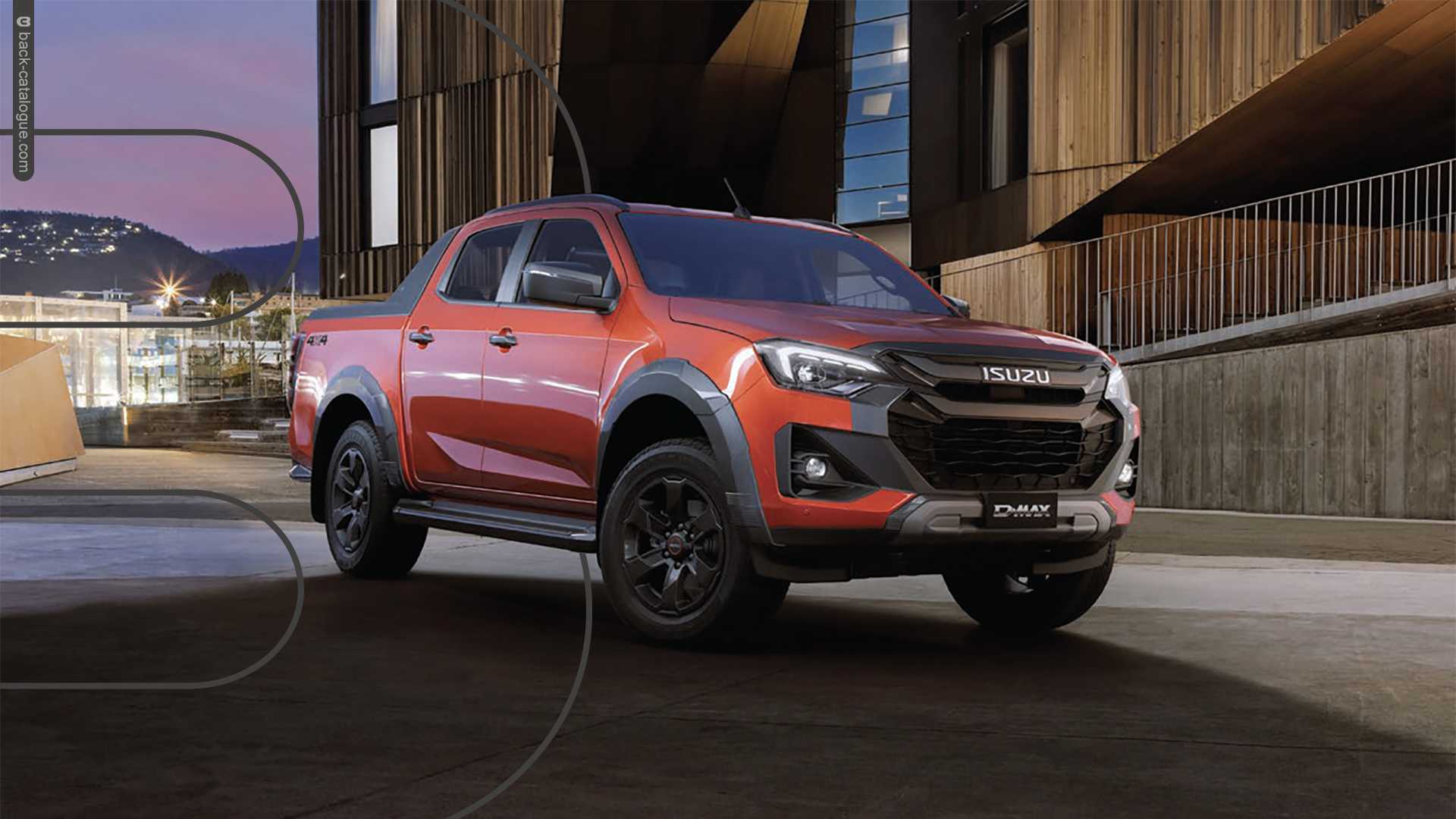

| - | Crew Cab Chassis LS-U | Crew Cab Ute LS-U | Crew Cab Ute LS-U+ | Crew Cab Ute X-TERRAIN |
| D-MAX ADR 81/02 Fuel Consumption Values | ||||
| Transmission (AT = Automatic) | AT | AT | AT | AT |
| FUEL CONSUMPTION (litres/100km) Combined | 7.8 | 7.1 | 7.1 | 7.8 |
| Dimensions (mm unless stated otherwise) | ||||
| Wheelbase | 3125 | |||
| Overall length | 5300 | 5285 | 5285 | 5310 |
| Overall width (excluding door mirrors) | 1870 | 1870 | 1870 | 1880 |
| Overall height (*depends on body fitted) | 1805* | 1790 | 1790 | 1810 |
| Front overhang | 905 | 905 | 905 | 930 |
| Rear overhang (*depends on body fitted) | 1270* | 1255 | 1255 | 1255 |
| Wheel track width | 1570 | |||
| Ground clearance | 240 | |||
| Turning circle diameter between kerbs (metres) | 12.5 | |||
| Approach angle | 30° | 30.5° | 30.5° | 27.3° |
| Departure angle | 20.6° | 19.0° | 19.0° | 19.0° |
| Ramp-over angle | 24.3° | 23.8° | 23.8° | 23.8° |
| Load area (mm) | ||||
| Cab to rear axle | 450 | |||
| Length (top) | - | 1495 | 1495 | 1495 |
| Length (floor) (*inside genuine accessory tray body) | 1800* | 1570 | 1570 | 1570 |
| Maximum width (*inside genuine accessory alloy tray body) | 1777* | 1530 | 1530 | 1530 |
| Width between wheel houses | - | 1122 | 1122 | 1122 |
| Depth | - | 490 | 490 | 490 |
| Interior (mm) | ||||
| Leg room - front | 1075 | |||
| Leg room - rear | 905 | |||
| Shoulder room - front | 1460 | |||
| Head room - front | 1020 | |||
| Rear cargo space | - | |||
| Mass (kg) | ||||
| Gross Vehicle Mass (GVM) | 3100 | |||
| Kerb weight* | 1960 | 2100 | 2105 | 2170 |
| Payload* (cab chassis models: final mass depends on body fitted) | 1140 | 1000 | 995 | 930 |
| Gross Combination Mass (GCM) | 6000 | |||
| Maximum towing mass (braked trailer) | 3500 | |||
| Maximum towing mass (non-braked trailer) | 750 | |||
| Maximum tow ball download (when fitted with genuine Isuzu UTE tow kit) | 350 | |||
| Fuel tank capacity (litres) | 76 | |||
