2024 Tank 500

Brochure | AU

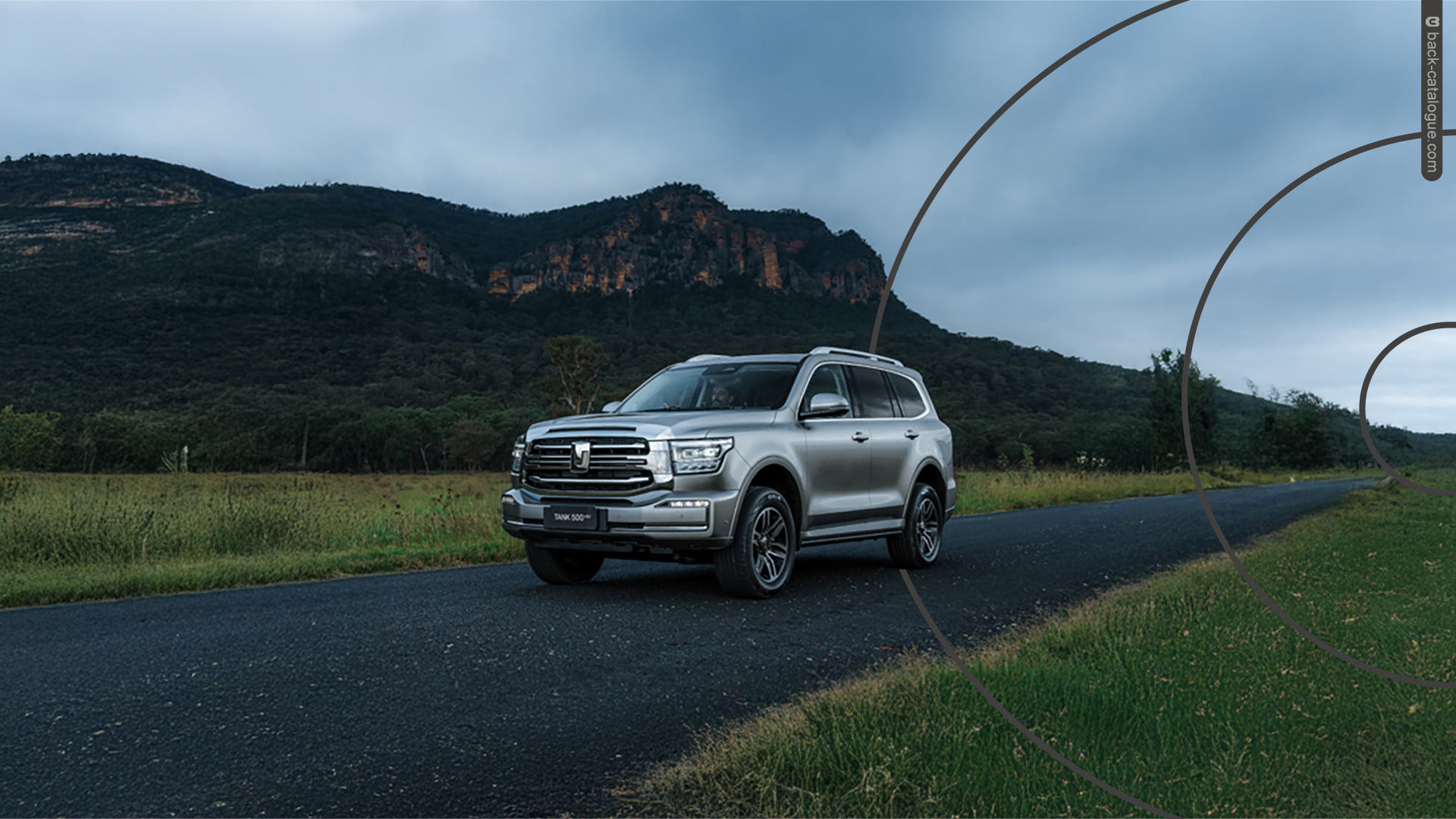

2024-gwm-tank-500-brochure-cover-car-back-catalogue

The off-road just became more luxurious..

Imposing in appearance and powerful in performance, the 2024 GWM Tank 500 is a grand 7 seater SUV that's as majestic as you can get driving off the beaten track. But don’t let its stately looks fool you. This is one formidable vehicle that unleashes a remarkable amount of horsepower when needed.

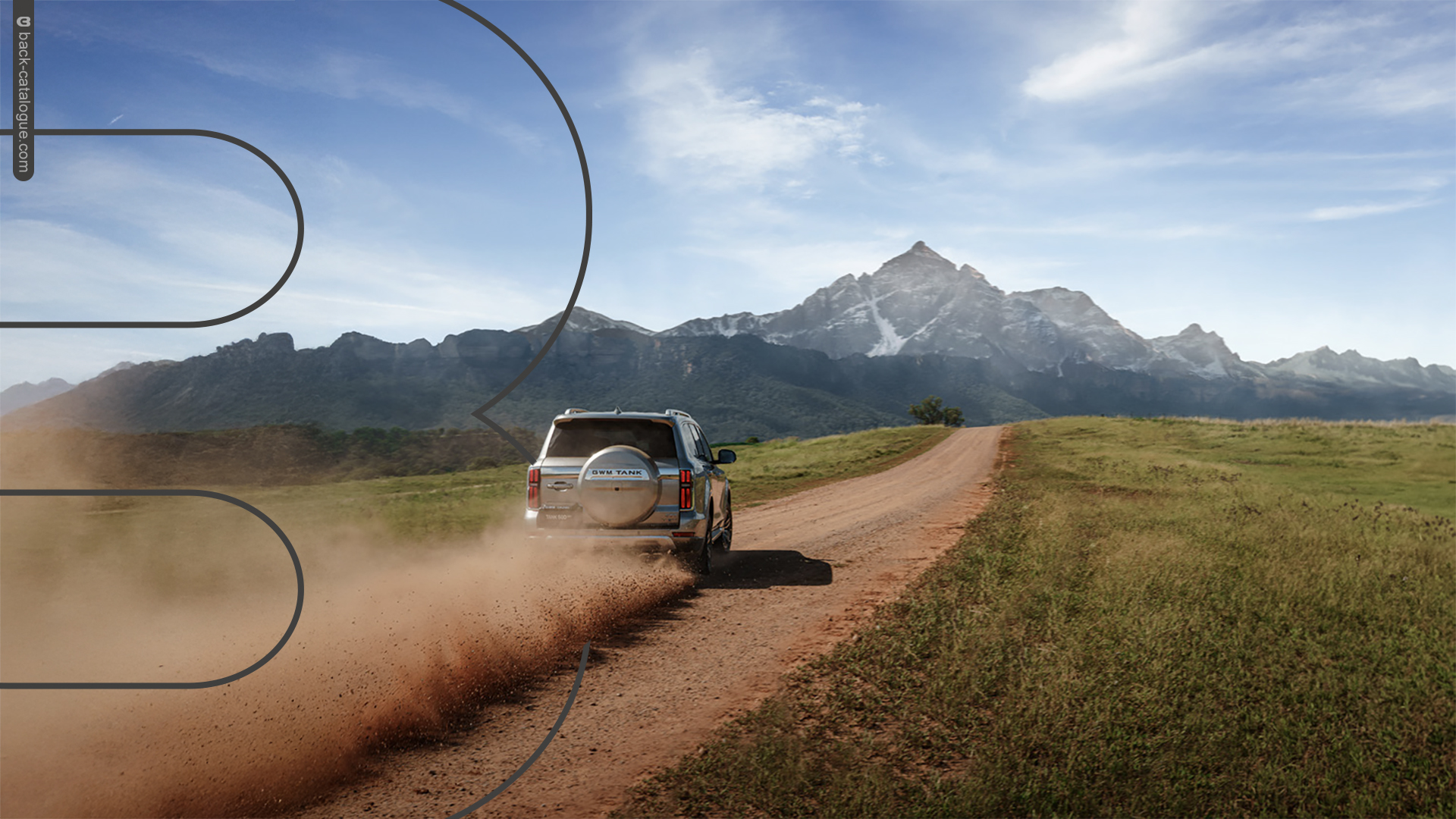

2024 GWM Tank 500 4X4 Highlights.


Approach

30°

Break-Over

22.5°

Departure Angle

24°

2024-gwm-tank-500-dirt-track-car-back-catalogue 2024-gwm-tank-500-interior-1-car-back-catalogue 2024-gwm-tank-500-exterior-1-car-back-catalogue 2024-gwm-tank-500-interior-2-car-back-catalogue

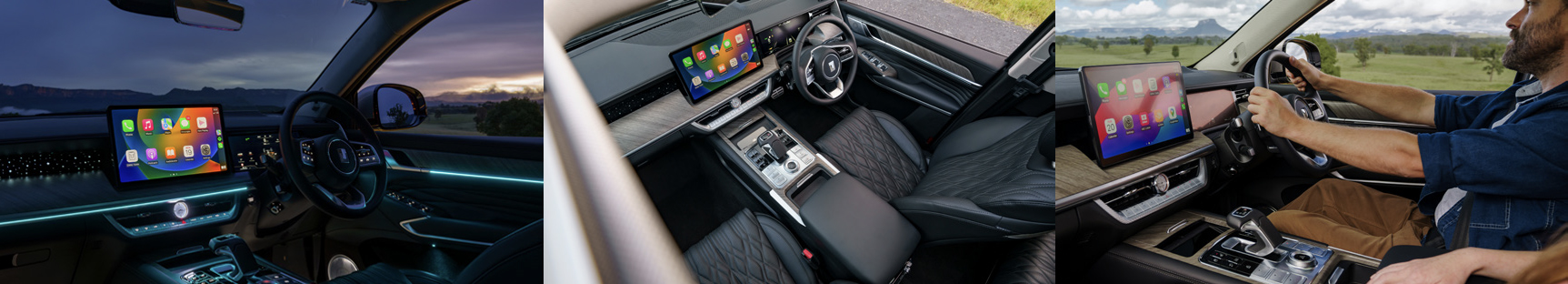

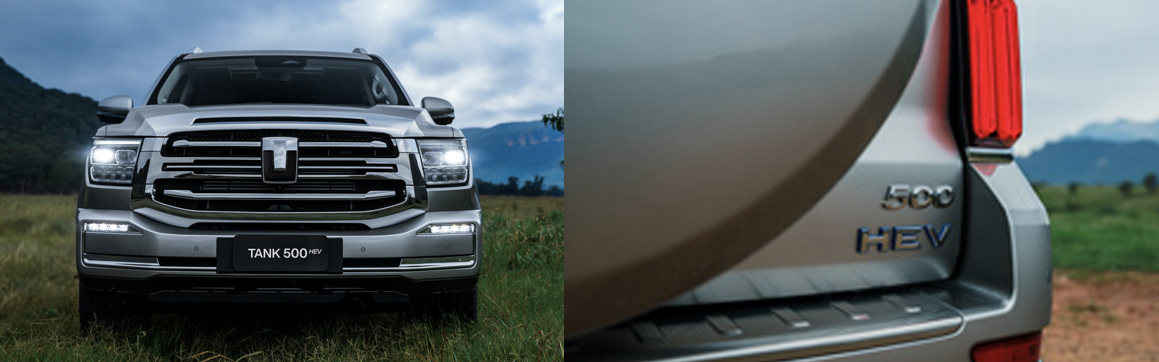

Inspired exterior. Lavish interior..

Every inch of this luxuriously appointed SUV has been meticulously considered just for you. On the outside it includes a magnificent and striking front grille, grand 18 inch alloy wheels and automatic Electric Side Steps* which make entering and exiting the vehicle an indulgent delight. Hop inside and you’re instantly met with sumptuous heated and ventilated Nappa leather accented* seats that can be adjusted to your favourite driving positions, and a panoramic sunroof (Ultra Model Only) that lets you bring the outside in on every trip to reignite your passion for driving. 12 speaker Infinity™ sound system (Ultra Model Only). 14.6” infotainment screen. 64 colour ambient lighting (Ultra Model Only). Purposefully designed centre console. Multi function faux leather steering wheel. 8-way power driver seat adjustment + 4-way lumbar support (Ultra Model Only).

2024-gwm-tank-500-dirt-track-2-car-back-catalogue

Purebred performance.

Powered by a responsive 2.0 litre turbo four-cylinder petrol engine with an electric motor, delivering 255kW and 648Nm of torque, the 2024 GWM Tank 300 will outperform just about anything in its class. Thanks to the all-terrain control system with 9 driving modes, it will go anywhere you point it. And after years of intensive innovation and development, GWM’s independently designed Dedicated Hybrid Technology (DHT) is now an all-round master in high-efficiency, high-performance hybrid solutions. Choose from a responsive turbo petrol, powerful turbo petrol hybrid, or grunty turbo diesel engine. Powered by a directinjection 2.0 litre turbo four-cylinder petrol-electric engine, with a combined power output of 255kW and 648Nm of torque.

2024-gwm-tank-500-technology-car-back-catalogue

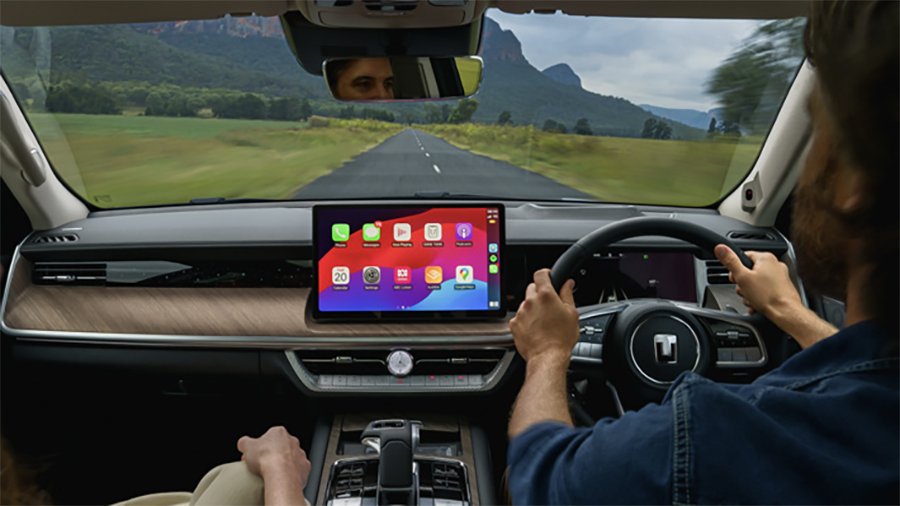

High-tech for ultimate driving experience.

In pursuit of excellence, the Tank 500 is the culmination of GWM’s interior expertise and the very latest in advanced technologies. For starters, the large crystal clear 14.6 inch LED colour touchscreen lets you easily and efficiently experience your infotainment system on demand. The Infinity® 12-speaker sound system* provides superior audio quality for your favourite playlists and podcasts. And the heads up display* combines all vehicles data, speed, warning signals and nagivation directions. *Ultra variants only.

2024-gwm-tank-500-rear-quarter-car-back-catalogue

Built to the safest standards.

This incredibly grand and luxurious SUV is also unbelievably safe. The Tank 500 comes with a comprehensive suite of active and passive safety systems designed to protect you and others on the road. Advanced safety features including Intelligent Adaptive Cruise Control, Rear Collision Warning, Emergency Lane Keep Assist, and Auto Intelligent Parking, all combine to give you peace of mind knowing that GWM is looking out for you and everyone else around you.

2024-gwm-tank-500-safety-car-back-catalogue

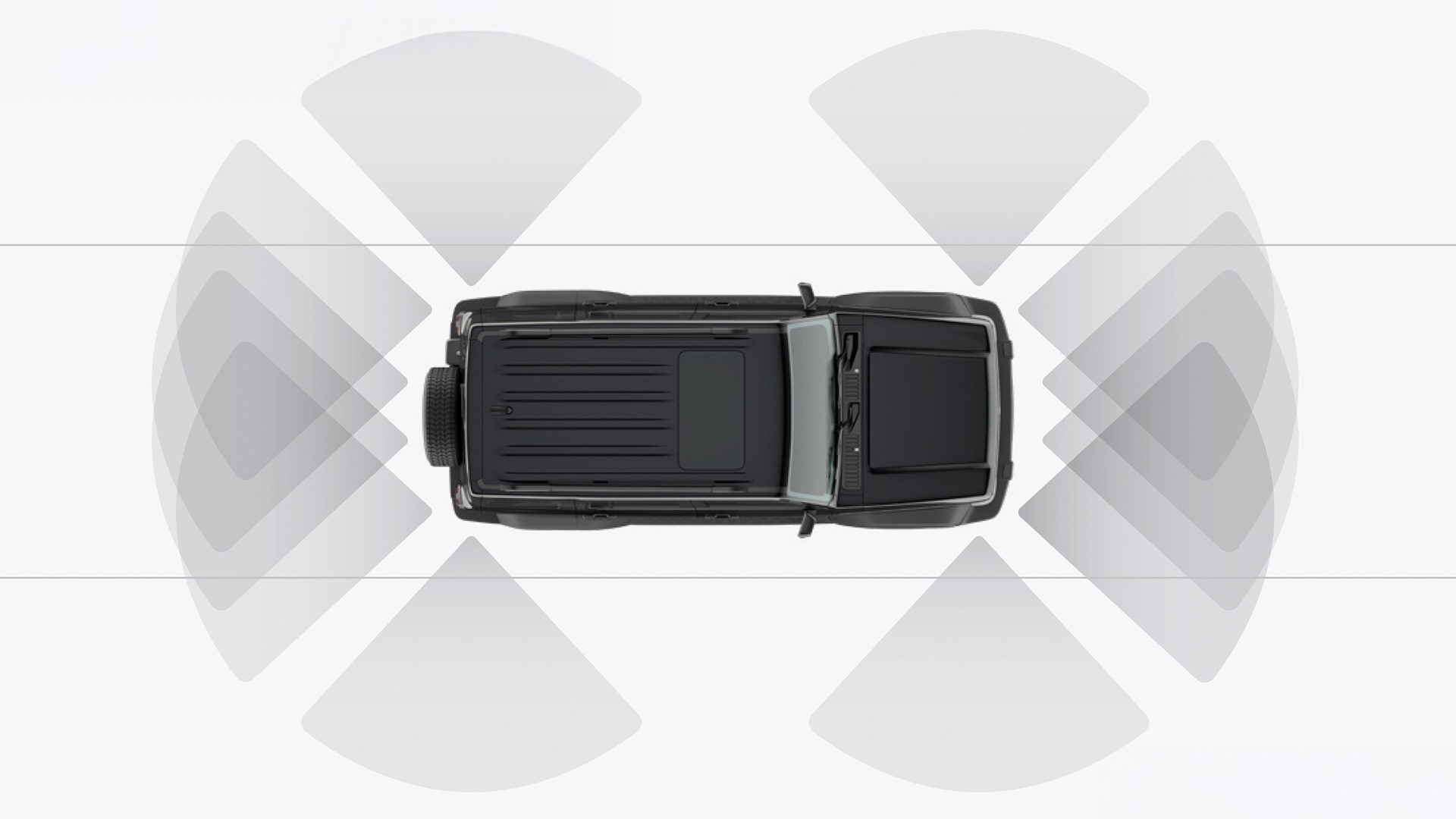

Protection from every angle..

The vehicle’s smart active and passive safety technology including a 360-view camera, Auto Emergency Braking, Lane Departure Warning and Blind Spot Detection, will let you know who or what’s in front, behind and either side of you every time you take the Tank 500 out for a drive.

2024-gwm-tank-500-driver-car-back-catalogue

GWM Care.

Every GWM comes with GWM Care. It begins from the moment you take delivery of your vehicle and continues long into the future. Wherever the road leads, you can rest assured knowing that your GWM will be kept at its best for many years to come. 8 Year Unlimited KM Battery Pack Warranty. 7 Year Unlimited KM Warranty. 7 Year Roadside Assist. 7 Year Capped Price Servicing.

2024-gwm-tank-500-front-quarter-car-back-catalogue

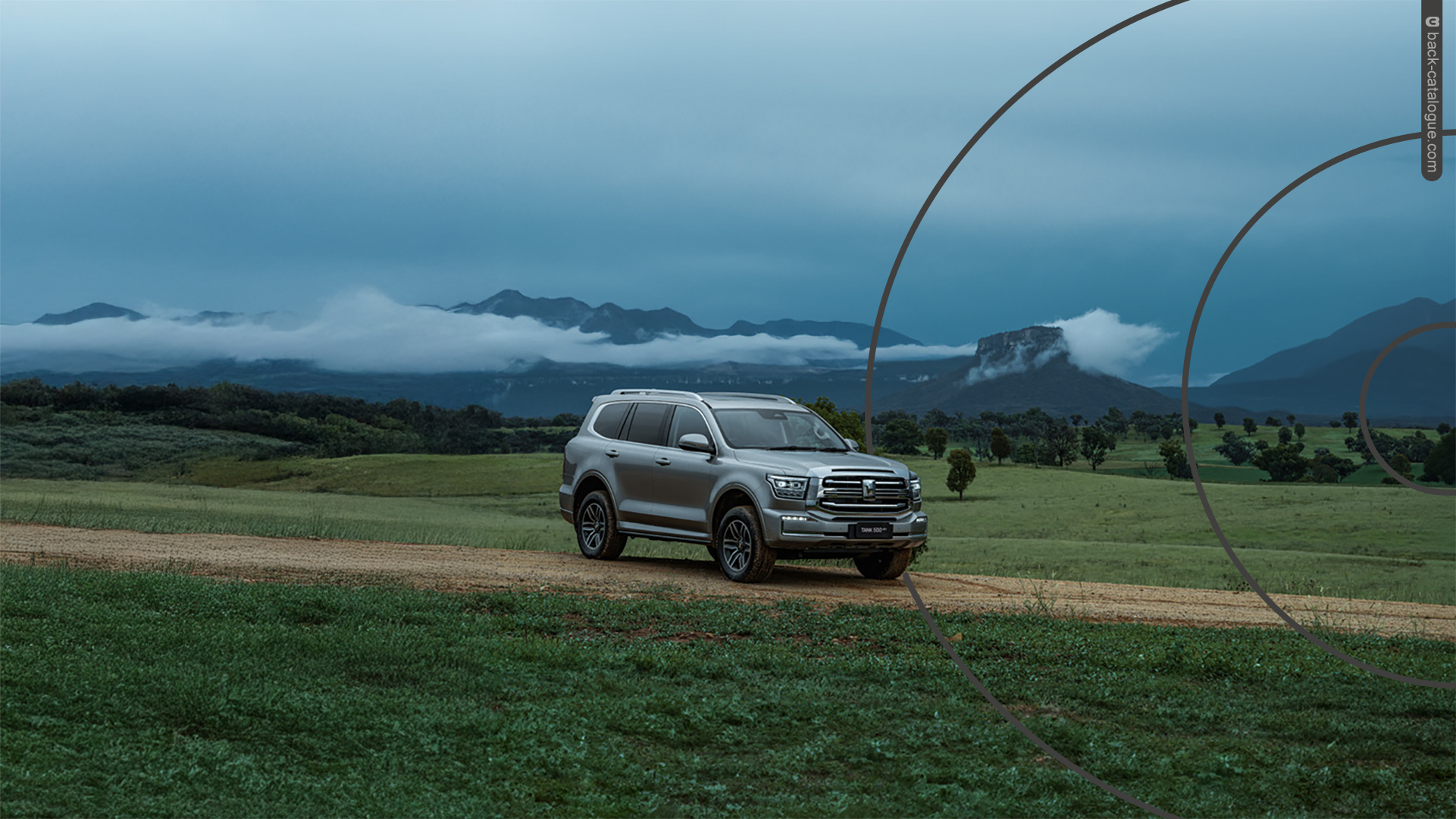

Driven by a new energy.

GWM’s Dedicated Hybrid Technology (DHT) is at the core of our entire electrification roadmap. Each highly integrated, multi-mode petrol-electric hybrid engine comes with a powerful lithium ion battery providing greater performance, increased efficiency and minimal noise. Perfect for urban driving as well as off-road cruising, the multi-mode hybrid transmission delivers incredibly smooth, responsive take-offs and superior acceleration when you need it, reaching 0-100km/h in 8.3 seconds, all the while saving on fuel.

2024 GWM Tank 500 Dimension Specifications

Lux Hybrid Ultra Hybrid
Length/Width/Height (mm) 5078 x 1934 x 1905 5078 x 1934 x 1905
Wheelbase (mm) 2850 2850
Front/rear wheel track (mm) 1635 1635
Min ground clearance (mm) 224 224
Approach/Break-Over/Departure Angle 30°/22.5°/24° 30°/22.5°/24°

2024 GWM Tank 500 Engine Specifications

Lux Hybrid Ultra Hybrid
Displacement (cm³) 1998 1998
Maximum power (kW@rpm) Electric motor 78kW. Petrol engine 180 @ 5500-6000. Combined 255kW Electric motor 78kW. Petrol engine 180 @ 5500-6000. Combined 255kW
Maximum torque (Nm@rpm) Electric motor 268Nm. Petrol engine 380 @ 1700-4000. Combined 648Nm Electric motor 268Nm. Petrol engine 380 @ 1700-4000. Combined 648Nm
Bore x stroke (mm) 82 x 94.6 82 x 94.6
Compression ratio 11.0 : 1 11.0 : 1
Fuel consumption - combined 8.5L/100km 8.5L/100km
Co2 g/km2 199 199
Recommended fuel octane rating 91 91
Emission standard Euro 5 Euro 5

2024 GWM Tank 500 Transmission Specifications

Lux Hybrid Ultra Hybrid
9-Speed Hybrid Automatic Transmission (9HAT) ◾️
Driveline 4WD
Gear ratios 1st 5.288. 2nd 3.243. 3rd 2.252. 4th 1.636. 5th 1.211. 6th 1.000. 7th 0.867. 8th 0.717. 9th 0.598. reverse 4.648

2024 GWM Tank 500 Wheels, Brakes & Suspension Specifications

Lux Hybrid Ultra Hybrid
Wheel Size 265/60 18"
Spare wheel ◾️
Brakes: Front and rear Vented Disc Brake
Electronic park brake with Auto hold ◾️
Front Suspension (kg) Double wishbone independent coil sprung suspension
Rear Suspension (kg) Multi-link live axle coil sprung suspension

2024 GWM Tank 500 Weights & Capacities Specifications

Lux Hybrid Ultra Hybrid
Braked towing capacity (kg) 3000
Unbraked towing capacity (kg) 750
Kerb weight (kg) 2,605
Tare weight (kg) 2,556
Gross Vehicle Mass (kg) 3,395
Gross Combined Mass (kg) 6,705
Payload (kg) 790
Seating capacity 7
Water wading depth (mm) 800
Fuel tank capacity (L) 80
Cargo volume behind 1st row (2-seat mode) 1459L
Cargo volume behind 2nd row (5-seat mode) 795L
Cargo volume behind 3rd row (7-seat mode) 98L

2024 GWM Tank 500 Chassis & Steering Specifications

Lux Hybrid Ultra Hybrid
Electric Power Steering (EPS) ◾️
Electric steering wheel adjustment (4-Directions) ◾️
Dynamic torque steering ◾️
Steering mode adjustment (Light/Comfort/Sport) ◾️
Turning circle – kerb to kerb (m) 11.2
Front Differential Lock (Electric) - ◾️
Rear Differential Lock (Electric) ◾️
Low Range with Center diff lock ◾️
Launch Control ◾️
Driving Mode (Eco, Normal, Sports, Snow, Sand, Rock, Mud, Auto, Expert) + 4H/4L ◾️
Off-Road Cruise Control(CCO) ◾️
Tank Turn Assist ◾️
Manual Tailgate ◾️ -
Manual Tailgate w/ soft close - ◾️
Side steps - fixed ◾️ -
Retractable side steps - electric - ◾️
Automatic windscreen wipers ◾️
Rear Windscreen Wiper ◾️
Roof rails ◾️
Sunroof - Electric ◾️ -
Panoramic Sunroof - Electric - ◾️
Shark fin antenna ◾️
Trailer Power Outlet ◾️
Under carriage protection ◾️
Door handle: Body Colour ◾️ -
Door handle: Chrome accented - ◾️

2024 GWM Tank 500 Interior Specifications

Lux Hybrid Ultra Hybrid
Sunglasses holder ◾️
Faux leather steering wheel ◾️
Heated Steering Wheel - ◾️
Paddle Shifter ◾️
Wireless Charger 11.2
Front row 12V Power Outlet 11.2
Second row 12V Power Outlet ◾️
Luggage cover ◾️
Luggage tie down points ◾️
Electronic Clock ◾️
3-zone climate control ◾️
2nd row A/C control ◾️
Rear A/C Outlet - Top/Under ◾️
A/C fragrance system - ◾️
Auto defogging ◾️
Faux leather seats ◾️ -
Nappa leather accented seats - ◾️
Front seats: Heated ◾️
Front seats: Ventilated + Massage - ◾️
Front Seat Memory + Welcome Function - ◾️
8-Way Power Adjustable + 4-way adjustable lumbar support Driver Seat Adjustment ◾️
Front Passenger Seat: 4-Way Electric Adjustment ◾️ -
Front Passenger Seat: 6-Way Electric Adjustment - ◾️
Front Seat: Manual 2-way adjustable headrest ◾️ -
Front Seat: Manual 4-way adjustable headrest - ◾️
60:40 folding 2nd row seats ◾️
2nd row central armrest with cup holder ◾️
2nd row seats: ventilated - ◾️
2nd row seats: manual adjustable ◾️
2nd Row Seat: Manual 2-way Adjustable With Easy Entry ◾️
2nd Row Seat: Manual 2-way Adjustable Headrest ◾️
Manual folding 3rd row seats ◾️ -
Electric folding 3rd row seats - ◾️

2024 GWM Tank 500 Entertainment & Security Specifications

Lux Hybrid Ultra Hybrid
12.3 inch Full Colour Instrument Cluster with Brightness Adjustment ◾️
14.6 inch Full Colour Touch Screen Infotainment System ◾️
Radio FM / AM ◾️
Digital Radio DAB+ ◾️
Bluetooth® ◾️
Head Up Display (HUD) - ◾️
Front and rear USB Type A + Type C ◾️
USB Port for Dash camera ◾️
8 speakers ◾️ -
12 speakers Infinity® - ◾️
Wireless Apple CarPlay® 5 + Android Auto™ ◾️
Speed sensing volume ◾️
Active Noise Cancelling (ANC) - ◾️
Keyless entry (front) ◾️
Push button start ◾️
2 Smart Keys ◾️
Engine Immobiliser ◾️
Remote Central Locking ◾️
Speed sensing central locking (15KM/H) ◾️
Door ajar warning system ◾️
Connected car app ◾️

2024 GWM Tank 500 Glass & Lighting Specifications

Lux Hybrid Ultra Hybrid
Rear privacy glass ◾️
Soundproof Glass (Front Windshield) ◾️ -
Soundproof Glass (Rear Door+Front Windshield) - ◾️
Auto window close function ◾️
Auto Fold + Heated + Electric Adjustment Power External Mirror With Indicator ◾️ -
Auto Fold + Heated + Memory Assist + Electric Adjustment Power External Mirror With Indicator and Puddle Lights - ◾️
Front Sunvisor with vanity mirror with lights ◾️
Auto-dimming rear view mirror ◾️
2nd row manual window shades - ◾️
Rear Demister ◾️
LED Headlights ◾️
LED Taillights ◾️
Auto low beam ◾️
Auto high beam ◾️
Front fog lamp with steering auto light ◾️
Rear Fog lamp ◾️
DRL (Daytime Running Light) ◾️
High-Mounted Stop lamp ◾️
Headlight "Follow me home" Function ◾️
Ambient Lighting (64 Colour) - ◾️
Reading lamp ◾️
Luggage Lighting ◾️
Side Roof Lamp ◾️
Glovebox Lighting ◾️

2024 GWM Tank 500 Glass & Lighting Specifications

Lux Hybrid Ultra Hybrid
Safety Type Pressure Monitor System (TPMS) ◾️
Driver & front passenger SRS airbags ◾️
Front side SRS airbags ◾️
Curtain SRS airbags ◾️
Centre SRS airbag ◾️
Seatbelt warning (All Seats) ◾️
Front Seatbelt Pre-tensioners With Load Limiters ◾️
2nd row Seatbelt Pre-tensioners With Load Limiters (outer seats) ◾️
ISOFIX anchor points x2 ◾️
Rear Row Children Monitor ◾️
Child-lock rear doors ◾️
Electronic Stability Control (ESC) ◾️
Brake Assist System (BAS) ◾️
Hill Ascent/Descent Control ◾️
ABS+EBD+TCS+RMI+ESC ◾️
Adaptive Cruise Control (ACC) ◾️
Auto Emergency Brake (AEB) ◾️
AEB Intersection Assist ◾️
Low Speed AEB ◾️
Front Collision Warning (FCW) ◾️
Lane Departure Warning (LDW) ◾️
Lane Keeping Assist (LKA) ◾️
Lane Central Keeping (LCK) ◾️
Traffic Sign Recognition (TSR) ◾️
Traffic Jam Assist (TJA) ◾️
ICA + Intelligent Turning ◾️
Emergency Lane Keeping (ELK) ◾️
Smart Dodge ◾️
Door Open Warning (DOW) ◾️
Rear Collision Warning (RCW) ◾️
Lane Change Assist (LCA) ◾️
Rear Cross Traffic Alert (With Brake) ◾️
Front Cross Traffic Alert (With Brake) ◾️
Emergency Signal System (ESS) ◾️
Driver Fatigue Monitor System(DFMS) ◾️
Reverse Assist ◾️
Auto Parking Assist ◾️
360°View Monitor ◾️
Clear chassis view ◾️
Front Parking Sensor 6
Rear Parking Sensor 6
Speed Warning Adjustment ◾️
