The Ranger Plug-in Hybrid (PHEV) puts more power in your hands. The power to drive on electric power and reduce fuel costs. The power to plug in tools, lights and appliances no matter where you are. And, thanks to the versatility of its hybrid system, Ranger PHEV’s petrol engine allows you to go further, without the anxiety of range.
EcoBoost Engine
System Max Power (kW)
Battery (kWh)

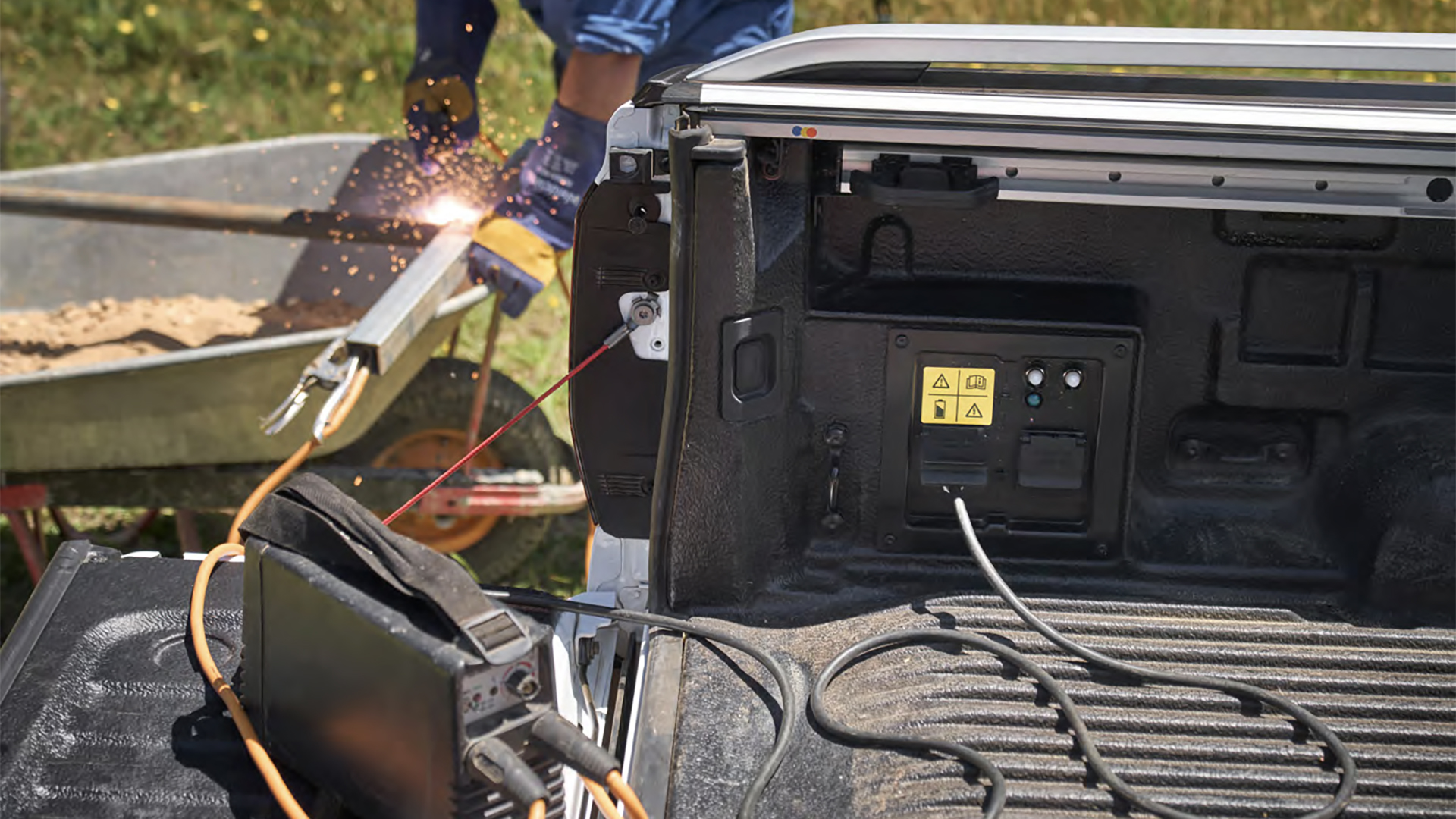

When you’re off grid camping, or working remotely, Pro Power Onboard acts as a generator on wheels, so you can power your gear wherever you go. Plug in tools, recharge batteries, run fridges and lights, power your caravan, boil a kettle – whatever you need power for at worksite or campsite, the Ranger PHEV can supply it.
Pro Power Onboard max output
Usable battery capacity
2 x Tray sockets
1 x Interior socket
Adding electric driving hasn’t diminished Ranger’s renowned abilities at all: it still tows, loads and off-roads like a champ.

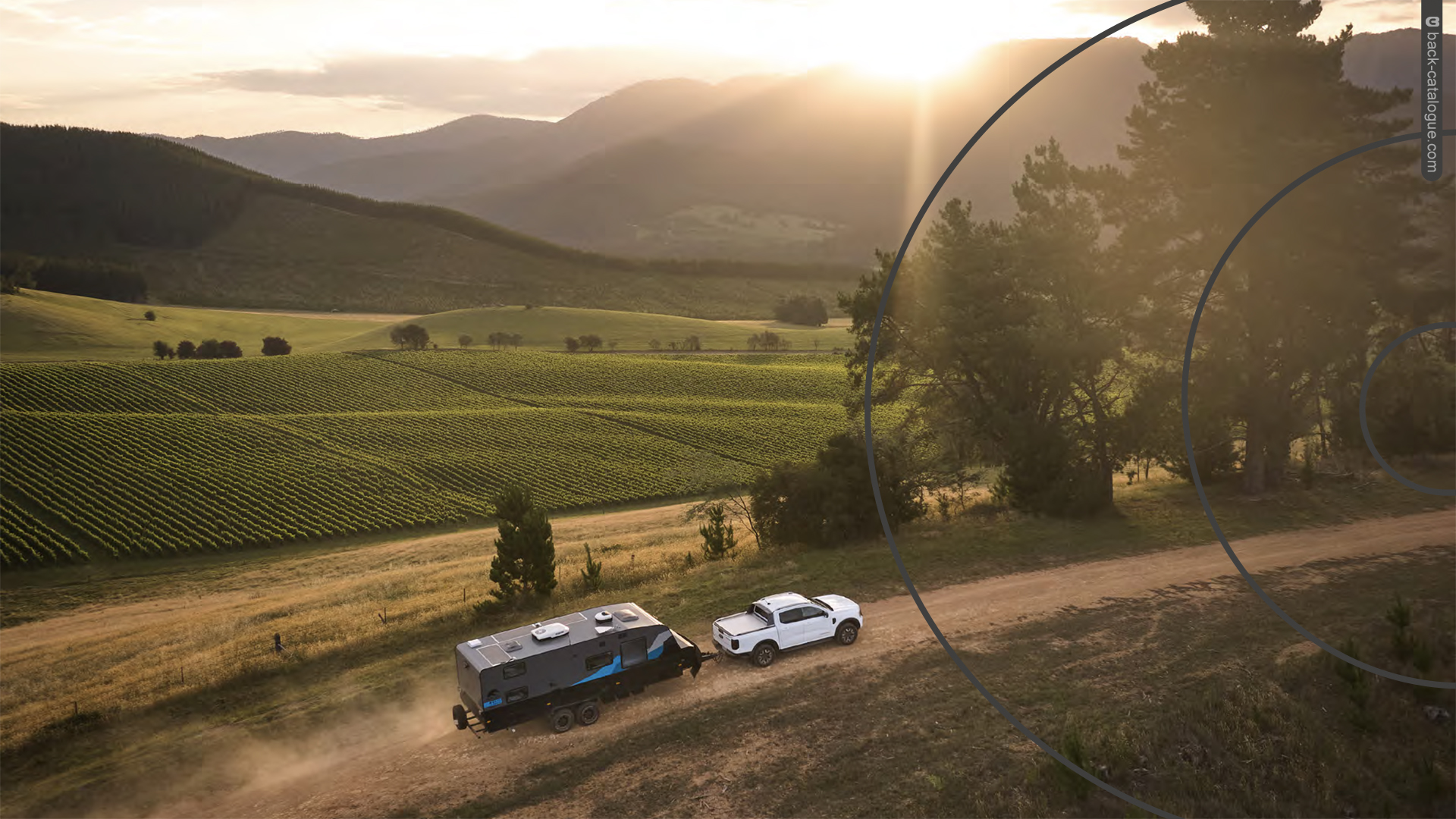

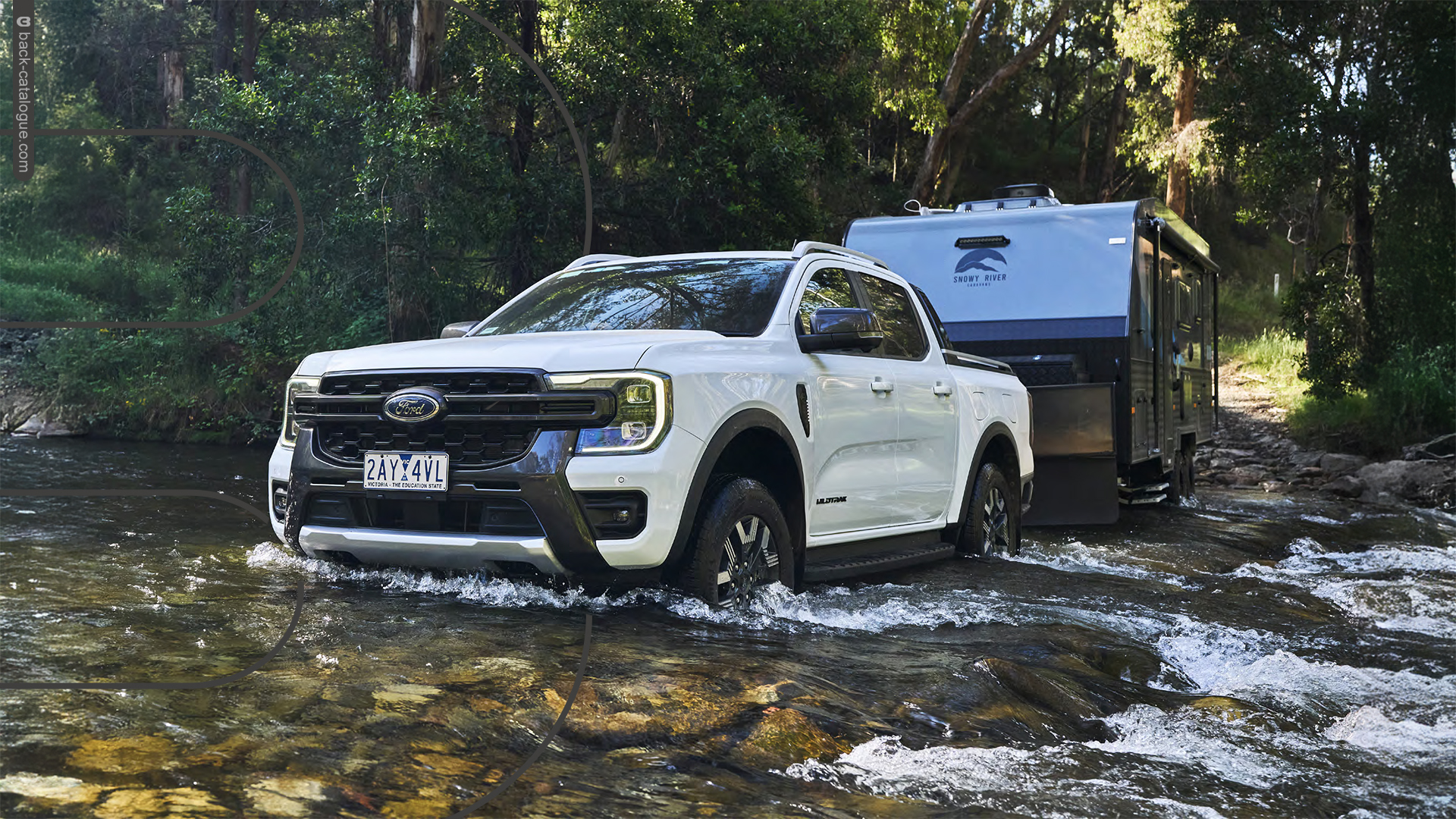

Ultimate towing experience.
Towing
Payload
The engine-powered drivetrain is backed by an electric motor, resulting in advanced capability with extra power on board for all your towing needs, uphill and downhill.

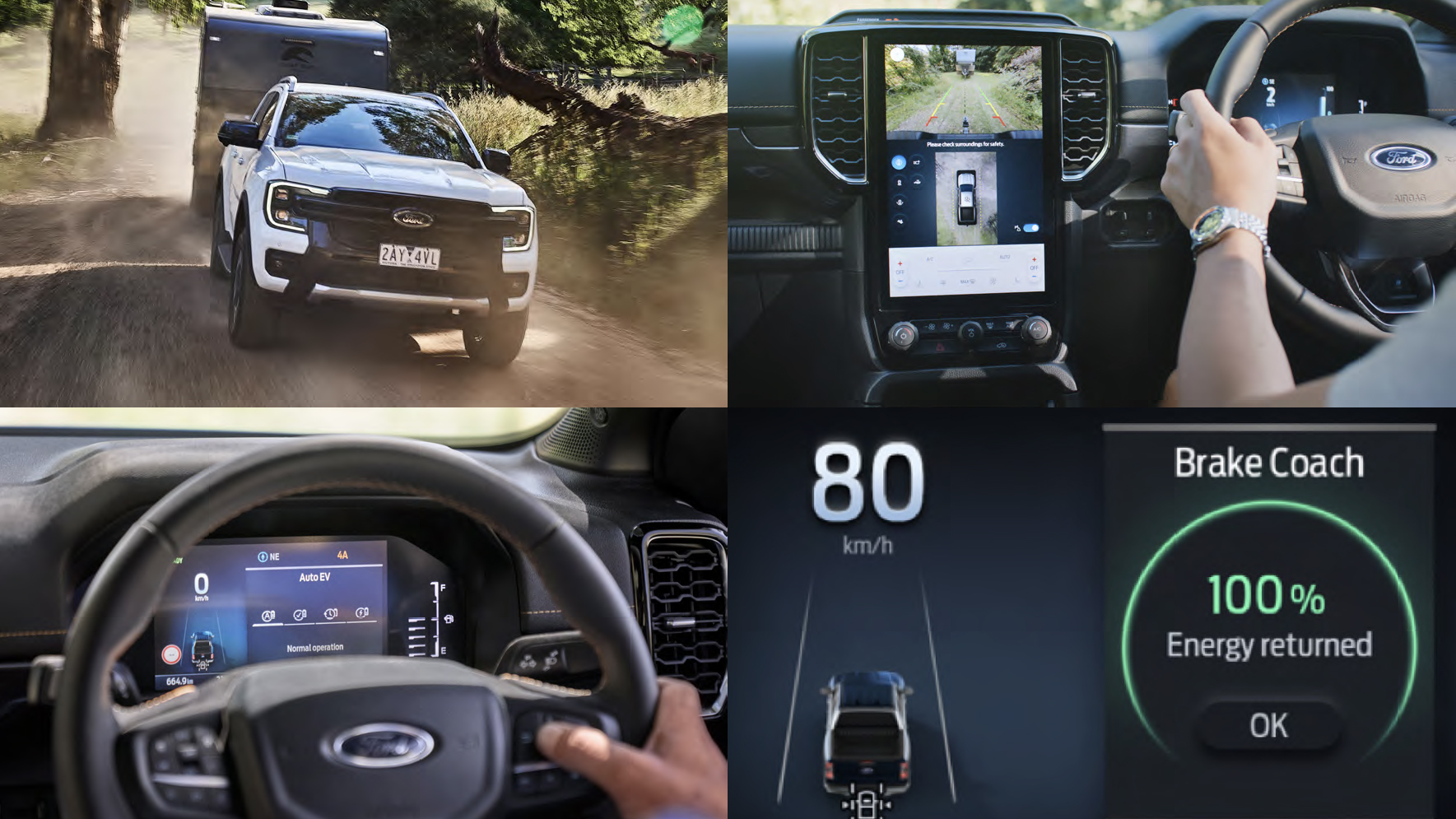

Reverse easier than ever with Pro Trailer Back Up Assist. Simply turn the knob in the direction you want the trailer to move, and the system steers for you.
We’ve added 4 EV drive modes to enhance performance and efficiency. ‘Auto EV’ makes the decision for you. ‘EV Now’ runs your PHEV purely on electric power, reducing fuel consumption. ‘EV Later’ preserves battery charge for later use. Finally, ‘EV Charge’ uses the engine to top-up your battery.
Ranger PHEV’s modular hybrid transmission incorporates regenerative braking, allowing the driver to capture and store energy during braking, which would otherwise be lost. This has the added benefit of enhancing the towing experience and reducing wear on brakes.
With the same full-time Advanced 4x4 System as Ranger, Ranger PHEV gives you complete off-road confidence, including the added reassurance of a locking rear diff when you need more traction.
Just because it has a battery, doesn’t mean you have to worry about getting a little wet. The Ranger PHEV has the same ability as the rest of the family, with breathers on axles, transmission and transfer case all sitting above the rated waterline.
Standard across the range are various drive modes to help you navigate tricky terrain and channel more power, such as Mud & Ruts, Sand, and Tow & Haul modes.
Ranger PHEV has excellent underbody protection, shielding steering, sump and transmission.
Like all Rangers, the PHEV is designed to make driving more pleasurable. Electric drive keeps the cabin comfortably quiet. Large, integrated touchscreen puts everything at your fingertips, and smart Driver Assist features help take the stress out of the road.

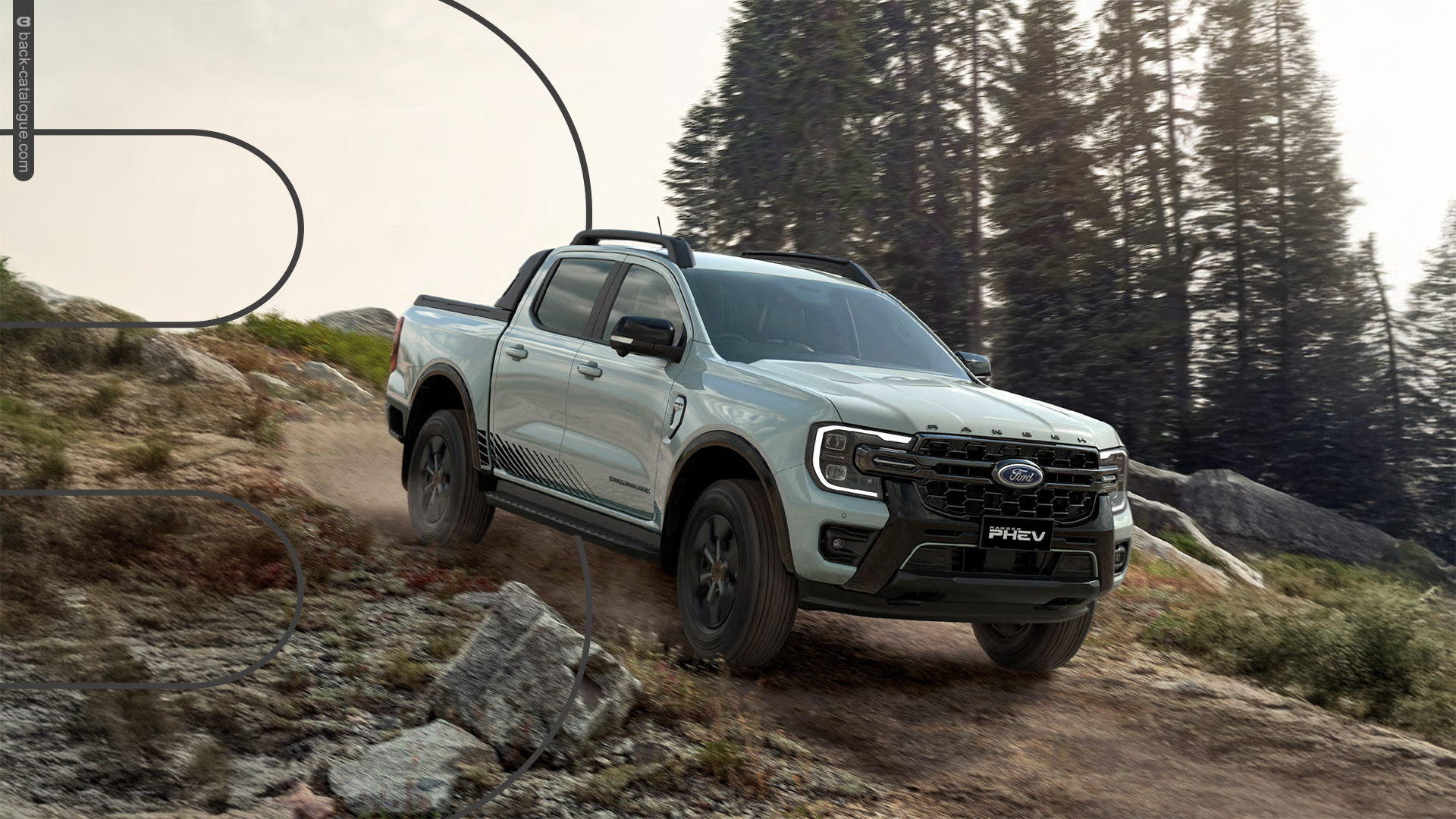

The Special Edition Ranger PHEV Stormtrak has an electrifying off-road appearance, unique exterior finish and an incredibly versatile Flexible Rack System.
Your worksite’s new best friend

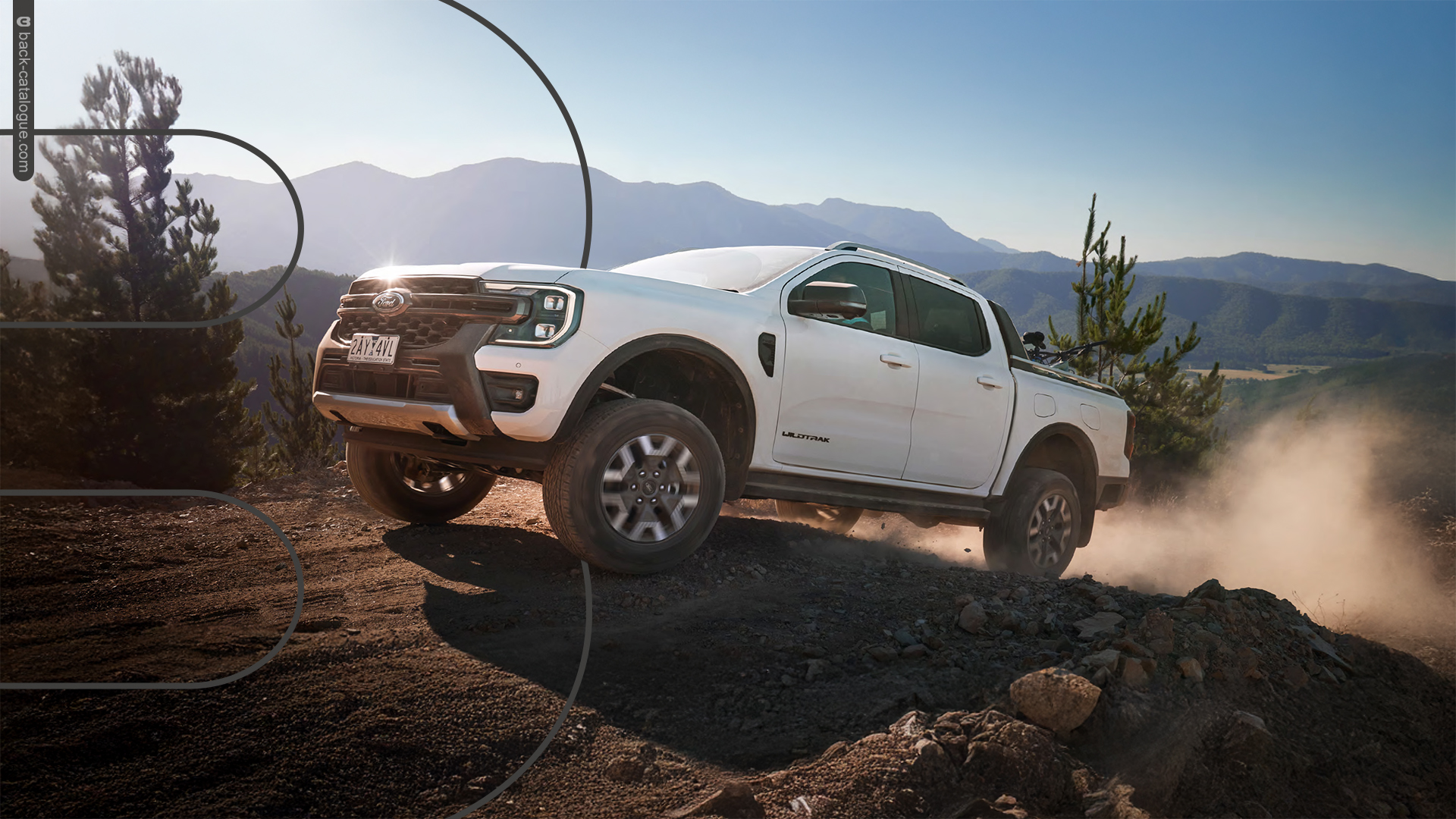

Powering off-road adventure
Refined for adventure, charged with fun
Electrifying off-road presence

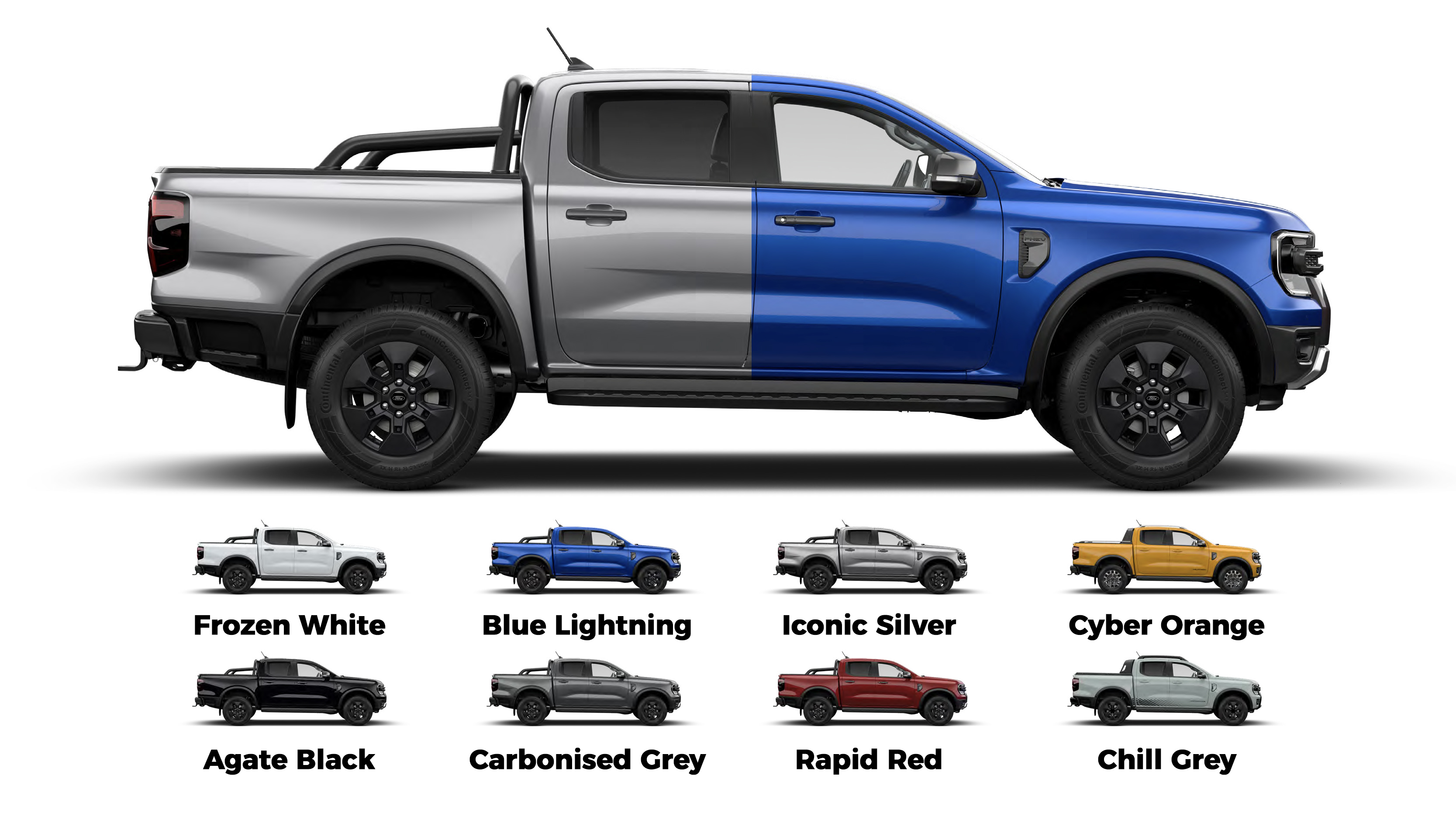

Frozen White. Blue Lightning. Iconic Silver. Cyber Orange (Wildtrak exclusive colour). Agate Black. Carbonised Grey. Rapid Red. Chill Grey (Stormtrak exclusive colour). Stormtrak is only available in Agate Black and Chill Grey.

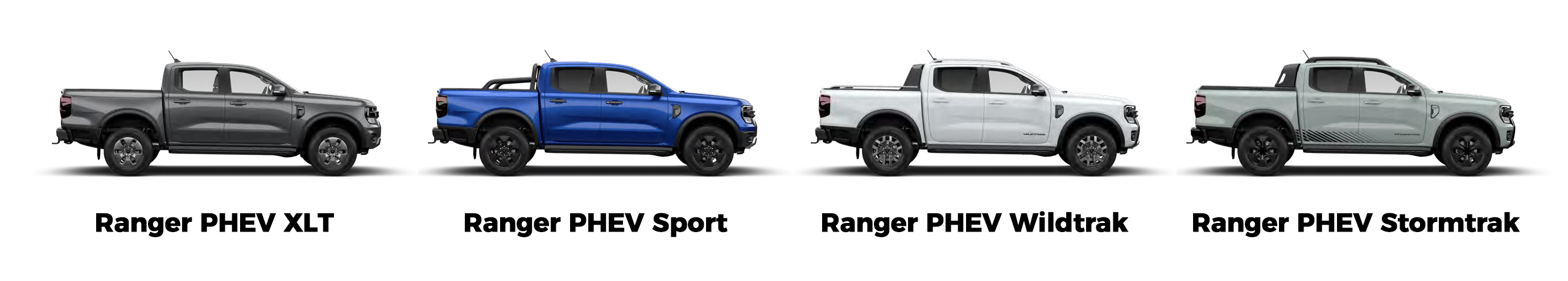

| XLT | Sport | Wildtrak | Stormtrak | |
| Body | 4x4 Double Cab Pick-Up | |||
| Engine | Plug-in Hybrid 2.3L EcoBoost | |||
| Engine Max Power | 138kW @ 4600 RPM | |||
| Engine Max Torque | 411Nm @ 2700 RPM | |||
| E-Motor Power | 75KW | |||
| System Max Power | 207KW @ 2500 RPM | |||
| Battery (Usable) | 11.8kWh | |||
| 10-Speed Automatic Modular Hybrid Transmission | S | S | S | S |
| Full-time 4WD | S | S | S | S |
| Selectable Drive Modes: | ||||
| Normal | S | S | S | S |
| Eco | S | S | S | S |
| Tow/Haul | S | S | S | S |
| Slippery | S | S | S | S |
| Mud/Ruts | S | S | S | S |
| Sand | S | S | S | S |
| Sport | S | S | S | S |
| EV Drive modes: | ||||
| Auto EV | S | S | S | S |
| EV Now | S | S | S | S |
| EV Later | S | S | S | S |
| EV Charge | S | S | S | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Combined Fuel Economy (L/100km) | 2.9L/100km | |||
| Electric Driving Energy Consumption (Wh/km) | 187 | |||
| Electric Driving Range (km) | 49 | |||
| CO2 Emissions (g/km) | 66 | |||
| Fuel Tank Capacity (L) | 70 | |||
| Fuel Type | Petrol, Min 91RON | |||
| Capless Refuelling with Electric Release | S | S | S | S |
| Max Charge Rate AC | 3.5kW | |||
| Estimated Charge Time 0-100% - 2.3kW (10A @230V) | 6 Hours 53 mins | |||
| Estimated Charge Time 0-100% - 3.5kW (15A @230V) | 4 hours | |||
| Mode 2 Home Charge Cable - 230V / 8A | S | S | S | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Maximum Total System Output | 6.9kW | |||
| Tray Socket Quantity | 2 | 2 | 2 | 2 |
| Maximum Power | 147kW @ 3000rpm | |||
| Maximum Tray Socket Output (per socket) | 3.45kW (15A @ 230V) | |||
| Cabin Socket Quantity | 1 | 1 | 1 | 1 |
| Maximum Cabin Socket Output | 2.3kW (10A @ 230V) | |||
| XLT | Sport | Wildtrak | Stormtrak | |
| Gross Combined Mass | 6580 | |||
| Gross Vehicle Mass | 3500 | |||
| Front Gross Axle Weight Rating | 1490 | |||
| Rear Gross Axle Weight Rating | 2100 | |||
| Kerb Weight | 2527 | 2566 | 2615 | 2692 |
| Payload (based on Kerb Weight) | 973 | 934 | 885 | 808 |
| Payload (based on Max Kerb Weight) | 830 | 805 | 795 | 795 |
| Payload (based on Max Kerb Weight) | 2479 | 2518 | 2567 | 2644 |
| XLT | Sport | Wildtrak | Stormtrak | |
| Height - at centreline of axle | 498 | 498 | 498 | 498 |
| Height - floor height to ground | 866 | 878 | 874 | 874 |
| Length - at floor | 1638 | 1638 | 1638 | 1638 |
| Length - top of box | 1471 | 1471 | 1471 | 1471 |
| Width - between wheelhouses | 1233 | 1233 | 1233 | 1233 |
| Width - pick-up box | 1584 | 1584 | 1584 | 1584 |
| Length - without tow receiver | 5350 | 5350 | 5350 | 5350 |
| Length - with tow receiver | 5386 | 5386 | 5386 | 5386 |
| Width - exterior mirrors extended | 2207 | 2207 | 2207 | 2207 |
| Width - exterior mirrors folded | 2015 | 2015 | 2015 | 2015 |
| Width - excluding mirrors | 1924 | 1924 | 1924 | 1924 |
| Height - to top of antenna base | 1871 | 1883 | 1878 | 1878 |
| Overhang - front | 865 | 865 | 865 | 865 |
| Overhang - rear | 1215 | 1215 | 1215 | 1215 |
| Track - front and rear | 1630 | 1630 | 1630 | 1630 |
| Wheelbase | 3270 | 3270 | 3270 | 3270 |
| Ground Clearance (unladen) | 215 | 228 | 226 | 226 |
| Wading Depth | 800 | 800 | 800 | 800 |
| Approach Angle (unladen, degrees) | 28.9 | 30.1 | 30.2 | 30.2 |
| Departure Angle (unladen, degrees) | 23.9 | 24.7 | 24.2 | 24.2 |
| Ramp Breakover Angle (degrees) | 19.6 | 20.6 | 20.4 | 20.4 |
| Turning Circle (meters) | 12.9 | 12.9 | 12.9 | 12.9 |
| XLT | Sport | Wildtrak | Stormtrak | |
| 2nd Row Headroom | 989 | 989 | 989 | 989 |
| 2nd Row Legroom | 879 | 879 | 879 | 879 |
| 2nd Row Shoulder Room | 1440 | 1440 | 1440 | 1440 |
| Front Headroom | 1022 | 1022 | 1022 | 1022 |
| Front Legroom | 1097 | 1097 | 1097 | 1097 |
| Front Shoulder Room | 1450 | 1450 | 1450 | 1450 |
| XLT | Sport | Wildtrak | Stormtrak | |
| Front and Rear Vented Discs with Electronic Brake Booster | S | S | S | S |
| Electrical Power Assisted Steering | S | S | S | S |
| Locking Rear Differential | S | S | S | S |
| 17" Alloy with All Season Tyres | S | - | - | - |
| 18" Alloy with All Season Tyres | - | S | S | S |
| 18" Alloy with All Terrain Tyres and Matching Spare | O | O | O | O |
| Tyre Repair & Inflation Kit | S | S | S | S |
| Spare Wheel - 17" Alloy (no cost option) | O | - | - | - |
| Spare Wheel - 18" Alloy (no cost option) | - | O | O | O |
| XLT | Sport | Wildtrak | Stormtrak | |
| Headlamps - Halogen | S | - | - | - |
| Headlamps - LED | - | S | - | - |
| Headlamps - Matrix LED with Auto Leveling & Dynamic Bending | - | - | S | S |
| Daytime Running Lamps - Halogen | S | - | - | - |
| Daytime Running Lamps - LED | - | S | S | S |
| Front Fog Lamps - Halogen | S | - | - | - |
| Front Fog Lamps - LED | - | S | S | S |
| Rear Fog Lamp | S | S | S | S |
| Taillamps - LED | S | S | S | S |
| Tailgate Mounted Stop Light | S | S | S | S |
| Zone Lighting | - | S | S | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Exterior Mirrors - Power Adjustable | S | S | S | S |
| Exterior Mirrors - Power Folding | S | S | S | S |
| Exterior Mirrors - Puddle Lamps | - | S | S | S |
| Exterior Mirrors - Heated | S | S | S | S |
| Steel Underbody Protection | S | S | S | S |
| Side Steps | S | S | S | S |
| Rear Box Step | S | S | S | S |
| Roof Rails | - | - | S | - |
| Sports Bar13 | - | S | - | - |
| Sports Hoop/Sailplane | - | - | S | - |
| Flexible Rack System14 | - | O | O | S |
| Active Grille Shutter | S | S | S | S |
| Drop In Bedliner | S | S | S | S |
| Box Top Protective Capping with Load Box Access Caps | S | S | - | - |
| Aluminum Tie Down Rails | - | - | S | - |
| Inner Tie Downs | S | S | S | S |
| Cargo Management System | P | P | P | S |
| Load Box Illumination | S | S | S | S |
| Tailgate Cargo Clamps | S | S | S | S |
| Tailgate Cupholders | S | S | S | S |
| Power Tailgate Lock | S | S | S | S |
| Tailgate with Lift Assistance | S | S | S | S |
| Power Roller Shutter | - | - | - | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Steering Wheel Reach & Height Adjust | S | S | S | S |
| Electric Parking Brake | S | S | S | S |
| e-Shifter | S | S | S | S |
| Seating Capacity | 5 | 5 | 5 | 5 |
| Heated Seats - Front Driver & Passenger | - | S | S | S |
| Seat Material - Premium Cloth | S | - | - | - |
| Seat Material - Leather Accented (excluding 2nd row middle seat) | - | S | S | S |
| Driver Seat - 8-Way Manual | S | - | - | - |
| Driver Seat - 8-Way Power | - | S | S | S |
| Front Passenger Seat - 4-Way Manual | S | S | - | - |
| Front Passenger Seat - 8-Way Power | - | - | S | S |
| Child Seat Upper Anchorage Points (x2) | S | S | S | S |
| Child Seat ISOFIX Anchorage Points (x2) | S | S | S | S |
| Floor Covering - Vinyl | O | - | - | - |
| Floor Covering - Carpet | S | S | S | S |
| Floor Mats - Driver & Front Passenger | S | S | S | S |
| Floor Mats - Rear | - | - | S | S |
| Ambient Lighting | - | - | S | S |
| Auxiliary Switch Bank | P | P | P | S |
| Centre Console with Single Lid and 2 Cup Holders | S | S | S | S |
| Instrument Panel Cup Holders | - | S | S | S |
| Interior 12V Power Outlet | 1 | 1 | 1 | 1 |
| USB Ports | 4 | 4 | 4 | 4 |
| Wireless Charging | - | S | S | S |
| Climate Control - Dual-Zone | S | S | S | S |
| Rear Air Vent Registers | S | S | S | S |
| Auto Headlamp On-Off | S | S | S | S |
| Auto High Beam | - | - | S | S |
| Power Windows - One Touch Up/Down | S | S | S | S |
| Privacy Glass | - | S | S | S |
| Rain Sensing Windscreen Wipers | S | S | S | S |
| Rear Window Defrost | S | S | S | S |
| Electrochromatic Rear View Mirror | S | S | S | S |
| Underseat Stowage | S | S | S | S |
| Accoustic Laminated Windscreen | S | S | S | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Embedded Modem | S | S | S | S |
| FordPass Connect | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 8-inch | S | S | S | S |
| Colour Multi-Function Touch Screen Display - 12-inch | S | S | S | S |
| Speakers | 6 | 6 | 10 | 10 |
| B&O Premium Audio System17 | - | - | S | S |
| Digital Audio (DAB+) | S | S | S | S |
| Bluetooth® with Phone/Audio Streaming | S | S | S | S |
| Built-In Satellite Navigation with one year of Connected Navigation Services included19 | S | S | S | S |
| SYNC®4A with Voice-Activated Controls | S | S | S | S |
| Steering Wheel Audio/Function Control | S | S | S | S |
| Wireless Apple CarPlayTM & Android Auto | S | S | S | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Perimeter Alarm System | S | - | - | - |
| Volumetric and Inclination Perimeter Alarm System | - | S | S | S |
| Airbags x 9 - Front, Side, Knee & Full Length Curtain (Driver & Passenger) & Far Side Driver Front Airbag | S | S | S | S |
| 3 Point Lap Sash Seat Belt - All Positions | S | S | S | S |
| Child Proof Rear Door Locks | S | S | S | S |
| Emergency Assistance | S | S | S | S |
| Digital Audio (DAB+) | S | S | S | S |
| Power Door Locks | S | S | S | S |
| Smart Keyless Entry with Push Button Start | S | S | S | S |
| Adaptive Cruise Control | S | - | - | - |
| Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centering | S | S | S | S |
| Intelligent Speed Assist | S | S | S | S |
| Blind Spot Monitoring with Cross Traffic Alert | S | S | S | S |
| Dynamic Stability Control (DSC) incorporating ABS, Electronic Brakeforce Distribution, Emergency Brake Assist, Hill Start Assist, Roll Stability Control, Traction Control and Trailer Sway Control | S | S | S | S |
| Evasive Steer Assist | S | S | S | S |
| Lane Keeping Aid with Road Edge Detection and Driver Alert System | S | S | S | S |
| Post Impact Braking | S | S | S | S |
| Pre-Collision Assist with Autonomous Emergency Braking (AEB) | S | S | S | S |
| Reverse Brake Assist | S | S | S | S |
| Parking Sensors - Front | S | S | S | S |
| Parking Sensors - Rear | S | S | S | S |
| Rear View Camera | S | S | S | S |
| 360-Degree Camera | - | P | S | S |
| Traffic Sign Recognition | S | S | S | S |
| Tyre Pressure Monitoring System | S | S | S | S |
| XLT | Sport | Wildtrak | Stormtrak | |
| Maximum Braked Towing Capacity (kg) | 3500 | 3500 | 3500 | 3500 |
| Pro Trailer Back-up AssistTM | P | S | S | |
| Tow Bar with Integrated Trailer Brake Controller | S | S | S | S |
| Trailer Light Check | S | S | S | S |
| Towing Vehicle Integration with Towing Checklist | S | S | S | S |
| Tow Haul Mode (part of Selectable Drive Modes) | S | S | S | S |

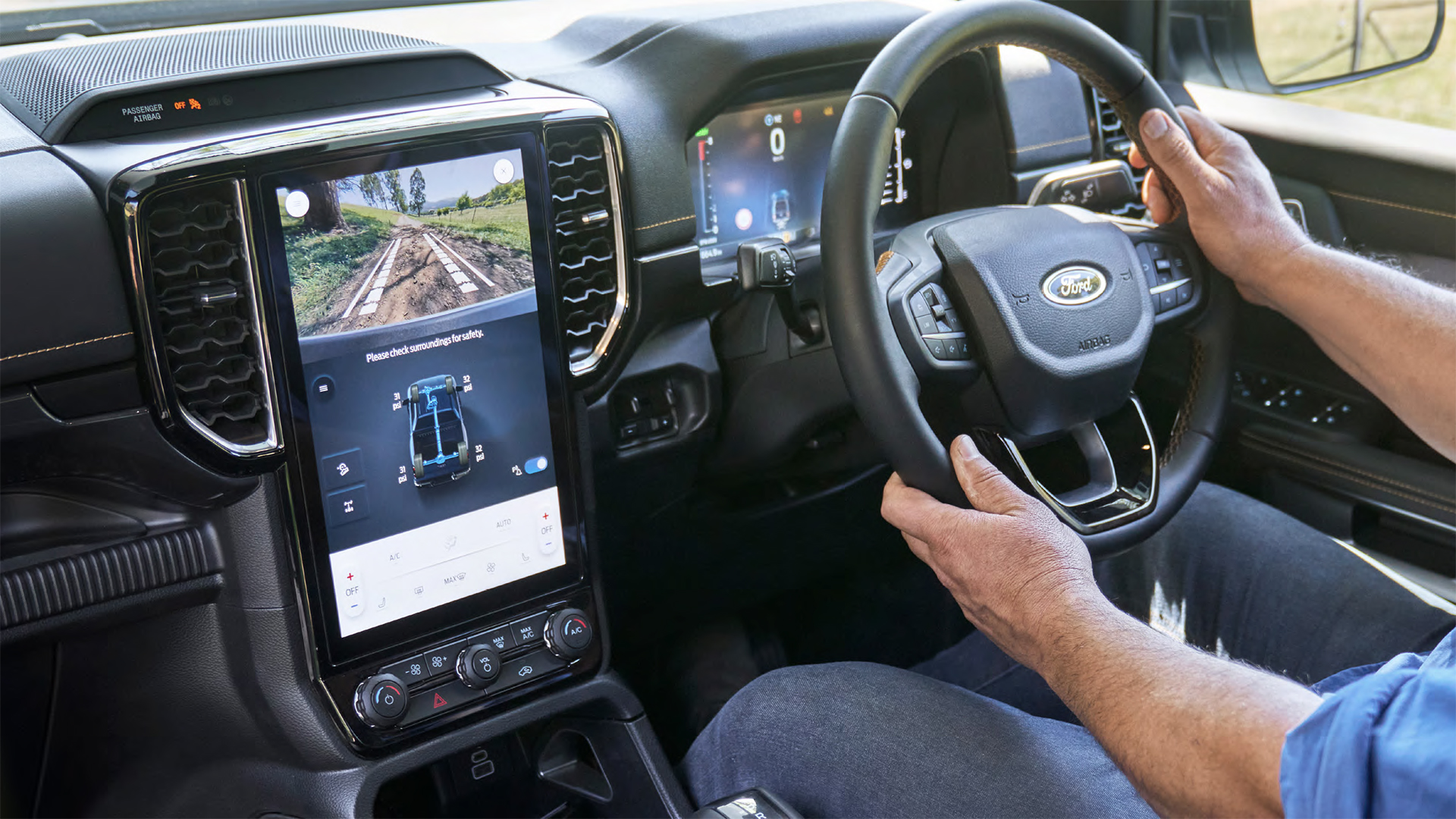

| Off-Road Screen | S | S | S | S |
| Hill Descent Control | S | S | S | S |
| Locking Rear Differential | S | S | S | S |
| Front Recovery Hook | 1 | 2 | 2 | 2 |
| XLT | Sport | Wildtrak | Stormtrak | |
| Full Size Matching Spare Wheel (no cost option) | O | O | O | - |
| 18" Alloy Wheels with All Terrain Tyres and Matching Spare | O | O | O | O |
| Vinyl Floor | O | - | - | - |
| Prestige Paint | O | O | O | - |
| Flexible Rack System | - | O | O | - |
| Technology Pack - 360 Camera, Pro Trailer Backup Assist | - | O | - | - |
| Adventure Pack - Cargo Management System, Auxiliary Switch Bank | O | O | O | - |
| Stylish Canopy | O | O | - | - |
| Commercial Canopy - Black | O | O | - | - |
| Commercial Canopy - White | O | O | - | - |
