Say hello to the best Ranger ever built. Designed and engineered by Ford Australia – but made for over 180 countries – this is the perfect partner for work, family and play. Live your Ranger life your way.
V6 Turbo Diesel Engine
Max Power (kW)
Max Torque (Nm)
A range of diesel powertrains and automatic transmissions together with selectable drive modes, make the Ford Ranger ready to tackle almost anything.
V6 3.0L diesel power
A powerful premium 3.0-litre V6 Turbo Diesel engine1 headlines a range of diesel powertrains.

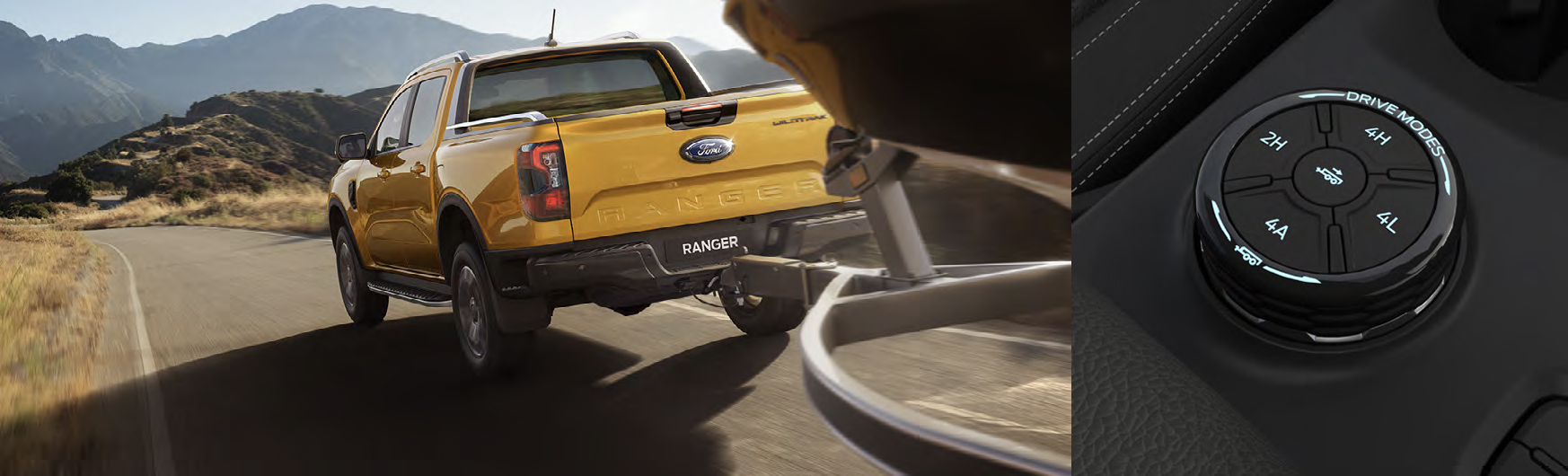

Ultimate towing experience
3500kg max towing capacity3 is just the start. Ranger is loaded with features and tech to help make towing easier and safer.
Selectable Drive Modes
Optimise performance for different surfaces, road conditions and vehicle usage.
Ranger helps you make light work of any job, with integrated rear box step4, Cargo Management System, a wider load box that fits ‘Euro’ pallets (1,200mm x 800mm) and tailgate work bench.

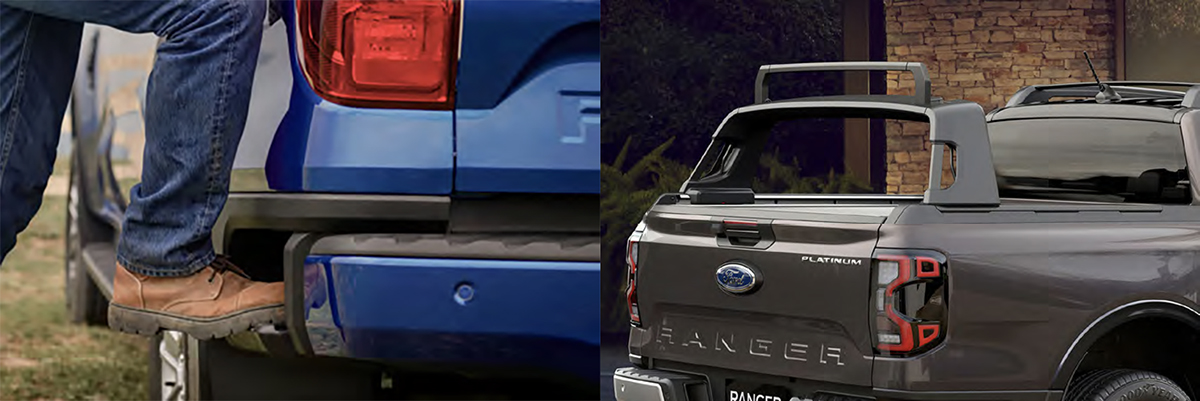

Rear box step
A tough integrated step makes accessing the cargo area easier and safer than ever before.
Clamp pockets
allow you to clamp timber or tools to the tailgate work bench. They’re concealed by spring-loaded capping when not in use.
Cargo management system
On selected models, tie down cleats can be configured to your specific needs, with an adjustable internal load rail on each side of the bed. Cleats slide and lock into 9 locations and are load rated to 250kg.
Fits a pallet
Ford Ranger has a wide track providing more room between the wheel arches. You can load a standard sized ‘Euro’ pallet (1,200mm x 800mm) in the bed.
Improved bedliner
The ribs on the floor of the moulded bedliner7 are wider, offering more surface area to better grip cargo, and a more comfortable surface to kneel on.
Zone lighting
On selected models, a network of lights including headlamps, external mirror puddle lamps and rear box lamps work together to illuminate the perimeter of the vehicle so you can work or play into the night.
Flexible rack system
On selected models, the flexible rack system with the sliding load rack easily slides and locks into five positions along the tub, and in conjunction with the folding roof racks, makes carrying long items easy
Active Park Assist 2.0.
On selected models, Active Park Assist 2.0 helps reduce the stress of parking by taking over the steering, shifting, braking and acceleration to navigate parallel or perpendicular parking spaces with ease. The system also includes Park Out Assist, which provides assistance when exiting a parallel parking spot.
Blind Spot Monitoring with Cross Traffic Alert & Trailer Coverage.
Available on pick-up models, this feature helps you change lanes, alerts you when a vehicle enters the blind spot zone and will even resist the lane change if the driver misses the warning. Cross-Traffic Alert warns of traffic approaching from the sides when the vehicle is in reverse.
Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centring.
On selected models, this feature allows you to maintain a preset speed and distance from the vehicle ahead, with Traffic Sign Recognition automatically adjusting to the posted speed limit. If traffic slows in front of you, the vehicle will automatically slow down and come to a stop and then return to your set cruising speed once traffic clears. Plus, Lane Centring helps keep your vehicle centered in the lane.
360-Degree Camera.
On selected models, offers a bird’s-eye top-down view around your vehicle, making it easier than ever to navigate tight spaces and crowded parking lots.
5 Star Safety Rating.
Ranger includes a network of safety features and smart driver assistance technology, working together to protect you. Drive with confidence knowing that the Ford Ranger has achieved the maximum ANCAP safety rating of 5-stars.

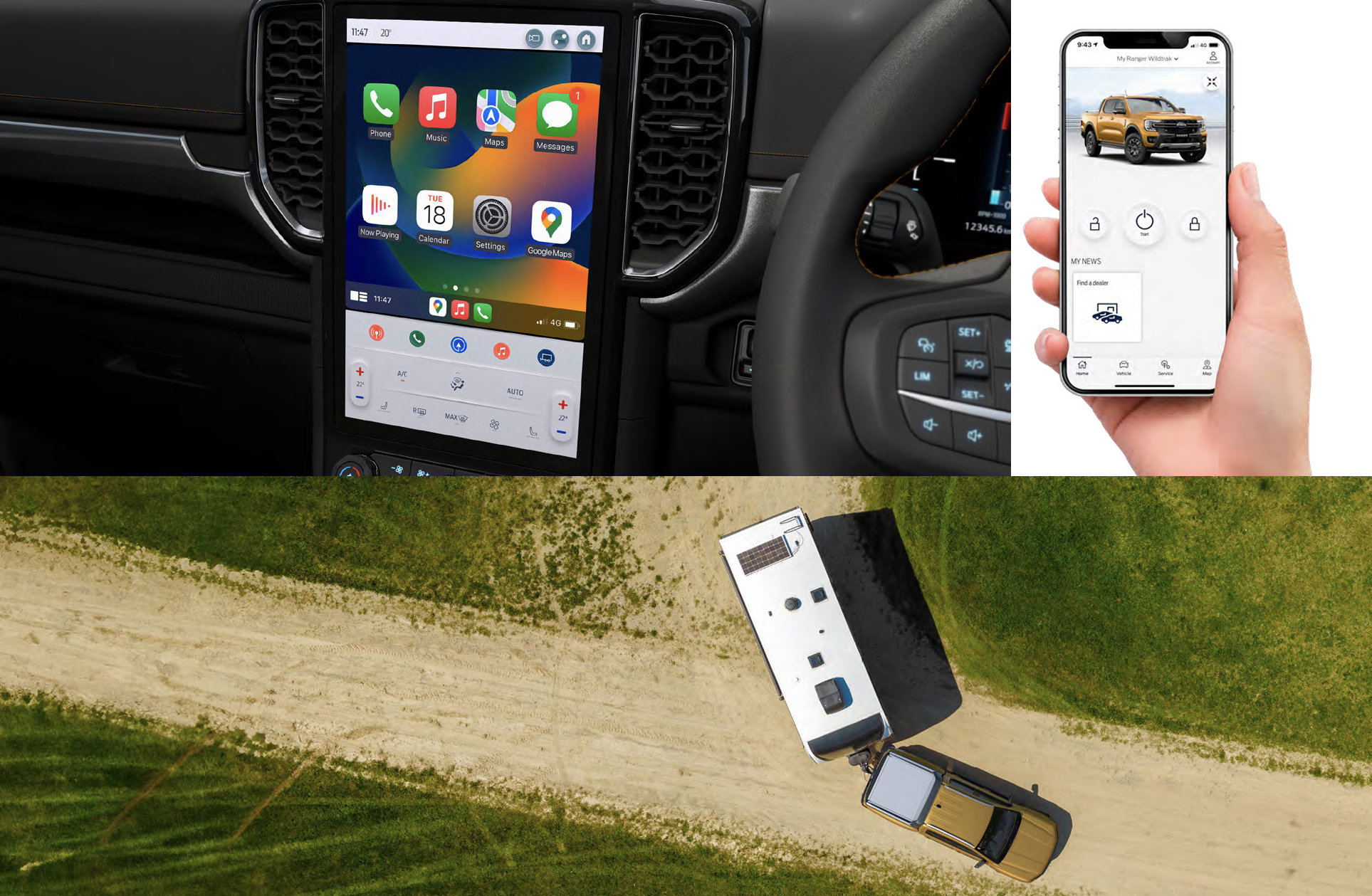

The Ford Ranger lets you experience a whole world of connectivity, with wireless charging,16 wireless connection and the interactive SYNC®4A infotainment system.
SYNC®4A An interactive in-vehicle communication and entertainment system with a host of features, made easier by the system showing your last 5 actions, wireless smartphone integration, and a 10.1-inch or 12-inch touchscreen.
Wireless Charging Pad On selected models, avoid the hassle of having to plug in your phone: simply place it on the Ranger’s wireless charging pad and you’re good to go.
Wireless Connection Connect to Apple CarPlayTM 18 and Android AutoTM 18 without a cable in sight. This cordless connection makes life easy and uncluttered.
On selected models, Pro Trailer Backup AssistTM 19 makes reversing with a trailer as easy as turning a dial. After entering a few measurements into the system, the camera then tracks the trailer position. Simply rotate the dial in the direction you want the trailer to go and the system controls the steering wheel.
Every Ranger comes fitted with an embedded modem known as FordPass20 Connect. Once activated, using the FordPass App on your smartphone you can locate your vehicle, lock and unlock the doors, and even start the engine remotely. Remote start to heat or cool cabin to last known setting.Receive Health Alerts or check Vehicle Status. Check your fuel level remotely.
There’s no better way to personalise your Ranger than with the wide range of Ford options and accessories available. From fridges and driving lights, to canopies and bull bars, you’ll find lots of options to make your Ford uniquely your own via the factory or at one of our nation-wide Dealers.
Genuine Quality. Every Ford Genuine and Ford Licensed Accessory has undergone a rigorous evaluation process by Ford engineers to ensure it’s fully compatible with your vehicle for optimal integration and performance.
Five Year Warranty. On selected models, avoid the hassle of having to plug in your phone: simply place it on the Ranger’s wireless charging pad and you’re good to go.
Australia Wide. Our vast national network of Ford Dealers means there’s a fitment centre conveniently located near you. Always up-to-date with thorough knowledge of the newest products and latest technical information, your local Ford Dealership is the perfect place for all your accessory needs.
You can also choose from our range of Ford Factory Fitted options, conveniently fitted to selected Ranger models in the factory. These genuine parts include the Flexible Rack System, roller shutters, canopies, wheels and tyres plus more – with the range continuing to expand over time.
Ford has joined forces with ARB to create an exciting range of 4x4 accessories designed for the Ford Ranger. You can choose from a large selection of ARB Ford Licensed Accessories at your local participating Ford Dealer, backed by Ford’s 5 year unlimited kilometre warranty when fitted to your new Ranger prior to delivery.
We’re constantly introducing new tools and services, designed to adapt to your needs throughout the life of your vehicle.
When you service at a Ford Dealer with our factory trained technicians, your peace of mind is our top priority. Ford Dealers use Genuine Ford Parts made for your vehicle (where possible) and provide you with a vehicle health report, so you know your vehicle is being maintained the way it should.

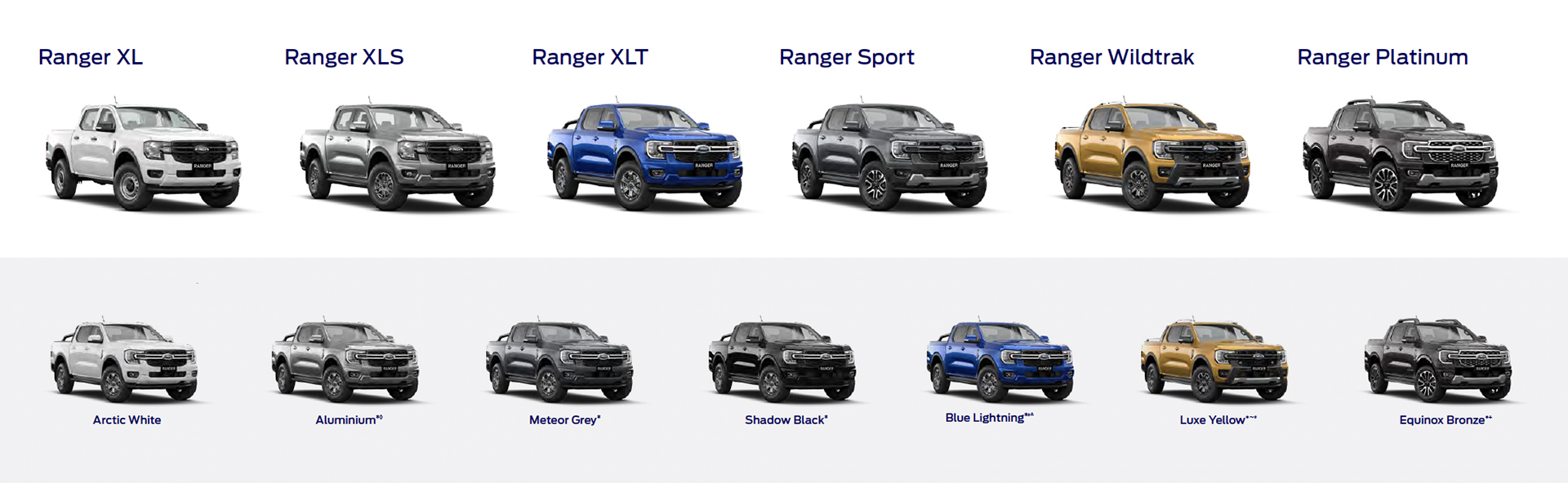

Ranger XL - Capable and reliable, Ranger XL is ready to work. Ranger XLS - With a black grille and 16-inch alloys, it’s as capable as it is comfortable. Ranger XLT - Tough, comfortable and connected, it’s all you need for work, family & play. Ranger Sport - Modern dark accents, 18-inch alloy wheels and ebony interior finish. Ranger Wildtrak - Distinctive appearance, premium interiors and packed with technology. Ranger Platinum - Packed with features and the ultimate blend of premium luxury for work, family & play.
| XL | XL | XL | XLT | |
| 4x2 Hi-Rider Single Cab Cab-Chassis | 4x2 Hi-Rider Super Cab Cab-Chassis | 4x2 Hi-Rider Double Cab Pick-Up | 4x2 Hi-Rider Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Maximum Power | 125kW @ 3,500rpm | 125kW @ 3,500rpm | 125kW @ 3,500rpm | 154kW @ 3,750rpm |
| Maximum Torque | 405Nm @ 1,750-2,500rpm | 405Nm @ 1,750-2,500rpm | 405Nm @ 1,750-2,500rpm | 500Nm @ 1,750-2,000rpm |
| Transmissions | ||||
| 6-speed automatic transmission | S | S | S | - |
| 10-speed automatic transmission | - | - | - | S |
| Driveline | ||||
| RWD | S | S | S | S |
| Part-time 4x4 | - | - | - | - |
| Full-time 4WD | - | - | - | - |
| Selectable Drive Modes | ||||
| - Normal | - | - | - | S |
| - Eco | - | - | - | S |
| - Tow / Haul | - | - | - | S |
| - Slippery | - | - | - | S |
| - Mud / Ruts | - | - | - | S |
| - Sand | - | - | - | S |
| - Sport | - | - | - | - |
| - Baja | - | - | - | - |
| - Rock Crawl | - | - | - | - |
| Fuel | ||||
| Combined Fuel Economy (L/100km) (Auto) | 7.6 | 7.6 | 7.8 | 6.9/7.5 |
| CO₂ Emissions (g/km) (Auto) | 199 | 199 | 204 | 182/196 |
| Fuel Tank Capacity (L) | 80 | 80 | 80 | 80 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel |
| Vehicle Masses (kg) | ||||
| Gross Combined Mass | 6200 | 6200 | 6200 | 6250 |
| Gross Vehicle Mass | 3230 | 3230 | 3250 | 3250 |
| Front Gross Axle Weight Rating | 1450 | 1450 | 1450 | 1490 |
| Rear Gross Axle Weight Rating | 1959 | 1959 | 1959 | 1959 |
| Kerb Weight | 1783 | 1883 | 2115 | 2173 |
| Payload (based on Kerb Weight) | 1447 | 1347 | 1135 | 1077 |
| Minimum Kerb Weight | 1736 | 1837 | 2025 | 2079 |
| Payload (based on Min Kerb Weight) | 1494 | 1393 | 1225 | 1171 |
| Tare Weight | 1719 | 1819 | 2051 | 2109 |
| XL | XL | XL | XLT | |
| 4x2 Hi-Rider Single Cab Cab-Chassis | 4x2 Hi-Rider Super Cab Cab-Chassis | 4x2 Hi-Rider Double Cab Pick-Up | 4x2 Hi-Rider Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Pick-Up Box Dimensions (mm) | ||||
| Height - at centreline of axle | - | - | 529 | 525 |
| Height - floor height to ground | - | - | 816 | 831 |
| Length - at floor | - | - | 1547 | 1464 |
| Length - top of box | - | - | 1471 | 1468 |
| Width - between wheelhouses | - | - | 1224 | 1217 |
| Width - pick-up box | - | - | 1584 | 1520 |
| Width - rear opening | - | - | 1413 | 1393 |
| Exterior Dimensions (mm) | ||||
| Length - with rear bumper (where fitted) without tow receiver | 5225 | 5225 | 5370 | 5370 |
| Length - with rear bumper (where fitted) with tow receiver | 5406 | 5406 | 5406 | 5406 |
| Width - exterior mirrors extended | 2208 | 2208 | 2208 | 2208 |
| Width - exterior mirrors folded | 2015 | 2015 | 2015 | 2015 |
| Width - excluding mirrors | 1910 | 1910 | 1910 | 1918 |
| Height - to top of antenna base | 1872 | 1866 | 1875 | 1886 |
| Overhang - front | 865 | 865 | 865 | 865 |
| Overhang - rear | 1070 | 1070 | 1215 | 1215 |
| Track - front and rear | 1620 | 1620 | 1620 | 1620 |
| Wheelbase | 3270 | 3270 | 3270 | 3270 |
| Ground Clearance (unladen) | 224 | 224 | 224 | 234 |
| Wading Depth | 800 | 800 | 800 | 800 |
| Approach Angle (unladen, degrees) | 29 | 29 | 29 | 30 |
| Departure Angle (unladen, degrees) | 29 | 29 | 25 | 23 |
| Ramp Breakover Angle (degrees) | 21 | 20 | 20 | 21 |
| Turning Circle (meters) | 12.9 | 12.9 | 12.9 | 12.9 |
| XL | XL | XL | XLT | |
| 4x2 Hi-Rider Single Cab Cab-Chassis | 4x2 Hi-Rider Super Cab Cab-Chassis | 4x2 Hi-Rider Double Cab Pick-Up | 4x2 Hi-Rider Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Interior Dimensions (mm) | ||||
| 2nd Row Headroom | - | 935 | 989 | 989 |
| 2nd Row Legroom | - | 759 | 879 | 879 |
| 2nd Row Shoulder Room | - | 1392 | 1440 | 1440 |
| Front Headroom | 1024 | 1024 | 1024 | 1024 |
| Front Legroom | 1057 | 1057 | 1057 | 1057 |
| Front Shoulder Room | 1450 | 1450 | 1450 | 1450 |
| Chassis & Suspension | ||||
| Front Disc / Rear Drum brakes | S | S | S | - |
| Front and rear vented discs with electronic Brake Booster | - | - | - | S |
| Electrical Power Assisted Steering | S | S | S | S |
| Heavy Duty Suspension | S | S | S | - |
| Locking Rear Differential | P | P | P | S |
| Wheels | ||||
| 16" Steel with All Season Tyres | S | S | S | - |
| 16" Alloy with All Season Tyres | - | - | - | - |
| 17" Alloy with All Season Tyres | - | - | - | S |
| 17" Alloy with All Terrain BF Goodrich KO2 Tyres | - | - | - | - |
| 18" Alloy with All Season Tyres | - | - | - | - |
| 18" Alloy with All Terrain Tyres | - | - | - | - |
| Spare Wheel - 16" Steel | - | - | - | - |
| Spare Wheel - 17" Steel | - | - | - | S |
| Spare Wheel - 17" Alloy | - | - | - | - |
| Spare Wheel - 18" Alloy | - | - | - | - |
| LT285/70R17 BF Goodrich KO2 High Performance All Terrain Tyres | - | - | - | - |
| Exterior Lighting | ||||
| Headlamps - Halogen | S | S | S | - |
| Headlamps - LED | - | - | - | S |
| Headlamps - Matrix LED with Auto Leveling & Dynamic Bending | - | - | - | - |
| Daytime Running Lamps - Halogen | - | - | S | - |
| Daytime Running Lamps - LED | - | - | - | S |
| Front Fog Lamps - Halogen | S | S | S | - |
| Front Fog Lamps - LED | - | - | - | S |
| Taillamps - Halogen | S | S | S | - |
| Taillamps - LED | - | - | - | S |
| Tailgate Mounted Stop Light | S | S | S | S |
| Zone Lighting | - | - | - | - |
| XL | XL | XL | XLT | |
| 4x2 Hi-Rider Single Cab Cab-Chassis | 4x2 Hi-Rider Super Cab Cab-Chassis | 4x2 Hi-Rider Double Cab Pick-Up | 4x2 Hi-Rider Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Exterior | ||||
| Exterior Mirrors - Power Adjustable | S | S | S | S |
| Exterior Mirrors - Power Folding | - | - | S | S |
| Exterior Mirrors - Puddle Lamps | - | - | - | S |
| Steel Underbody Protection | P | P | P | P |
| Side Steps | - | - | S | S |
| Rear Box Step | - | - | S | S |
| Roof Rails | - | - | - | S |
| Sports Bar | - | - | - | S |
| Sports Hoop/Sailplane | - | - | - | - |
| Load Box Elements | ||||
| Tailgate Ruler | - | - | S | - |
| Drop in Bedliner (without Tailgate Ruler) | - | - | - | S |
| Tough Bed™ Spray-In Bedliner (incl. Tailgate Ruler) | - | - | - | - |
| 12V Socket in Bedliner | - | - | - | S |
| Box Top Protective Capping with Load Box Access Caps | - | - | S | S |
| Aluminum Tie Down Rails | - | - | - | - |
| Inner Tie Downs | - | - | S | S |
| Cargo Management System | - | - | - | - |
| Load Rest | - | - | S | - |
| Load Box Illumination | - | - | S | S |
| Tailgate Cargo Clamps | - | - | S | S |
| Tailgate Cupholders | - | - | S | S |
| Power Tailgate Lock | - | - | S | S |
| Tailgate with Lift Assistance | - | - | S | S |
| Power Roller Shutter | - | - | - | - |
| XL | XL | XL | XLT | |
| 4x2 Hi-Rider Single Cab Cab-Chassis | 4x2 Hi-Rider Super Cab Cab-Chassis | 4x2 Hi-Rider Double Cab Pick-Up | 4x2 Hi-Rider Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Interior, Seating and Door Trim | ||||
| Leather Wrapped Steering Wheel & Gear Knob | - | - | - | S |
| Steering Wheel Reach & Height Adjust | S | S | S | S |
| Electric Parking Brake | - | - | - | - |
| e-Shifter | - | - | - | - |
| Seating Capacity | 2 | 4 | 5 | 5 |
| Heated Seats - Front Driver & Passenger | - | - | - | - |
| Seat Material - Cloth | S | S | S | - |
| Seat Material - Premium Cloth | - | - | - | S |
| Seat Material - Leather Accented (excluding 2nd row middle seat) | - | - | - | - |
| Driver Seat - 6-Way Manual | S | S | S | - |
| Driver Seat - 8-Way Power | - | - | - | S |
| Front Passenger Seat - 4-Way Manual | S | S | S | - |
| Front Passenger Seat - 6-Way Manual | - | - | - | - |
| Front Passenger Seat - 8-Way Power | - | - | - | - |
| Driver & Front Passenger Seat 10-Way Power | - | - | - | - |
| Child Seat Upper Anchorage Points (x 2) | - | - | S | S |
| Child Seat ISOFIX Anchorage Points (x 2) | - | - | S | S |
| Floor Covering - Vinyl | S | S | - | - |
| Floor Covering - Carpet | - | - | S | S |
| Floor Mats - Driver | - | - | - | S |
| Floor Mats - Driver & Front Passenger | - | - | - | - |
| Comfort and Convenience | ||||
| Ambient Lighting | - | - | - | - |
| Auxiliary Switch Bank | - | - | - | - |
| Centre Console with Single Lid and 2 Cup Holders | S | S | S | S |
| Instrument Panel Cup Holders | - | - | - | - |
| Charging | - | - | - | - |
| - Auxiliary 12V Power Outlet - Centre Console Bin | S | S | S | S |
| - Auxiliary 12V Power Outlet - Rear of Centre Console | - | - | - | S |
| - USB Ports | 3 | 3 | 3 | 3 |
| - Wireless Charging | - | - | - | - |
| - 12V Socket in Bedliner | - | - | - | - |
| Climate Control - Single-Zone Manual | S | S | S | - |
| Climate Control - Dual-Zone | - | - | - | S |
| Rear Air Vent Registers | - | - | - | S |
| Auto Headlamp On-Off | - | - | S | S |
| Auto High Beam | - | - | - | - |
| Front Power Windows | S | S | S | S |
| Rear Power Windows | - | - | S | S |
| Privacy Glass | - | - | - | S |
| Rain Sensing Windscreen Wipers | - | - | - | S |
| Rear Window Defrost | S | S | S | S |
| Electrochromatic Rear View Mirror | - | - | - | S |
| Underseat Stowage | - | S | S | S |
| Audio and Communication | ||||
| Embedded Modem | S | S | S | S |
| FordPass Connect | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 8-Inch | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 12.4-Inch | - | - | - | - |
| Colour Multi-Function Touch Screen Display - 10.1-Inch | S | - | S | - |
| Colour Multi-Function Touch Screen Display - 12-Inch | - | - | - | - |
| Speakers | 2 | 4 | 6 | 6 |
| B&O Premium Audio System (10 Speakers) | - | - | - | - |
| Digital Audio (DAB+) | - | - | - | S |
| Bluetooth with Phone/Audio Streaming | S | S | S | S |
| Built-in Satellite Navigation with one year of Connected Navigation Services included | - | - | - | S |
| SYNC 4A | S | S | S | - |
| SYNC 4A with Voice-Activated Controls | - | - | - | S |
| Steering Wheel Audio/Function Control | S | S | S | S |
| Wireless Apple CarPlay & Android Auto | S | S | S | S |
| XL | XL | XL | XLT | |
| 4x2 Hi-Rider Single Cab Cab-Chassis | 4x2 Hi-Rider Super Cab Cab-Chassis | 4x2 Hi-Rider Double Cab Pick-Up | 4x2 Hi-Rider Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Safety and Security | ||||
| Perimeter Alarm System | - | - | - | S |
| Airbags 9 - Front, Side, Knee & Full Length Curtain (Driver & Passenger) & Far Side Driver Front Airbag | S | S | S | S |
| 3 Point Lap Sash Seat Belt - All Positions | S | S | S | S |
| Child Proof Rear Door Locks | - | - | S | S |
| Emergency Assistance | S | S | S | S |
| Power Door Locks | S | S | S | S |
| Smart Keyless Entry with Push Button Start | - | - | - | S |
| Driver Assistance | ||||
| Active Park Assist 2.0 | - | - | - | - |
| Adaptive Cruise Control | S | S | S | S |
| Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centring | - | - | - | S |
| Intelligent Speed Assist | S | S | S | S |
| Blind Spot Monitoring with Cross Traffic Alert | - | - | - | S |
| Blind Spot Monitoring with Cross Traffic Alert and Trailer Coverage | - | - | P | - |
| Dynamic Stability Control (DSC) Incorporating ABS, Electronic Brakeforce Distribution, Emergency Brake Assist, Hill Start Assist, Load Adaptive Control, Roll Over Mitigation, Traction Control and Trailer Sway Control | S | S | S | S |
| Evasive Steer Assist | S | S | S | S |
| Lane Keeping Aid with Road Edge Detection and Driver Alert System | S | S | S | S |
| Post Impact Braking | S | S | S | S |
| Pre-Collision Assist with Autonomous Emergency Braking (AEB) | S | S | S | S |
| Reverse Brake Assist | - | - | - | S |
| Parking Sensors - Front | - | - | - | S |
| Parking Sensors - Rear | - | - | S | S |
| Rear View Camera - Analogue | S | S | S | - |
| Rear View Camera - Integrated Digital | - | - | - | S |
| 360-Degree Camera | - | - | - | - |
| Traffic Sign Recognition | S | S | S | S |
| Tyre Pressure Monitoring System | - | - | - | S |
| Towing | ||||
| Maximum Braked Towing Capacity (kg) | 3,500 | 3,500 | 3,500 | 3,500 |
| Pro Trailer Back-up Assist | - | - | - | - |
| Tow Bar with Integrated Trailer Brake Controller | O | O | O | S |
| Trailer Light Check | P | P | P | S |
| Towing Vehicle Integration with Towing Checklist | S | S | S | S |
| Tow Haul Mode (part of Selectable Drive Modes) | S | S | S | S |
| Off-Road | ||||
| Off-Road Screen | - | - | - | - |
| Hill Descent Control | - | - | - | - |
| Locking Rear Differential | P | P | P | S |
| Front Recovery Hook | 1 | 1 | 1 | 1 |
| Rear Recovery Hook | - | - | - | - |
| Ford Factory Fitted Options | ||||
| Delete Auto Stop/Start System | - | - | - | NCO |
| Stylish Canopy (Dual Lift) | - | - | O | O |
| Stylish Canopy (Lift and Slide) | - | - | O | O |
| Commercial Canopy | - | - | O | O |
| Manual Roller Shutter | - | - | O | O |
| Additional XL Wheel Centre Cap Pack to Suit Wheel Nut Indicator Fitment | O | O | O | - |
| Towing Pack - Tow Bar with Integrated Trailer Brake Controller and Trailer Light Check | O | O | O | S |
| Blind Spot Monitoring Trailer Coverage | - | - | O | S |
| Prestige Paint | O | O | O | O |
| XL | XL | XLT | |
| 4x4 Single Cab Cab-Chassis | 4x4 Super Cab Cab-Chassis | 4x4 Super Cab Pick-Up | |
| Engine | |||
| Engine | 2.0L Bi-Turbo | 2.0L Bi-Turbo | 2.0L Bi-Turbo |
| Transmissions | |||
| 6-speed automatic transmission | - | - | - |
| 10-speed automatic transmission | S | S | S |
| Driveline | |||
| RWD | - | - | - |
| Part-time 4x4 | S | S | S |
| Full-time 4WD | - | - | - |
| Selectable Drive Modes | |||
| - Normal | - | - | S |
| - Eco | - | - | S |
| - Tow / Haul | - | - | S |
| - Slippery | - | - | - |
| - Mud / Ruts | - | - | - |
| - Sand | - | - | - |
| - Sport | - | - | - |
| - Baja | - | - | - |
| - Rock Crawl | - | - | - |
| Fuel | |||
| Combined Fuel Economy (L/100km) (Auto) | 7.2 / 7.6 | 7.2 / 7.6 | 7.2 / 7.6 |
| CO₂ Emissions (g/km) (Auto) | 189 / 201 | 189 / 201 | 189 / 201 |
| Fuel Tank Capacity (L) | 80 | 80 | 80 |
| Fuel Type | Diesel | Diesel | Diesel |
| Vehicle Masses (kg) | |||
| Gross Combined Mass | 6350 | 6350 | 6350 |
| Gross Vehicle Mass | 3230 | 3230 | 3230 |
| Front Gross Axle Weight Rating | 1490 | 1490 | 1450 |
| Rear Gross Axle Weight Rating | 1959 | 1959 | 1959 |
| Kerb Weight | 1893 | 1994 | 2171 |
| Payload (based on Kerb Weight) | 1337 | 1236 | 1059 |
| Minimum Kerb Weight | 1856 | 1957 | 2110 |
| Payload (based on Min Kerb Weight) | 1374 | 1273 | 1120 |
| Tare Weight | 1829 | 1930 | 2107 |
| Pick-Up Box Dimensions (mm) | |||
| Height - at centreline of axle | - | - | 526 |
| Height - floor height to ground | - | - | 830 |
| Length - at floor | - | - | 1839 |
| Length - top of box | - | - | 1766 |
| Width - between wheelhouses | - | - | 1218 |
| Width - pick-up box | - | - | 1578 |
| Width - rear opening | - | - | 1407 |
| Exterior Dimensions (mm) | |||
| Length - with rear bumper (where fitted) without tow receiver | 5225 | 5225 | 5370 |
| Length - with rear bumper (where fitted) with tow receiver | 5406 | 5406 | 5406 |
| Width - exterior mirrors extended | 2208 | 2208 | 2208 |
| Width - exterior mirrors folded | 2015 | 2015 | 2015 |
| Width - excluding mirrors | 1910 | 1910 | 1918 |
| Height - to top of antenna base | 1872 | 1866 | 1877 |
| Overhang - front | 865 | 865 | 865 |
| Overhang - rear | 1070 | 1070 | 1215 |
| Track - front and rear | 1620 | 1620 | 1620 |
| Wheelbase | 3270 | 3270 | 3270 |
| Ground Clearance (unladen) | 224 | 224 | 234 |
| Wading Depth | 800 | 800 | 800 |
| Approach Angle (unladen, degrees) | 29 | 29 | 30 |
| Departure Angle (unladen, degrees) | 29 | 29 | 23 |
| Ramp Breakover Angle (degrees) | 21 | 20 | 21 |
| Turning Circle (meters) | 12.9 | 12.9 | 12.9 |
| XL | XL | XLT | |
| 4x4 Single Cab Cab-Chassis | 4x4 Super Cab Cab-Chassis | 4x4 Super Cab Pick-Up | |
| Interior Dimensions (mm) | |||
| 2nd Row Headroom | - | 935 | 935 |
| 2nd Row Legroom | - | 759 | 759 |
| 2nd Row Shoulder Room | - | 1392 | 1392 |
| Front Headroom | 1024 | 1024 | 1024 |
| Front Legroom | 1057 | 1057 | 1057 |
| Front Shoulder Room | 1450 | 1450 | 1450 |
| Chassis & Suspension | |||
| Heavy Duty Suspension | S | S | - |
| Front Disc / Rear Drum brakes | S | S | - |
| Front and rear vented discs with electronic Brake Booster | - | - | S |
| Electrical Power Assisted Steering | S | S | S |
| Locking Rear Differential | S | S | S |
| Wheels | |||
| 16" Steel with All Season Tyres | S | S | - |
| 16" Alloy with All Season Tyres | - | - | - |
| 17" Alloy with All Season Tyres | - | - | S |
| 17" Alloy with All Terrain BF Goodrich KO2 Tyres | - | - | - |
| 18" Alloy with All Season Tyres | - | - | - |
| 18" Alloy with All Terrain Tyres | - | - | - |
| Spare Wheel - 16" Steel | S | S | - |
| Spare Wheel - 17" Steel | - | - | S |
| Spare Wheel - 17" Alloy | - | - | - |
| Spare Wheel - 18" Alloy | - | - | - |
| LT285/70R17 BF Goodrich KO2 High Performance All Terrain Tyres | - | - | - |
| Exterior Lighting | |||
| Headlamps - Halogen | S | S | - |
| Headlamps - LED | - | - | S |
| Headlamps - Matrix LED with Auto Leveling & Dynamic Bending | - | - | - |
| Daytime Running Lamps - Halogen | S | S | - |
| Daytime Running Lamps - LED | - | - | S |
| Front Fog Lamps - Halogen | - | - | S |
| Front Fog Lamps - LED | - | - | - |
| Taillamps - Halogen | S | S | - |
| Taillamps - LED | - | - | S |
| Tailgate Mounted Stop Light | - | - | - |
| Zone Lighting | - | - | P |
| Exterior | |||
| Exterior Mirrors - Power Adjustable | S | S | S |
| Exterior Mirrors - Power Folding | - | - | S |
| Exterior Mirrors - Puddle Lamps | - | - | P |
| Steel Underbody Protection | S | S | S |
| Side Steps | - | - | S |
| Rear Box Step | - | - | S |
| Roof Rails | - | - | - |
| Sports Bar | - | - | S |
| Sports Hoop/Sailplane | - | - | - |
| Load Box Elements | |||
| Tailgate Ruler | - | - | S |
| Drop in Bedliner (without Tailgate Ruler) | - | - | - |
| Tough Bed™ Spray-in Bedliner (incl. Tailgate Ruler) | - | - | S |
| 12V Socket in Bedliner | - | - | S |
| Box Top Protective Capping with Load Box Access Caps | - | - | S |
| Aluminum Tie Down Rails | - | - | - |
| Inner Tie Downs | - | - | S |
| Cargo Management System | - | - | P |
| Load Rest | - | - | - |
| Load Box Illumination | - | - | S |
| Tailgate Cargo Clamps | - | - | S |
| Tailgate Cupholders | - | - | S |
| Power Tailgate Lock | - | - | S |
| Tailgate with Lift Assistance | - | - | S |
| Power Roller Shutter | - | - | - |
| XL | XL | XLT | |
| 4x4 Single Cab Cab-Chassis | 4x4 Super Cab Cab-Chassis | 4x4 Super Cab Pick-Up | |
| Interior, Seating and Door Trim | |||
| Leather Wrapped Steering Wheel & Gear Knob | - | - | S |
| Steering Wheel Reach & Height Adjust | S | S | S |
| Electric Parking Brake | - | - | S |
| e-Shifter | - | - | - |
| Seating Capacity | 2 | 4 | 4 |
| Heated Seats - Front Driver & Passenger | - | - | - |
| Seat Material - Cloth | S | S | - |
| Seat Material - Premium Cloth | - | - | S |
| Seat Material - Leather Accented (excluding 2nd row middle seat) | - | - | - |
| Driver Seat - 8-Way Manual | S | S | - |
| Driver Seat - 8-Way Power | - | - | S |
| Front Passenger Seat - 4-Way Manual | S | S | - |
| Front Passenger Seat - 6-Way Manual | - | - | S |
| Front Passenger Seat - 8-Way Power | - | - | - |
| Driver & Front Passenger Seat 10-Way Power | - | - | - |
| Child Seat Upper Anchorage Points (x 2) | - | - | S |
| Child Seat ISOFIX Anchorage Points (x 2) | - | - | S |
| Floor Covering - Vinyl | S | S | - |
| Floor Covering - Carpet | - | - | S |
| Floor Mats - Driver | - | - | S |
| Floor Mats - Driver & Front Passenger | - | - | - |
| Comfort and Convenience | |||
| Ambient Lighting | - | - | - |
| Auxiliary Switch Bank | - | - | P |
| Centre Console with Single Lid and 2 Cup Holders | S | S | S |
| Instrument Panel Cup Holders | - | - | - |
| Charging | |||
| - Auxiliary 12V Power Outlet - Centre Console Bin | S | S | S |
| - Auxiliary 12V Power Outlet - Rear of Centre Console | - | - | S |
| - USB Ports | 3 | 3 | 3 |
| - Wireless Charging | - | - | - |
| - 12V Socket in Bedliner | - | - | S |
| Climate Control - Single-Zone Manual | S | S | - |
| Climate Control - Dual-Zone | - | - | S |
| Rear Air Vent Registers | - | - | S |
| Auto Headlamp On-Off | S | S | S |
| Auto High Beam | - | - | - |
| Front Power Windows | S | S | S |
| Rear Power Windows | - | - | S |
| Privacy Glass | - | - | S |
| Rain Sensing Windscreen Wipers | - | - | S |
| Rear Window Defrost | S | - | S |
| Electrochromatic Rear View Mirror | - | - | S |
| Underseat Stowage | - | S | S |
| Audio and Communication | |||
| Embedded Modem | S | S | S |
| FordPass Connect | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 8-Inch | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 12.4-Inch | - | - | - |
| Colour Multi-Function Touch Screen Display - 10.1-Inch | S | S | S |
| Colour Multi-Function Touch Screen Display - 12-Inch | - | - | - |
| Speakers | 2 | 4 | 6 |
| B&O Premium Audio System (10 Speakers) | - | - | - |
| Digital Audio (DAB+) | - | - | S |
| Bluetooth® with Phone / Audio Streaming | S | S | S |
| Built-in Satellite Navigation with one year of Connected Navigation Services included | - | - | S |
| SYNC®4A | S | S | S |
| SYNC®4A with Voice-Activated Controls | - | - | S |
| Steering Wheel Audio/Function Control | S | S | S |
| Wireless Apple CarPlay™ & Android Auto™ | S | S | S |
| XL | XL | XLT | |
| 4x4 Single Cab Cab-Chassis | 4x4 Super Cab Cab-Chassis | 4x4 Super Cab Pick-Up | |
| Safety and Security | |||
| Perimeter Alarm System | - | - | S |
| Airbags x 9 - Front, Side, Knee & Full Length Curtain (Driver & Passenger) & Far Side Driver Front Airbag | S | S | S |
| 3 Point Lap Sash Seat Belt - All Positions | S | S | S |
| Child Proof Rear Door Locks | - | - | - |
| Emergency Assistance²⁴ | S | S | S |
| Power Door Locks | S | S | S |
| Smart Keyless Entry with Push Button Start | - | - | S |
| Driver Assistance | |||
| Active Park Assist 2.0²⁵ | - | - | - |
| Adaptive Cruise Control²⁶ | S | S | - |
| Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centring²⁶ | - | - | S |
| Intelligent Speed Assist²⁷ | S | S | S |
| Blind Spot Monitoring with Cross Traffic Alert²⁸ | - | - | S |
| Blind Spot Monitoring with Cross Traffic Alert and Trailer Coverage²⁸ | - | - | - |
| Dynamic Stability Control (DSC) incorporating ABS, Electronic Brake force Distribution, Emergency Brake Assist, Post-Grip, Trailer Load Adaptive Control, Roll Over Mitigation, Traction Control & Trailer Sway Control²⁷ | S | S | S |
| Evasive Steer Assist²⁹ | S | S | S |
| Lane Keeping Aid with Road Edge Detection and Driver Alert System²⁹ | S | S | S |
| Post Impact Braking²⁹ | S | S | S |
| Pre-Collision Assist with Autonomous Emergency Braking (AEB)¹⁵ | S | S | S |
| Reverse Brake Assist³⁰ | - | - | S |
| Parking Sensors - Front²⁵ | - | - | S |
| Parking Sensors - Rear²⁵ | S | S | S |
| Rear View Camera - Analogue³¹ | S | S | - |
| Rear View Camera - Integrated Digital³¹ | - | - | S |
| 360-Degree Camera³¹ | - | - | P |
| Traffic Sign Recognition³² | S | S | S |
| Tyre Pressure Monitoring System | - | - | S |
| Towing | |||
| Maximum Braked Towing Capacity (kg)³³ | 3,500 | 3,500 | 3,500 |
| Pro Trailer Back-Up Assist³⁴ | - | - | P |
| Tow Bar with Integrated Trailer Brake Controller³⁵ | O | O | S |
| Trailer Light Check³⁶ | P | P | S |
| Towing Vehicle Integration with Towing Checklist | S | S | S |
| Tow Haul Mode (part of Selectable Drive Modes²⁷) | - | - | S |
| Off-Road | |||
| Off-Road Screen²⁵ | - | - | - |
| Hill Descent Control²⁵ | S | S | S |
| Locking Rear Differential | S | S | S |
| Front Recovery Hook | 1 | 1 | 1 |
| Rear Recovery Hook | - | - | - |
| Ford Factory Fitted Options | |||
| Delete Auto Stop/Start System | NCO | NCO | NCO |
| 17" Steel Wheels with All Terrain Tyres with 17" Steel Spare Wheel | O | O | - |
| 17" All Terrain Tyres | - | - | O |
| Additional XL Wheel Centre Cap Pack to Suit Wheel Nut Indicator Fitment | O | O | - |
| Towing Pack - Tow Bar with Integrated Trailer Brake Controller²⁵ and Trailer Light Check³⁶ |
O | O | S |
| Blind Spot Monitoring Trailer Coverage²⁷ | - | - | S |
| Touring Pack - Cargo Management System, Auxiliary Switch Bank, 360 Camera²⁵ Puddle Lamps & Zone Lighting³⁷ |
- | - | O |
| Pro Trailer Back-up Assist™²⁵ | - | - | P |
| Prestige Paint | O | O | O |
| XL | XL | XL | XL | |
| 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Engine | ||||
| Engine | 2.0L Single Turbo | 2.0L Bi -Turbo | 2.0L Single Turbo | 2.0L Bi-Turbo |
| Maximum Power | 125kW @ 3,500rpm | 154kW @ 3,750rpm | 125kW @ 3,500rpm | 154kW @ 3,750rpm |
| Maximum Torque | 405Nm @ 1,750-2,500rpm | 500Nm @ 1,750-2,000rpm | 405Nm @ 1,750-2,500rpm | 500Nm @ 1,750-2,000rpm |
| Transmissions | ||||
| 6-speed automatic transmission | S | - | S | - |
| 10-speed automatic transmission | - | S | - | S |
| Driveline | ||||
| RWD | - | - | - | - |
| Part-time 4x4 | S | S | S | S |
| Full-time 4WD | - | - | - | - |
| Selectable Drive Modes | ||||
| - Normal | - | - | - | - |
| - Eco | - | - | - | - |
| - Tow / Haul | - | - | - | - |
| - Slippery | - | - | - | - |
| - Mud / Ruts | - | - | - | - |
| - Sand | - | - | - | - |
| - Sport | - | - | - | - |
| - Baja | - | - | - | - |
| - Rock Crawl | - | - | - | - |
| Fuel | ||||
| Combined Fuel Economy (L/100km) (Auto) | 7.9 | 7.2 / 7.6¹ | 8 | 7.2 / 7.6¹ |
| CO₂ Emissions (g/km) (Auto) | 207 | 189 / 201¹ | 211 | 189 / 201¹ |
| Fuel Tank Capacity (L) | 80 | 80 | 80 | 80 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel |
| Vehicle Masses (kg) | ||||
| Gross Combined Mass | 6200 | 6350 | 6200 | 6350 |
| Gross Vehicle Mass | 3250 | 3250 | 3250 | 3250 |
| Front Gross Axle Weight Rating | 1450 | 1490 | 1450 | 1490 |
| Rear Gross Axle Weight Rating | 1959 | 1959 | 1959 | 1959 |
| Kerb Weight | 2039 | 2062 | 2232 | 2256 |
| Payload (based on Kerb Weight) | 1211 | 1188 | 1018 | 994 |
| Minimum Kerb Weight | 2003 | 2024 | 2124 | 2144 |
| Payload (based on Min Kerb Weight) | 1247 | 1226 | 1126 | 1106 |
| Tare Weight | 1975 | 1998 | 2168 | 2192 |
| Pick-up Box Dimensions (mm) | ||||
| Height - at centreline of axle | - | - | 529 | 529 |
| Height - floor height to ground | - | - | 816 | 816 |
| Length - at floor | - | - | 1547 | 1547 |
| Length - top of box | - | - | 1471 | 1471 |
| Width - between wheelhouses | - | - | 1224 | 1224 |
| Width - pick-up box | - | - | 1584 | 1584 |
| Width - rear opening | - | - | 1413 | 1413 |
| Exterior Dimensions (mm) | ||||
| Length - with rear bumper (where fitted) without tow receiver | 5225 | 5225 | 5370 | 5370 |
| Length - with rear bumper (where fitted) with tow receiver | 5406 | 5406 | 5406 | 5406 |
| Width - exterior mirrors extended | 2208 | 2208 | 2208 | 2208 |
| Width - exterior mirrors folded | 2015 | 2015 | 2015 | 2015 |
| Width - excluding mirrors | 1910 | 1910 | 1910 | 1910 |
| Height - to top of antenna base | 1875 | 1875 | 1875 | 1875 |
| Overhang - front | 865 | 865 | 865 | 865 |
| Overhang - rear | 1070 | 1070 | 1215 | 1215 |
| Track - front and rear | 1620 | 1620 | 1620 | 1620 |
| Wheelbase | 3270 | 3270 | 3270 | 3270 |
| Ground Clearance (unladen) | 224 | 224 | 224 | 224 |
| Wading Depth | 800 | 800 | 800 | 800 |
| Approach Angle (unladen, degrees) | 29 | 29 | 29 | 29 |
| Departure Angle (unladen, degrees) | 29 | 29 | 25 | 25 |
| Ramp Breakover Angle (degrees) | 20 | 20 | 20 | 20 |
| Turning Circle (meters) | 12.9 | 12.9 | 12.9 | 12.9 |
| XL | XL | XL | XL | |
| 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Interior Dimensions (mm) | ||||
| 2nd Row Headroom | 989 | 989 | 989 | 989 |
| 2nd Row Legroom | 879 | 879 | 879 | 879 |
| 2nd Row Shoulder Room | 1440 | 1440 | 1440 | 1440 |
| Front Headroom | 1024 | 1024 | 1024 | 1024 |
| Front Legroom | 1057 | 1057 | 1057 | 1057 |
| Front Shoulder Room | 1450 | 1450 | 1450 | 1450 |
| Chassis & Suspension | ||||
| Heavy Duty Suspension | S | S | S | S |
| Front Disc / Rear Drum brakes | S | S | S | S |
| Front and rear vented discs with electronic Brake Booster | - | - | - | - |
| Electrical Power Assisted Steering | S | S | S | S |
| Locking Rear Differential | S | S | S | S |
| Wheels | ||||
| 16" Steel with All Season Tyres | S | S | S | S |
| 16" Alloy with All Season Tyres | - | - | - | - |
| 17" Alloy with All Season Tyres | - | - | - | - |
| 17" Alloy with All Terrain BF Goodrich KO2 Tyres | - | - | - | - |
| 18" Alloy with All Season Tyres | - | - | - | - |
| 18" Alloy with All Terrain Tyres | - | - | - | - |
| Spare Wheel - 16" Steel | S | S | S | S |
| Spare Wheel - 17" Steel | - | - | - | - |
| Spare Wheel - 17" Alloy | - | - | - | - |
| Spare Wheel - 18" Alloy | - | - | - | - |
| LT285/70R17 BF Goodrich KO2 High Performance All Terrain Tyres | - | - | - | - |
| Exterior Lighting | ||||
| Headlamps - Halogen | S | S | S | S |
| Headlamps - LED | - | - | - | - |
| Headlamps - Matrix LED with Auto Leveling & Dynamic Bending | - | - | - | - |
| Daytime Running Lamps - Halogen | S | S | S | S |
| Daytime Running Lamps - LED | - | - | - | - |
| Front Fog Lamps - Halogen | - | - | - | - |
| Front Fog Lamps - LED | - | - | - | - |
| Taillamps - Halogen | S | S | S | S |
| Taillamps - LED | - | - | - | - |
| Tailgate Mounted Stop Light | - | - | S | S |
| Zone Lighting | - | - | - | - |
| Exterior | ||||
| Exterior Mirrors - Power Adjustable | S | S | S | S |
| Exterior Mirrors - Power Folding | - | - | S | S |
| Exterior Mirrors - Puddle Lamps | - | - | - | - |
| Steel Underbody Protection | S | S | S | S |
| Side Steps | - | - | - | - |
| Rear Box Step | - | - | S | S |
| Roof Rails | - | - | - | - |
| Sports Bar¹⁵ | - | - | - | - |
| Sports Hoop/Sailplane¹⁵ | - | - | - | - |
| Load Box Elements | ||||
| Tailgate Ruler | - | - | S | S |
| Drop in Bedliner (without Tailgate Ruler)¹⁵ | - | - | - | - |
| Tough Bed™ Spray-in Bedliner (incl. Tailgate Ruler) | - | - | - | - |
| 12V Socket in Bedliner | - | - | - | - |
| Box Top Protective Capping with Load Box Access Caps⁶ | - | - | S | S |
| Aluminum Tie Down Rails¹⁵ | - | - | - | - |
| Inner Tie Downs | - | - | S | S |
| Cargo Management System | - | - | - | - |
| Load Rest¹⁴ | - | - | S | S |
| Load Box Illumination | - | - | S | S |
| Tailgate Cargo Clamps | - | - | S | S |
| Tailgate Cupholders | - | - | S | S |
| Power Tailgate Lock | - | - | S | S |
| Tailgate with Lift Assistance | - | - | S | S |
| Power Roller Shutter¹⁵ | - | - | - | - |
| XL | XL | XL | XL | |
| 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Interior, Seating and Door Trim | ||||
| Leather Wrapped Steering Wheel & Gear Knob | - | - | - | - |
| Steering Wheel Reach & Height Adjust | S | S | S | S |
| Electric Parking Brake | - | - | - | - |
| e-Shifter | - | - | - | - |
| Seating Capacity | 5 | 5 | 5 | 5 |
| Heated Seats - Front Driver & Passenger | - | - | - | - |
| Seat Material - Cloth | S | S | S | S |
| Seat Material - Premium Cloth | - | - | - | - |
| Seat Material - Leather Accented (excluding 2nd row middle seat)⁹ | - | - | - | - |
| Driver Seat - 8-Way Manual | S | S | S | S |
| Driver Seat - 8-Way Power | - | - | - | - |
| Front Passenger Seat - 4-Way Manual | S | S | S | S |
| Front Passenger Seat - 6-Way Manual | - | - | - | - |
| Front Passenger Seat - 8-Way Power | - | - | - | - |
| Driver & Front Passenger Seat 10-Way Power | - | - | - | - |
| Child Seat Upper Anchorage Points (x 3) | S | S | S | S |
| Child Seat ISOFIX Anchorage Points (x 2) | S | S | S | S |
| Floor Covering - Vinyl | S | S | S | S |
| Floor Covering - Carpet | - | - | - | - |
| Floor Mats - Driver | - | - | - | - |
| Floor Mats - Driver & Front Passenger | - | - | - | - |
| Comfort and Convenience | ||||
| Ambient Lighting | - | - | - | - |
| Auxiliary Switch Bank | - | - | - | - |
| Centre Console with Single Lid and 2 Cup Holders | S | S | S | S |
| Instrument Panel Cup Holders | S | S | S | S |
| Charging | ||||
| - Auxiliary 12V Power Outlet - Centre Console Bin | S | S | S | S |
| - Auxiliary 12V Power Outlet - Rear of Centre Console | - | - | - | - |
| - USB Ports | 3 | 3 | 3 | 3 |
| - Wireless Charging | - | - | - | - |
| - 12V Socket in Bedliner | - | - | - | - |
| Climate Control - Single-Zone Manual | S | S | S | S |
| Climate Control - Dual-Zone | - | - | - | - |
| Rear Air Vent Registers | - | - | - | - |
| Auto Headlamp On-Off | S | S | S | S |
| Auto High Beam | - | - | - | - |
| Front Power Windows | S | S | S | S |
| Rear Power Windows | S | S | S | S |
| Privacy Glass | – | – | – | – |
| Rain Sensing Windscreen Wipers | – | – | – | – |
| Rear Window Defrost | S | S | S | S |
| Electrochromatic Rear View Mirror | – | – | – | – |
| Underseat Stowage | S | S | S | S |
| Audio and Communication | ||||
| Embedded Modem | S | S | S | S |
| FordPass Connect | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 8-inch | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 12.4-inch | – | – | – | – |
| Colour Multi-Function Touch Screen Display - 10.1-inch | S | S | S | S |
| Colour Multi-Function Touch Screen Display - 12-inch | – | – | – | – |
| Speakers | 4 | 4 | 4 | 4 |
| B&O Premium Audio System (10 Speakers) | – | – | – | – |
| Digital Audio (DAB+) | – | – | – | – |
| Bluetooth® with Phone / Audio Streaming | S | S | S | S |
| Built-in Satellite Navigation with one year of Connected Navigation Services included | – | – | – | – |
| SYNC®4A | S | S | S | S |
| SYNC®4A with Voice-Activated Controls | S | S | S | S |
| Steering Wheel Audio/Function Control | S | S | S | S |
| Wireless Apple CarPlay™ & Android Auto™ | S | S | S | S |
| XL | XL | XL | XL | |
| 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Cab-Chassis | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Safety and Security | ||||
| Perimeter Alarm System | – | – | S | S |
| Airbags x 9 - Front, Side, Knee & Full Length Curtain (Driver & Passenger) & Far Side Driver Front Airbag | S | S | S | S |
| 3 Point Lap Sash Seat Belt - All Positions | S | S | S | S |
| Child Proof Rear Door Locks | S | S | S | S |
| Emergency Assistance²⁴ | S | S | S | S |
| Power Door Locks | S | S | S | S |
| Smart Keyless Entry with Push Button Start | – | – | – | – |
| Driver Assistance | ||||
| Active Park Assist 2.0 | – | – | – | – |
| Adaptive Cruise Control²⁵ | S | S | S | S |
| Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centring | – | – | – | – |
| Intelligent Speed Assist | S | S | S | S |
| Blind Spot Monitoring with Cross Traffic Alert | – | – | S | S |
| Blind Spot Monitoring with Cross Traffic Alert and Trailer Coverage | – | – | P | P |
| Dynamic Stability Control (DSC) incorporating ABS, Electronic Brakeforce Distribution, Emergency Brake Assist, Hill Start Assist, Load Adaptive Control, Roll Over Mitigation, Traction Control & Trailer Sway Control | S | S | S | S |
| Evasive Steer Assist | – | – | S | S |
| Lane Keeping Aid with Road Edge Detection and Driver Alert System | S | S | S | S |
| Post Impact Braking | S | S | S | S |
| Pre-Collision Assist with Autonomous Emergency Braking (AEB) | S | S | S | S |
| Reverse Brake Assist | – | – | S | S |
| Parking Sensors - Front | – | – | – | – |
| Parking Sensors - Rear | – | – | S | S |
| Rear View Camera - Analogue | S | S | – | – |
| Rear View Camera - Integrated Digital | – | – | S | S |
| 360-Degree Camera | – | – | – | – |
| Traffic Sign Recognition | S | S | S | S |
| Tyre Pressure Monitoring System | – | – | – | – |
| Towing | ||||
| Maximum Braked Towing Capacity (kg) | 3,500 | 3,500 | 3,500 | 3,500 |
| Pro Trailer Back-Up Assist™ | – | – | – | – |
| Tow Bar with Integrated Trailer Brake Controller | O | O | O | O |
| Trailer Light Check | P | P | P | P |
| Towing Vehicle Integration with Towing Checklist | S | S | S | S |
| Tow Haul Mode (part of Selectable Drive Modes) | S | S | S | S |
| Off-Road | ||||
| Off-Road Screen | – | – | – | – |
| Hill Descent Control | S | S | S | S |
| Locking Rear Differential | S | S | S | S |
| Front Recovery Hook | 1 | 1 | 1 | 1 |
| Rear Recovery Hook | – | – | – | – |
| Ford Factory Fitted Options | ||||
| Delete Auto Stop/Start System | – | NCO | – | NCO |
| Commercial Canopy | – | – | O | O |
| Manual Roller Shutter | – | – | O | O |
| Stylish Canopy (Dual Lift) | – | – | O | O |
| Stylish Canopy (Lift and Slide) | – | – | O | O |
| 17" Steel Wheels with All Terrain Tyres with 17" Steel Spare Wheel | O | O | O | O |
| Additional XL Wheel Centre Cap Pack to Suit Wheel Nut Indicator Fitment | O | O | O | O |
| Towing Pack - Tow Bar with Integrated Trailer Brake Controller and Trailer Light Check | O | O | O | O |
| Blind Spot Monitoring Trailer Coverage | – | – | O | O |
| Prestige Paint | O | O | O | O |
| XLS | XLT | XLT | XLT | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Cab-Chassis | |
| Engine | ||||
| Engine | 2.0L Bi -Turbo | 2.0L Bi -Turbo | 3.0L V6 Turbo-Diesel | 3.0L V6 Turbo-Diesel |
| Maximum Power | 154kW @ 3,750rpm | 154kW @ 3,750rpm | 184kW @ 3,250rpm | 184kW @ 3,250rpm |
| Maximum Torque | 500Nm @ 1,750-2,000rpm | 500Nm @ 1,750-2,000rpm | 600Nm @ 1,750-2,250rpm | 600Nm @ 1,750-2,250rpm |
| Transmissions | ||||
| 6-speed automatic transmission | – | – | – | – |
| 10-speed automatic transmission | S | S | S | S |
| Driveline | ||||
| RWD | – | – | – | – |
| Part-time 4x4 | S | S | – | – |
| Full-time 4WD | – | – | S | S |
| Selectable Drive Modes | ||||
| - Normal | S | S | S | S |
| - Eco | S | S | S | S |
| - Tow / Haul | S | S | S | S |
| - Slippery | S | S | S | S |
| - Mud / Ruts³⁶ | – | – | – | – |
| - Sand³⁶ | – | – | – | – |
| - Sport | – | – | – | – |
| - Baja | – | – | – | – |
| - Rock Crawl | – | – | – | – |
| Fuel | ||||
| Combined Fuel Economy (L/100km)(Auto)³³ | 7.2 / 7.6¹³ | 7.2 / 7.6¹³ | 8.4 | 8.4 |
| CO² Emissions (g/km) (Auto)³³ | 189 / 201¹³ | 189 / 201¹³ | 222 | 222 |
| Fuel Tank Capacity (L) | 80 | 80 | 80 | 80 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel |
| Vehicle Masses (kg) | ||||
| Gross Combined Mass³ | 6350 | 6350 | 6400 | 6400 |
| Gross Vehicle Mass⁴ | 3230 | 3230 | 3280 | 3280 |
| Front Gross Axle Weight Rating⁵ | 1630 | 1630 | 1700 | 1700 |
| Rear Gross Axle Weight Rating⁵ | 1959 | 1959 | 1959 | 1959 |
| Kerb Weight⁶ | 2247 | 2276 | 2332 | 2130 |
| Payload (Based on Kerb Weight)⁷ | 983 | 954 | 948 | 1150 |
| Minimum Kerb Weight⁶ | 2172 | 2195 | 2285 | 2067 |
| Payload (based on Min Kerb Weight)⁷ | 1058 | 1055 | 1047 | 1183 |
| Tare Weight⁸ | 2183 | 2212 | 2268 | 2066 |
| Pick-up box dimensions (mm) | ||||
| Length - at centreline of axle | 529 | 525 | 525 | – |
| Height - floor height to ground | 816 | 831 | 831 | – |
| Length - at floor | 1578 | 1464 | 1464 | – |
| Length - top of box | 1671 | 1568 | 1568 | – |
| Width - between wheelhouses | 1224 | 1217 | 1217 | – |
| Width - pick-up box | 1584 | 1520 | 1520 | – |
| Width - rear opening | 1413 | 1393 | 1393 | – |
| Exterior Dimensions (mm) | ||||
| Length - with rear bumper (where fitted) without tow receiver¹¹ | 5370 | 5370 | 5370 | 5225 |
| Length - with rear bumper (where fitted) with tow receiver¹¹ | 5400 | 5400 | 5400 | 5225 |
| Width - with exterior mirrors fitted | 2208 | 2208 | 2208 | 2208 |
| Width - exterior mirrors folded | 2015 | 2015 | 2015 | 2015 |
| Width - excluding mirrors | 1918 | 1918 | 1918 | 1910 |
| Height - to top of antenna base | 1875 | 1886 | 1886 | 1866 |
| Overhang - front | 865 | 865 | 865 | 865 |
| Overhang - rear | 1205 | 1215 | 1215 | 1070 |
| Track - front and rear | 1620 | 1620 | 1620 | 1620 |
| Wheelbase | 3270 | 3270 | 3270 | 3270 |
| Ground Clearance (unladen) | 224 | 234 | 234 | 231 |
| Wading Depth | 800 | 800 | 800 | 800 |
| Approach Angle (unladen, degrees) | 29 | 30 | 30 | 30 |
| Departure Angle (unladen, degrees) | 25 | 23 | 23 | 23 |
| Ramp Breakover Angle (degrees) | 21 | 21 | 21 | 21 |
| Turning Circle (meters) | 12.9 | 12.9 | 12.9 | 12.9 |
| XLS | XLT | XLT | XLT | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Cab-Chassis | |
| Interior Dimensions (mm) | ||||
| 2nd Row Headroom | 989 | 989 | 989 | 989 |
| 2nd Row Legroom | 879 | 879 | 879 | 879 |
| 2nd Row Shoulder Room | 1430 | 1430 | 1430 | 1430 |
| Front Headroom | 1024 | 1024 | 1024 | 1024 |
| Front Legroom | 1057 | 1057 | 1057 | 1057 |
| Front Shoulder Room | 1450 | 1450 | 1450 | 1450 |
| Chassis & Suspension | ||||
| Front Disc / Rear Drum Brakes | S | S | – | – |
| Front and Rear Disc Brakes with Electronic Brake Booster | – | – | S | S |
| Electrical Power Assisted Steering | S | S | S | S |
| Heavy Duty Suspension | – | – | S | S |
| Standard Rear Differential | S | S | – | – |
| Wheels | ||||
| 16" Steel with All Season Tyres | – | – | – | – |
| 16" Alloy with All Season Tyres | S | – | – | – |
| 17" Alloy with All Season Tyres | – | S | S | S |
| 17" Alloy with All Terrain BF Goodrich KO2 Tyres | – | – | – | – |
| 18" Alloy with All Season Tyres | – | – | – | – |
| 18" Alloy with All Terrain Tyres | – | – | – | – |
| Spare Wheel - 16" Steel | S | – | – | – |
| Spare Wheel - 17" Steel | – | S | – | S |
| Spare Wheel - 17" Alloy | S | S | S | – |
| Spare Wheel - 18" Alloy | – | – | – | – |
| Spare Wheel - BF Goodrich KO2 High Performance All Terrain tyres | – | – | – | – |
| Exterior Lighting | ||||
| Headlamps - Halogen | S | S | – | – |
| Headlamps - LED | – | – | S | S |
| Headlamps - Matrix LED with Auto Leveling & Dynamic Bending | – | – | – | – |
| Daytime Running Lamps - Halogen | S | S | – | – |
| Daytime Running Lamps - LED | – | – | S | S |
| Front Fog Lamps - Halogen | S | – | – | – |
| Front Fog Lamps - LED | – | S | S | S |
| Taillamps - Halogen | S | – | – | – |
| Taillamps - LED | – | S | S | S |
| Tailgate Mounted Stop Light | S | S | S | S |
| Cargo Box Light | – | P | P | – |
| Exterior | ||||
| Exterior Mirrors - Power Adjustable | S | S | S | S |
| Exterior Mirrors - Power Folding | S | S | S | S |
| Exterior Mirrors - Puddle Lamps | – | P | P | – |
| Steel Underbody Protection | S | S | S | S |
| Side Steps | S | S | S | S |
| Rear Box Step | S | S | S | – |
| Roof Rails | – | S | S | – |
| Sports Bar | – | S | S | – |
| Sports Hoop/Sailplane | – | – | – | – |
| Load Box Elements | ||||
| Tailgate Liner | S | S | S | – |
| Drop in Bedliner (without Tailgate Ruler) | S | S | S | – |
| Tough Bed Spray-in Bedliner (incl. Tailgate Ruler) | – | – | – | – |
| Tie Down in Bedliner | S | S | S | – |
| Box Top Protective Capping with Load Box Access Caps | S | S | S | – |
| Aluminium Tie Down Rails | – | – | – | – |
| Inner Tie Rings | S | S | S | S |
| Cargo Management System | – | P | P | – |
| Load Rest | S | S | S | – |
| Load Box Illumination | S | S | S | – |
| Tailgate Cargo Clamps | S | S | S | – |
| Tailgate Cupholders | S | S | S | – |
| Tailgate Ruler | S | S | S | – |
| Tailgate with Lift Assistance | S | S | S | – |
| Power Roller Shutter | – | – | – | – |
| XLS | XLT | XLT | XLT | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Cab-Chassis | |
| Safety and Security | ||||
| Perimeter Alarm System | S | S | S | – |
| Airbags x 9 - Front, Side, Knee & Full Length Curtain (Driver & Passenger) & Far Side Driver Front Airbag |
S | S | S | S |
| 3 Point Lap Sash Seat Belt - All Positions | S | S | S | S |
| Child Proof Rear Door Locks | S | S | S | S |
| Emergency Assistance²⁴ | S | S | S | S |
| Power Door Locks | S | S | S | S |
| Smart Keyless Entry with Push Button Start | – | S | S | S |
| Driver Assistance | ||||
| Active Park Assist 2.0 | – | – | – | – |
| Adaptive Cruise Control | S | S | S | S |
| Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centring | – | – | S | S |
| Intelligent Speed Assist | S | S | S | S |
| Blind Spot Monitoring with Cross Traffic Alert | – | S | S | – |
| Blind Spot Monitoring with Cross Traffic Alert and Trailer Coverage | – | S | S | – |
| Dynamic Stability Control (DSC) incorporating ABS, Electronic Brakeforce Distribution, Emergency Brake Assist, Hill Start Assist, Load Adaptive Control, Roll Over Mitigation, Traction Control & Trailer Sway Control | S | S | S | S |
| Evasive Steer Assist | – | S | S | S |
| Lane Keeping Aid with Road Edge Detection and Driver Alert System | S | S | S | S |
| Post Impact Braking | S | S | S | S |
| Pre-Collision Assist with Autonomous Emergency Braking (AEB) | S | S | S | S |
| Reverse Brake Assist | – | S | S | S |
| Parking Sensors - Front | – | S | S | – |
| Parking Sensors - Rear | S | S | S | S |
| Rear View Camera - Analogue | S | – | – | – |
| Rear View Camera - Integrated Digital | – | S | S | S |
| 360-Degree Camera | – | – | – | – |
| Traffic Sign Recognition | S | S | S | S |
| Tyre Pressure Monitoring System | – | S | S | S |
| Towing | ||||
| Maximum Braked Towing Capacity (kg) | 3,500 | 3,500 | 3,500 | 3,500 |
| Pro Trailer Back-Up Assist™³⁵ | – | – | – | – |
| Tow Bar with Integrated Trailer Brake Controller ³⁵ | S | S | S | S |
| Trailer Light Check³⁵ | S | S | S | S |
| Towing Vehicle Integration with Towing Checklist | S | S | S | S |
| Tow Haul Mode (part of Selectable Drive Modes²⁶) | S | S | S | S |
| Off-Road | ||||
| Off-Road Screen | – | – | S | – |
| Hill Descent Control²⁵ | S | S | S | S |
| Locking Rear Differential | S | S | S | S |
| Front Recovery Hook | 1 | 1 | 1 | 1 |
| Rear Recovery Hook | – | – | S | – |
| Ford Factory Fitted Options | ||||
| Delete Auto Stop/Start System | NCO | – | – | – |
| Auxiliary Switch Bank | – | – | P | O |
| 17" All Terrain Tyres | O | O | O | O |
| Manual Roller Shutter³⁸ | – | O | O | – |
| Commercial Canopy³⁷ | O | O | O | O |
| Stylish Canopy (Lift and Slide)³⁷ | O | O | O | – |
| Stylish Canopy (Dual Lift)³⁷ | O | O | O | – |
| Towing Pack - Tow Bar with Integrated Trailer Brake Control³⁵, Cargo Management System, Auxiliary Switch Bank and Trailer Light Check³⁶ |
– | O | O | – |
| Pro Trailer Back-Up Assist™ | – | – | O | – |
| Prestige Paint | O | O | O | O |
| XLS | XLT | XLT | XLT | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Cab-Chassis | |
| Interior, Seating and Door Trim | ||||
| Leather Wrapped Steering Wheel & Gear Knob | – | S | S | S |
| Steering Wheel Reach & Height Adjust | S | S | S | S |
| Electric Parking Brake | S | S | S | S |
| Cupholders | 2 | 2 | 2 | 2 |
| Seating Capacity | 5 | 5 | 5 | 5 |
| Heated Seats - Front Driver & Passenger | – | – | – | – |
| Seat Material - Cloth | S | S | S | S |
| Seat Material - Premium Cloth | – | – | – | – |
| Seat Material - Leather Accented (excluding 2nd row middle seat)³⁷ | – | – | – | – |
| Front Seat - 8-Way Manual | S | S | S | S |
| Driver Seat - 8-Way Power | – | – | – | – |
| Front Passenger Seat - 4-Way Manual | S | S | S | S |
| Front Passenger Seat - 6-Way Manual | – | – | – | – |
| Front Passenger Seat - 8-Way Power | – | – | – | – |
| Driver & Front Passenger Seat 10-Way Power | – | – | – | – |
| Child Seat Upper Anchorage Points (x 3) | S | S | S | S |
| Child Seat ISOFIX Anchorage Points (x 2) | S | S | S | S |
| Floor Covering - Vinyl | – | – | – | – |
| Floor Covering - Carpet | S | S | S | S |
| Floor Mats - Driver | S | S | S | S |
| Floor Mats - Driver & Front Passenger | – | – | – | – |
| Comfort and Convenience | ||||
| Ambient Lighting | – | – | – | – |
| Auxiliary Switch Bank | – | – | – | – |
| Centre Console with Single Lid and 2 Cup Holders | S | S | S | S |
| Instrument Panel Cup Holders | – | – | – | – |
| Charging | ||||
| - Auxiliary 12V Power Outlet - Centre Console Bin | S | S | S | S |
| - Auxiliary 12V Power Outlet - Rear of Centre Console | S | S | S | S |
| - USB Ports | 3 | 3 | 3 | 3 |
| - Wireless Charging | – | – | – | – |
| - 12V Socket in Bedliner | – | S | S | – |
| Climate Control - Single-Zone Manual | – | – | – | – |
| Climate Control - Dual-Zone | S | S | S | S |
| Rear Air Vent Registers | S | S | S | S |
| Auto Headlamp On-Off | S | S | S | S |
| Auto High Beam | – | – | – | – |
| Front Power Windows | S | S | S | S |
| Rear Power Windows | S | S | S | S |
| Privacy Glass | – | S | S | – |
| Rain Sensing Windscreen Wipers | – | S | S | S |
| Rear Window Defrost | S | S | S | S |
| Electrochromatic Rear View Mirror | – | S | S | – |
| Underseat Stowage | S | S | S | S |
| Audio and Communication | ||||
| Embedded Modem | S | S | S | S |
| FordPass Connect¹⁸ | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 8-inch | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 12.4-inch | – | – | – | – |
| Colour Multi-Function Touch Screen Display - 10.1-inch | S | S | S | S |
| Colour Multi-Function Touch Screen Display - 12-inch | – | – | – | – |
| Speakers | 6 | 6 | 6 | 6 |
| B&O Premium Audio System (10 Speakers)¹⁹ | – | – | – | – |
| Digital Audio (DAB+) | – | S | S | S |
| Bluetooth® with Phone / Audio Streaming²⁰ | S | S | S | S |
| Built-in Satellite Navigation with one year of Connected Navigation Services included²¹ | – | S | S | S |
| SYNC®4A²² | S | S | S | S |
| SYNC®4A with Voice-Activated Controls²² | S | S | S | S |
| Steering Wheel Audio/Function Control | S | S | S | S |
| Wireless Apple CarPlay™ & Android Auto™²³ | S | S | S | S |
| Sport | Sport | Wildtrak | Wildtrak | Platinum | Raptor | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Engine | ||||||
| Engine | 2.0L Bi -Turbo | 3.0L V6 Turbo-Diesel | 2.0L Bi -Turbo | 3.0L V6 Turbo-Diesel | 3.0L V6 Turbo-Diesel | 3.0L V6 Twin-Turbo EcoBoost |
| Maximum Power | 154kW @ 3,750rpm | 184kW @ 3,250rpm | 154kW @ 3,750rpm | 184kW @ 3,250rpm | 184kW @ 3,250rpm | 292KW @ 5,650rpn |
| Maximum Torque | 500Nm @ 1,750-2,000rpm | 600Nm @ 1,750-2,250rpm | 500Nm @ 1,750-2,000rpm | 600Nm @ 1,750-2,250rpm | 600Nm @ 1,750-2,250rpm | 583Nm @ 3,500rpm |
| Transmissions | ||||||
| 6-speed automatic transmission | – | – | – | – | – | – |
| 10-speed automatic transmission | S | S | S | S | S | S |
| Driveline | ||||||
| RWD | – | – | – | – | – | – |
| Part-time 4x4 | S | – | S | – | – | – |
| Full-time 4WD | – | S | – | S | S | S |
| Selectable Drive Modes | ||||||
| - Normal | S | S | S | S | S | S |
| - Eco | S | S | S | S | S | – |
| - Tow / Haul | S | S | S | S | S | S |
| - Slippery | S | S | S | S | S | S |
| - Mud / Ruts | – | – | – | – | – | S |
| - Sand | – | – | – | – | – | S |
| - Sport | S | S | S | S | S | S |
| - Baja | – | – | – | – | – | S |
| - Rock Crawl | – | – | – | – | – | S |
| Fuel | ||||||
| Combined Fuel Economy (L/100km)(Auto)³³ | 7.2 / 7.6 | 8.4 | 7.2 / 7.6 | 8.4 | 8.4 | 11.5 |
| CO² Emissions (g/km) (Auto)³³ | 189 / 201 | 222 | 189 / 201 | 222 | 222 | 262 |
| Fuel Tank Capacity (L) | 80 | 80 | 80 | 80 | 80 | 80 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel | Diesel | Petrol |
| Vehicle Masses (kg) | ||||||
| Gross Combined Mass | 6350 | 6400 | 6350 | 6400 | 6400 | 5370 |
| Gross Vehicle Mass | 3230 | 3280 | 3230 | 3280 | 3280 | 3100 |
| Front Gross Axle Weight Rating | 1630 | 1700 | 1630 | 1700 | 1700 | 1570 |
| Rear Gross Axle Weight Rating | 1959 | 1959 | 1959 | 1959 | 1959 | 1700 |
| Kerb Weight | 2199 | 2250 | 2203 | 2304 | 2300 | 2413 |
| Payload (Based on Kerb Weight) | 1031 | 1030 | 1027 | 976 | 980 | 687 |
| Minimum Kerb Weight | 2172 | 2221 | 2195 | 2295 | 2295 | 2413 |
| Payload (based on Min Kerb Weight) | 1058 | 1059 | 1035 | 985 | 985 | 687 |
| Tare Weight | 2232 | 2287 | 2265 | 2320 | 2324 | 2479 |
| Pick-up box dimensions (mm) | ||||||
| Length - at centreline of axle | 525 | 525 | 525 | 525 | 525 | 525 |
| Height - floor height to ground | 831 | 831 | 831 | 831 | 831 | 926 |
| Length - at floor | 1464 | 1464 | 1464 | 1464 | 1464 | 1540 |
| Length - top of box | 1568 | 1568 | 1568 | 1568 | 1568 | 1670 |
| Width - between wheelhouses | 1217 | 1217 | 1217 | 1217 | 1217 | 1208 |
| Width - pick-up box | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Width - rear opening | 1393 | 1393 | 1393 | 1393 | 1393 | 1407 |
| Exterior Dimensions (mm) | ||||||
| Length - with rear bumper (where fitted) without tow receiver¹¹ | 5370 | 5370 | 5370 | 5370 | 5370 | 5380 |
| Length - with rear bumper (where fitted) with tow receiver¹¹ | 5400 | 5400 | 5400 | 5400 | 5400 | 5400 |
| Width - with exterior mirrors fitted | 2208 | 2208 | 2208 | 2208 | 2208 | 2208 |
| Width - exterior mirrors folded | 2015 | 2015 | 2015 | 2015 | 2015 | 2028 |
| Width - excluding mirrors | 1918 | 1918 | 1918 | 1918 | 1918 | 2028 |
| Height - to top of antenna base | 1886 | 1886 | 1886 | 1886 | 1918 | 1926 |
| Height - to top of flexible rack system | – | – | – | – | – | – |
| Overhang - front | 865 | 865 | 865 | 865 | 865 | 865 |
| Overhang - rear | 1215 | 1215 | 1215 | 1215 | 1215 | 1225 |
| Track - front and rear | 1620 | 1620 | 1620 | 1620 | 1620 | 1710 |
| Wheelbase | 3270 | 3270 | 3270 | 3270 | 3270 | 3270 |
| Ground Clearance (unladen) | 234 | 234 | 234 | 234 | 234 | 272 |
| Wading Depth | 800 | 800 | 800 | 800 | 800 | 850 |
| Approach Angle (unladen, degrees) | 30 | 30 | 30 | 30 | 30 | 32 |
| Departure Angle (unladen, degrees) | 23 | 23 | 23 | 23 | 23 | 25 |
| Ramp Breakover Angle (degrees) | 21 | 21 | 21 | 21 | 21 | 24 |
| Turning Circle (meters) | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 13.2 |
| Sport | Sport | Wildtrak | Wildtrak | Platinum | Raptor | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Interior Dimensions (mm) | ||||||
| 2nd Row Headroom | 989 | 989 | 989 | 989 | 989 | 989 |
| 2nd Row Legroom | 879 | 879 | 879 | 879 | 879 | 879 |
| 2nd Row Shoulder Room | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Front Headroom | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Front Legroom | 1057 | 1057 | 1057 | 1057 | 1057 | 1057 |
| Front Shoulder Room | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Chassis & Suspension | ||||||
| Front Disc / Rear Drum Brakes | – | – | – | – | – | – |
| Front and Rear Disc Brakes with Electronic Brake Booster | S | S | S | S | S | S |
| Electrical Power Assisted Steering | S | S | S | S | S | S |
| Heavy Duty Suspension | – | S | – | S | S | – |
| Locking Rear Differential | S | S | S | S | S | – |
| Wheels | ||||||
| 16" Steel with All Season Tyres | – | – | – | – | – | – |
| 16" Alloy with All Season Tyres | – | – | – | – | – | – |
| 17" Alloy with All Season Tyres | – | – | – | – | – | – |
| 17" Alloy with All Terrain BF Goodrich KO2 Tyres | – | – | – | – | – | – |
| 18" Alloy with All Season Tyres | S | S | – | – | – | – |
| 18" Alloy with All Terrain Tyres | – | – | S | S | – | – |
| Spare Wheel - 16" Steel | – | – | – | – | – | – |
| Spare Wheel - 17" Steel | – | – | – | – | – | – |
| Spare Wheel - 17" Alloy | S | S | S | S | S | – |
| Spare Wheel - 18" Alloy | – | – | – | – | – | – |
| Spare Wheel - BF Goodrich KO2 High Performance All Terrain tyres | – | – | – | – | – | S |
| Exterior Lighting | ||||||
| Headlamps - Halogen | – | – | – | – | – | – |
| Headlamps - LED | S | S | S | S | – | S |
| Headlamps - Matrix LED with Auto Leveling & Dynamic Bending | – | – | – | – | S | S |
| Daytime Running Lamps - Halogen | – | – | – | – | – | – |
| Daytime Running Lamps - LED | S | S | S | S | S | S |
| Front Fog Lamps - Halogen | – | – | – | – | – | – |
| Front Fog Lamps - LED | S | S | S | S | S | S |
| Taillamps - Halogen | – | – | – | – | – | – |
| Taillamps - LED | S | S | S | S | S | S |
| Tailgate Mounted Stop Light | S | S | S | S | S | S |
| Cargo Box Light | S | S | S | S | S | S |
| Exterior | ||||||
| Exterior Mirrors - Power Adjustable | S | S | S | S | S | S |
| Exterior Mirrors - Power Folding | S | S | S | S | S | S |
| Exterior Mirrors - Puddle Lamps | S | S | S | S | S | S |
| Steel Underbody Protection | S | S | S | S | S | S |
| Side Steps | S | S | S | S | S | S |
| Rear Box Step | S | S | S | S | S | S |
| Roof Rails | – | – | S | S | S | – |
| Sports Bar | S | S | – | – | – | – |
| Sports Hoop/Sailplane | – | – | S | S | – | S |
| Flexible Rack System⁴⁰ | – | – | S | S | S | – |
| Load Box Elements | ||||||
| Tailgate Liner | – | – | – | – | – | – |
| Drop in Bedliner (without Tailgate Ruler) | – | – | – | – | – | – |
| Tough Bed Spray-in Bedliner (incl. Tailgate Ruler) | S | S | S | S | S | S |
| Tie Down in Bedliner | S | S | S | S | S | S |
| Box Top Protective Capping with Load Box Access Caps | S | S | S | S | S | S |
| Aluminium Tie Down Rails | – | – | – | – | S | – |
| Inner Tie Rings | S | S | S | S | S | S |
| Cargo Management System | S | S | S | S | S | S |
| Load Rest | S | S | S | S | S | S |
| Load Box Illumination | S | S | S | S | S | S |
| Tailgate Cargo Clamps | – | – | – | – | – | – |
| Tailgate Cupholders | S | S | S | S | S | – |
| Tailgate Ruler | – | – | – | – | – | S |
| Tailgate with Lift Assistance | S | S | S | S | S | – |
| Dampered Tailgate with Lift Assistance | – | – | – | – | S | S |
| Power Roller Shutter | – | – | – | – | – | – |
| Sport | Sport | Wildtrak | Wildtrak | Platinum | Raptor | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Interior, Seating and Door Trim | ||||||
| Leather Wrapped Steering Wheel & Gear Knob | S | S | S | S | S | S |
| Heated Steering Wheel | - | - | - | - | S | - |
| Steering Wheel Reach & Height Adjust | S | S | S | S | S | S |
| S | S | S | S | S | S | |
| e-Shifter | S | S | S | S | S | S |
| Seating Capacity | 5 | 5 | 5 | 5 | 5 | 5 |
| Heated Seats - Front Driver & Passenger | - | - | S | S | - | S |
| Heated & Ventilated Seats - Front Driver & Passenger | - | - | - | - | S | - |
| Seat Material - Cloth | - | - | - | - | - | - |
| Seat Material - Premium Cloth | - | - | - | - | - | - |
| Seat Material - Leather Accented (excluding 2nd row middle seat) | S | S | S | S | - | S |
| Seat Material - Leather Accented (excluding 2nd row middle seat) Quilted | - | - | - | - | S | - |
| Driver Seat - 8-Way Manual | - | - | - | - | - | - |
| Driver Seat - 8-Way Power | S | S | S | S | - | - |
| Driver Seat - 10-Way Power | - | - | - | - | S | - |
| Driver Seat - 10-Way Power with Memory Setting | - | - | - | - | S | - |
| Front Passenger Seat - 4-Way Manual | - | - | - | - | - | - |
| Front Passenger Seat - 6-Way Manual | S | S | - | - | - | - |
| Front Passenger Seat - 8-Way Power | - | - | S | S | - | - |
| Front Passenger Seat - 10-Way Power | - | - | - | - | S | S |
| Child Seat Upper Anchorage Points (x2) | S | S | S | S | S | S |
| Child Seat ISOFIX Anchorage Points (x2) | S | S | S | S | S | S |
| Floor Covering - Vinyl | - | - | - | - | - | - |
| Floor Covering - Carpet | S | S | S | S | S | S |
| Floor Mats - Driver | - | - | - | - | - | - |
| Floor Mats - Driver & Front Passenger | S | S | S | S | S | S |
| Floor Mats - Rear | - | - | - | - | S | - |
| Comfort and Convenience | ||||||
| Ambient Lighting | - | - | S | S | S | S |
| Auxiliary Switch Bank | P | P | P | P | S | S |
| Centre Console with Single Lid and 2 up Holders | S | S | S | S | S | S |
| Instrument Panel Cup Holders | - | - | S | S | S | S |
| Charging | ||||||
| - Auxiliary 12V Power Outlet - Centre Console Bin | S | S | S | S | S | S |
| - Auxiliary 12V Power Outlet - Rear of Centre Console | S | S | S | S | S | S |
| - USB Ports | 2 | 2 | 2 | 2 | 2 | 2 |
| - Wireless Charging | S | S | S | S | S | S |
| - 12V Socket in Bedliner | S | S | S | S | S | S |
| Climate Control - Single-zone Manual | - | - | - | - | - | - |
| Climate Control - Dual-Zone | S | S | S | S | S | S |
| Rear Air Vent Registers | S | S | S | S | S | S |
| Auto Headlights On/Off | S | S | S | S | S | S |
| Auto High Beam | - | - | - | - | S | S |
| Front Power Windows | S | S | S | S | S | S |
| Rear Power Windows | S | S | S | S | S | S |
| Privacy Glass | S | S | S | S | S | S |
| Rain Sensing Windscreen Wipers | S | S | S | S | S | S |
| Rear Window Defrost | S | S | S | S | S | S |
| Electrochromatic Rear View Mirror | S | S | S | S | S | S |
| Underseat Storage | S | S | S | S | S | S |
| Sport | Sport | Wildtrak | Wildtrak | Platinum | Raptor | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Audio and Communication | ||||||
| Embedded Modem | S | S | S | S | S | S |
| FordPass Connect | S | S | S | S | S | S |
| Colour Digital Instrument Cluster with Configurable Display - 8-inch | S | S | S | S | - | - |
| Colour Digital Instrument Cluster with Configurable Display - 12.4-inch | - | - | - | - | S | S |
| Colour Multi-Function Touch Screen Display - 10.1-inch | S | S | - | - | - | - |
| Colour Multi-Function Touch Screen Display - 12-inch | - | - | S | S | S | S |
| Speakers | 6 | 6 | 6 | 6 | 10 | 10 |
| B&O Premium Audio System (10 Speakers) | - | - | P | P | S | S |
| Digital Audio (DAB+) | S | S | S | S | S | S |
| Bluetooth® with Phone/Audio Streaming | S | S | S | S | S | S |
| Built-in Satellite Navigation with 1 year of Connected Navigation Services included | S | S | S | S | S | S |
| SYNC® 4A | - | - | - | - | - | - |
| SYNC® 4A with Voice-Activated Controls | S | S | S | S | S | S |
| Steering Wheel Audio/Function Control | S | S | S | S | S | S |
| Wireless Apple CarPlay™ & Android Auto™ | S | S | S | S | S | S |
| Safety and Security | ||||||
| Perimeter Alarm System | S | S | S | S | S | S |
| Airbags x 9 - Front, Side, Knee & Full Length Curtain (Driver & Passenger) & Far Side Driver Front Airbag | S | S | S | S | S | S |
| 3 Point Lap Sash Seat Belt - All Positions | S | S | S | S | S | S |
| Child Proof Rear Door Locks | S | S | S | S | S | S |
| Emergency Assistance²⁹ | S | S | S | S | S | S |
| Power Door Locks | S | S | S | S | S | S |
| Smart Keyless Entry with Push Button Start | S | S | S | S | S | S |
| Driver Assistance | ||||||
| Active Park Assist 2.0 | - | - | S | S | S | S |
| Adaptive Cruise Control | - | - | - | - | - | - |
| Intelligent Adaptive Cruise Control with Stop & Go, Traffic Sign Recognition and Lane Centring | S | S | S | S | S | S |
| Intelligent Speed Assist | S | S | S | S | S | S |
| Blind Spot Monitoring with Cross Traffic Alert | - | - | - | - | - | - |
| Blind Spot Monitoring with Cross Traffic Alert and Trailer Coverage | S | S | S | S | S | S |
| Dynamic Stability Control (DSC) incorporating ABS, Electronic Brake force Distribution, Emergency Brake Assist, Hill Start Assist, Load Adaptive Control, Roll Over Mitigation, Traction Control & Trailer Sway Control | S | S | S | S | S | S |
| Evasive Steer Assist | S | S | S | S | S | S |
| Lane Keeping Aid with Road Edge Detection and Driver Alert System | S | S | S | S | S | S |
| Post Impact Braking | S | S | S | S | S | S |
| Pre-Collision Assist with Autonomous Emergency Braking (AEB) | S | S | S | S | S | S |
| Reverse Brake Assist | S | S | S | S | S | S |
| Parking Sensors - Front | S | S | S | S | S | S |
| Parking Sensors - Rear | S | S | S | S | S | S |
| Rear View Camera - Analogue | - | - | - | - | - | - |
| Rear View Camera - Integrated Digital | S | S | S | S | S | S |
| 360-Degree Camera | P | P | S | S | S | S |
| Traffic Sign Recognition | S | S | S | S | S | S |
| Tyre Pressure Monitoring System | S | S | S | S | S | S |
| Sport | Sport | Wildtrak | Wildtrak | Platinum | Raptor | |
| 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | 4x4 Double Cab Pick-Up | |
| Towing | ||||||
|---|---|---|---|---|---|---|
| Maximum Braked Towing Capacity (kg) | 3,500 | 3,500 | 3,500 | 3,500 | 3,500 | 2,500 |
| Pro Trailer Back-up Assist | P | P | S | S | S | S |
| Tow Bar with integrated Trailer Brake Controller | S | S | S | S | S | S |
| Trailer Light Check | S | S | S | S | S | S |
| Towing Vehicle Integration with Towing Check List | S | S | S | S | S | S |
| Tow Haul Mode (part of Selectable Drive Modes) | S | S | S | S | S | S |
| Off-Road | ||||||
| Off-Road Screen | S | S | S | S | S | S |
| Hill Descent Control | S | S | S | S | S | S |
| Locking Rear Differential | S | S | S | S | S | S |
| Front Recovery Hook | 2 | 2 | 2 | 2 | 2 | 2 |
| Rear Recovery Hook | - | - | - | - | - | 2 |
| Ford Factory Fitted Options | ||||||
| Delete Auto Stop/Start System | NCO | - | NCO | - | - | - |
| Manual Roller Shutter | O | O | - | - | - | - |
| Commercial Canopy | O | O | O | O | - | - |
| Flexible Rack System | O | O | O | O | S | - |
| Stylish Canopy (Lift and Slide) | O | O | O | O | - | - |
| Stylish Canopy (Dual Lift) | O | O | O | O | - | - |
| 18" Alloy Wheels with All Terrain Tyres >with 18" Alloy Spare Wheel | O | O | - | - | - | - |
| 20" Alloy Wheels with All Season Tyres with 20" Alloy Spare Wheel46 | - | - | O | O | - | - |
| Prestige Paint | O | O | O | O | O | O |
| Power Roller Shutter | - | - | S | S | S | O |
