Ferrari manufactures Gran Turismo cars in limited series developed from their direct experience in motor racing.

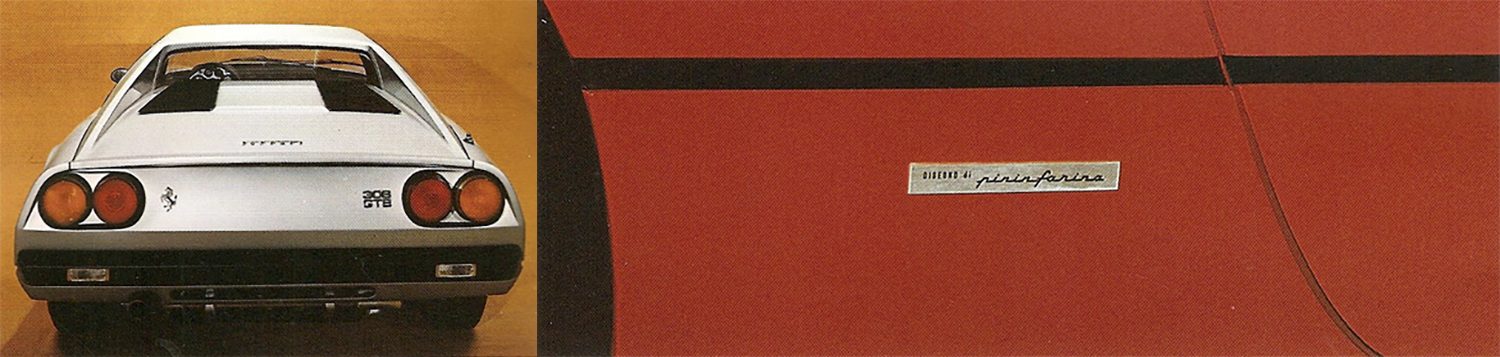

Pininfarina, the traditional leader in design for the last 40 years.
Engine (cc)
Top Speed (mph)
0 - 1000 m (sec)

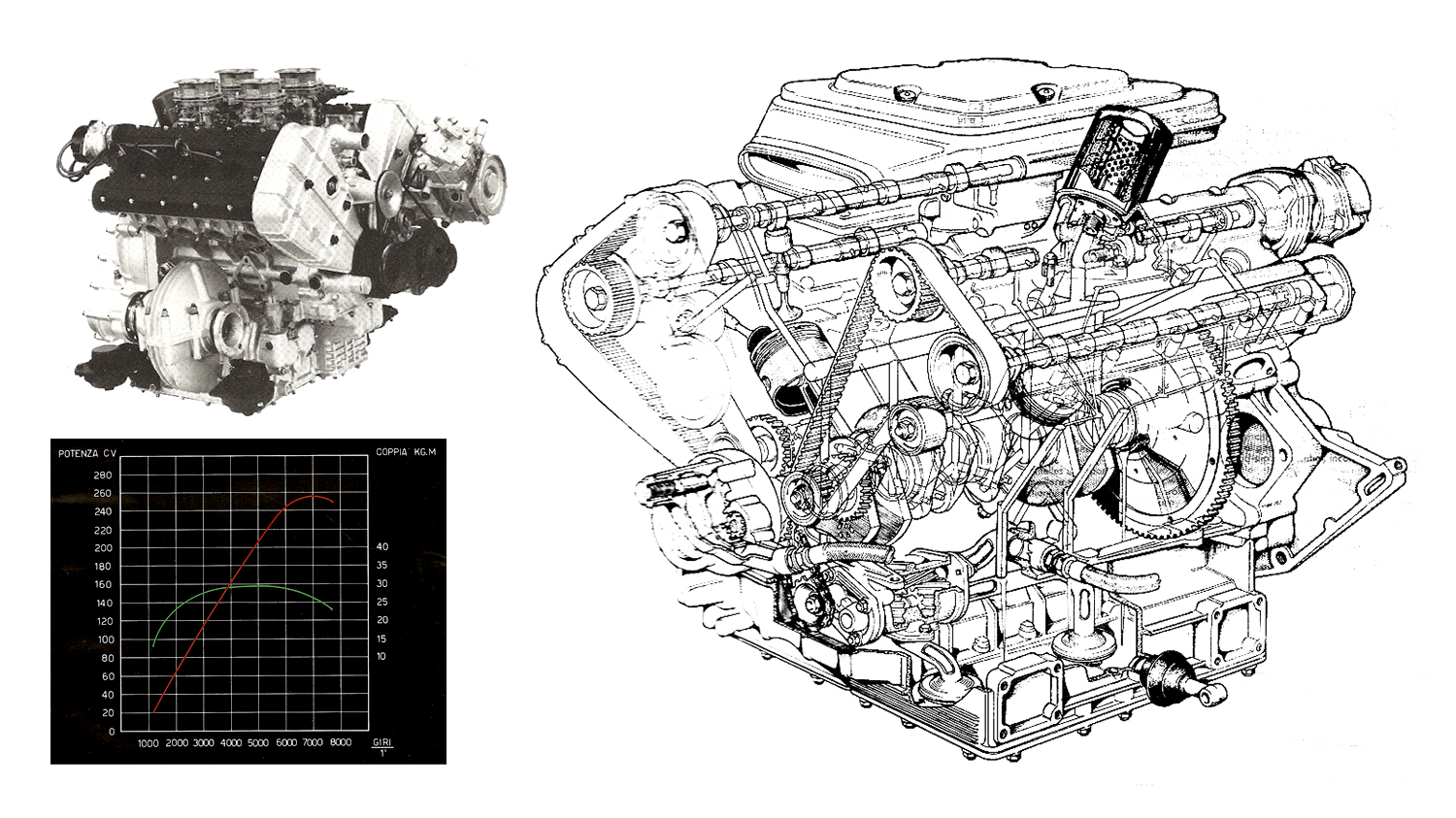

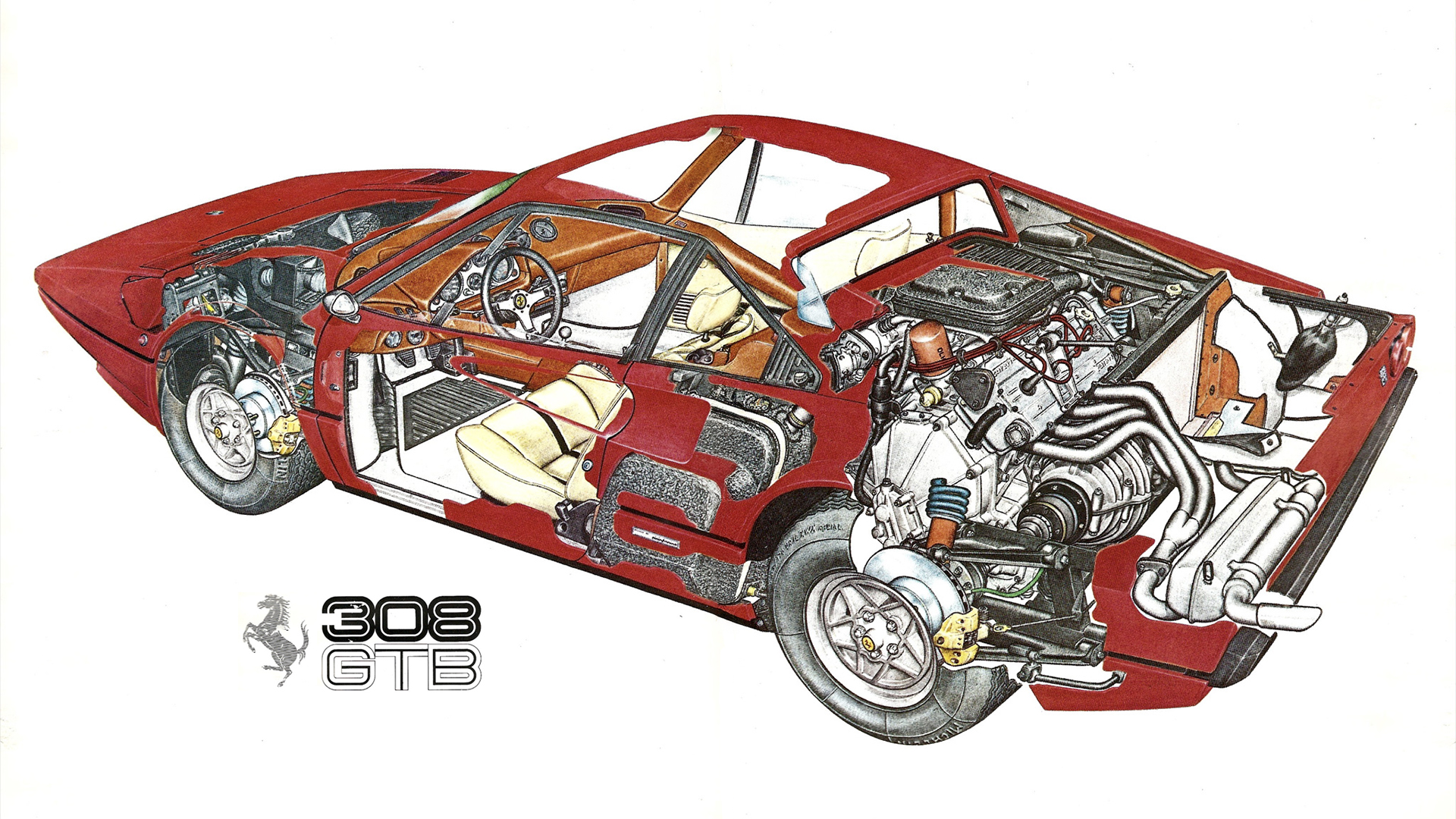

Central engine - Number and arrangement of cylinders: V8 90° - Bore and stroke 81x/1 mm - Piston displacement 2926 cc - Compression ratio 8.8 : 1 - Maximum rpm 7700 - Maximum bhp 255 - Light alloy crankcase with shrunk in cast iron liners - 5 bearing crankshaft - Thin wall main 1 overheend carchats ond thimble type eppels - Comshafts shells - Inclined overhead valves with driven by toothed belts with tensioner - Ignition by two gear driven oil pump with dry sump, oil tank and oil cooler - Ignition by one Marelli distributor - 12 V. electrical system with alternator and transistorised regulator - 4 twin choke Weber carburettors type 40 DCNF, fuel feed by electric pump - Cooling system by forward mounted radiator with expansion tank and automatic electric fans - Single plate dry clutch with cushioned centre plate.

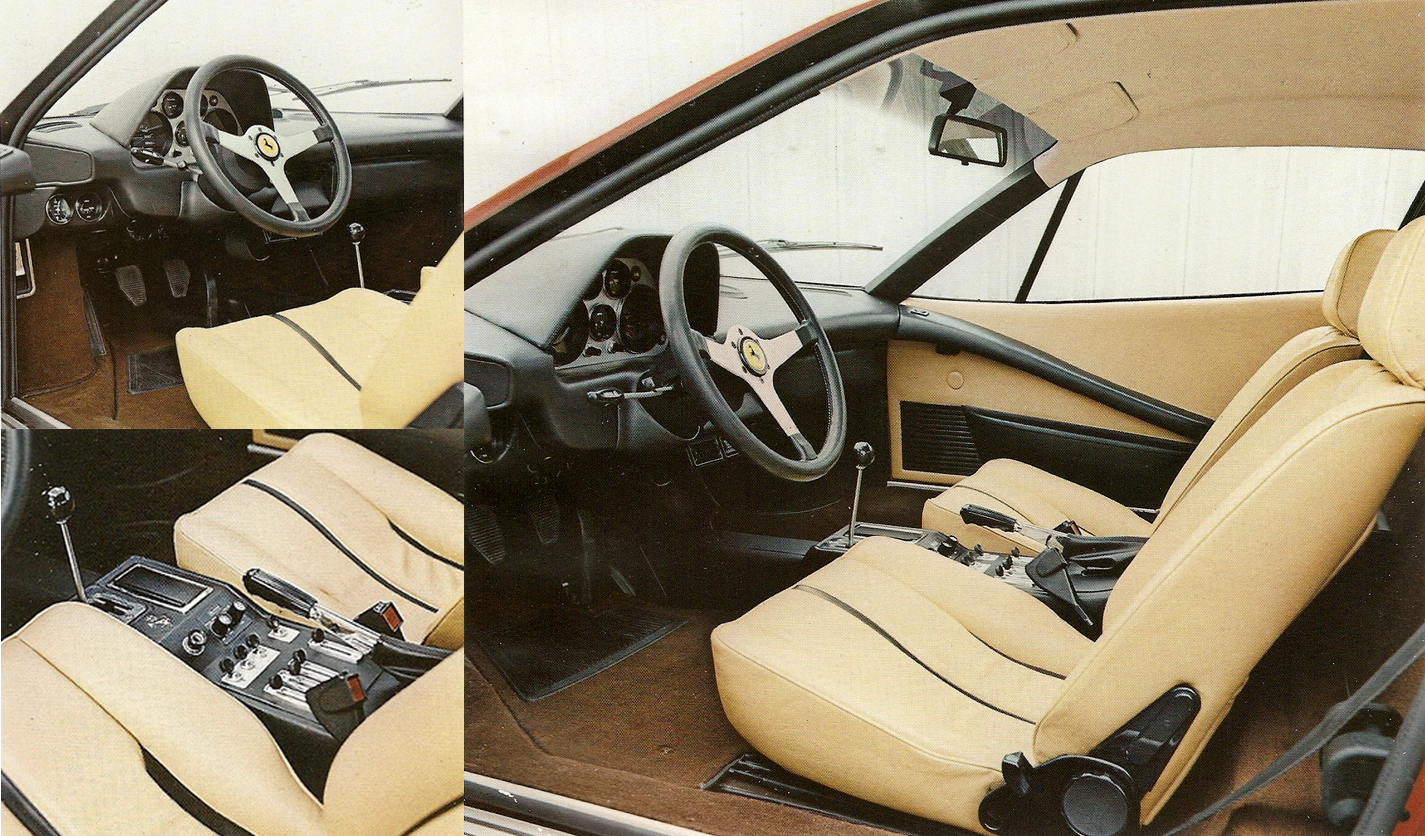

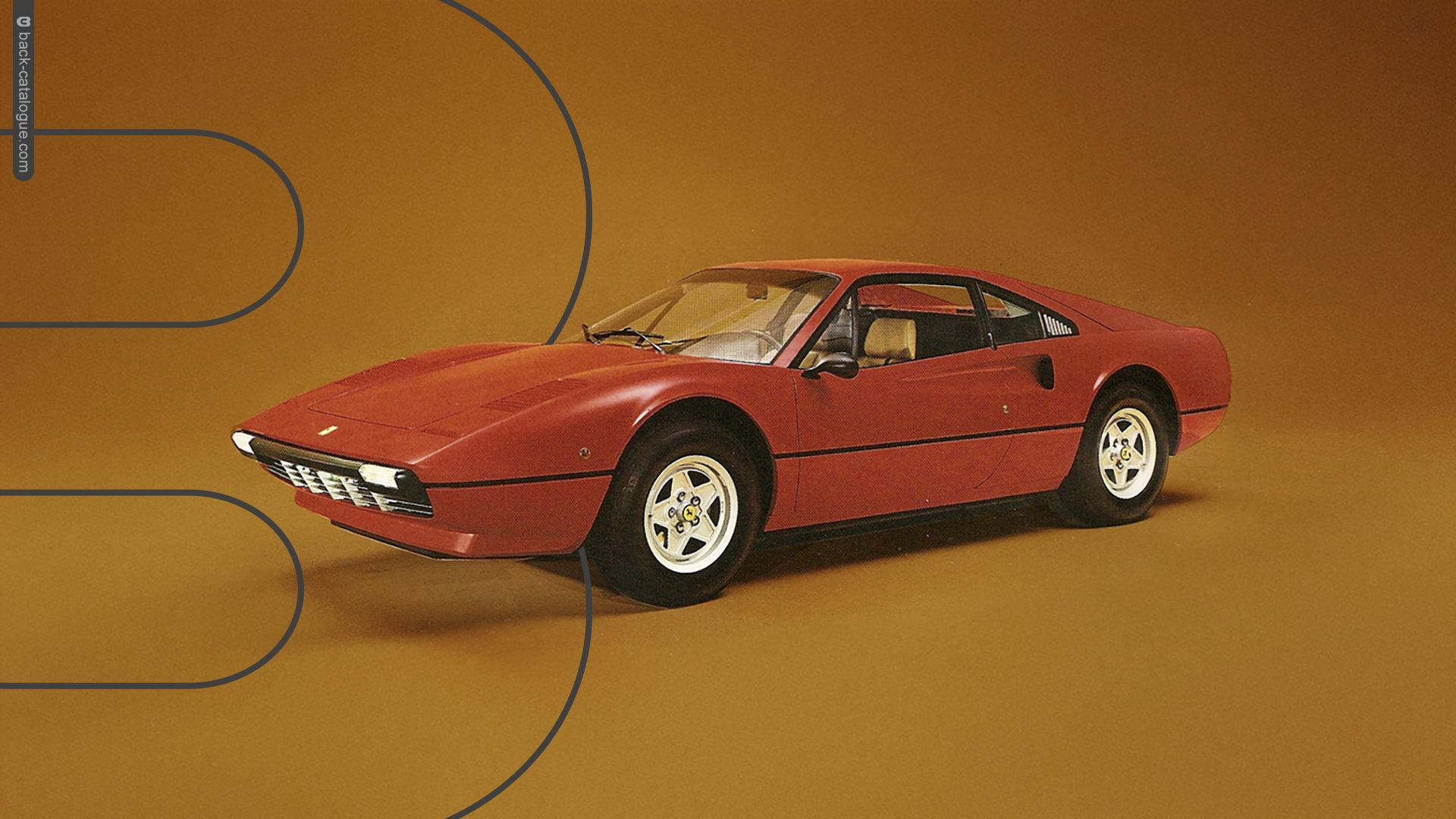

Tubular frame - Two secter Berlinetta designed by Pininfarina - Front track 57,5 in - Rear track 57,5 in - Lenght 166,5 in - Width 67,7 in - Height 44,1 in - Wheelbase 92,1 in - Turning circle 472,5 in - Weight 2403 Ibs - 5-speed all synchromesh gearbox, operated by central remote control gear lever - Independent front and cor suspension - Limited-slip differential, incorporated in the gearbox - Rack and pinion steering - Servo assisted hydraulic brakes with ventilated discs on all four wheels; hand-brake on the rear wheels - Total capacity of the two light-alloy fuel tanks 17,6 imp gal - Fuel consumption 15/16 siles per imp gal - Cast light-alloy wheels; tyres size 05/70 VR 14: special spore wheel with reduced section - Electronic revolution counter and speedometer - Quartz clock - Seats with headrest - Safety belts - - Air conditioning, electrically operated power windows and radio available as optional extras.
| Speeds attainable at 7000 rpm - Gear | 1 | 2 | 3 | 4 | 5 |
| mph - with 205/70 14 tyres xle ratio 17/63 | 41 | 59 | 83 | 112 | 151.6 |
| Maximum Speed | 156.6 mph at 7250 rpm | ||||
| Acceleration - From 0 to 400 meters | 14".1 | ||||
| Acceleration - From 0 to 1000 meters | 25".4 - closing speed 136.7 mph | ||||
