Engine V8 Capacity (cc)
Horsepower
Transmission (sp)
Car 2 Doors, 2 Seats Fixed Head Coupe - Integral body construction,
Engine Central-rear mounted V8-90˚ engine, five bearing crankshaft, pushrod self-adjusting OHV, bore and stroke mm. 101.6x88.9 - 5763 c.c. - 300 H.P. Oil Agip Sint 2000 SAE 10 W/50.
Transaxle Five speed synchromesh plus reverse, self locking differential. Oil Agip Rotra MP SAE 85 W /90.
Suspension Indipendent front and rear suspension of the variable parallelogram type with telescopic hydraulic double acting shock absorbers fitted coaxially with coil spings, transversal stabilizer torsion bars.
Brakes Twin circuit power assisted disc brakes on all four wheels. Oil Agip F1 Brake Fluid Super HD.
Dimensions Wheelbase 2515 mm, front track 1450 mm, rear track 1460 mm, height 1100 mm, front tyres C 60/15 or 185 / 70 VR 15, rear tyres H 60/15, or 215/70 VR 15.
Speed 280 km/h.
Standard Equipment: Air conditioning, electric windows, jod lamps, light-alloy wheels, steering-lock device, head rests, electric tinted glass, roll safety belts, front and rear spoiler.

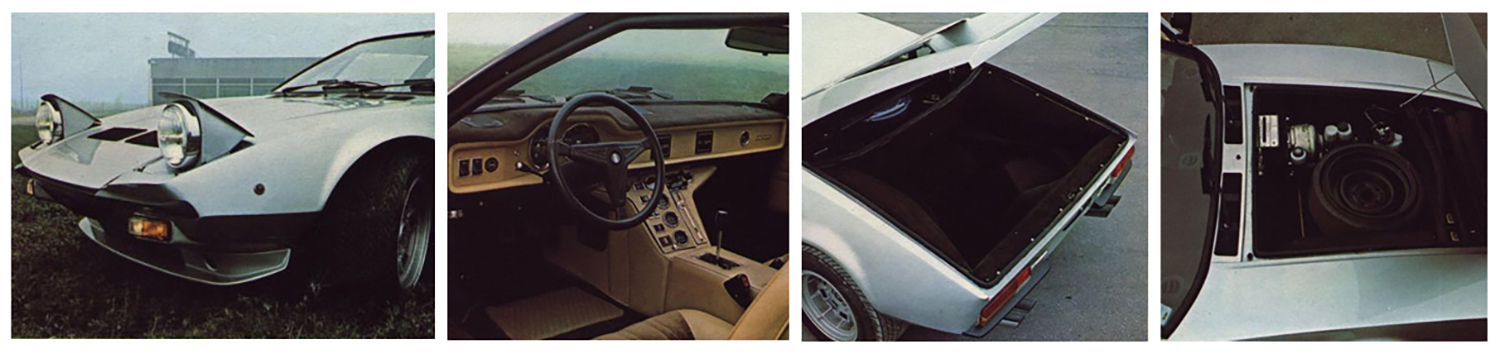

Front iodine (halogen) headlights with automatic electric lift. Front spoiler and air extraction grilles on the front hood (bonnet), standard. Sporty Dashboard, with a full complement of instruments also distributed on the vertical center console, including a digital clock. Air conditioning standard - Electric windows and tinted blue glass standard. Safety belts (seatbelts) with automatic retractor. 5-speed gearbox, with console-mounted (joystick-style) shift lever, with sector (and standard limited-slip differential). Headrests. 10-inch rear wheels optional. Pirelli P7 tires available on request: 225 / 50 VR 15 front; 285 / 50 VR 15 rear. Rear spoiler standard. Large capacity rear trunk (boot). Increased capacity front trunk (boot), with recessed battery and consequent lowering of the center of gravity. Brake booster (servo-brake), dual braking circuit, and visual brake fluid check.

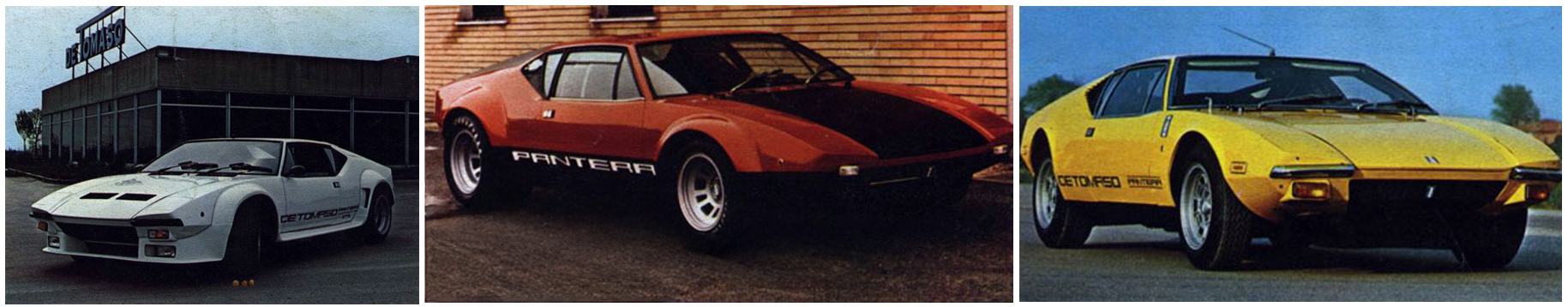

Pantera GTS Front wheels 10". Pirelli P7 Tires - 285/40 VR 15. Rear wheels 13". Pirelli P7 Tires - 345/35 VR 15. Fender Flares, Spoiler, Side Skirts Gr. 5.
Pantera GT4 Front wheels Gr4 10". Pirelli P7 Tires - 285/40 VR 15. Rear wheels Gr. 4 13". Pirelli P7 Tires - 345/35 VR 15. Fender Flares Gr. 4.
Pantera GR3 Preparation according to Appendix J of the International Sporting Code. Including Roll-Bar (roll cage), fire extinguisher, bonnet/hood fasteners (hooks), emergency switches, etc.
