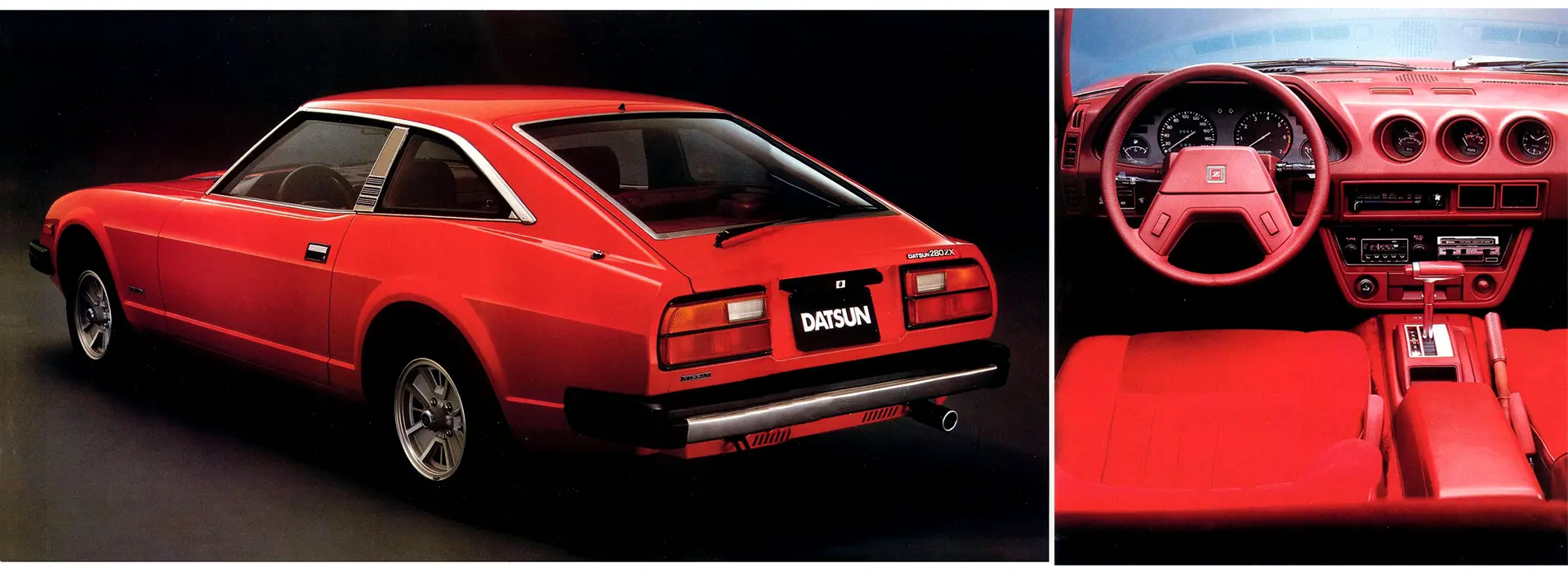

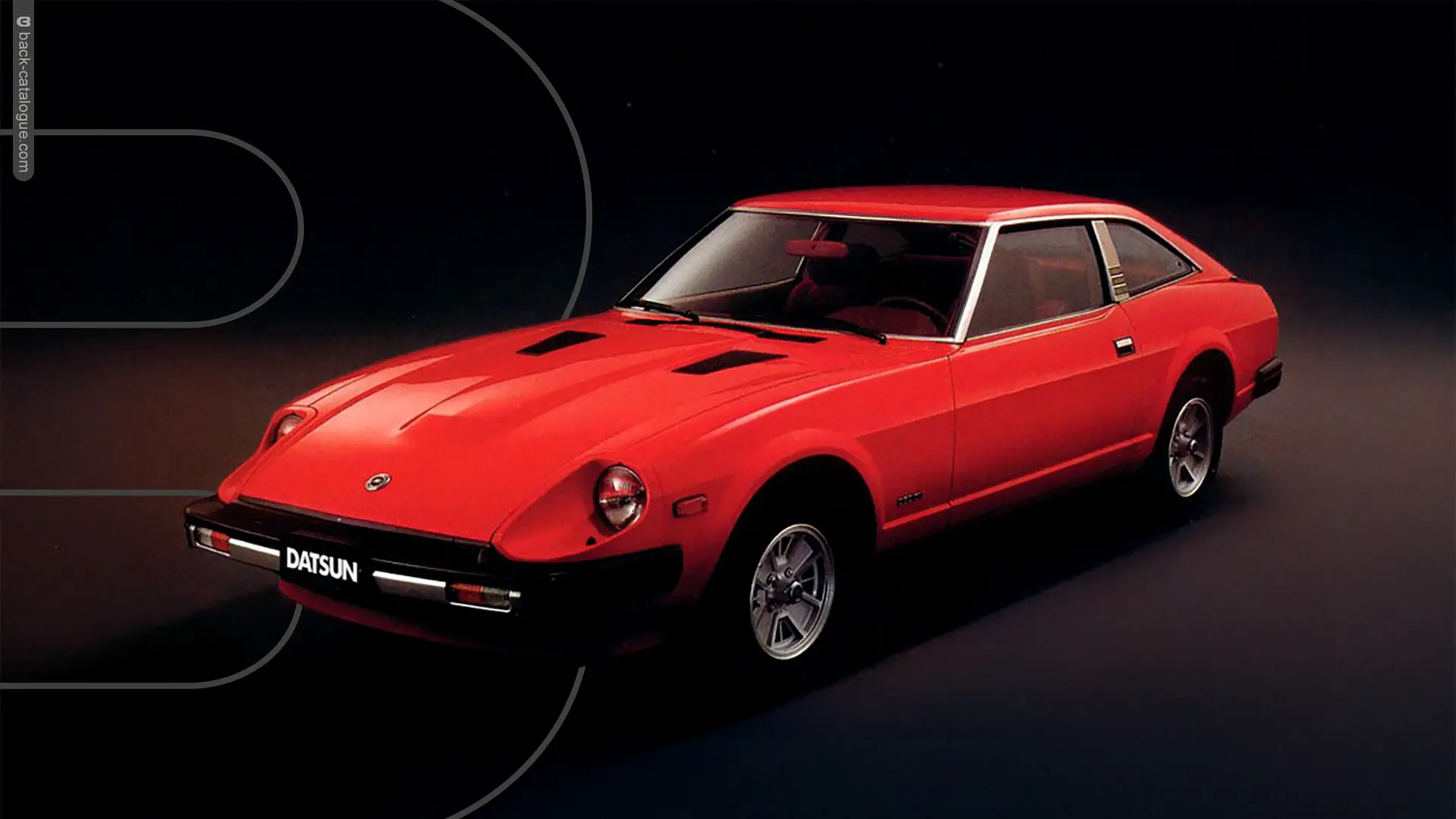

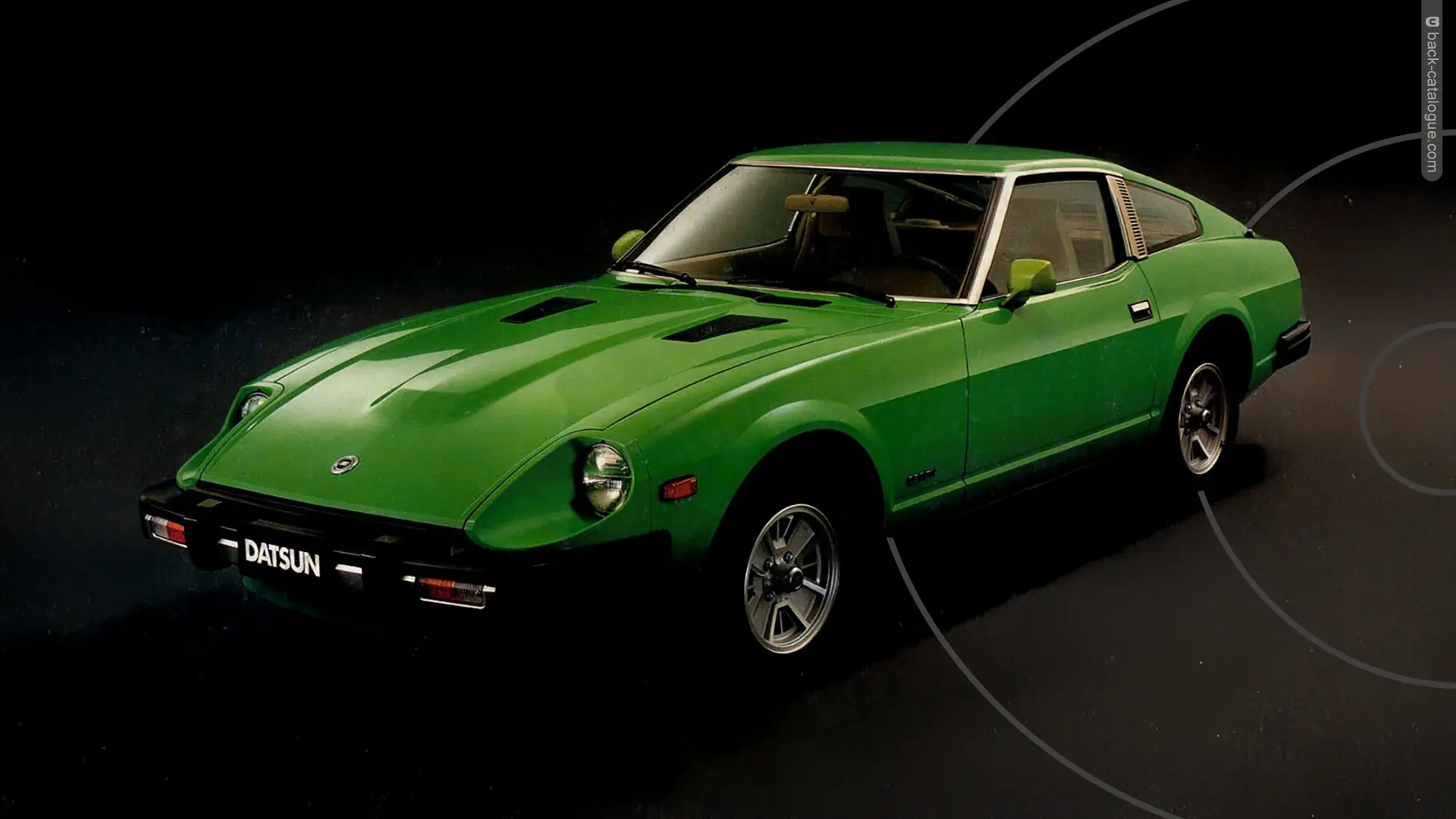

1979 Datsun 280ZX.

The Datsun 280ZX can be counted among the ranks of highly exclusive Grand Tourismos, both for its styling and for its almost unbelievable level of standard equipment. A robust 2.8-liter six-cylinder engine, equipped with electronically controlled fuel injection, provides the propulsion for this flagship model in the Datsun range.

Four independently suspended wheels with light-alloy rims are fitted with very wide 195/70 radial tires. The equipment specification is exceptionally generous, ranging from a stereo cassette player to a “check panel” that allows the driver to monitor at a glance whether systems such as the lighting, cooling system, brakes, and more are functioning correctly. A well-balanced power steering system assists in controlling this thoroughbred.

The Datsun 280ZX is available as a two-seater or as a 2+2 version with a five-speed manual transmission, while the 2+2 model is also available with an automatic transmission.

1979 Datsun 280ZX Performance Highlights.

1979 Datsun 280ZX Technical Specification.

Model and Type Datsun 280ZX 2-seater. Datsun 280ZX 2+2. Datsun 280ZX 2+2 automatic.

Engine Front-mounted, water-cooled inline six-cylinder petrol engine with seven-bearing crankshaft and overhead camshaft. Bore x stroke: 86 x 79 mm. Displacement: 2753 cc. Compression ratio: 8.3 : 1. Maximum power (DIN): 103 kW (140 hp) at 5200 rpm. Maximum torque (DIN): 202 Nm (20.6 kgm) at 4000 rpm.

Transmission Fully synchronized 5-speed manual gearbox, automatic version with 3 speeds. Centrally mounted gear lever. Rear-wheel drive.

Gear Ratios Manual 1st: 3.321. Manual 2nd: 2.077. Manual 3rd: 1.308. Manual 4th: 1.000. Manual 5th: 0.864. Manual reverse: 3.382. Final drive ratio: 3.545. Automatic 1st: 3.700. Automatic 2nd: 2.458. Automatic 3rd: 1.458. Automatic reverse: 2.182.

Clutch Self-adjusting single dry-plate clutch with diaphragm pressure plate.

Brakes Hydraulic split braking system with brake booster. Disc brakes front and rear. Brake pressure limiter in rear brake circuit. Warning light for low brake fluid level and applied handbrake. Mechanical handbrake acting on rear wheels.

Cooling System Pressurized cooling system with centrifugal pump. Cooling system capacity: 10.5 liters including heater.

Fuel System Electronically controlled fuel injection (L-Jetronic). Fuel tank capacity: 80 liters.

Electrical System Battery 12 V 60 Ah. Alternator 12 V 60 A.

Lubrication System Full-pressure lubrication with full-flow cartridge oil filter. Mechanical oil pump. Engine oil capacity 4.0 liters, 4.5 liters including filter.

Suspension Front independent MacPherson strut suspension with stabilizer bar. Rear independent suspension with coil springs, control arms, and stabilizer bar.

Steering Recirculating ball steering system with power assistance. Safety steering column with steering lock.

Wheels and Tires Light-alloy wheels 6J x 14 inches. Radial tires 195/70 VR 14. Space-saving spare wheel.

Body Self-supporting body with integrated safety cage and front and rear crumple zones.

1979 Datsun 280ZX Equipment Specification.

Laminated windscreen. Tinted safety glass all around. Anti-lift windshield wipers with two speeds and intermittent function. Electric washer and wiper system. Fabric upholstery. Adjustable seatbacks. Tilting driver’s seat. Head restraints. Carpeted floor. Lined luggage compartment. Three-point inertia-reel seat belts. Adjustable dashboard lighting. Trip odometer. Illuminated cigarette lighter. Ashtray. Large center console. Lockable and illuminated glove compartment. Full-flow ventilation system. Continuously adjustable fan. Side window demisting. AM/FM radio. Electric antenna. Stereo cassette recorder. Heated rear window. Rear window wiper and washer. Anti-dazzle interior mirror. Parcel shelf. Two coat hooks. Driver’s footrest. Audible and visual warning for lights left on with door open. Courtesy light in headliner. Ignition lock illumination. Illuminated heater controls. Power steering. Steering lock. Entry lights under dashboard. Interior tailgate release. Split-folding rear seat for 2+2 version. Door storage pockets. Tachometer. Quartz clock. Oil pressure gauge. Voltmeter. Warning lights for doors, handbrake, rear window heating, and fuel level. Rear seat belt mounting points for 2+2 version. Check panel. Hazard warning system. Engine bay inspection lamp. Chrome exhaust finisher. Dual-tone horn. Lockable fuel filler cap. Large rear hatch. Protective side moldings. Rubber-coated bumpers. Tool kit. Light-alloy wheels. Front and rear towing eyes. Space-saving spare wheel. Wide radial tires 195/70 VR 14.
