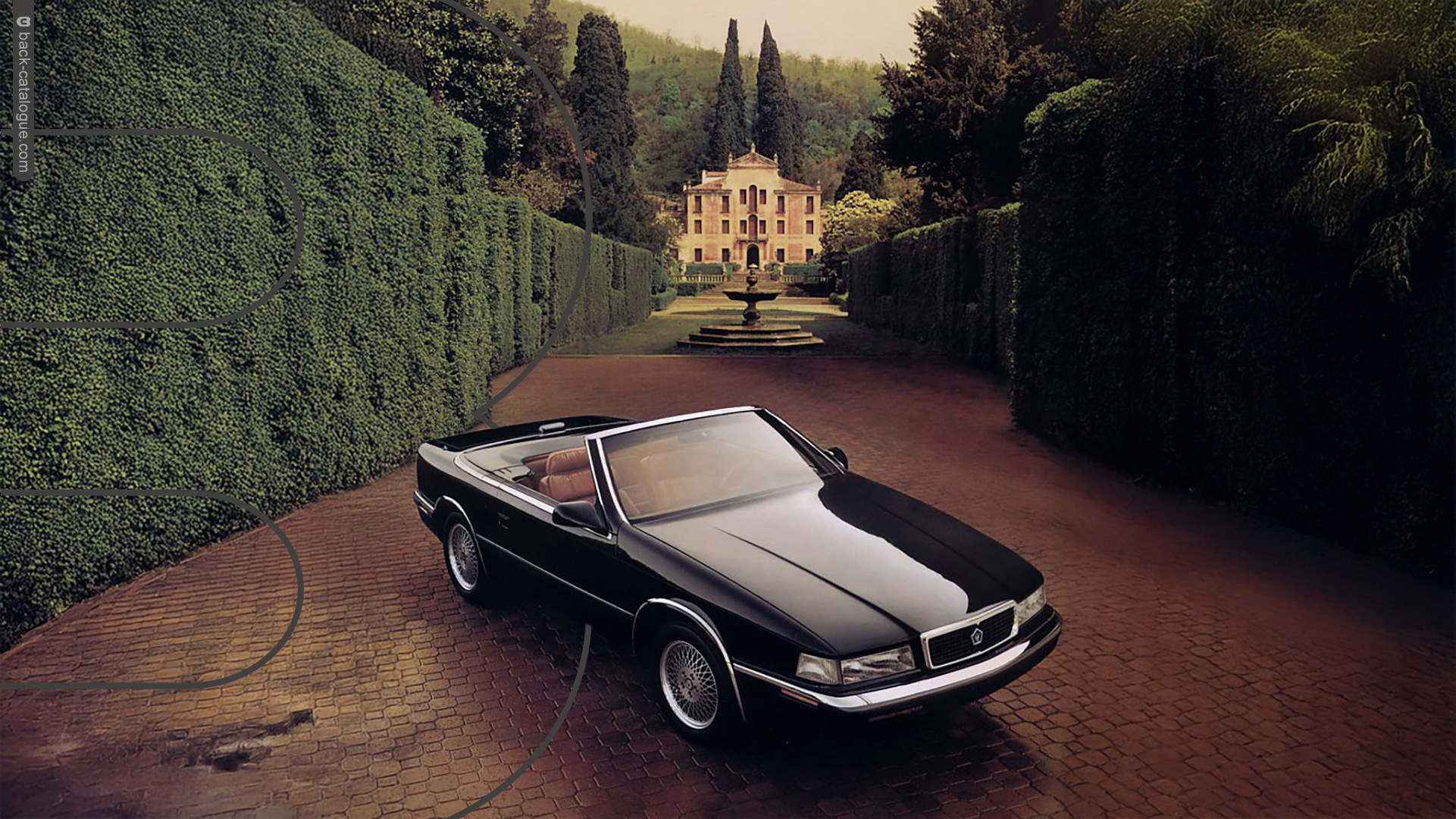

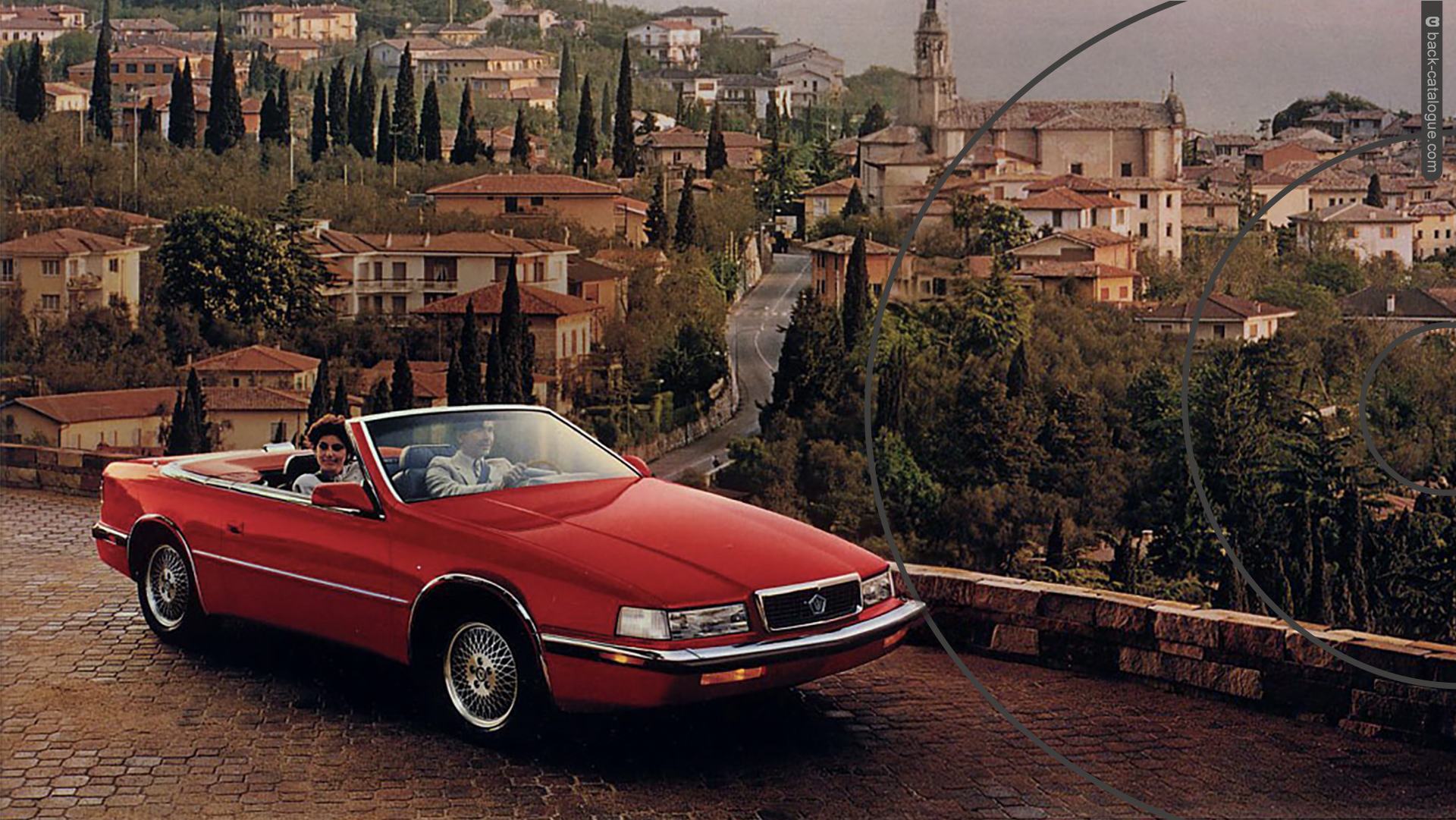

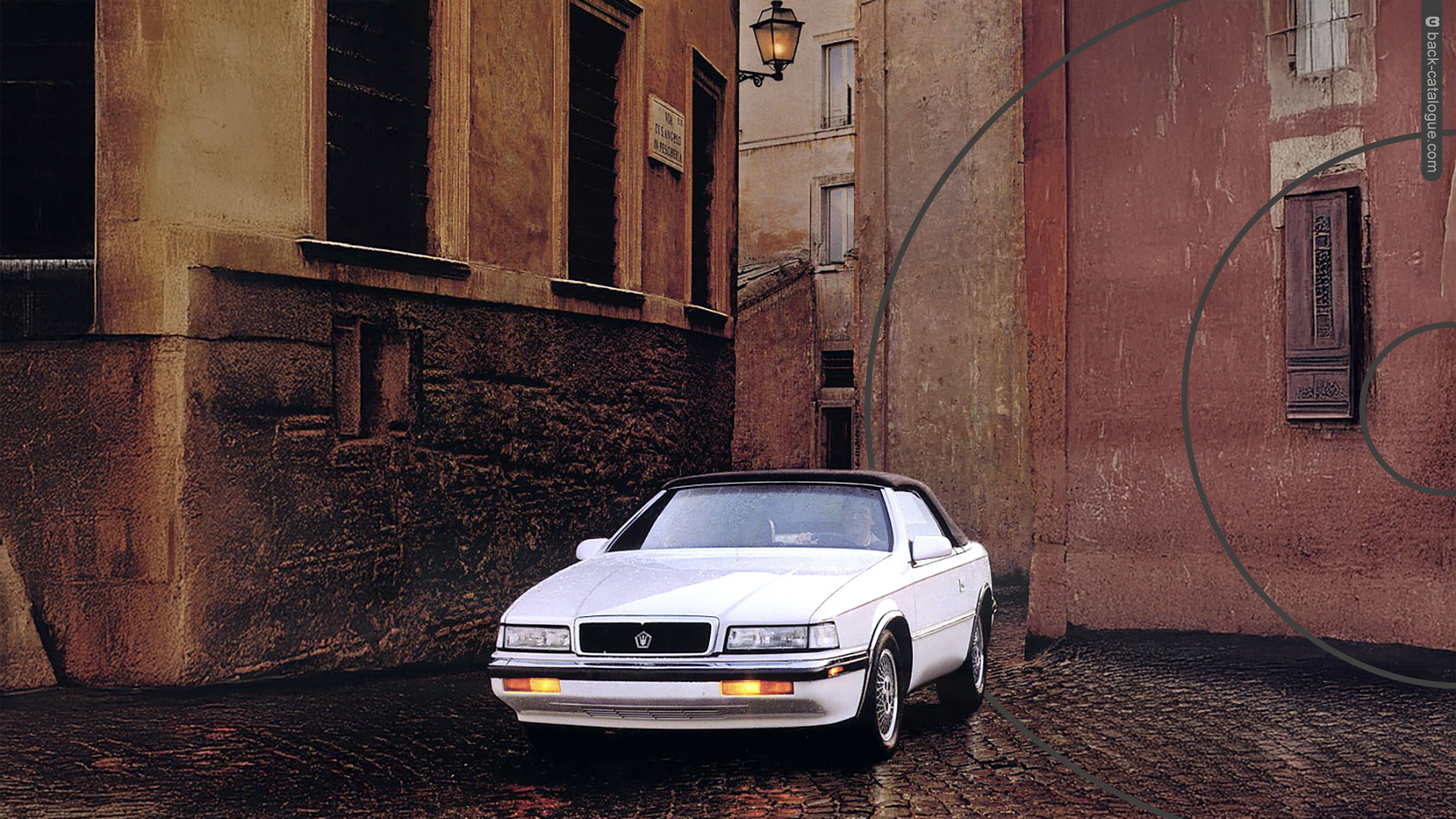

We speak of "new generations" of automobiles. Or of a motor car's "heritage." As if an inanimate object could reproduce its own kind. As if a marque were a breed whose stock could be selectively refined through some sort of industrial biology: Such notions, of course, are absurd. And yet... And yet, there is a chemistry to car building. Occasionally, the right idea is catalyzed by the right people — and a proper design combines with proven engineering and meticulous execution to produce a life-quickening automobile.Chrysler's 1990 TC by Maserati is such an automobile. It is a limited edition, two-seat luxury sport coupe of spirited performance and Euro handling characteristics... an automobile with a heritage that melds 60 years of Chrysler engineering leadership with 70 years of Maserati coachbuilding mastery. If traditions are credentials, the TC's are impeccable. So confident are we of this auto's pedigree that we warrant your satisfaction with the extensive Chrysler Crystal Key Owner Care Program.
Horsepower
Cylinders (in-line)
Displacement (135 CID)
| Curb Weight | 3,274 lb, 1,485 kg |
| Weight Distribution | 45.3% front, 54.6% rear |
| Wheelbase | 93 in. 2363 mm |
| Interior Head Room | 37.40 іn., 950.0 mm |
| Leg Room | 42.40 in., 1076.0 mm |
| Shoulder Room | 55.90 in., 1419.9 mm/ |
| Engine | Chrysler 3.0 liter V-6 | Maserati 16-Valve Intercooled Turbo |
| Displacement | 3.0- liter (181 CID) | 2.2-liter (135 CID) |
| Cylinders | V-6 | Four in-line |
| Type | Single overhead cam | Double overlead cam. turbocharged. intercooled 16-valve |
| Fuel System | Multipoint EFI | Multipoint EFI |
| Compression Ratio | 8.9:1 | 7.3:1 |
| Horsepower | 141 @ 5.000 rpm | 210 @ 5.500 rpm |
| Torque | 171 lb-ft @ 2,900 rpm | 220 lb-Ft @ 3,400 rpm |
| Bore X Stroke | 3.59 x 2.99 | 3.44 x 3.62 |
Poised. It is not such an unlikely term to describe the well-mannered road behavior that characterizes Chrysler's TC by Maserati. Consider some of its refinements: a touring suspension system tuned for road handling, with Fichtel and Sachs gas-charged front struts and rear shocks; the straight-line stability of front-wheel drive; responsive power-assisted rack-and-pinion steering; speed-rated performance-handling radials. The 1990 TC ride is a poised ride, a leveler of the roadway's ups and downs, a calmer of curves. And, most importantly, a poise that is present whenever a stop, even an unscheduled stop, is called for...because the TC by Maserati is engineered with four-wheel power-assisted disc brakes and the Teves antilock system. Every driver knows that the brake pedal should be pumped when a car is in danger of skidding. But poise deserts many drivers in such critical situations. The antilock system is designed to maintain poise. Under conditions that could cause a wheel to lock, the system takes over and automatically "pumps" the brakes to stop the car in the straightest and shortest distance. The system provides braking stability on slippery surfaces and permits the driver to maintain steering control under extreme braking conditions. The 1990 Chrysler TC by Maserati offers driver confidence... for any occasion.

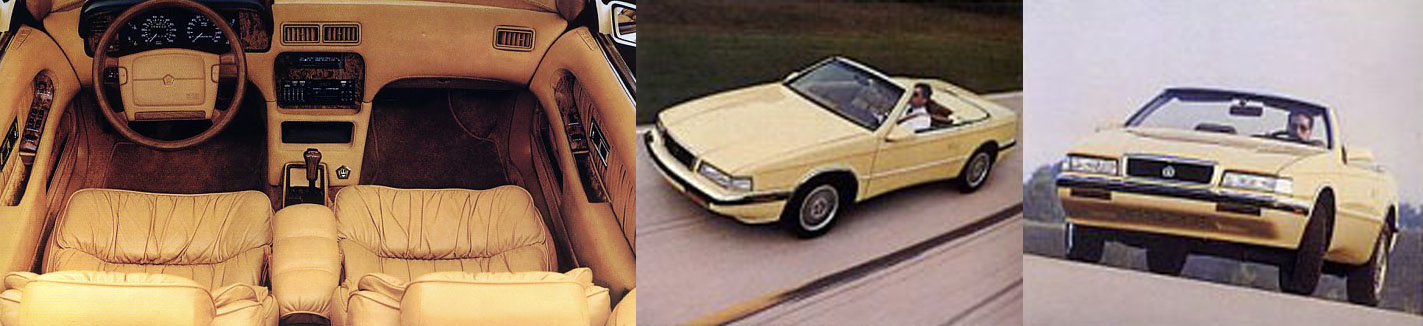

In taly, craftsmen's skills are measured not in years but in generations. The names of Italian tanning firms founded 200 years ago, in an age when handworked leathers appointed courtly carriages, can still be seen around Turino, the coachbuilding capital of Italy. The area is home to Pasubio, the firm that provides the deep-seated luxury of fine, sofi Italian leather for Chrysler's TC by Maserati. Each skin that passes through the Pasubio shop is treated as a distinctive entitv. Todav. thoroughly modern equipment supports the experienced eyes and learned hands of craftsmen who gentle the hides through tanning, dyeing and conditioning processes. Ultimately, the soft, smooth Italian leather provides the superbly fitted facings of the luxuriously comfortable. individually controlled power reclining seats of the 1990 TC. Like a fine Italian suit of clothing, the leather upholstering of the interior of Chrysler's TC by Maserati is treated not as an installation... but as a fitting. Other creature comforts include: dual remote heated outside mirrors; carpeted and lockable rear storage compartment: power windows and door locks; speed control; sport car electromechanical instrumentation; tilt steering column; tinted glass in all windows.

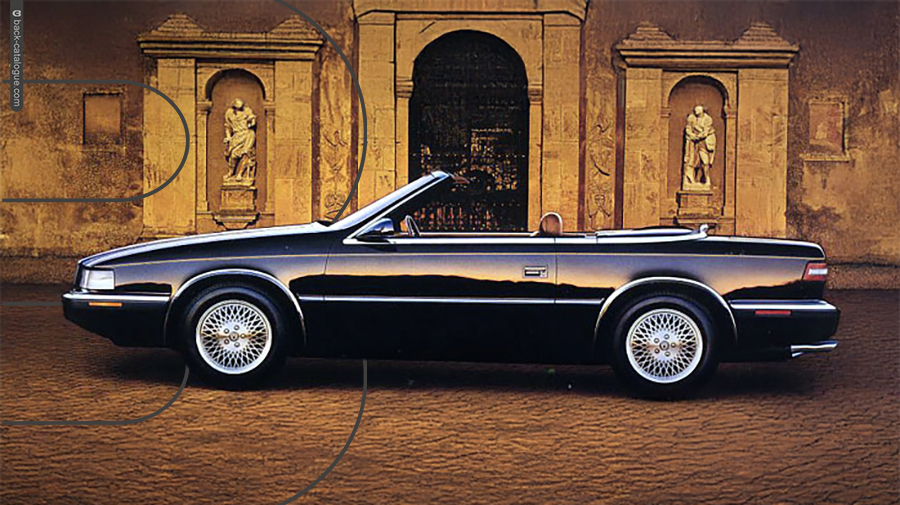

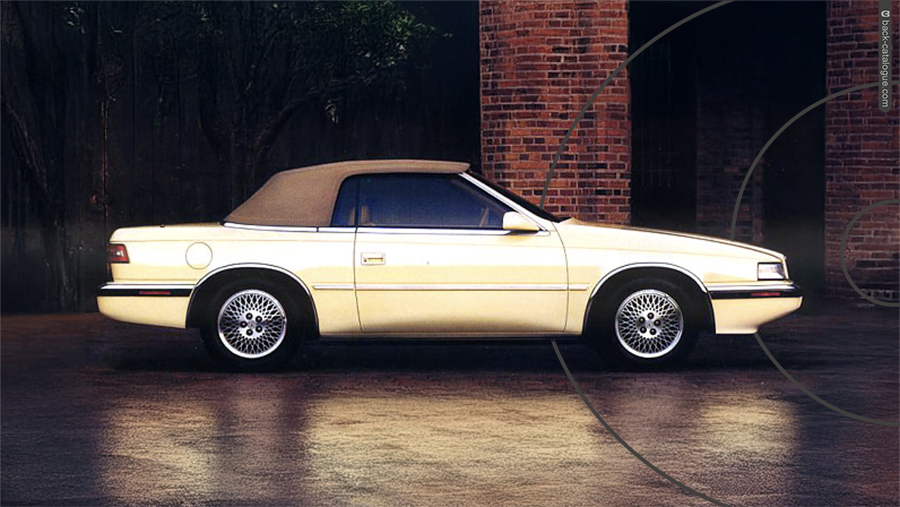

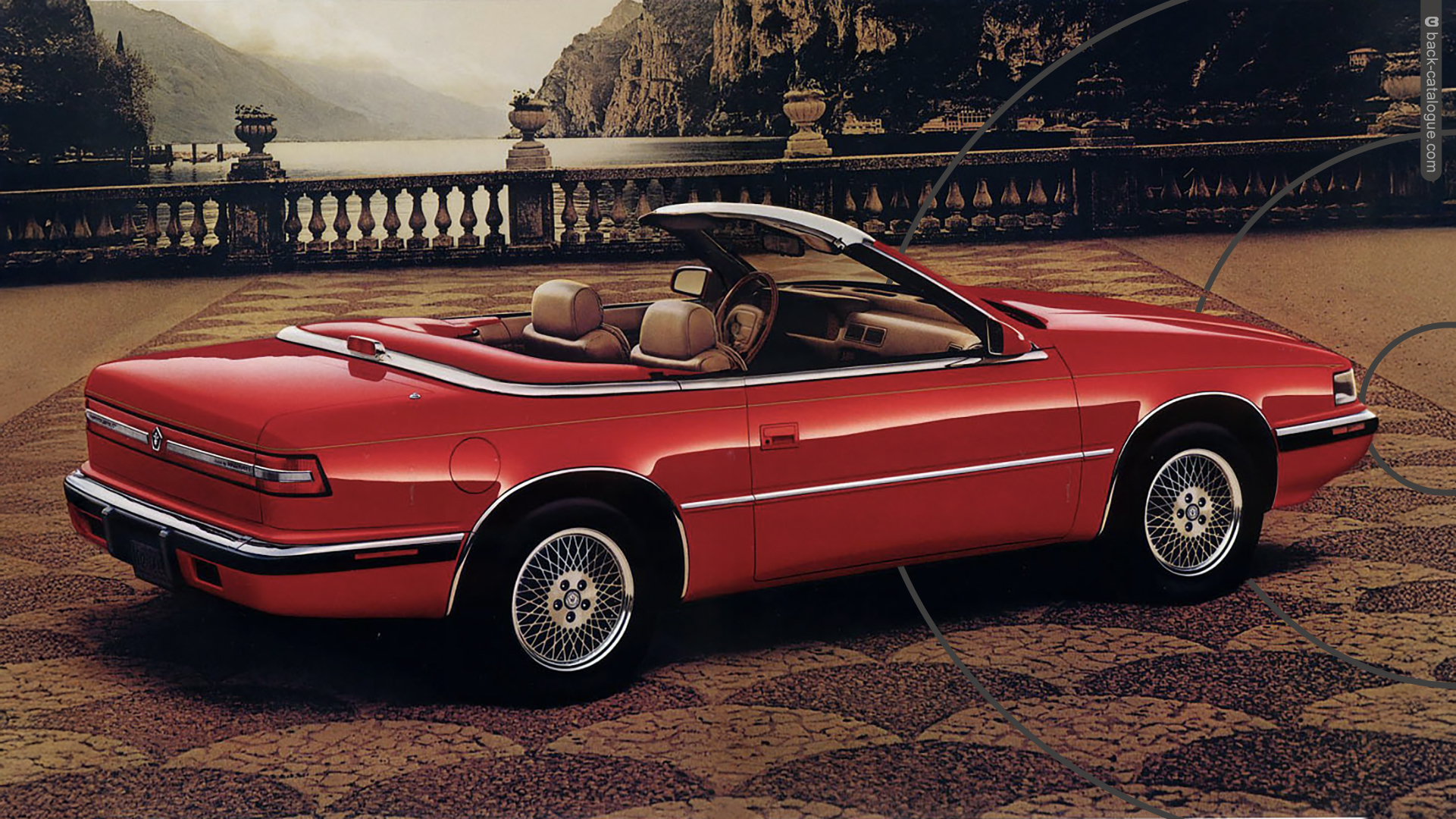

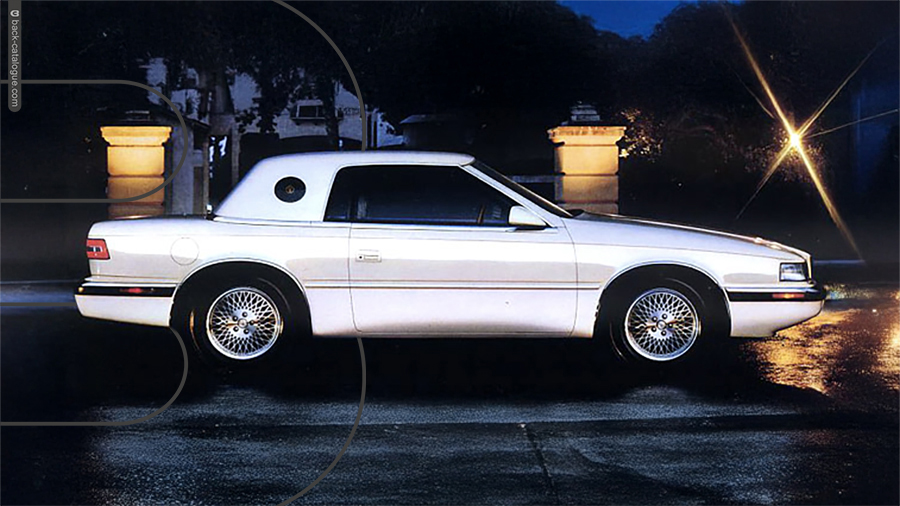

New World innovation, masterfully coupled with Old World subtlety. That's the style of Chrysler's 1990 TC by Maserati. A style created with a feeling for flair. Not only in its sporty lines, but also in its spirited performance. A breath of simple European elegance in the Maserati-style grille; a feel of the future in the low-profile, acrodynamic slants that are characteristically contemporary. Style. You may select the one that best complements your disposition, or merely your mood for today: TC is a top-down roadster for tasting the open air of the open road; it is a traditional top-up convertible; it is a closed grand touring coupe when its hardtop roof is battened down with the six-point latching system that locks out the wind and the rain and the noise of the road. In a personal luxury car, style is inseparable from quality. And both are the products of an obsession with detail. Details such as these: opera windows with Chrysler/Maserati Pentatrident; cornering lights noldings and bumper fascias: aircraft-stvle raked under sills; wraparound taillights... just a few of the quality details Maserati builds into the stylish TC.
Coachbuilding in Italy remains a highly refined craft, and a fine distinction continues to be drawn between assembling an automobile and building one. The coachbuilders of Italy are concentrated in and around Turino, in the Alpine northwest, where for decades these metal craftsmen have formed and fitted the bodies for such admired European marques as Lamborghini, Ferrari...and Maserati. At a factory in Sparone, just 70 kilometers north of Turino, the 1990 Chrysler TC's raw parts— fenders and hoods, deck lids and doors— are pressed and fitted precisely together, jig-locked, and welded. Then the coachbuilders begin their sculpting chores: shaping, filling, rubbing, smoothing until their knowing eyes and hands have fashioned a perfectly smooth form. The handcrafted "body in white" is then shipped to the Maserati factory in Milano, where modern high technology, in the form of a nine-step anticorrosion pretreatment process, takes over. After priming, the color and clear paint coats are applied to provide a lustrous, durable finish. Now detailed attention is focused upon the interior, where TC's luxurious comfort is exemplified in the twin bucket seats, custom-faced with select, exquisitely supple Italian leather. Such demanding craftsmanship produces barely three cars an hour. But those who shape the limited edition sport coupes that Maserati is building for Chrysler are prideful people who have always built their automobiles as if each were one of a kind.
Before Chrysler's TC by Maserati could be proclaimed an extraordinary car, it had to withstand extraordinary testing. A series of TCs were required to pass a testing schedule that was as extensive as it was exhaustive: engines were driven through repeated accelerations and sustained high-speed running drills; transaxles had to withstand torturous quick shifts; brake systems had to function with consistency under the worst road conditions; noise and vibration levels had to measure up to strict standards. All systems were designed to meet the standards of a luxury sport coupe. And all of those exacting standards were met. Exacting standards were required of both of the available TC engines. You may choose either one: Outstanding performance was the standard for the Mitsubishi-built 3.0-liter V-6 multipoint EFI engine. And it delivers that performance with smooth-flowing power. It's teamed with Chrysler's Ultradrive four-speed automatic transaxle with fully adaptive electronic control. The Maserati-built engine is a high-output. 16-valve intercooled turbo with multipoint EFI. Its power is transmitted to the road through a manual precision-shifting, five-speed Getrag gearbox. Either power train combination puts you on the road with power….as well as prestige.
A: CHOOSE EITHER DRIVE TRAIN COMBINATION. MASERATI-BUILT HIGH-OUTPUT. 16-VALVE INTERCOOLED ENGINE WITH GETRAC FIVE-SPEED MANUAL GEARBOX (Shown). Turbocharged for on-demand power. Features multipoint electronic fuel injection, an aluminum cylinder head, four valves per cylinder, and dual overhead camshafts to provide quicker response.
OR
MITSUBISHI-BUILT 3.0-LITER V-6 ENGINE WITH CHRYSLER'S FOUR-SPEED AUTOMATIC ULTRADRIVE TRANSAXLE. Engine features multipoint electronic tuel injection to ensure proper fuelair mixture and maximize fuel economy and single overhead cam for efficiency. Ultradrive transaxle monitors driving conditions to provide precise shifting responses.
B: LOw-MAINTENANCE BATTERY. The 550-amp battery provides dependable starts year-round, and does not require the addition of water by the owner.
C: CORROSION PROTECTION. Galvanized steel is used extensively for many body panels to protect against corrosion. Parts are also protected with a nine-step anticorrosion treatment and lower body panels are protected with a stone-chip resistant urethanc coating.
D: ANTILOCK BRAKES. Power-assisted dual diagonal four-wheel disc brakes, front vented, rear solid-with four-wheel antilock system by Teves that guards against wheel lockup in a skid by automatically "pumping" the brakes to provide the straightest, shortest stop, and to permit steering control under extreme braking conditions.
E: WHEELS. Fifteen-inch cast aluminum road wheels add a sporty, yet sophisticated appearance.
F: STAINLESS PENTASTEEL EXHAUSI. The exhaust system uses corrosion-resistant steel that has superior resistance to rust and to fatigue caused high heat. The system protects against the corrosive estects of weather and road conditions to help extend life.
G: FRONT-WHEEL DRIVE. Provides excellent front-wheel traction and straight-ahead stability on wet pavement, and allows for expanded interior room.
H: AEROSTYLED HEADEGHTS. Provide contemporary stylish appearance: feature composite-type lenses and replaceable halogen bulbs that give a brighter, whiter light and require less power.
I: POWER-ASSISTED STEERING. Rack-and-pinion 14:1 ratio steering is engineered for precision feel and positive, responsive steering with low turning effort and good returnability.
J: PRECISION HANDLING SUSPENSION. Rear suspension features higher control Fichtel and Sachs gas-charged shocks and rear trailing arm beam axle with coil springs, and is specially tuned for smooth road ride. Front suspension 1s specially tuned with Fichtel and Sachs front dual-path gas-charged Iso-Struts and antisway bar for better handling. The gas-charged struts and shock absorbers reduce harshness of the ride and help reduce noise.
K: TIRES. Michelin P205/60 VR15 black sidewall steel-belted radial tires are designed for performance handling.
L: UNIBODY CONSTRICTION. Body sheet metal and structural members are welded into a single unit to add strength to car body:
