Audi Quattro. Its Unusual Design. The most remarkable feature of its design is its all-wheel drive system. Combined with a high-performance chassis, of a kind otherwise found only in racing cars, this drive system demonstrates all of its advantages on the road as well.
For example, its neutral cornering behavior: The understeer or oversteer common with conventional drive systems is virtually eliminated. This allows for higher cornering speeds and provides greater safety reserves at the limit.
Even straight-line stability at high speeds and the car’s response to throttle changes are improved by the all-wheel drive.
Naturally, this system truly comes into its own when it comes to transferring the generous power of the turbocharged engine safely to the road. The engine’s output is distributed to all four wheels, so that even on poor road surfaces, wheelspin is largely prevented.
Under extremely poor road conditions such as slippery surfaces, propulsion is maintained through the optional engagement of the standard differential locks for the center and rear differentials. Sunroof and rear wiper available at extra cost.
Max Power (hp)
Top Speed (km/h)
0-100 km/h (sec)

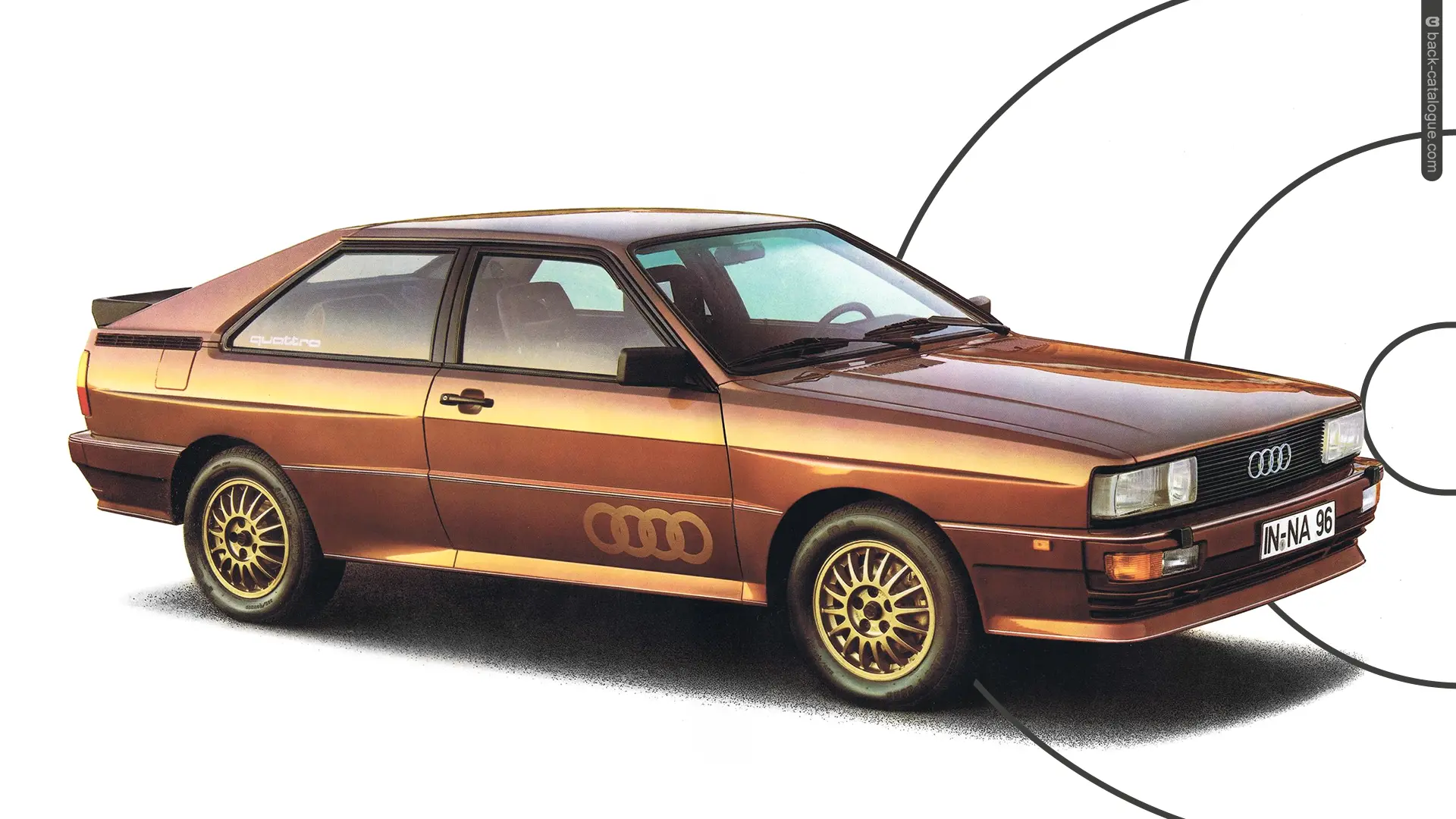

The wedge-shaped body of the Audi Quattro deliberately avoids anything unnecessary. The demands of aerodynamics have helped create its timeless form. Large front and rear spoilers emphasize its sporty appearance and also contribute to its excellent handling, even at high speeds. They reduce lift when driving fast and further improve the already impressive aerodynamic qualities of the Audi Quattro.
The use of elastically deformable materials for the bumper covers and for the front and rear aprons means that minor parking bumps leave no lasting marks.
The 205/60 VR 15 tires have ample room within the flared wheel arches.

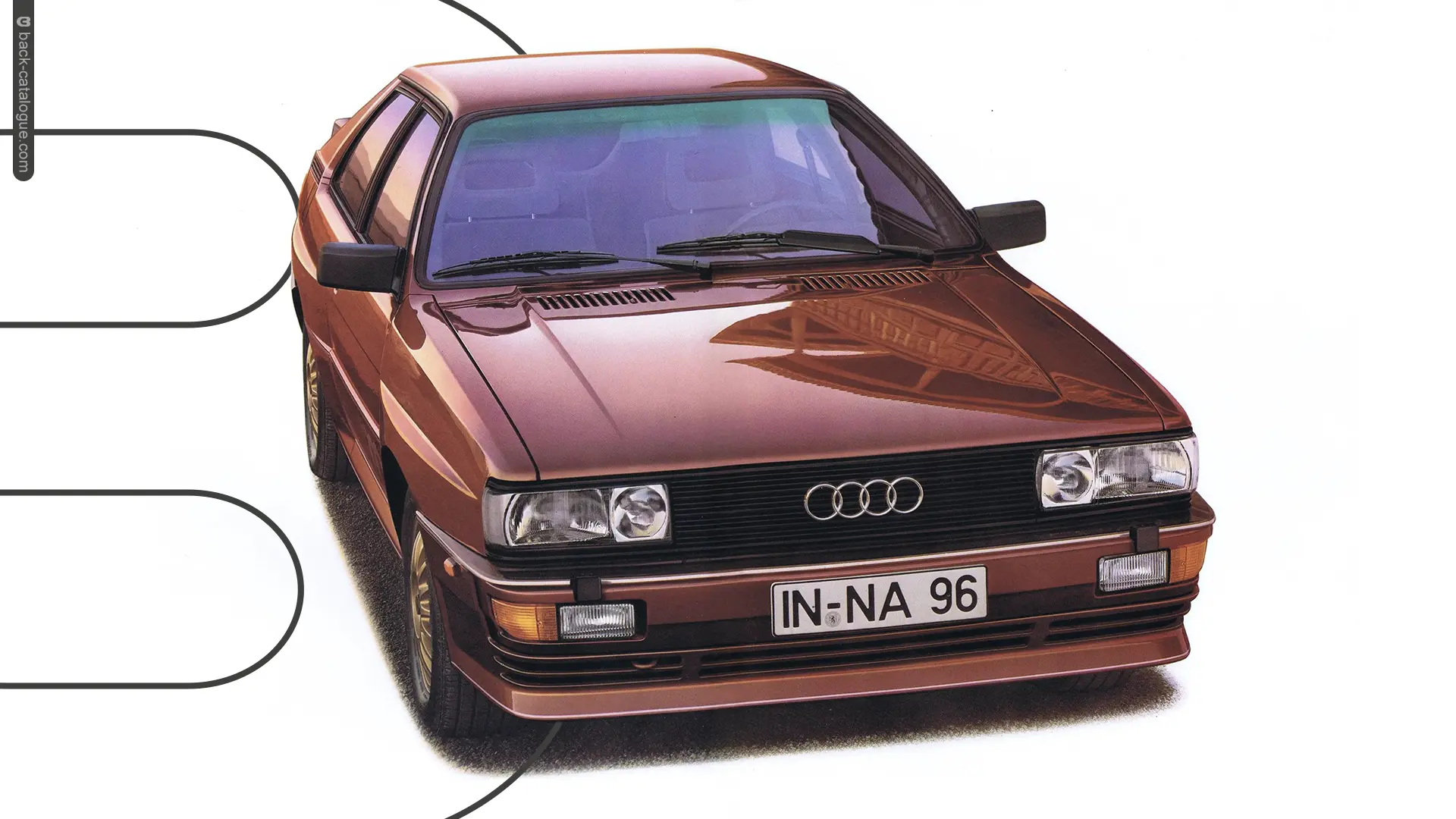

Good nighttime visibility is provided by twin halogen headlights with a headlight cleaning system and fog lamps integrated into the bumpers.

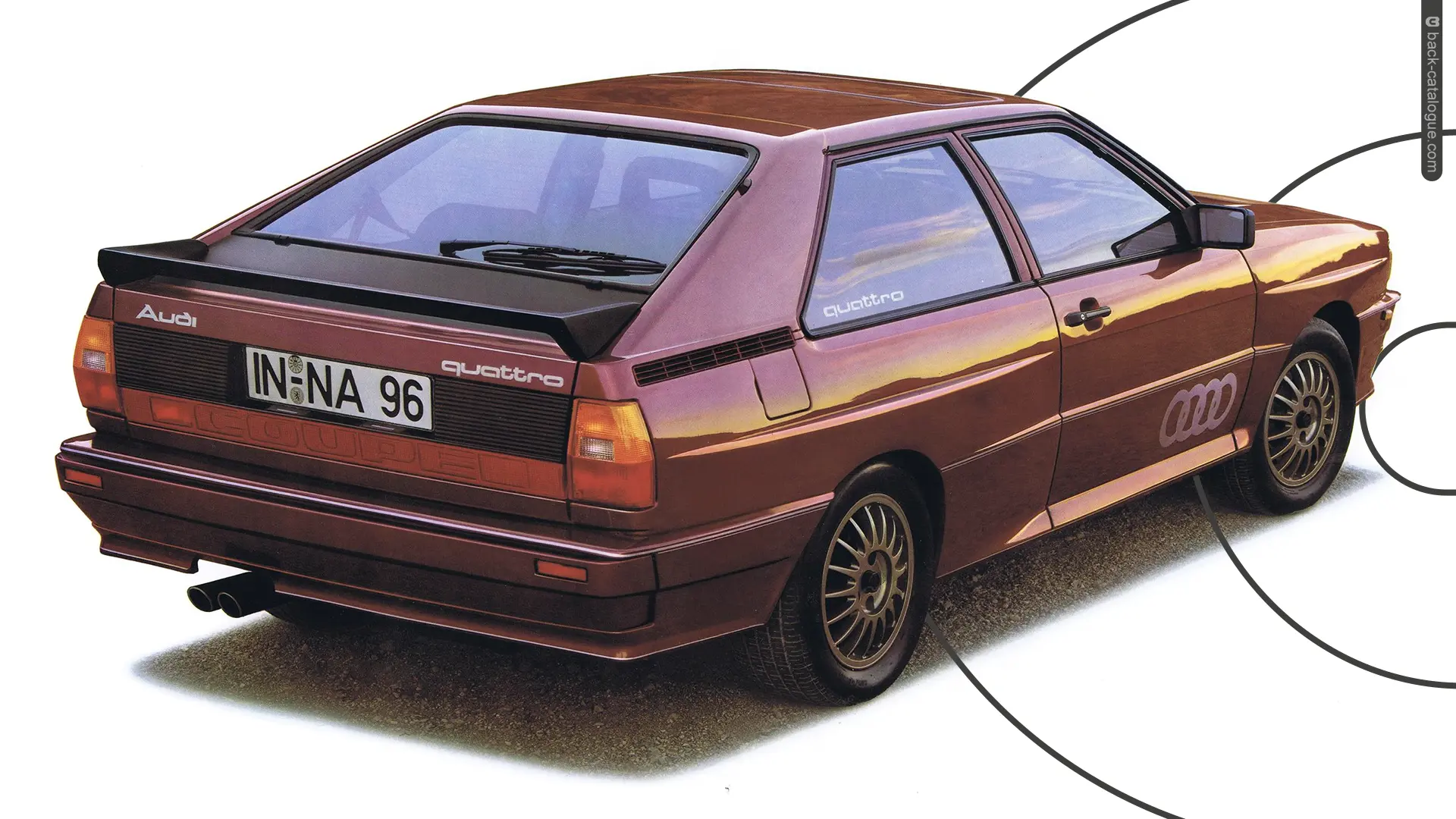

Large rear light clusters and a light strip with integrated rear fog lamp define the rear design.
The laminated safety-glass windshield features a green-tinted sunshade band along its upper edge to protect against glare from sunlight.
The characteristic feature of this turbo engine is its excellent power control, allowing drivers who value efficiency to drive economically. In combination with the fully synchronized five-speed gearbox, you can drive economically or sportily—depending on your mood—but always briskly.
The powerful five-cylinder fuel-injected engine is equipped with an exhaust-gas turbocharger and an additional intercooler.
This means: the exhaust gases drive a turbine, which then supplies the cylinders with pre-compressed air. As a result, the 2.2-liter turbo engine develops 147 kW (200 hp) at 5500 rpm, accelerating the Audi Quattro from 0 to 100 km/h in 7.1 seconds and reaching a top speed of over 220 km/h.
The Audi Quattro thus combines the performance of a high-end sports car with the refinement and quiet running of a grand touring vehicle — typical of Audi’s renowned five-cylinder smoothness and reliability.
All four wheels are independently suspended on struts with lower triangular control arms, ensuring close and consistent contact with the road surface.
The proven toe-stabilizing steering geometry provides exceptional directional stability during braking on uneven road surfaces. This remains true even if the Audi Quattro’s wheels on one side encounter loose ground.
205/60 VR 15 tires on standard 6J x 15 light-alloy wheels enable efficient acceleration and have a positive effect on cornering behavior.
The power steering greatly eases maneuvering at low speeds, yet is tuned to be sporty and responsive, preserving excellent road feel even at high speeds.
The large disc brakes, with servo assistance and a brake-force regulator, deliver powerful deceleration and high safety reserves.
All these technical features together leave the driver of the Audi Quattro with an impression of driving safety never before experienced.
From the outset, we designed the generous standard interior equipment of the Audi Quattro to meet even the highest expectations.

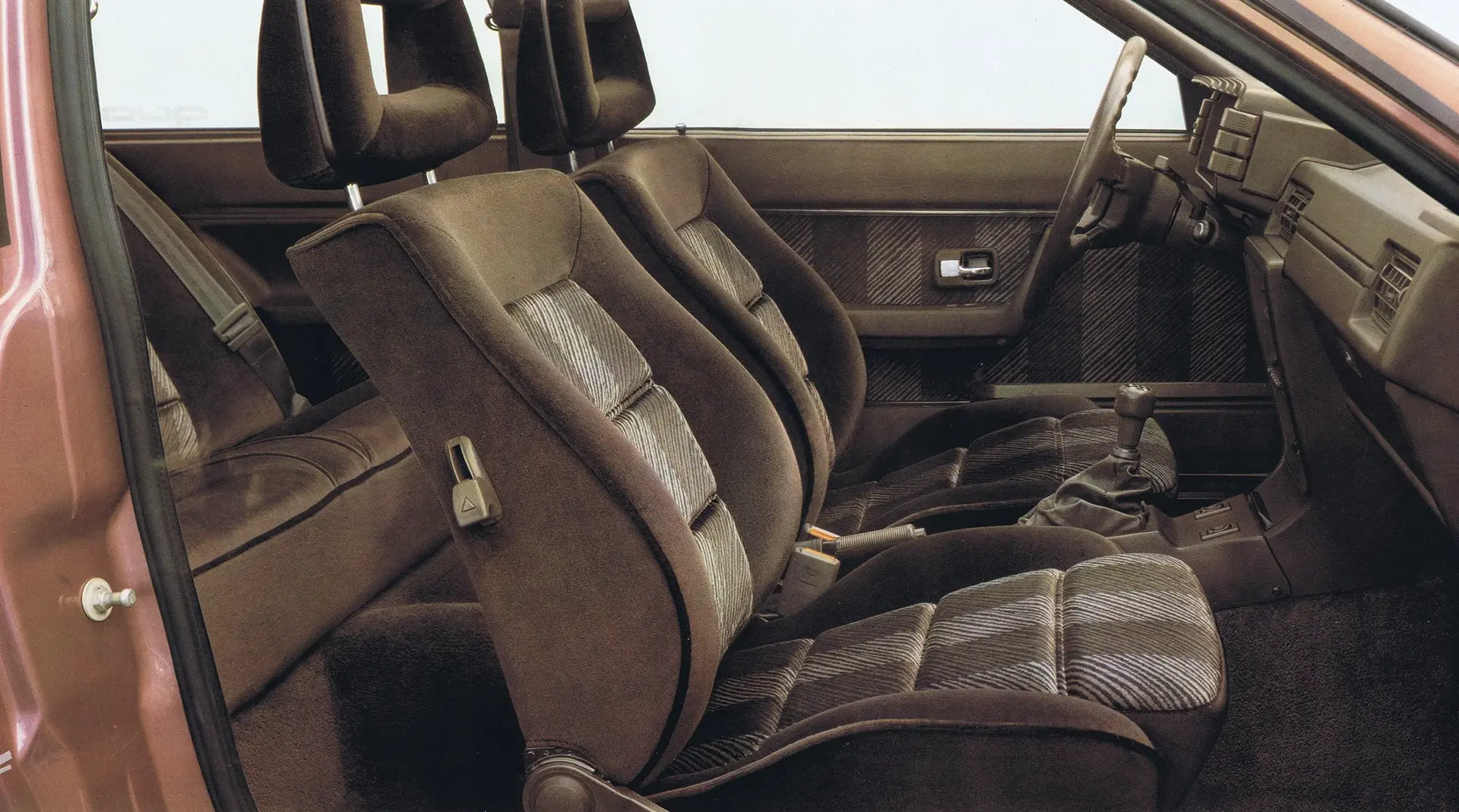

The ergonomically shaped front sport seats, with height adjustment on the driver’s side, provide excellent lateral support and allow fatigue-free driving in an ideal seating position.
Up to three passengers can be comfortably seated on the rear bench seat. All seats are upholstered in high-quality velour, featuring a contrasting pattern on the seat and backrest surfaces. The same fabric is used for the door and headliner inserts. Color-coordinated carpets and trim panels give the spacious interior a warm and inviting atmosphere.
At extra cost, a luxurious leather interior (seats, door panels, and side trim) is also available.
A fast-responding, finely adjustable heating and ventilation system ensures clear windows and pleasant temperatures.
Frame-style headrests in the front and a rear seatback contoured in the head area, as well as seat belts for all five seating positions, are of course standard.

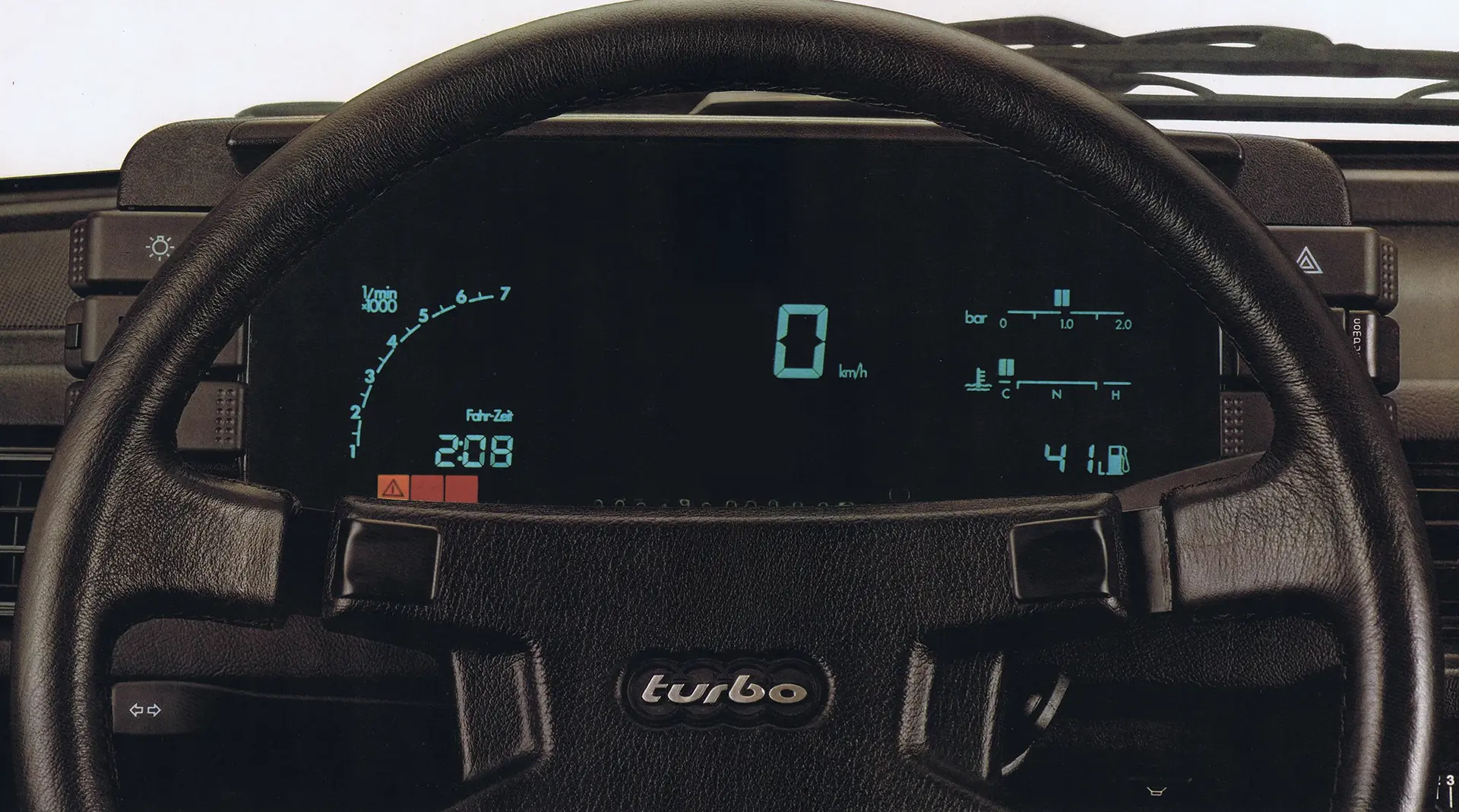

In the Audi Quattro, all essential information is displayed clearly and precisely on its innovative combined instrument cluster. What’s new is that speed, time, and fuel level are shown digitally. With the precise electronic readouts for engine speed, boost pressure, and coolant temperature, you’re always optimally informed.
In addition, the Audi Quattro features a check system that monitors around 15 different functions, such as oil level, cooling system, brake pads, and battery voltage. If a malfunction occurs, it alerts you via the loudspeaker, for example: “Attention — check brake fluid.”
An integrated onboard computer allows you to call up additional information such as instantaneous fuel consumption, average speed, or remaining range.
All important switches and control levers are within easy reach, even when wearing a seatbelt, and are arranged around the leather-covered four-spoke steering wheel.
The two electrically adjustable exterior mirrors are equipped with integrated heating elements, ensuring clear visibility even in freezing temperatures.
Standard seat upholstery: Quattro velour — Black. Leather seat upholstery available at extra cost: Bblack or Sierra (light beige).
Standard exterior paint colors: Mars Red, Alpine White, Zermatt Silver Metallic, Montego Black Metallic, Amazon Blue Metallic, Portorose Metallic.
| Audi Quattro | |
| Engine Type | Five-cylinder inline engine |
| Fuel System | Mechanical injection system Exhaust gas turbocharging and intercooling |
| Displacement | 2.2 litres (2144 cm³) |
| Power Output | 147 kW (200 PS) according to DIN at 5500 rpm |
| Maximum Torque | 285 Nm at 3500 rpm |
| Electrical System | 12 V / 63 Ah battery, alternator 90 A max. Fully electronic transistor ignition with boost pressure and temperature control |
| Transmission | Fully synchronized 5-speed manual gearbox with integrated front differential. Additional lockable centre differential for torque distribution between front and rear axles. Lockable rear differential, power transmitted via driveshaft. |
| High-Performance Chassis | Front and rear suspension with coil springs and telescopic dampers. Front stabilizer bar. Independent suspension with struts and lower wishbones front and rear. Anti-roll radius on front axle. Braking system: dual-circuit with disc brakes front and rear, ventilated. Hydraulic brake booster and pressure-dependent regulator. |
| Steering | Power-assisted steering, safety steering column with collapsible element |
| Wheels/Tyres | Alloy wheels 6 J x 15 / Tyres 205/60 VR 15 |
| Top Speed | Over 220 km/h |
| Acceleration at Half Load | 0–80 km/h: 4.7 seconds. 0–100 km/h: 7.1 seconds |
| Fuel Consumption (DIN) | Fuel consumption measured according to DIN 70030, part 1, 7/78. Urban cycle simulated standard driving. Measurement at constant speed of 90 km/h and 120 km/h. Note: Values depend on vehicle version and conditions. At 90 km/h: 7.7 l/100 km At 120 km/h: 9.7 l/100 km Urban cycle: 15.4 l/100 km (Super fuel) |
| Dimensions | Wheelbase: 2524 mm Track width front/rear: 1421 / 1457 mm Overall length/width/height: 4349 / 1723 / 1345 mm Ground clearance (min): 135 mm Turning circle: approx. 11.3 m Interior width 1898 mm, elbow width 1378 mm Seating area: 2.62 m² |
| Weights | Kerb weight: 1300 kg Gross weight: 1760 kg Axle load front/rear: 980 / 950 kg. Note: Optional equipment may increase kerb weight and reduce payload. |
| Permissible Trailer Load (braked/unbraked) | 1400 / 560 kg. Note: At higher altitudes engine power decreases. At 1000 m above sea level reduce permissible trailer load by 10%. |
| Luggage Compartment Volume | Measured conventionally with 50 mm spheres: 383 litres VDA cubic measurement: 330 litres |
Exterior Equipment: Metallic paint finish. Laminated safety-glass windshield with green sunshade band. Large integrated front spoiler. Front and rear bumpers integrated into the aprons, covered with plastic. Light-alloy wheels. Dual continuous decorative stripes around the body. Bright trim strip above and below the grille. Black rain gutter moldings. Black door and side window frames. Decorative panel between rear lights. Rear spoiler. Air deflector on driver’s side wiper arm. Side repeater indicators. Red light strip with “Coupé” lettering between taillights.
Interior Equipment: Fabric seat upholstery in Quattro velour. Leather-covered 4-spoke sports steering wheel. Front sport seats. Reclining seat function for driver and front passenger. Height-adjustable driver’s seat. Adjustable frame-style headrests for front seats. Sculpted rear bench with contoured backrest in the head area. 3-point automatic seatbelts for front seats. Two three-point automatic belts and one static lap belt for rear seats. Front seatback locking mechanism. Molded headliner with fabric inserts. Anti-dazzle interior mirror. Folding and swiveling sun visors with illuminated vanity mirror on passenger side. Storage compartment on driver’s side. Lockable, illuminated glove compartment on passenger side. Rear armrest compartments. Center console. Door pockets. One illuminated ashtray in front and one in the rear right. Passenger grab handle. Rear grab handles with coat hooks. Door armrests with integrated pull handles. Door and side trim with fabric inserts and top/bottom decorative strips. Trim on door sills and window ledges. Trim on all roof pillars. Carpeted footwells with scuff protection on driver’s side. Fully carpeted luggage compartment. Black protective door sill guards.
Functional Equipment: Halogen main headlights. Integrated halogen fog lights. Two reversing lights. Rear fog light. Heated rear window. Two-speed wipers with intermittent and tip-wipe functions. Electric windshield washer system. Intermittent wiper and wash-wipe automatic function. Headlight cleaning system. Lockable fuel cap. Combined ventilation and heating system with 3-speed blower, footwell outlets, and dashboard vents. Defroster vents for windshield and side windows. Forced ventilation system.
Electronic Instrument Cluster: Speedometer, odometer, trip counter, clock, tachometer, fuel gauge, and coolant temperature gauge. Warning lights for alternator, oil pressure, indicators, high beam, boost pressure, handbrake, and brake fluid level. Onboard computer displaying time, trip duration, average speed, average fuel consumption, instantaneous consumption, and range. Check system with audible alerts monitoring operational conditions. Hazard warning system. Parking light function. Adjustable instrument lighting. Illuminated switches and HVAC controls. Illuminated cigarette lighter in center console. Interior light with door contact switches (driver and passenger doors). Separate luggage compartment light. Electrically adjustable and heated exterior mirrors on both sides. Power-assisted steering. Dual-tone horn. Permanent underbody and wheel-arch protection. Cavity protection. Lockable center and rear differentials. Stainless-steel exhaust system with twin tailpipes. Leather gearshift knob and boot. Space-saving spare wheel.
Optional Extras (at additional cost): Electrically heated front seats. Central locking system. Cruise control. Rear window wash/wipe system. Green-tinted heat-insulating glass. 7J x 15 light-alloy wheels. Removable tilting sunroof. Power windows. Complete stereo radio systems with cassette player and electronic rear antenna. Full leather interior (seats, door, and side panels). Air conditioning (only with heat-insulating glass).
Important Notice: Technical progress makes it possible to extend maintenance intervals and eliminate the need for initial service. A main service is required only after 6 months or 7,500 km, during which only oil and materials are charged. Beyond that, intermediate service intervals are no longer necessary.
