2024 LDV
T60 Max Ute
Featuring all of the power, performance and features you've come to expect from a T60 MAX, like the bi-turbo 2.0 litre diesel packing 160kW of power and 500Nm of torque.
◾️ 2.0L Bi-Turbo Diesel Engine - 160kW & 500Nm ◾️ 8 Speed ZF Auto with Paddle Shift ◾️ 10.25" Infotainment with Apple CarPlay™/Smartphone Connectivity ◾️ Side Steps, Roof Rails & Stainless Steel Sports Bar ◾️ Reverse Camera ◾️ Cruise Control ◾️ 7 Year/200,000km Warranty (whichever occurs first)
Changes from Pro: ◾️ 19" Black Alloy Wheels with Black Wheel Arches ◾️ Black Sailplane, Roof Rails & Side Steps ◾️ Lane Departure Warning ◾️ Rear On Demand Differential Lock ◾️ 360 Degree Panoramic Camera ◾️ Leather Trim Seats ◾️ Keyless Entry & Push Button Start
Changes from Luxe: ◾️ Lane Keep Assist4, Adaptive Cruise Control4 and Autonomous Emergency Braking (Auto only) ◾️ Dual 12.3” Infotainment & Driver Displays with Apple CarPlay & Android Auto ◾️ Wireless Mobile Charging Pad (Auto only) ◾️ Black Side Mirrors, Rear Bumper, Door Handles and Tray Handle ◾️ Rear Multilink Suspension ◾️ Unique 18” Black Alloy wheels
◾️ 315mm Longer Tub ◾️ 2.0L Bi-Turbo Diesel Engine - 160kW & 500Nm ◾️ 19" Black Alloy Wheels with Black Wheel Arches ◾️ Black Sailplane, Roof Rails & Side Steps ◾️ Rear On-Demand Differential Lock ◾️ Leather Trimmed Seats ◾️ 7 Year/200,000km Warranty (whichever occurs first)
Changes from Mega Tub: ◾️ Lane Keep Assist4, Adaptive Cruise Control and Autonomous Emergency Braking (Auto only) ◾️ Dual 12.3” Infotainment & Driver Displays with Apple CarPlay & Android Auto ◾️ Wireless Mobile Charging Pad (Auto only) ◾️ Black Side Mirrors, Rear Bumper, Door Handles and Tray Handle ◾️ Rear Multilink Suspension ◾️ Unique 18” Black Alloy wheels
Hill Descent Control With Hill Descent Control and 27° approach / 24° departure angles, the T60 MAX can help you take on the weekend.

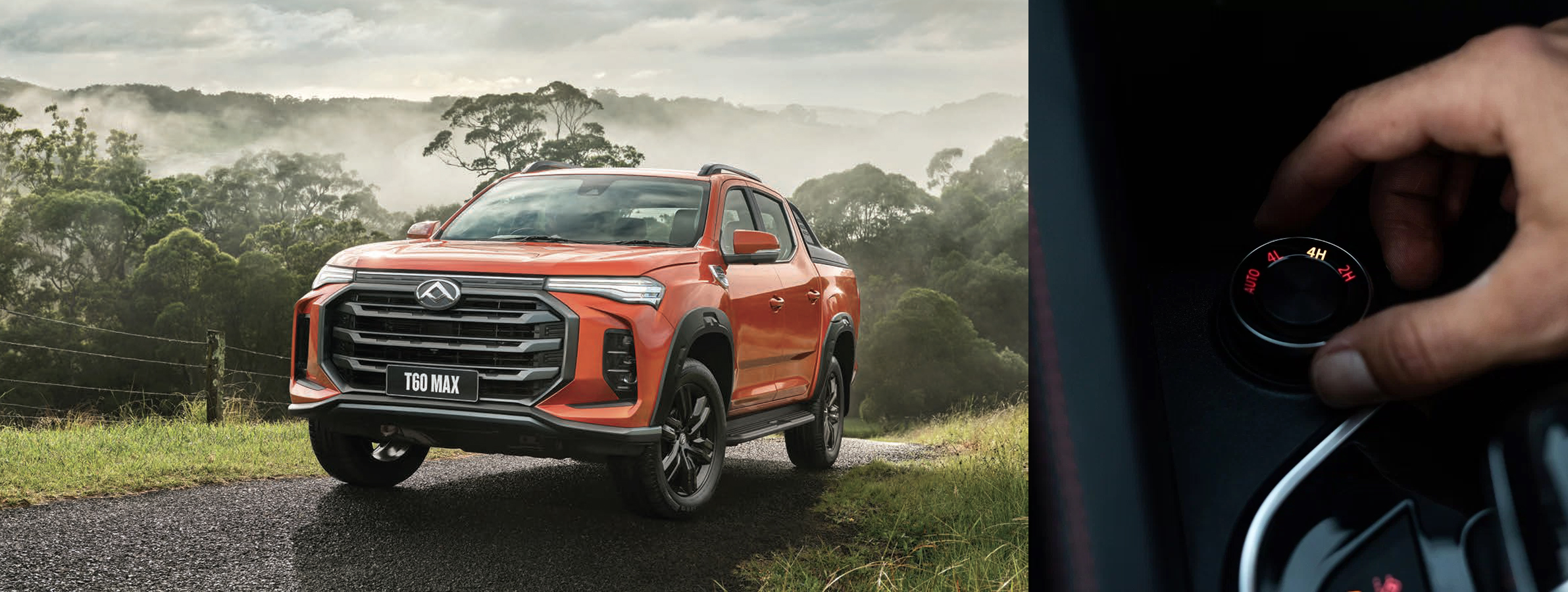

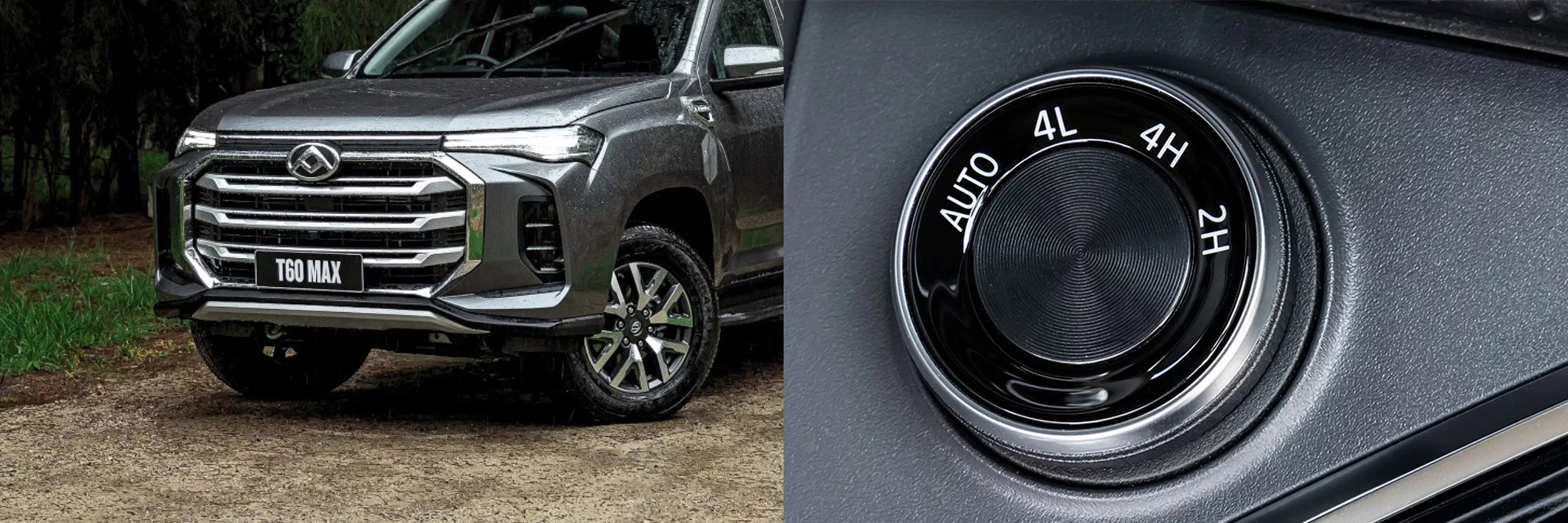

2WD and 4WD selector Be ready for action with a 2WD & 4WD High and Low Selector, letting you switch on the fly between modes.
Rear on-demand diff lock Take the guesswork out of conditions with an On Demand Rear Differential Lock (Luxe & Plus) and an intelligent real-time Torque on Demand system.
Get noticed for all the right reasons with integrated horizontal LED daytime running lights, full LED headlights, 17" alloy wheels, plus a standard sports bar, roof rails and side steps.

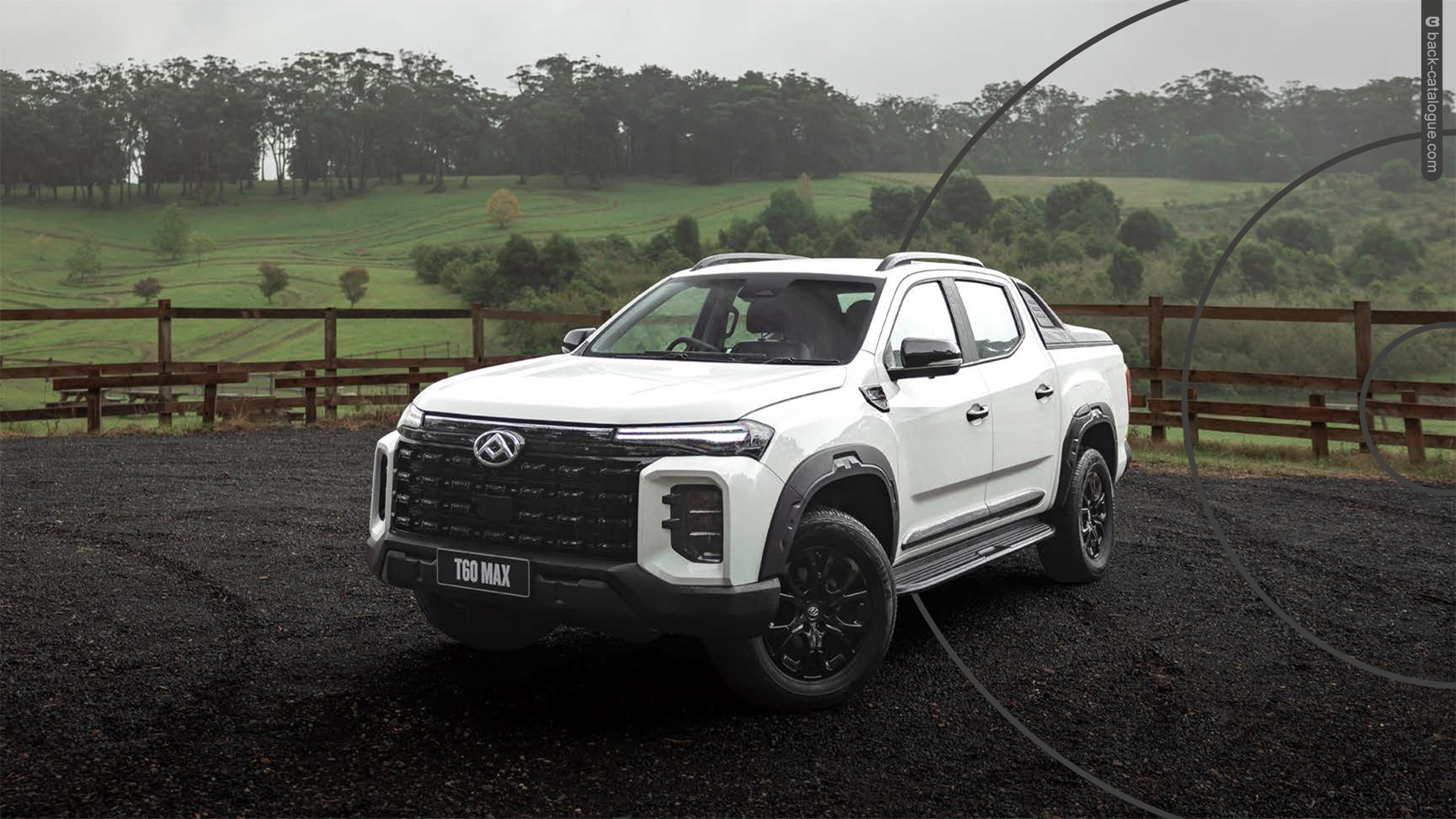

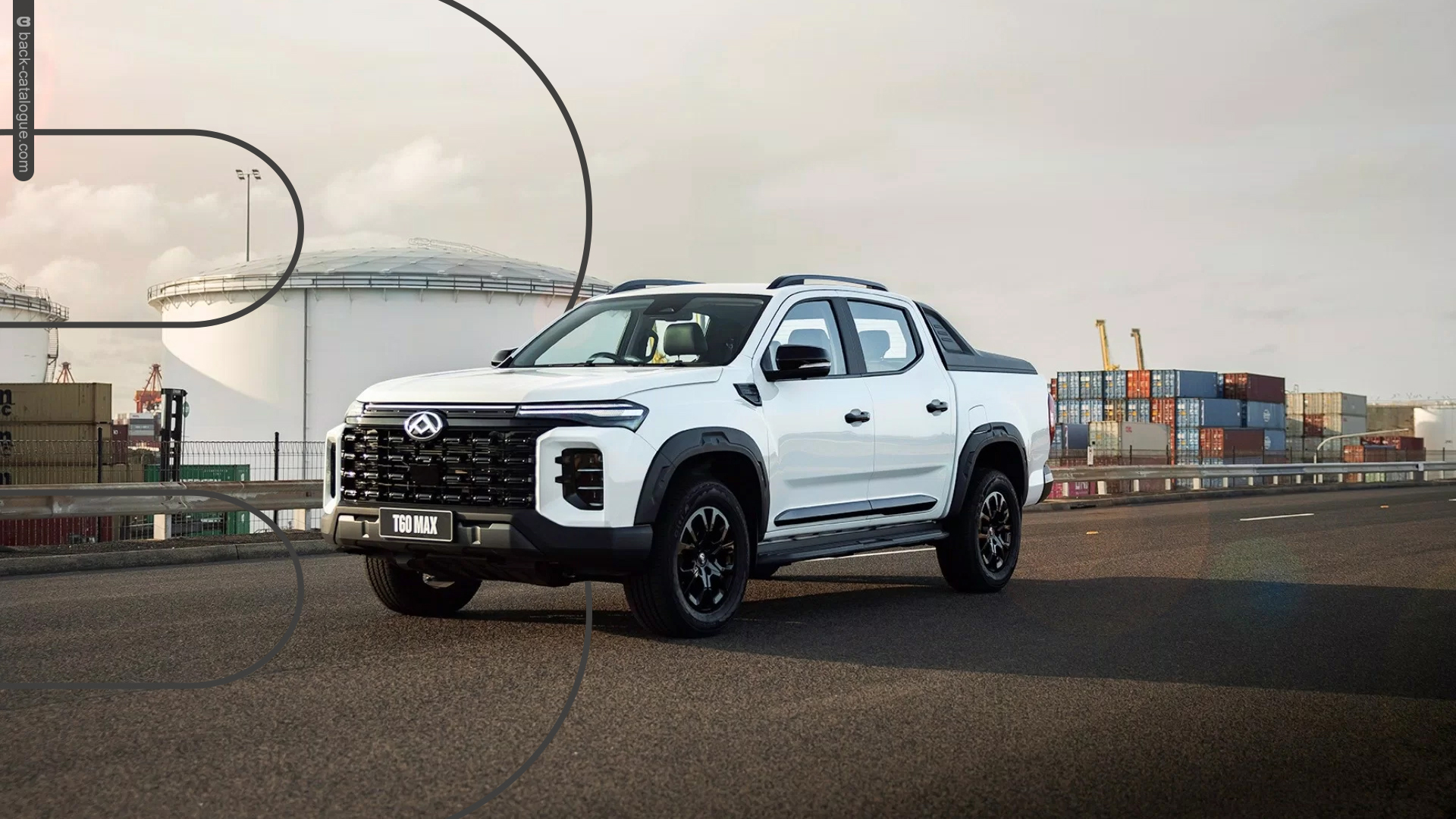

The T60 MAX Plus features a bold front design sporting a unique black grille that sets it apart. Enhancements unique to the Plus include black accents including the side mirrors, rear bumper, side mouldings, side badging, door handles and 18” black alloy wheels.

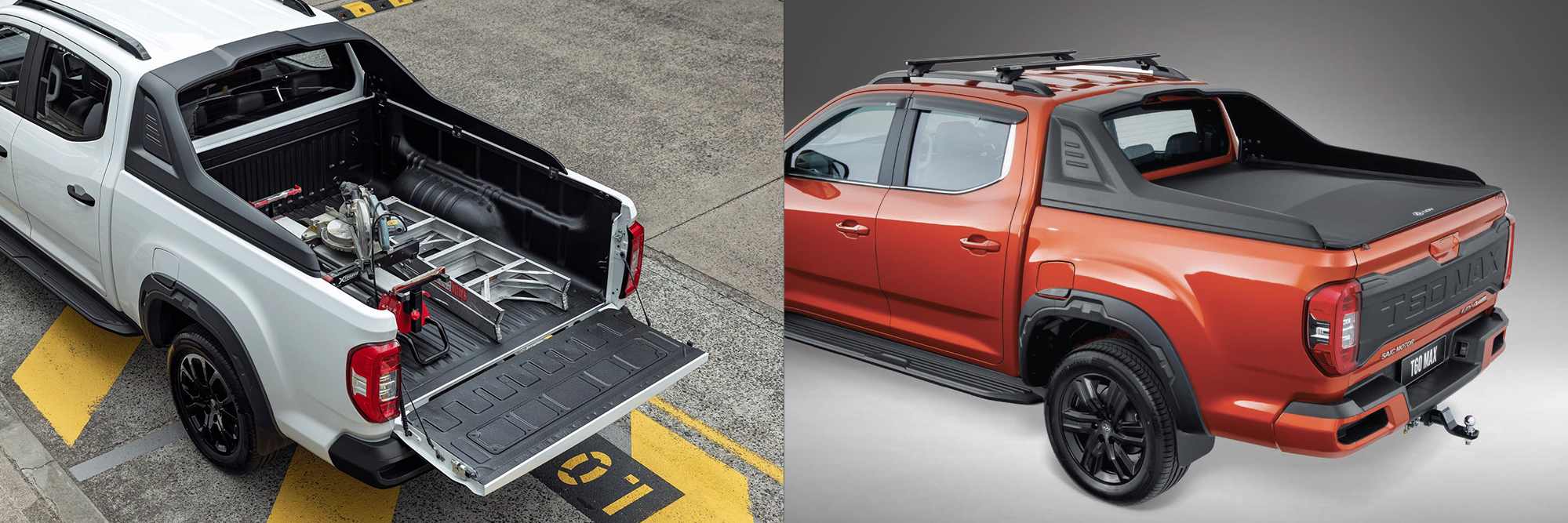

The Mega Tub Plus brings even more space for big weekends. With an extra 315mm in the tub, it has a maximumtub length of 1840mm (top of box), meaning bikes can stand upright and a typical 6ft tradie ladder fits in the back.

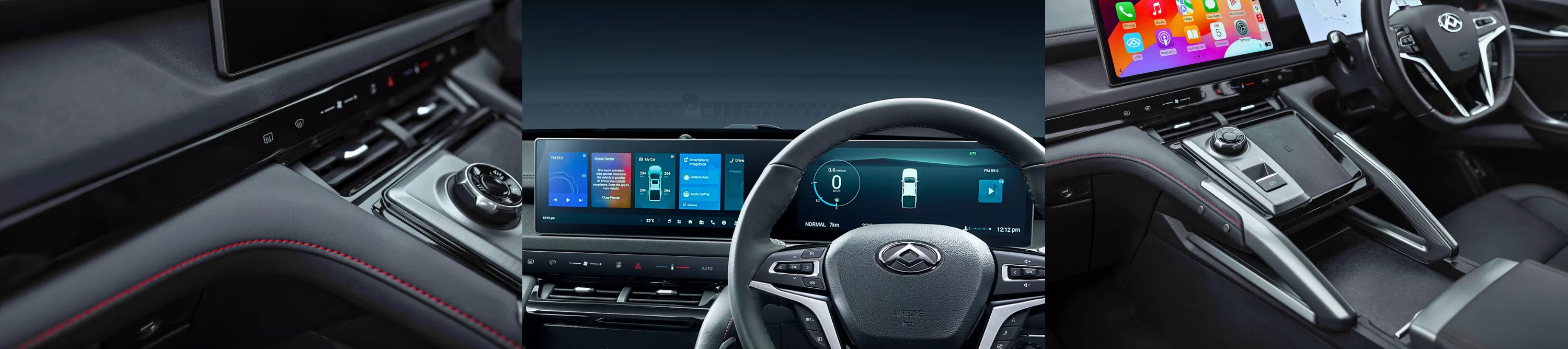

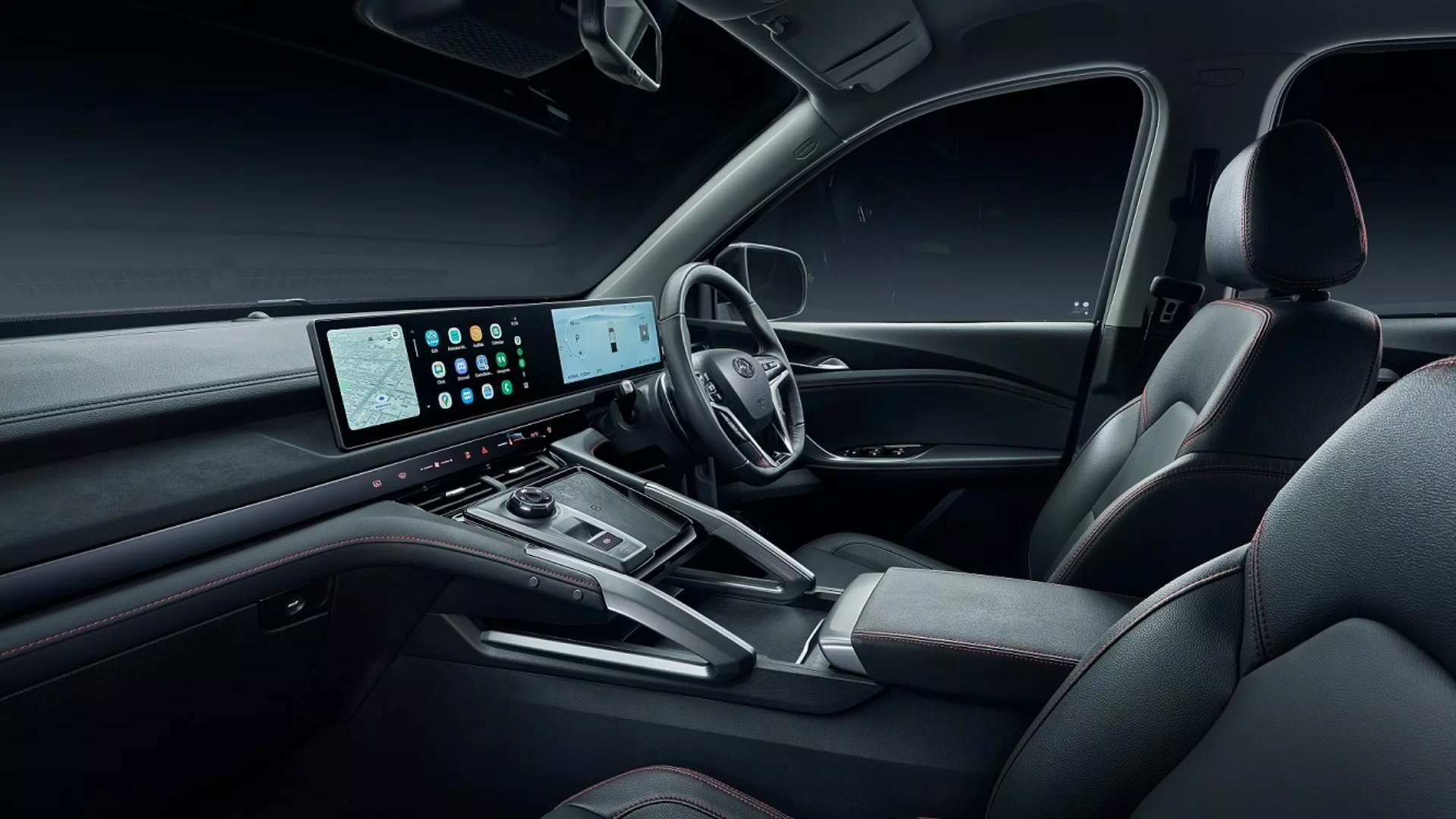

Step inside the Plus where stunning dual displays, elevated tech and design come together in one sleek cockpit.
With more technology and soft finishes inside, it's an interior that looks and feels good.
Bright, dual 12.3" displays on the Plus feature Apple CarPlay™, Android Auto™ and house your infotainment and key driver information.
The driver oriented interior of the Plus not only looks stylish, it’s designed with ergonomics in mind with everything within reach including the mobile charging pad (auto only), electronic park brake and three USB ports.

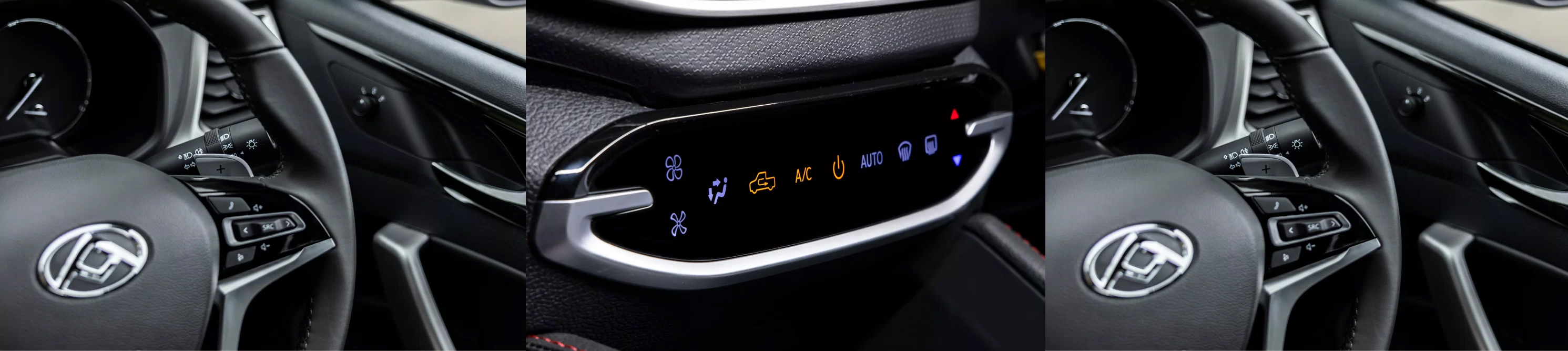

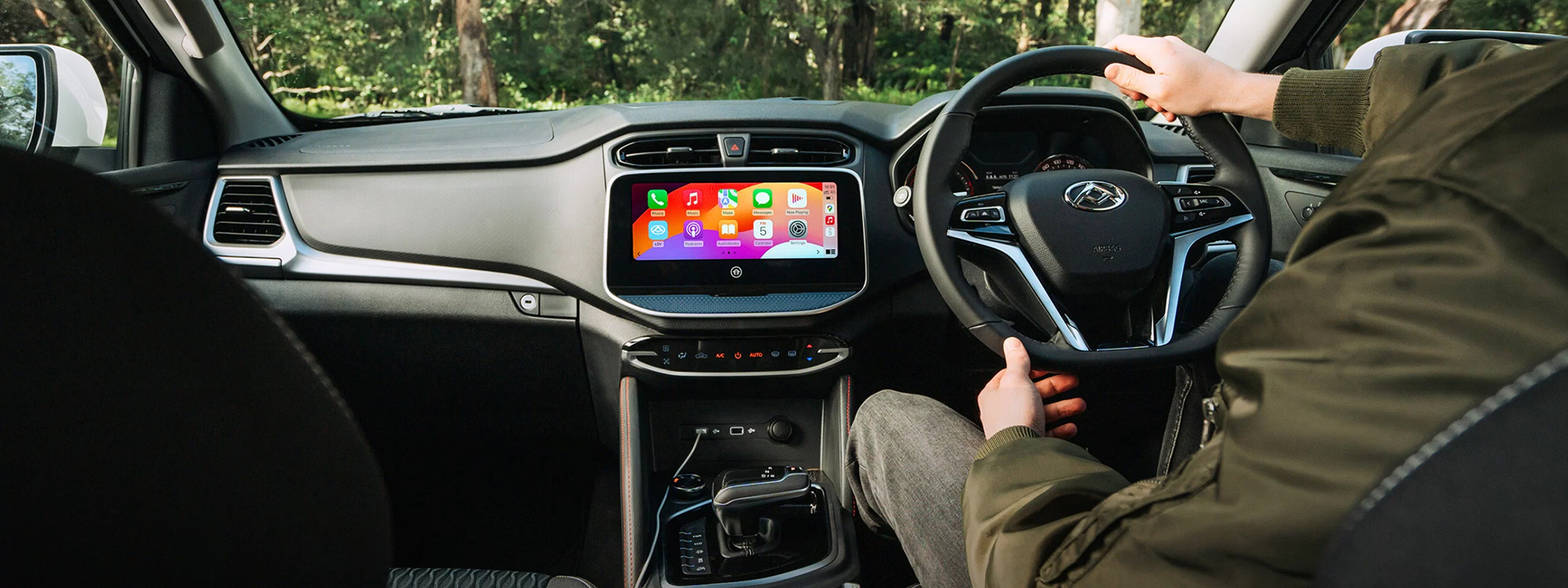

The interior of the Pro blends practicality, comfort and tech. Designed for work and play, it's got everything you need and nothing you don't.
Standard climate control with rear air vents ensures that everyone stays cool.
Stay connected through a high resolution 10.25" display with Apple CarPlay™, smartphone connectivity, Bluetooth and 2 x USB ports.
Standard auto dusk sensing headlights and auto rain sensing wipers add confidence when you're driving at night or in the rain.
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Type | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine | 2.0 L Bi-Turbo Diesel Euro V Engine |
| Maximum Power (kW/rpm) | 160 @ 4000 | 160 @ 4000 | 160 @ 4000 | 160 @ 4000 | 160 @ 4000 | 160 @ 4000 | 160 @ 4000 | 160 @ 4000 |
| Maximum Torque (Nm/rpm) | 500 @ 1500-2400 | 500 @ 1500-2400 | 500 @ 1500-2400 | 500 @ 1500-2400 | 500 @ 1500-2400 | 500 @ 1500-2400 | 500 @ 1500-2400 | 500 @ 1500-2400 |
| Displ (cc) | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 | 1966 |
| Trans | 6SPD Manual | 8SPD ZF Auto | 6SPD Manual | 8SPD ZF Auto | 8SPD ZF Auto | 6SPD Manual | 8SPD ZF Auto | 8SPD ZF Auto |
| Comp ratio | 15:9:1 | 15:9:1 | 15:9:1 | 15:9:1 | 15:9:1 | 15:9:1 | 15:9:1 | 15:9:1 |
| No. of Valves | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| No. of Cyl | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Man shift mode for Auto | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Eco Power mode | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| ST Assist Std/Sprt | ◾️ | ◾️ | ◾️ | |||||
| 2WD and 4WD H and L | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Approach Angle | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
| Departure Angle | 24.2 | 24.2 | 24.2 | 24.2 | 24.2 | 24 | 24 | 24 |
| Front Overhang | 942 | 942 | 942 | 942 | 942 | 972 | 972 | 972 |
| Front/Rear Track | 1580/1580 | 1580/1580 | 1580/1580 | 1580/1580 | 1580/1580 | 1634/1664 | 1634/1664 | 1634/1664 |
| Front/Rear Track | 215 | 215 | 215 | 215 | 215 | 220 | 220 | 220 |
| Overall Length | 5365 | 5365 | 5365 | 5365 | 5680 | 5395 | 5395 | 5710 |
| Overall Height | 1809 | 1809 | 1809 | 1809 | 1809 | 1819 | 1819 | 1819 |
| Overall Width | 2145 | 2145 | 2145 | 2145 | 2145 | 2145 | 2145 | 2145 |
| Rear Overhang | 1268 | 1268 | 1268 | 1268 | 1268 | 1248 | 1248 | 1248 |
| Ramp Breakover Angle | 21.3° | 21.3° | 21.3° | 21.3° | 21.3° | 19° | 19° | 19° |
| Turning Circle | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.7 | 12.7 | 13.8 |
| Wading Depth | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| Wheelbase | 3155 | 3155 | 3155 | 3155 | 3470 | 3175 | 3175 | 3490 |
| Kerb Weight (kg)2 | 2115 | 2125 | 2150 | 2150 | 2170 | 2210 | 2220 | 2250 |
| Payload (kg)2 | 935 | 925 | 750 | 750 | 730 | 840 | 830 | 800 |
| Towing Capacity – Braked (kg) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Autonomous Emergency Braking | ◾️ | ◾️ | ||||||
| Lane Departure Warning | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Lane Keep Assist (LKA) | ◾️ | ◾️ | ||||||
| Fatigue Reminder and Attention Assist | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| ABS | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| EBA | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| EBD | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| ESP | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| HDC | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| HAS | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| RMI | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| TCS | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| VDC | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Rear On Demand Differential Lock4 | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Airbags – Driver and front passenger, side and full-length curtain | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Engine Immobiliser | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Rear Parking Sensors | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Front Parking Sensors | ◾️ | ◾️ | ◾️ | |||||
| Reversing Camera | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| 360 Degree Panoramic Camera | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| TPMS | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Engine Bonnet – Gas Strut | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Single Front Tow Recovery Point | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Front Guard Plate – Matte Silver | ◾️ | ◾️ | ||||||
| Front Guard Plate – Black | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Front Grille – Matte Silver | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Front Grille – Black | ◾️ | ◾️ | ◾️ | |||||
| Front Grille – Black Gloss | ◾️ | ◾️ | ◾️ | |||||
| Door Handle – Body Colour | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Door Handle – Black | ◾️ | ◾️ | ◾️ | |||||
| Door Mirrors – Body Colour | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Door Mirrors – Black | ◾️ | ◾️ | ◾️ | |||||
| Door Side Moulding – Black | ◾️ | ◾️ | ◾️ | |||||
| Side Mirrors – Auto Folding | ◾️ | ◾️ | ◾️ | |||||
| Side Mirrors – Auto Folding with Heating | ◾️ | ◾️ | ◾️ | |||||
| 4 Tub Cargo Tie Down Hooks | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Mudflaps – Front and Rear | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| LED Headlights – Auto Dusk Sensing and Height Adjustable with LED Daytime Running Lights | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Rain Sensing Windscreen Wipers | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Tub Liner – Spray In | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Side Steps | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Roof Rails – Chrome | ◾️ | ◾️ | ||||||
| Roof Rails – Gloss Black | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Sports Bar – Stainless Steel | ◾️ | ◾️ | ||||||
| Sailplane Bar – Black | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Black Wheel arches | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Rear Fog Lights | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Rear Bumper – Black | ◾️ | ◾️ | ◾️ | |||||
| Cargo Tailgate Lock – Key Lockable | ◾️ | ◾️ | ◾️ |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Steering – Rack and Pinion Hydraulic Power Assisted | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Steering – Electric Power Steering (EPS) | ◾️ | ◾️ | ◾️ | |||||
| Front Suspension – Double- Wishbone (Heavy Duty) | ◾️ | ◾️ | ||||||
| Front Suspension – Double- Wishbone (Comfort) | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Rear Suspension – Leaf-Spring (Heavy Duty) | ◾️ | ◾️ | ||||||
| Rear Suspension – Leaf-Spring (Comfort) | ◾️ | ◾️ | ◾️ | |||||
| Rear Suspension – Multi-link | ◾️ | ◾️ | ◾️ | |||||
| Brakes – Front and Rear, disc | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Wheels and Tyres | 17” x 7J Alloy 245/65 R17 | 17” x 7J Alloy 245/65 R17 | 19” x 7J Black Alloy 255/55 R19 | 19” x 7J Black Alloy 255/55 R19 | 19” x 7J Black Alloy 255/55 R19 | 18” x Alloy 265/60R18HT | 18” x Alloy 265/60R18HT | 18” x Alloy 265/60R18HT |
| Spare Wheel | Steel 245/65R17 | Steel 245/65R17 | Steel 245/65R17 | Steel 245/65R17 | Steel 245/65R17 | Steel 245/65R17 | Steel 245/65R17 | Steel 245/65R17 |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Fuel Tank (Litres) | 73 | 73 | 73 | 73 | 73 | 73 | 73 | 73 |
| Combined Fuel Consumption, L/100km1 | 9.2 | 9.3 | 9.2 | 9.3 | 9.3 | 9.3 | 8.9 | 8.9 |
| bon Dioxide Emmissions (g/km) | 243 | 244 | 243 | 244 | 244 | 244 | 232 | 232 |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| Steering column – Height adjustable | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| 12V Power Outlet x 1 | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Air Conditioning – Climate Control | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Rear Air Vents | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Standard Cruise Control | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Adaptive Cruise Control | ◾️ | ◾️ | ||||||
| Rear View Mirror – Manual Dimming | ◾️ | ◾️ | ||||||
| Rear View Mirror – Auto Dimming | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Multifunction Steering Wheel | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Multifunction Steering Wheel with Heating Function | ◾️ | ◾️ | ◾️ | |||||
| Paddle Shifts for Gears | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | |||
| Column Mounted Gear Shifter | ◾️ | ◾️ | ||||||
| Sunglass Holder | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| 4 Cup Holders | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Electronic Park Brake | ◾️ | ◾️ | ◾️ | |||||
| Remote Control Locking | ◾️ | ◾️ | ||||||
| Keyless Entry and Push Button Start | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Pro Manual | Pro Auto | Luxe Manual | Luxe Auto | Mega Tub Auto | Plus Manual | Plus Auto | Mega Tub Plus Auto | |
| 5 Seats | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
| Driver‘s Seat – 6 way Manual adjustment | ◾️ | ◾️ | ||||||
| Passenger‘s Seat – 4 way Manual adjustment | ◾️ | ◾️ | ||||||
| Front Row Seats – 6 way Electronic adjustment with Heating | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ||
| Cloth Seats – Black | ◾️ | ◾️ | ||||||
| Leather Trimmed Seats5 – Black | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ | ◾️ |
